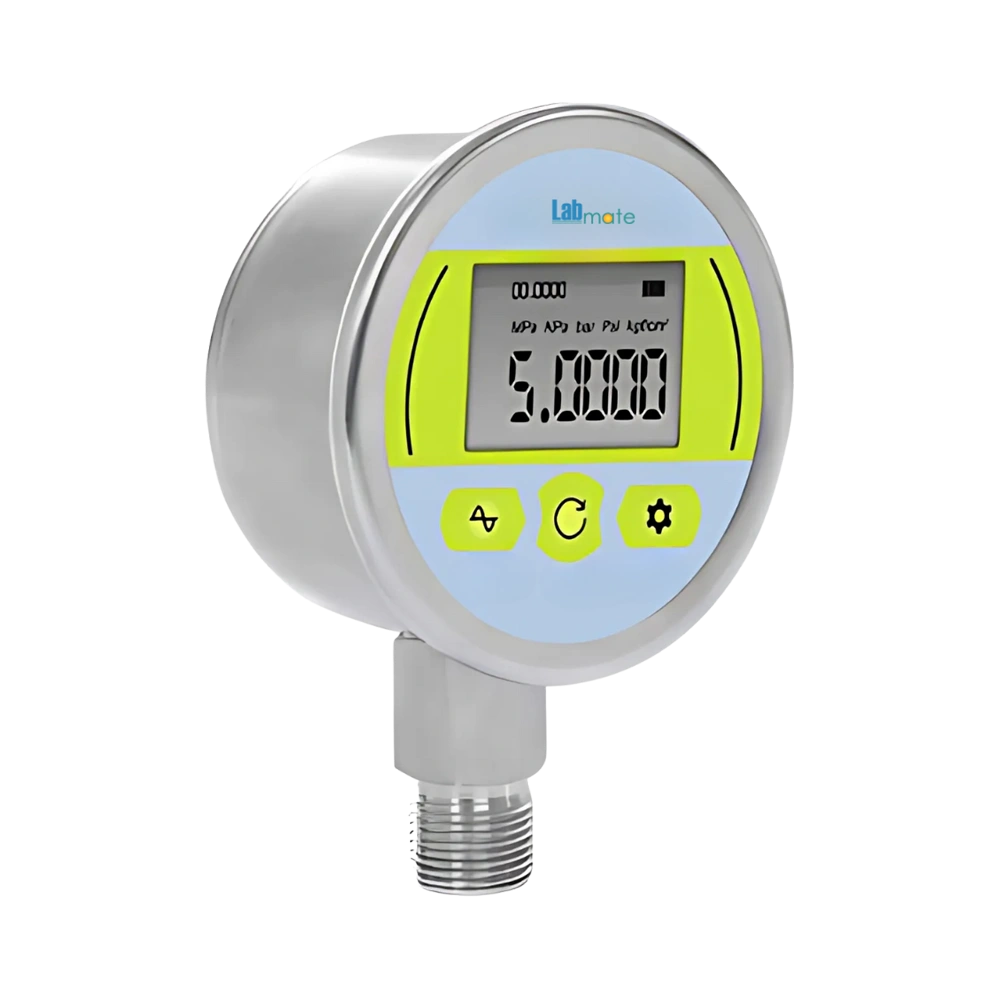

Digital Pressure Gauge LMDPG-A101 is pressure measuring device engineered for reliable monitoring of liquid and gas systems. Equipped with large LCD display, high precision sensor, corrosion-resistant build, and ultra-low power consumption. Supports vacuum, gauge, and absolute pressure measurement. Engineered with stainless steel body ensuring stability even in harsh industrial environments. Suitable for both standalone and integrated setups offering long battery life and easy installation. Our Digital Pressure Gauge LMDPG-A101 is suitable for wide range of industrial and laboratory pressure monitoring applications.
Specifications
| Pressure Range | 0.1 to 0MPa |
| Dial Size | 80 mm |
| Accuracy | 0.5% |
| Pressure Types | Gauge, Absolute, Vacuum |
| Display | 4-digit LCD |
| Measuring Medium | Water, Gas (compatible with SS) |
| Power Supply | 3×AAA Batteries / RS485 (7–24V) |
| Case Material | Stainless Steel |
| Pressure Units | MPa, KPa, Bar, Psi, Kg/cm² |
| Medium Temperature | -20°C to 80°C |
| Working Temperature | -10°C to 60°C |
| Working Humidity | ≤80% RH |
| Connection Sizes | M20×1.5, G1/2, NPT1/4, Customizable |
| Mounting Type | Male Thread (standard) |
| Gross Dimension | 213 × 150 ×90 |
| Weight | 0.5 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Digital Pressure Gauge LMDPG-A101 | $ 1000 | MOQ of 10 |
Features
Large LCD Display
High Precision Sensor
Low Power Consumption
Corrosion-Resistant Body
Applications
Our Digital Pressure Gauge LMDPG-A101 is used in pipelines, tanks, and industrial systems. It is ideal for chemical, pharmaceutical, water treatment, and HVAC applications. Suitable for laboratories, hydraulic setups, and explosive or hazardous environments.
