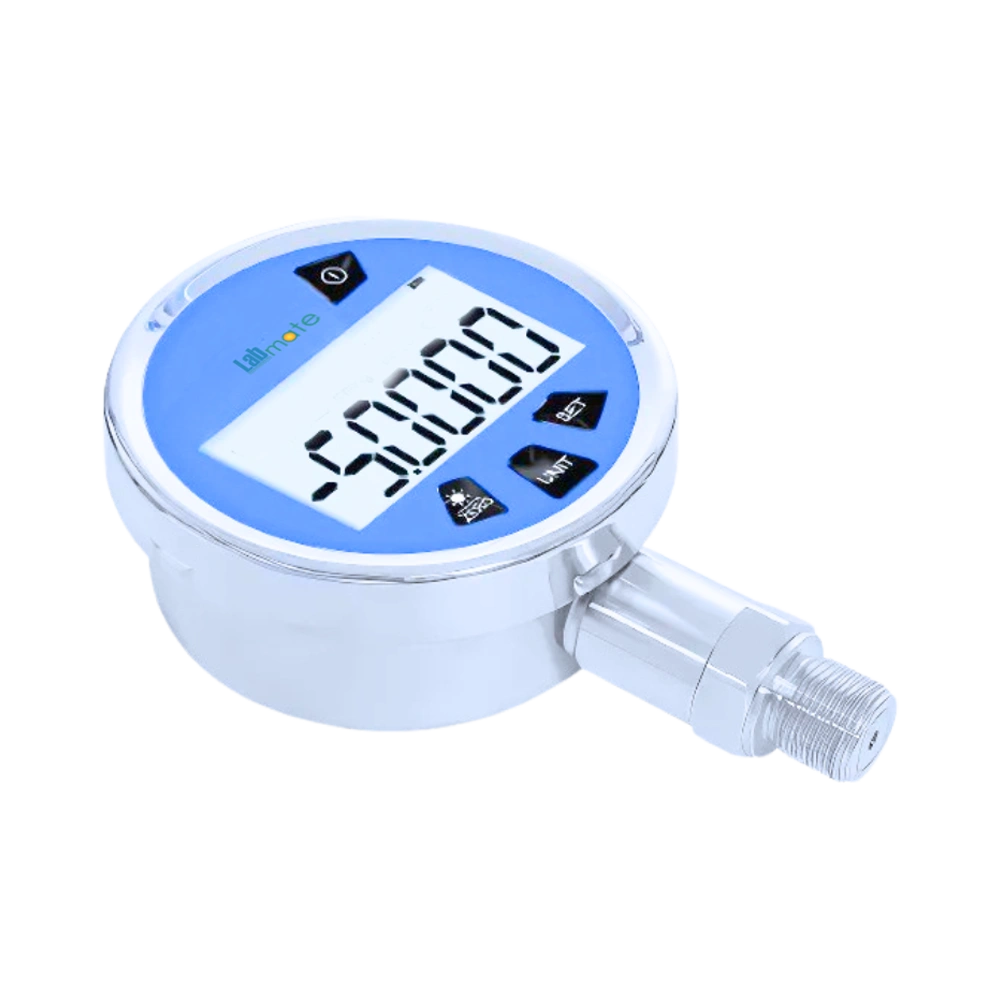

Digital Pressure Gauge LMDPG-C402 is optimized for flexible unit conversion and laboratory integration. Offers reliable interface for precision measurements across vacuum, absolute, and gauge pressure types. Assembled with real-time display features, and communication versatility. Our digital Pressure Gauge LMDPG-C402 is ideal choice for controlled lab environments and instrumentation setups.
Specifications
| Pressure Range | 10kPa to 60MPa |
| Dial Size | 100 mm |
| Accuracy | 0.05% |
| Pressure Types | Gauge, Absolute, Vacuum |
| Display | 5-digit LCD with simulated light bar |
| Measuring Medium | Water, Gas (compatible with SS) |
| Case Material | Stainless Steel |
| Pressure Units | MPa, KPa, PSI, mmHg, bar, kgf/cm² |
| Medium Temperature | -10°C to 60°C |
| Working Temperature | -10°C to 60°C |
| Working Humidity | ≤80% RH |
| Connection Sizes | M20×1.5, G1/4, G1/2, NPT1/4, NPT3/8 |
| Mounting Type | RS485 |
| Gross Dimension | 213 × 150 × 90 mm |
| Weight | 0.6 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Digital Pressure Gauge LMDPG-C402 | $ 1925 | MOQ of 10 |
Features
Clear numerical and analog-style display
Supports multiple pressure scales
High-resolution output with minimal reading drift
Compact frame suitable for benchtop setups
Applications
Digital Pressure Guage LMDPG-C402 is widely used in pharmaceutical R&D labs, fluid mechanics test environments, and academic facilities requiring precise pressure control. Ideal for integration into test rigs, cleanrooms, and calibration lines handling different pressure units.
