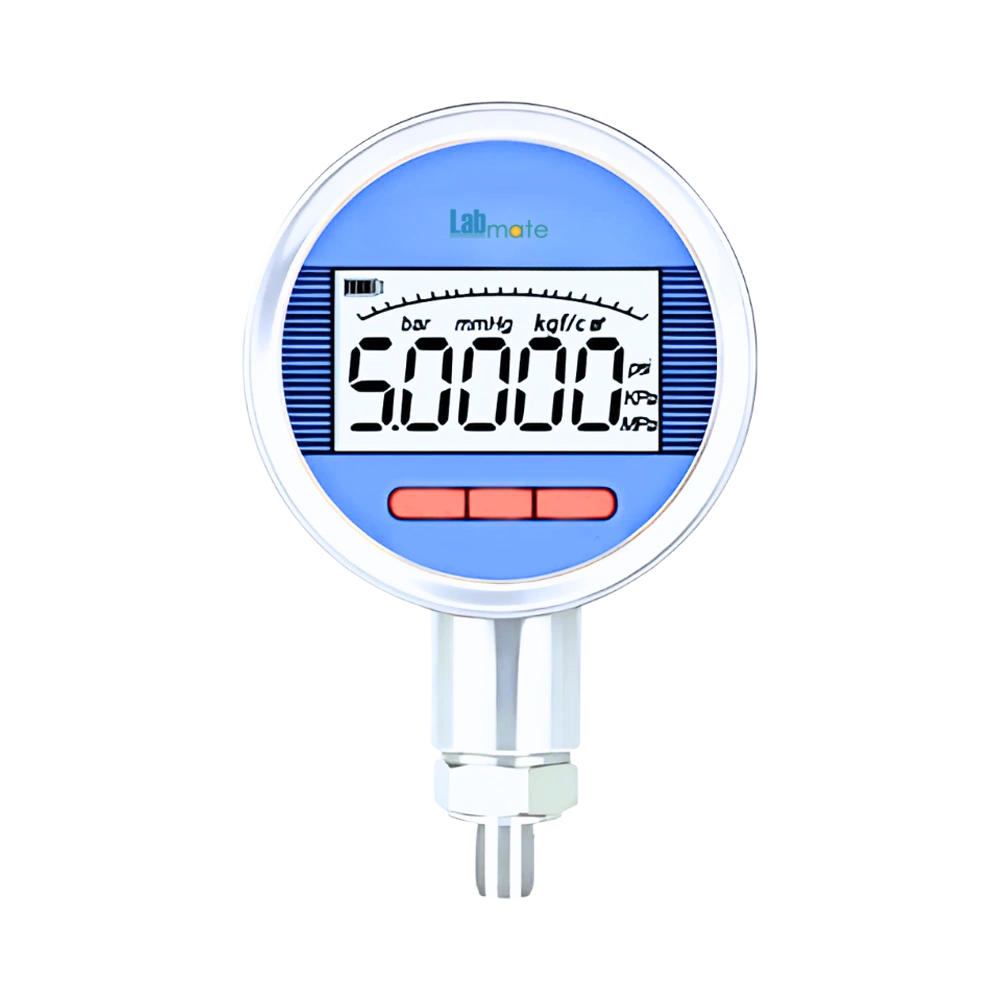

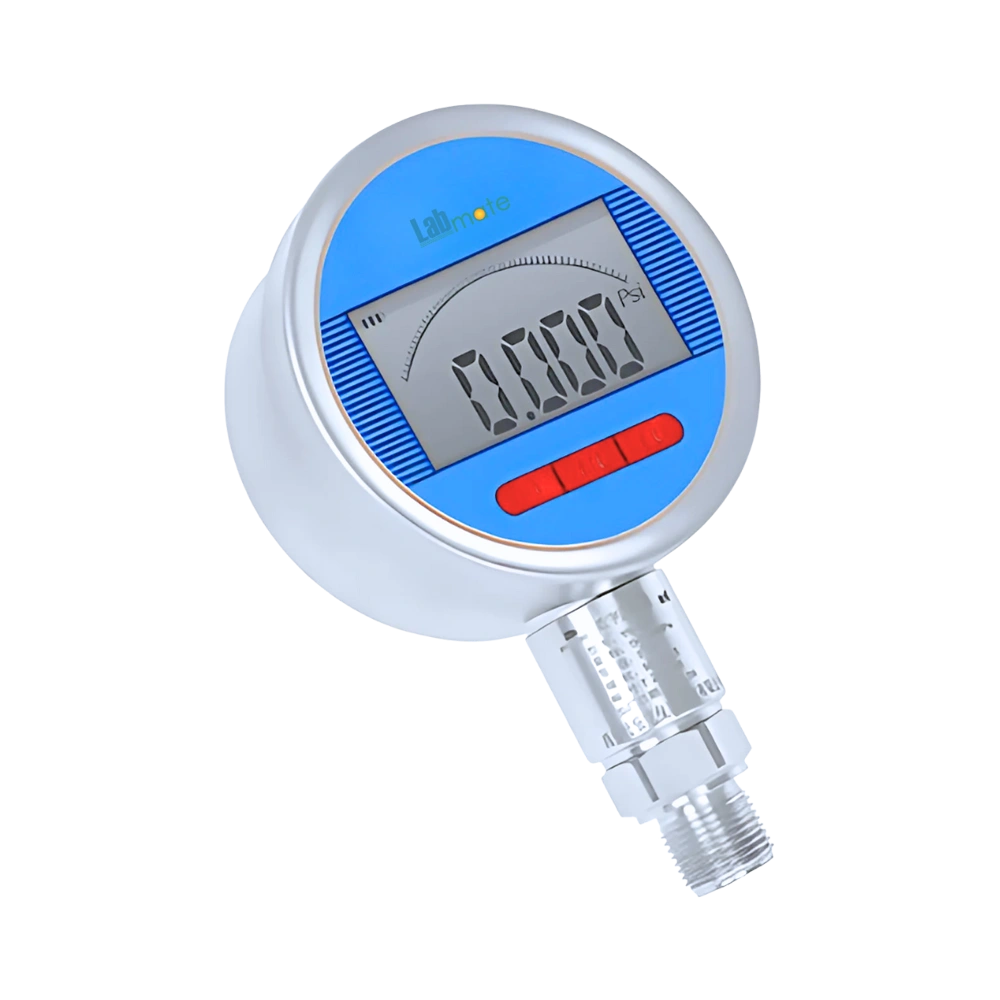

Digital Pressure Gauge LMDPG-B205 is compact yet feature rich, crafted for reliable performance in dynamic pressure environments. Designed with stainless-steel housing which resists corrosion, while the advanced sensor ensures consistent accuracy. Equipped with 5-digit digital display alongside percentage-based analog bar for simplified monitoring. Our Digital Pressure Gauge LMDPG-B205 is optimized with power-efficient processor and it operates effectively in both embedded systems and independent configurations.
Specifications
| Pressure Range | 100MPa to 160MPa |
| Dial Size | 100 mm |
| Accuracy | 0.2% |
| Pressure Types | Gauge, Absolute, Vacuum |
| Display | 5-digit LCD with simulated light bar |
| Measuring Medium | Water, Gas (compatible with SS) |
| Power Supply | Built-in High-Performance Lithium Battery |
| Case Material | Stainless Steel |
| Pressure Units | kPa, bar, mmHg, mHg, psi, kgf/cm², MPa, Pa |
| Medium Temperature | -10°C to 60°C |
| Working Temperature | -10°C to 60°C |
| Working Humidity | ≤80% RH |
| Connection Sizes | M20×1.5, G1/4, G1/2, NPT1/4, NPT3/8 |
| Mounting Type | Male Thread (standard) |
| Gross Dimension | 213 × 150 × 90 |
| Weight | 0.5 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Digital Pressure Gauge LMDPG-B205 | $ 1388.75 | MOQ of 10 |
Features
Large 5-digit screen for easy monitoring
Imported sensor ensures consistent accuracy
Energy-efficient design powered by lithium battery
Corrosion-resistant stainless-steel case
Lightweight and compact build
Applications
Digital Pressure Gauge LMDPG-B205 is used in all environments, be it lab or rugged industrial zones. However, it is more commonly used in pressure-dependent systems like HVAC control, chemical refining, drug manufacturing, and municipal wastewater plants.
