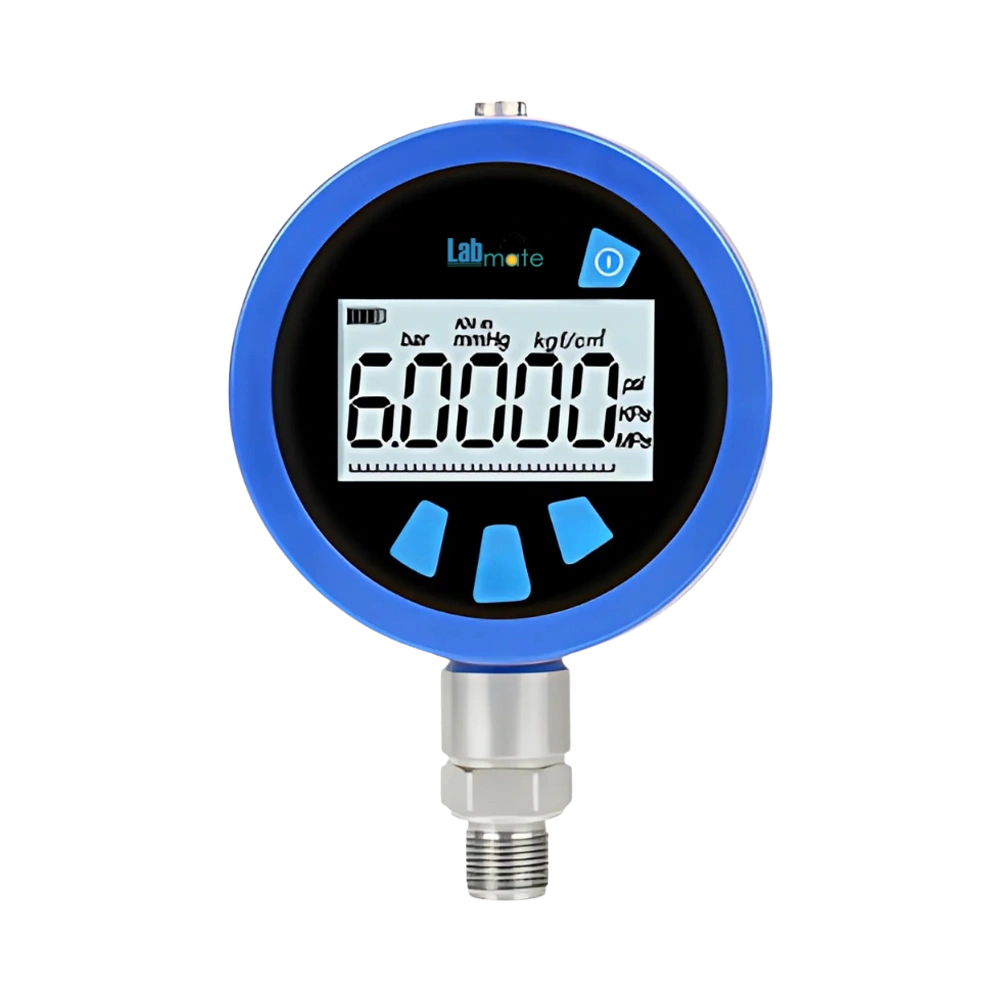

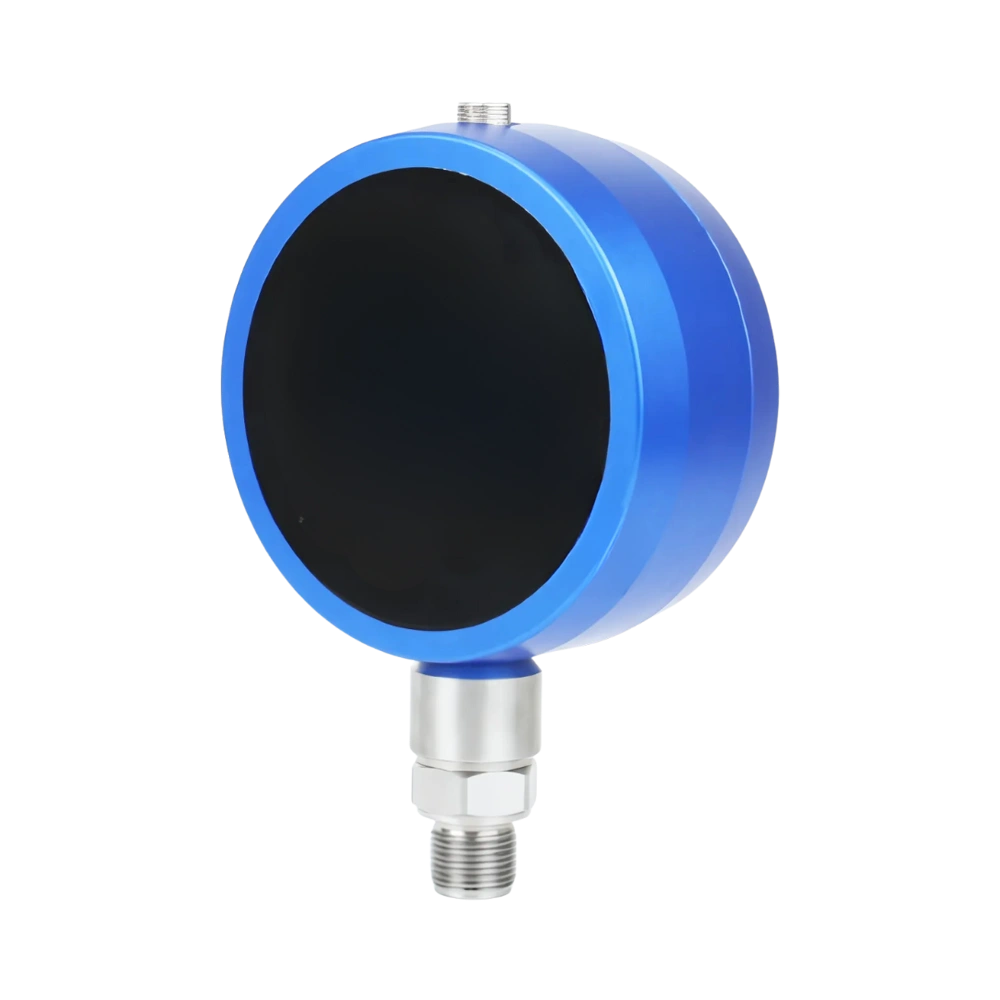

Digital Pressure Gauge LMDPG-D103 is precision digital pressure gauge tailored for applications requiring accurate reference and calibration outputs. Operates dependably even in high electromagnetic interference zones, owing to its advanced quartz resonator technology. Engineered to provide superior consistency and measurement fidelity. Our Digital Pressure Gauge LMDPG-D103 is trusted alternative to traditional mechanical gauges for high-standard industrial or lab-based calibration tasks.
Specifications
| Pressure Range | 10kPa to 60MPa |
| Dial Size | 120 mm |
| Accuracy | 0.05% |
| Pressure Types | Gauge, Vacuum, Absolute |
| Display | 5-digit LCD with simulated light bar |
| Power Supply | Rechargeable Lithium Battery |
| Case Material | Stainless Steel |
| Pressure Units | kPa, bar, mmHg, psi, kgf/cm², MPa, Pa |
| Medium Temperature | -10°C to 60°C |
| Working Temperature | -10°C to 60°C |
| Working Humidity | ≤80% RH |
| Connection Sizes | M20×1.5, G1/4, G1/2, NPT1/4, NPT3/8 |
| Mounting Type | RS485 |
| Gross Dimension | 265 × 170 × 100 mm |
| Weight | 0.8 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Digital Pressure Gauge LMDPG-D103 | $ 2137.5 | MOQ of 10 |
Features
Quartz resonant sensor for ultra-precise pressure sensing
Real-time dynamic LCD display
Rechargeable battery for sustained operation
Simple interface with power, zero, and backlight functions
Bright, legible dial
Applications
Digital Pressure Gauge LMDPG-D103 is best suited for environments like calibration centers, pharmaceutical plants, clean manufacturing units, and laboratory R&D hubs. Designed to deliver high-precision monitoring, it is an essential tool for verifying differential pressure instruments, analog indicators, and other precision devices under industrial conditions.
