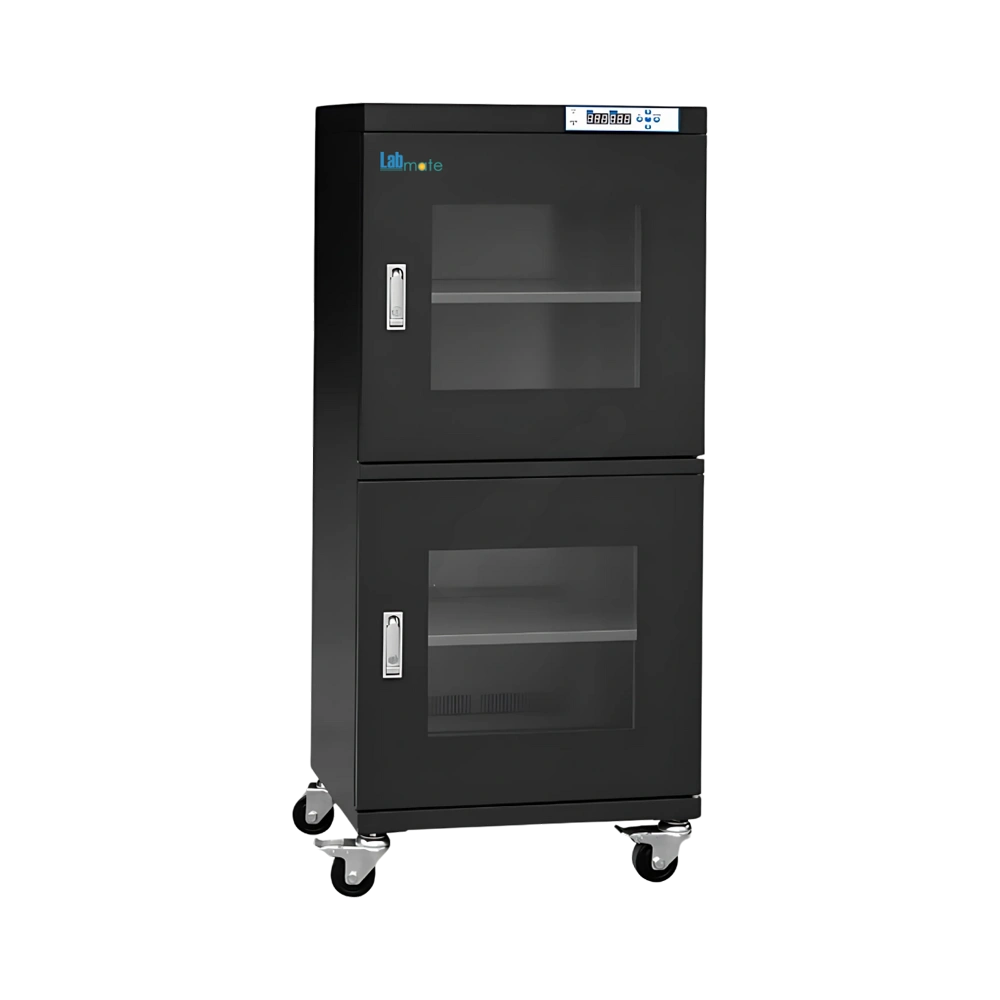

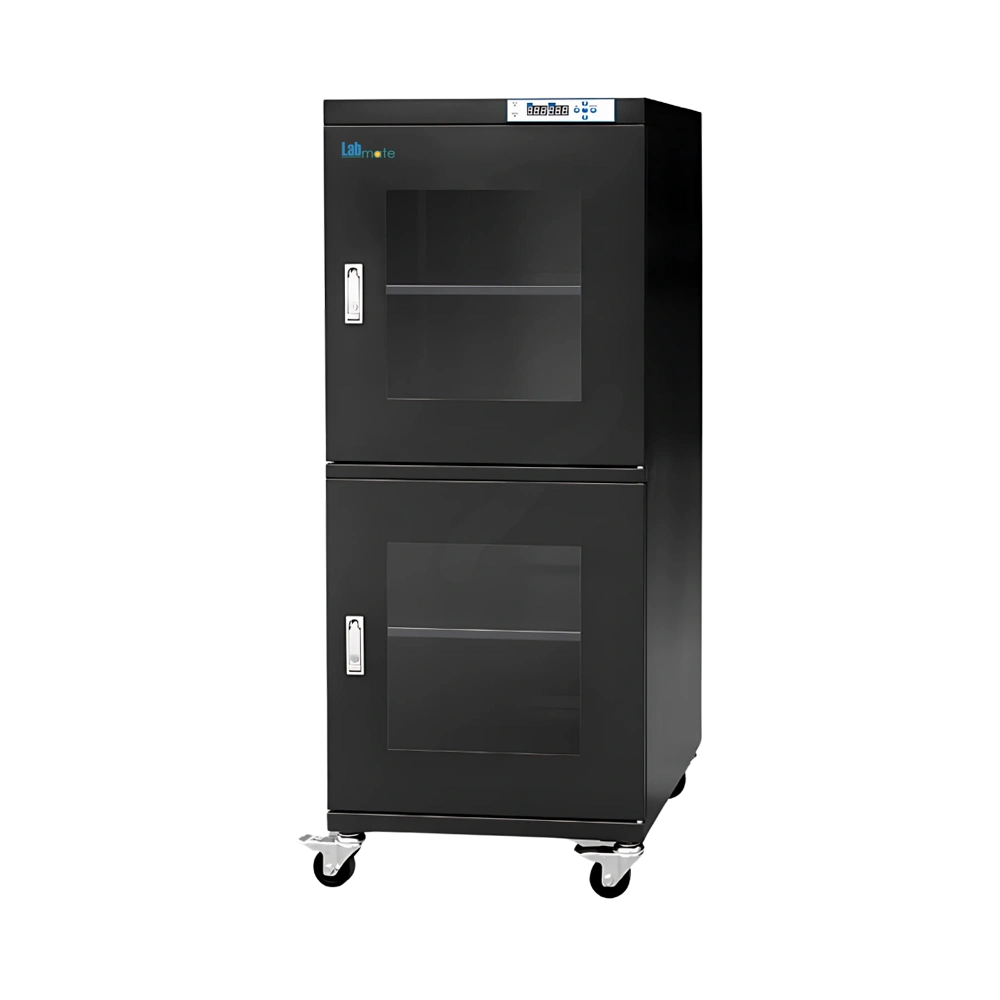

Desiccator Dry Cabinet LMDCC-D102 is engineered with a 240 L volume for storing static-sensitive and moisture-prone parts. It features a high-strength tempered glass panel for quick visual access without disturbing internal conditions. Integrated with 3-shelf perforated layout for organized storage of components. Equipped with an LED display for real-time monitoring of internal humidity conditions. Our Desiccator Dry Cabinet LMDCC-D102 includes a flat-press zinc alloy lock with air-tight sealing and anti-theft protection.
Specifications
| Storage Capacity | 240 L |
| Humidity Range | Less than 5% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 10 W |
| Maximum Load Per Shelf | 50 Kg |
| Interior Dimension (W×D×H) | 596 × 372 × 1148 mm |
| Exterior Dimension(W×D×H) | 598 × 400 × 1310 mm |
| Net Weight | 42 Kg |
| Gross Weight | 57 Kg |
Features
2 Individual Front Doors
Galvanized Steel Body
High Load Bearing Capacity
ESD-Compliant Black Coating
Reinforced PU Castors
Optional Accessories
| Model no. | Accessory |
| LMDCC-D102-A1 | Over Humidity Buzzer Alarm |
| LMDCC-D102-A2 | Open Door Buzzer Alarm |
| LMDCC-D102-A3 | Three-Color Flashing Light Alarm |
| LMDCC-D102-D1 | Data Logging System With USB Interface |
| LMDCC-D102-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-D102 is employed to maintain stable conditions for lithium-based energy units and sensitive battery components vulnerable to electrostatic discharge.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
