Get Quote
Contact us now to receive a detailed quotation.

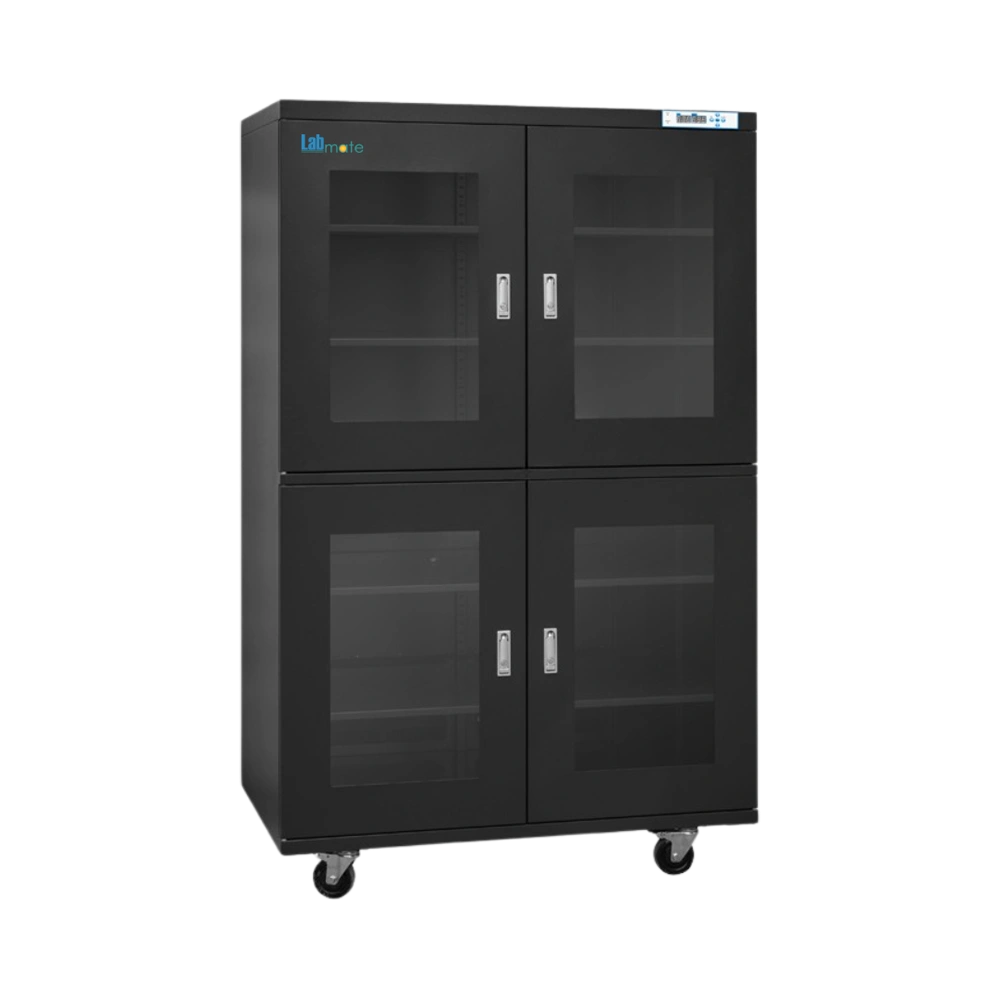

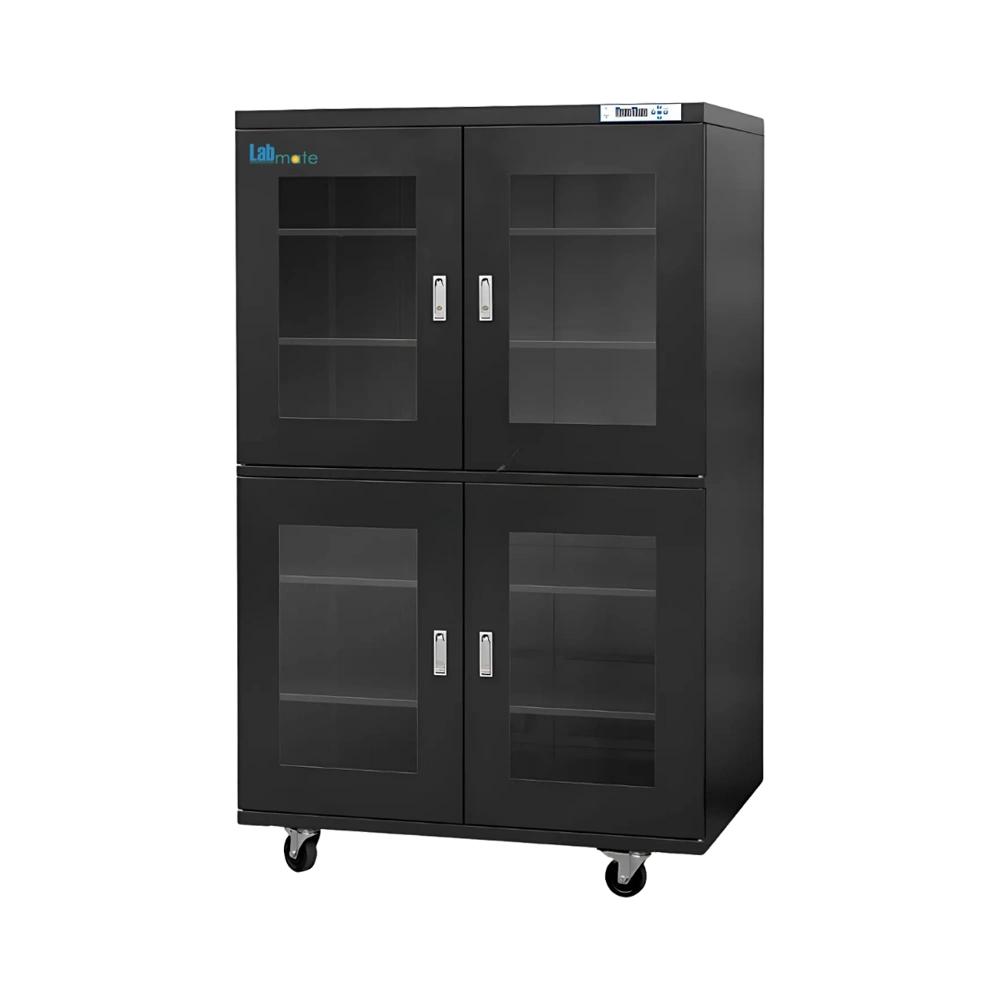

Desiccator Dry Cabinet LMDCC-E105 is designed with a spacious 1436 L interior to accommodate high-volume component storage. It maintains humidity levels under 3% RH, preventing corrosion and moisture-related deterioration. It features an ESD-safe black body and reinforced PU castors for smooth relocation. Integrated with tempered glass window for easy observation without interruption. Our Desiccator Dry Cabinet LMDCC-E105 is equipped with an LED display for real-time chamber monitoring.
Specifications
| Storage Capacity | 1436 L |
| Humidity Range | Less than 3% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 5 |
| Door Quantity | 4 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 25 W |
| Maximum Load Per Shelf | 100 Kg |
| Interior Dimension (W×D×H) | 1198 × 682 × 1723 mm |
| Exterior Dimension(W×D×H) | 1200 × 710 × 1910 mm |
| Net Weight | 144 Kg |
| Gross Weight | 189 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Desiccator Dry Cabinet LMDCC-E105 | $ 8515 | Each of 1 |
Features
Multi Shelf Configuration
Heavy Load Support
Galvanized Steel Structure
Flat Press Zinc Alloy Lock
4 Individual Doors
Optional Accessories
| Model no. | Accessory |
| LMDCC-E105-A1 | Over Humidity Buzzer Alarm |
| LMDCC-E105-A2 | Open Door Buzzer Alarm |
| LMDCC-E105-A3 | Three-Color Flashing Light Alarm |
| LMDCC-E105-D1 | Data Logging System With USB Interface |
| LMDCC-E105-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-E105 is employed to reduce oxidation and material degradation in sensitive SMT components by maintaining stable, low-humidity storage conditions.
Similar Products
$ 3070 / Each of 1
$ 4675 / Each of 1
$ 2550 / Each of 1
$ 3481.25 / Each of 1
$ 4137.5 / Each of 1
$ 3737.5 / Each of 1
$ 3735 / Each of 1
$ 2881.25 / Each of 1
$ 4775 / Each of 1
$ 3675 / Each of 1
$ 5275 / Each of 1
$ 6100 / Each of 1
$ 6275 / Each of 1
$ 7212.5 / Each of 1
$ 2350 / Each of 1
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
