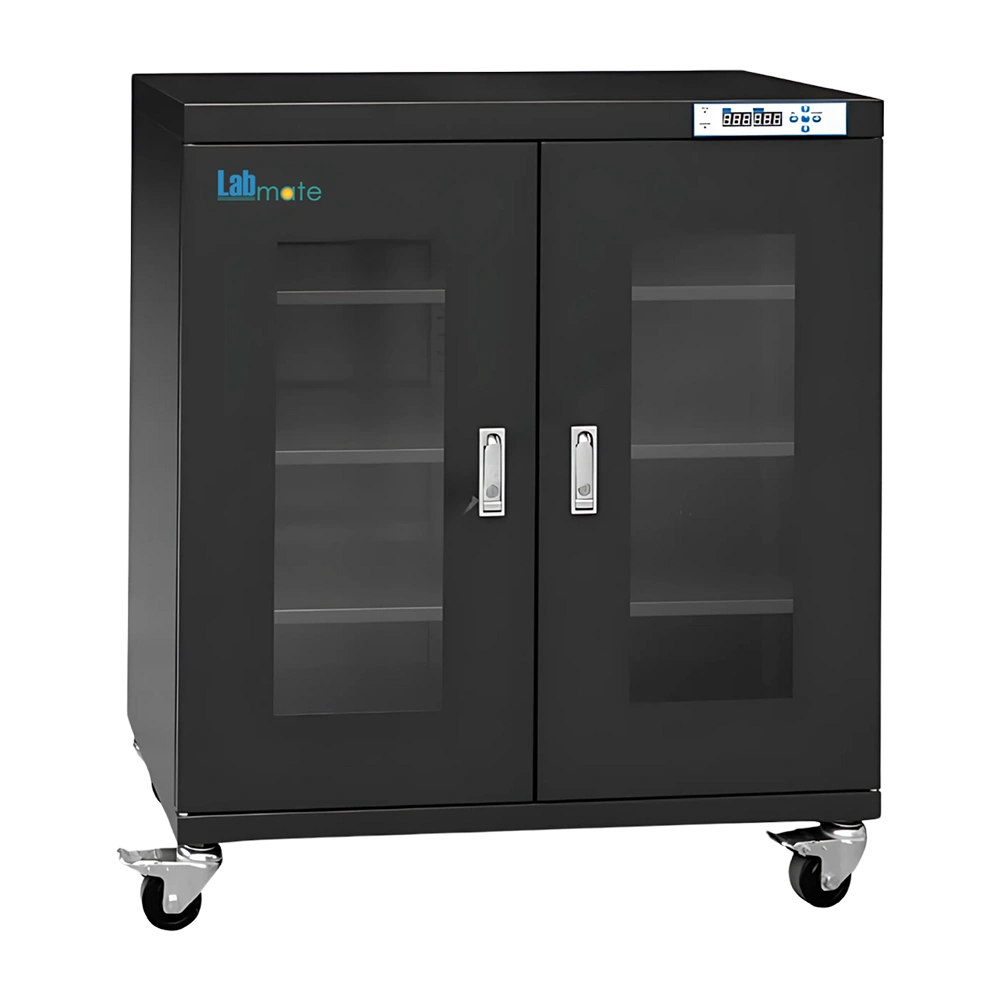

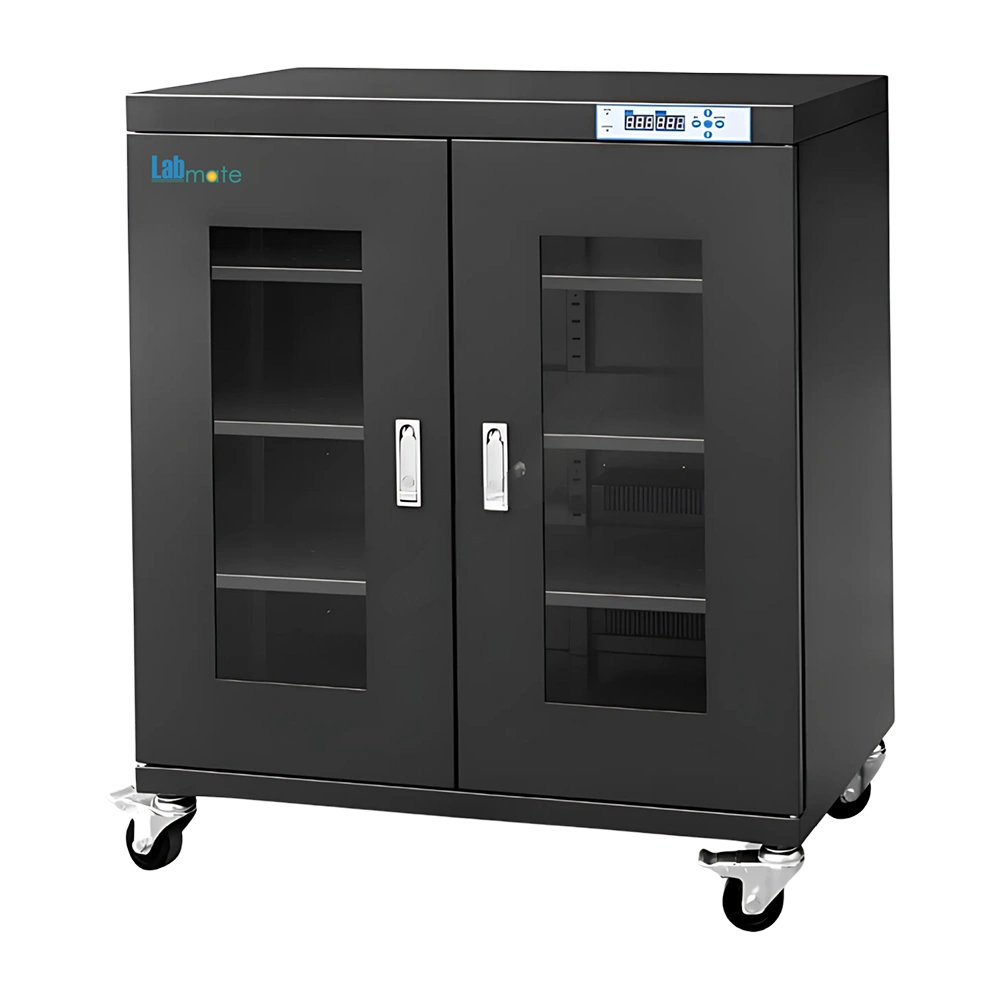

Desiccator Dry Cabinet LMDCC-D104 provides a spacious 435 L internal chamber for high-volume storage. Equipped with maintaining relative humidity below 5%, preventing corrosion, oxidation, or moisture-induced damage. Built with 1.2 mm thick galvanized steel coated with anti-static powder spray to control charge buildup. Incorporated with a load bearing capacity of 80 kg, it accommodates heavy trays, containers, and sensitive components. Our Desiccator Dry Cabinet offers a maximum recovery time of 30 minutes, enabling rapid stabilization.
Specifications
| Storage Capacity | 435 L |
| Humidity Range | Less than 5% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 10 W |
| Maximum Load Per Shelf | 80 Kg |
| Interior Dimension (W×D×H) | 898 × 572 × 848 mm |
| Exterior Dimension(W×D×H) | 900 × 600 × 1010 mm |
| Net Weight | 59 Kg |
| Gross Weight | 82 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Desiccator Dry Cabinet LMDCC-D104 | $ 3780 | Each of 1 |
Features
ESD-Safe Structure
Airtight Magnetic Sealing Doors
Tempered Front Glass Window
LED Display Panel
Flat Press Zinc Alloy Lock
Optional Accessories
| Model no. | Accessory |
| LMDCC-D104-A1 | Over Humidity Buzzer Alarm |
| LMDCC-D104-A2 | Open Door Buzzer Alarm |
| LMDCC-D104-A3 | Three-Color Flashing Light Alarm |
| LMDCC-D104-D1 | Data Logging System With USB Interface |
| LMDCC-D104-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-D104 is ideal for shielding delicate assemblies and critical electronics from moisture damage, ensuring long-term reliability in aerospace and defense sectors.
Similar Products
$ 3087.5 / Each of 1
$ 3162.5 / Each of 1
$ 3112.5 / Each of 1
$ 3670 / Each of 1
$ 3687.5 / Each of 1
$ 2550 / Each of 1
$ 3737.5 / Each of 1
$ 5212.5 / Each of 1
$ 3525 / Each of 1
$ 3162.5 / Each of 1
$ 2612.5 / Each of 1
$ 2881.25 / Each of 1
$ 4137.5 / Each of 1
$ 2850 / Each of 1
$ 3137.5 / Each of 1
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
