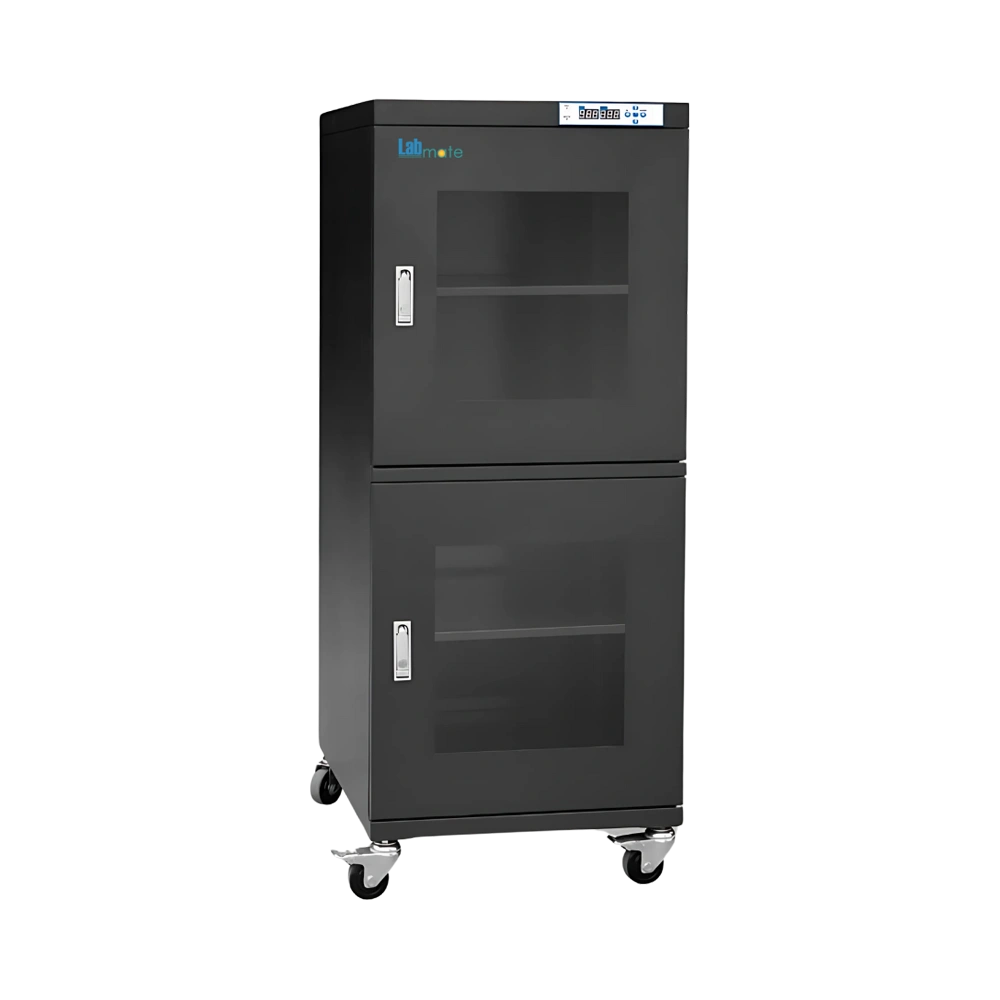

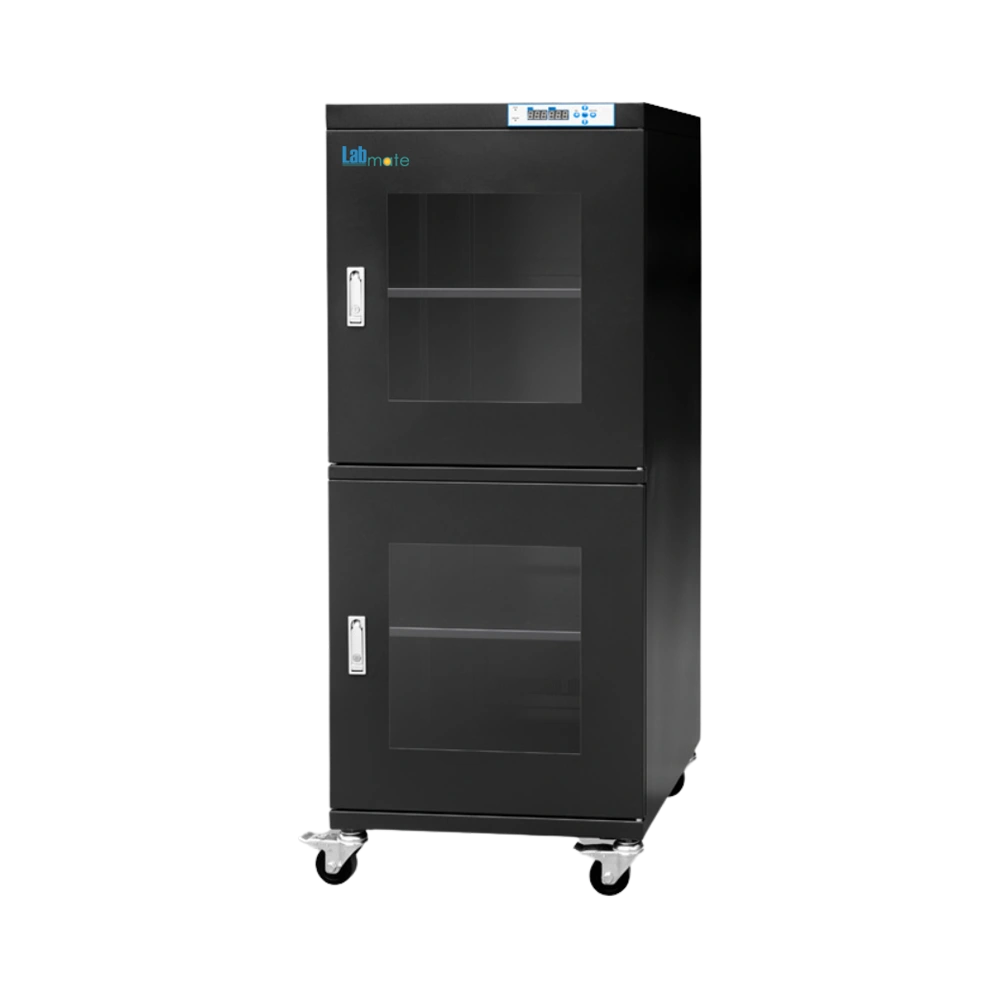

Desiccator Dry Cabinet LMDCC-C105 is engineered with 540 L volume to hold a significant quantity of moisture-sensitive samples simultaneously. Equipped with 3 adjustable perforated shelves for arranging components of various sizes and weights. Built to accommodate heavy loading support up to 80 kg without structural deformation. Integrated LED display facilitates real-time monitoring of internal humidity levels for better protection. Our Desiccator Dry Cabinet features dual high intensity tempered glass panels for clear observation without opening.
Specifications
| Storage Capacity | 540 L |
| Humidity Range | Less than 10% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 8 W |
| Maximum Load Per Shelf | 80 Kg |
| Interior Dimension (W×D×H) | 596 × 682 × 1298 mm |
| Exterior Dimension(W×D×H) | 598 × 710 × 1465 mm |
| Net Weight | 68 Kg |
| Gross Weight | 95 Kg |
Features
Galvanized steel build
ESD-Safe castors with brakes
Efficient power consumption
2 Magnetic Sealing Doors
Zinc alloy flat-base locking system
Optional Accessories
| Model no. | Accessory |
| LMDCC-C105-A1 | Over Humidity Buzzer Alarm |
| LMDCC-C105-A2 | Open Door Buzzer Alarm |
| LMDCC-C105-A3 | Three-Color Flashing Light Alarm |
| LMDCC-C105-D1 | Data Logging System With USB Interface |
| LMDCC-C105-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-C105 is employed in preserving the quality of silver-coated and copper terminals by maintaining a controlled low-humidity environment that prevents surface tarnishing, corrosion, and oxidation-related degradation.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
