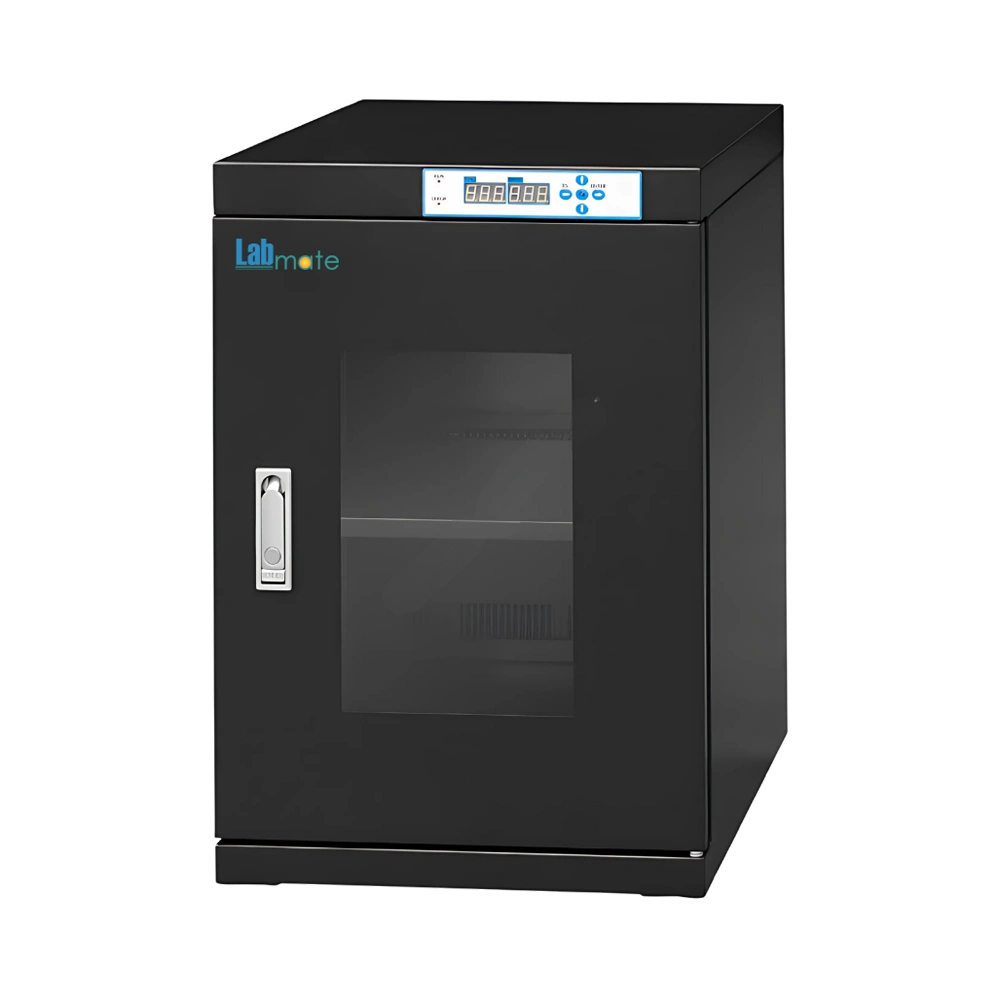

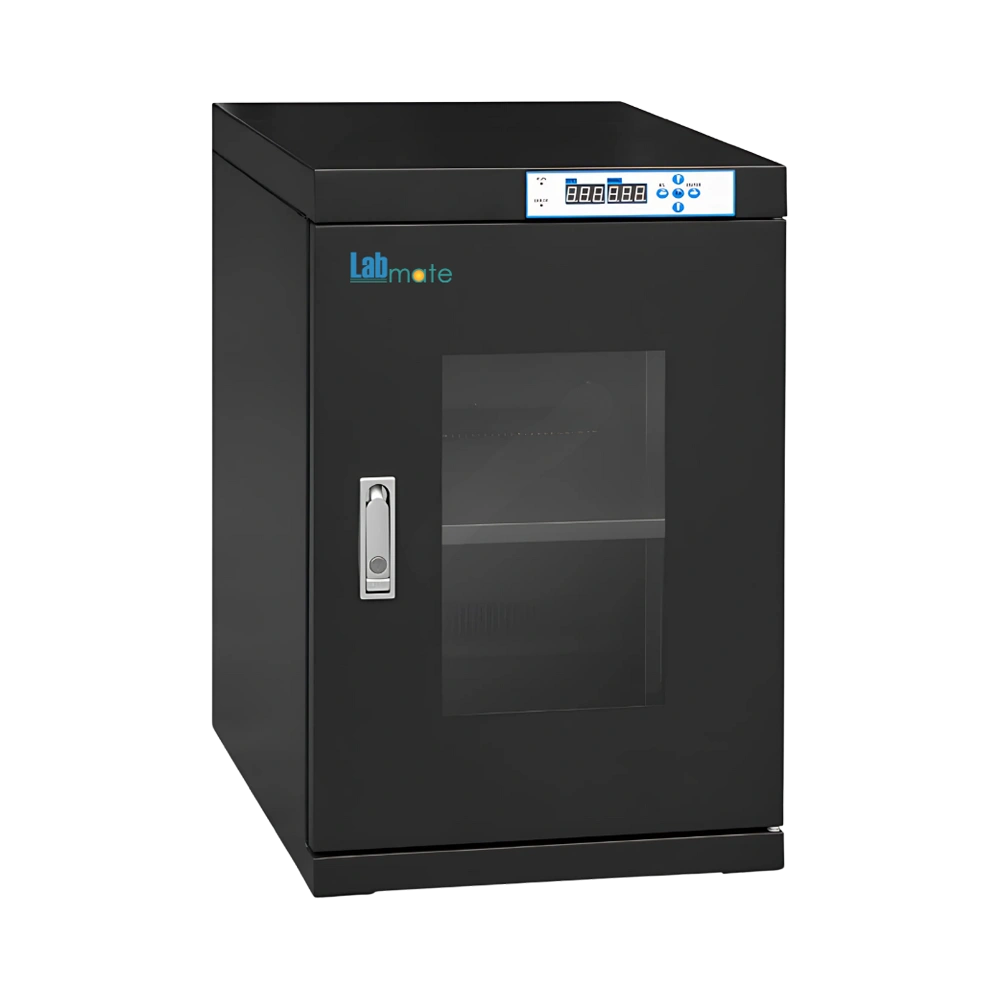

Desiccator Dry Cabinet LMDCC-B100 offers 98 L volume for preserving moisture-prone components efficiently. It provides 10% to 20% RH, effectively shielding sensitive contents from ambient humidity exposure. It features a 1.2 mm galvanized steel frame with anti-static powder spray coating. Built in black ESD-safe body to minimize static impact on delicate storage. Our Desiccator Dry Cabinet Door is fitted with a sealed magnetic door to restrict internal air fluctuation.
Specifications
| Storage Capacity | 98 L |
| Humidity Range | 10% to 20% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 1 |
| Door Quantity | 1 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 6 W |
| Maximum Load Per Shelf | 50 Kg |
| Interior Dimension (W×D×H) | 446 × 372 × 598 mm |
| Exterior Dimension(W×D×H) | 448 × 400 × 688 mm |
| Net Weight | 20 Kg |
| Gross Weight | 31 Kg |
Features
Rapid Recovery Time
Single Adjustable Shelf
Polyurethane Casters With Brakes
LED Display
Sturdy Load-Bearing Capacity
Optional Accessories
| Model no. | Accessory |
| LMDCC-B100-A1 | Over Humidity Buzzer Alarm |
| LMDCC-B100-A2 | Open Door Buzzer Alarm |
| LMDCC-B100-A3 | Three-Color Flashing Light Alarm |
| LMDCC-B100-D1 | Data Logging System With USB Interface |
| LMDCC-B100-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-B100 is crucial for storing automotive parts such as engine components, bearings, springs, and plungers.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
