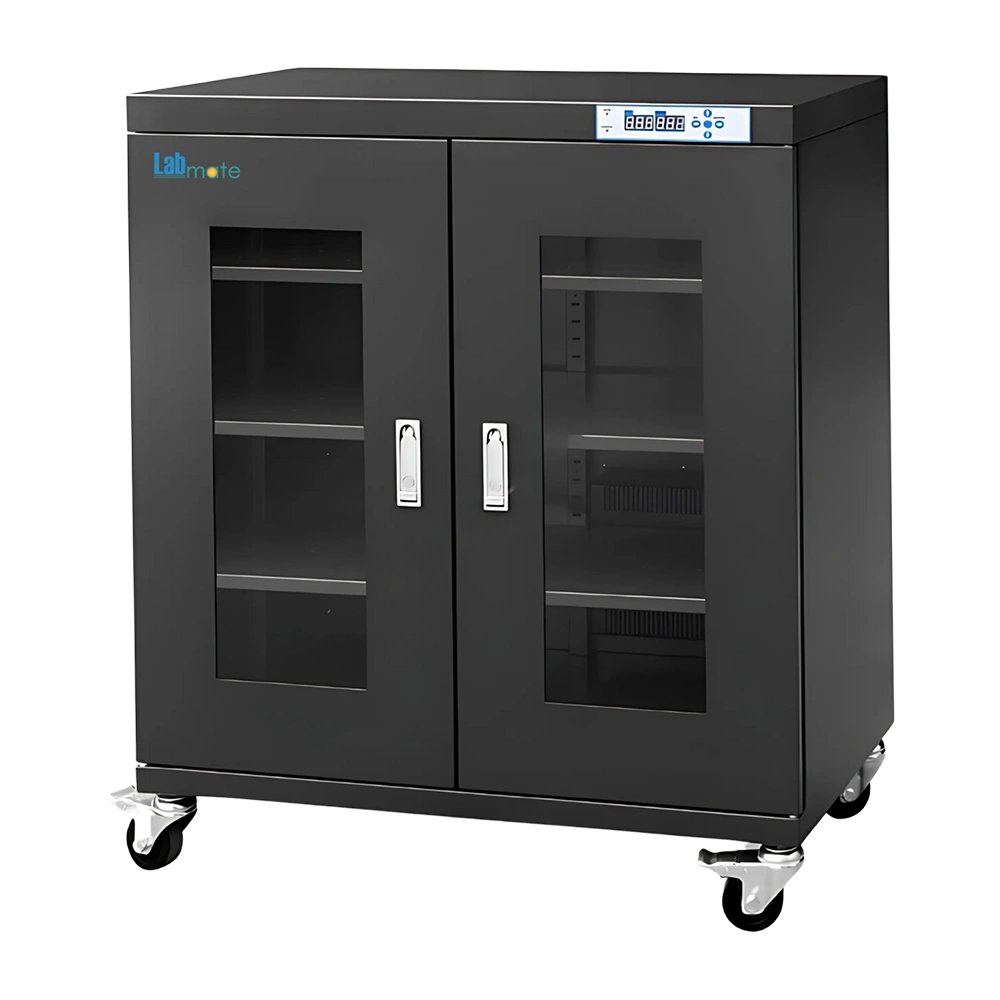

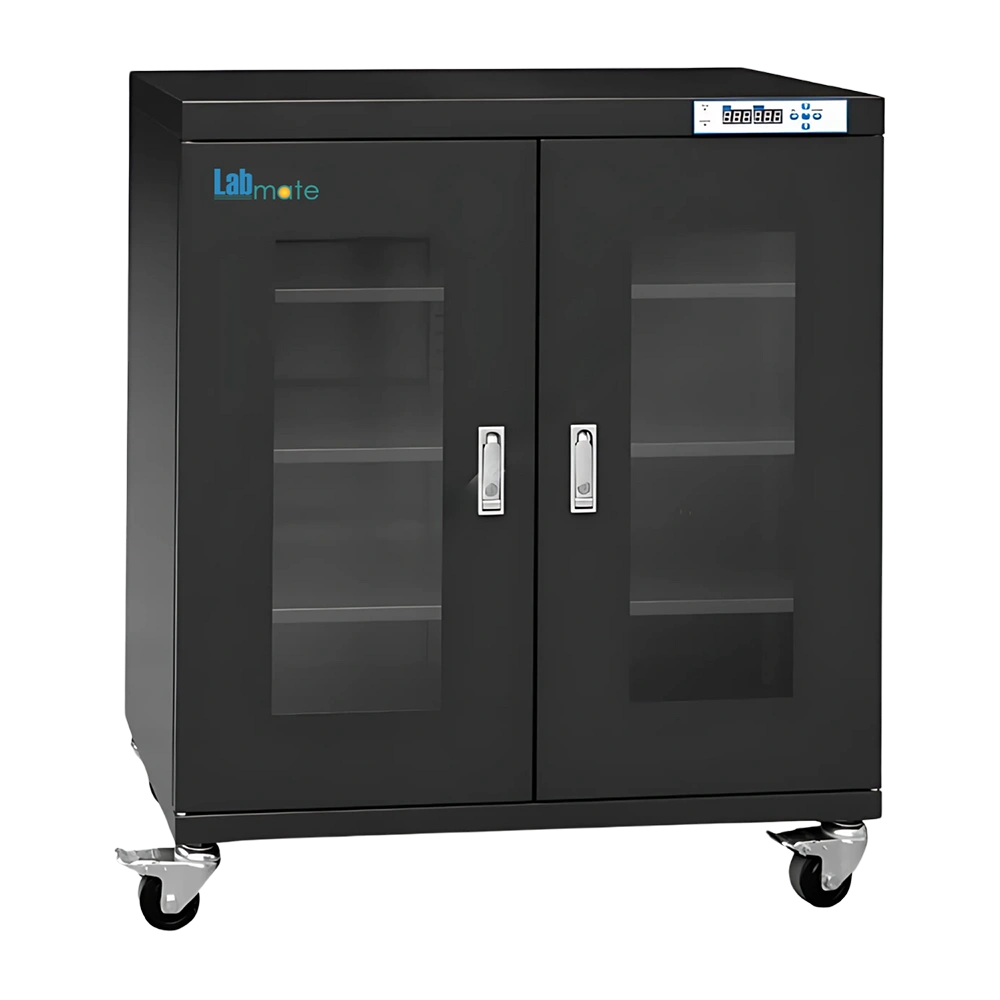

Desiccator Dry Cabinet LMDCC-D103 offers a 320 L volume for storing moisture-prone components or assemblies. Built from 1.2 mm thick galvanized steel for long-term structural durability. It features an anti-static powder spray coating, making it suitable for charge-sensitive environments. Equipped with two front-opening doors for convenient access and clear visibility. Our Desiccator Dry Cabinet is integrated with ESD-safe polyurethane wheels, ensuring smooth mobility across cleanroom floors.
Specifications
| Storage Capacity | 320 L |
| Humidity Range | Less than 5% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 10 W |
| Maximum Load Per Shelf | 80 Kg |
| Interior Dimension (W×D×H) | 898 × 422 × 848 mm |
| Exterior Dimension(W×D×H) | 900 × 450 × 1010 mm |
| Net Weight | 54 Kg |
| Gross Weight | 70 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Desiccator Dry Cabinet LMDCC-D103 | $ 3300 | Each of 1 |
Features
Quick Humidity Recovery
High Surface Resistance
Three Adjustable Shelves
LED Display
Heavy Load Capacity
Optional Accessories
| Model no. | Accessory |
| LMDCC-D103-A1 | Over Humidity Buzzer Alarm |
| LMDCC-D103-A2 | Open Door Buzzer Alarm |
| LMDCC-D103-A3 | Three-Color Flashing Light Alarm |
| LMDCC-D103-D1 | Data Logging System With USB Interface |
| LMDCC-D103-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-D103 is employed to preserve solder paste, mounted boards, and MSDs (Moisture Sensitive Devices) during pre- and post-reflow processes in SMT (Surface Mount Technology) production environments.
Similar Products
$ 4775 / Each of 1
$ 2537.5 / Each of 1
$ 3675 / Each of 1
$ 5362.5 / Each of 1
$ 3600 / Each of 1
$ 5087.5 / Each of 1
$ 3481.25 / Each of 1
$ 5375 / Each of 1
$ 3162.5 / Each of 1
$ 2900 / Each of 1
$ 3250 / Each of 1
$ 3350 / Each of 1
$ 3215 / Each of 1
$ 5612.5 / Each of 1
$ 5275 / Each of 1
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
