Get Quote
Contact us now to receive a detailed quotation.

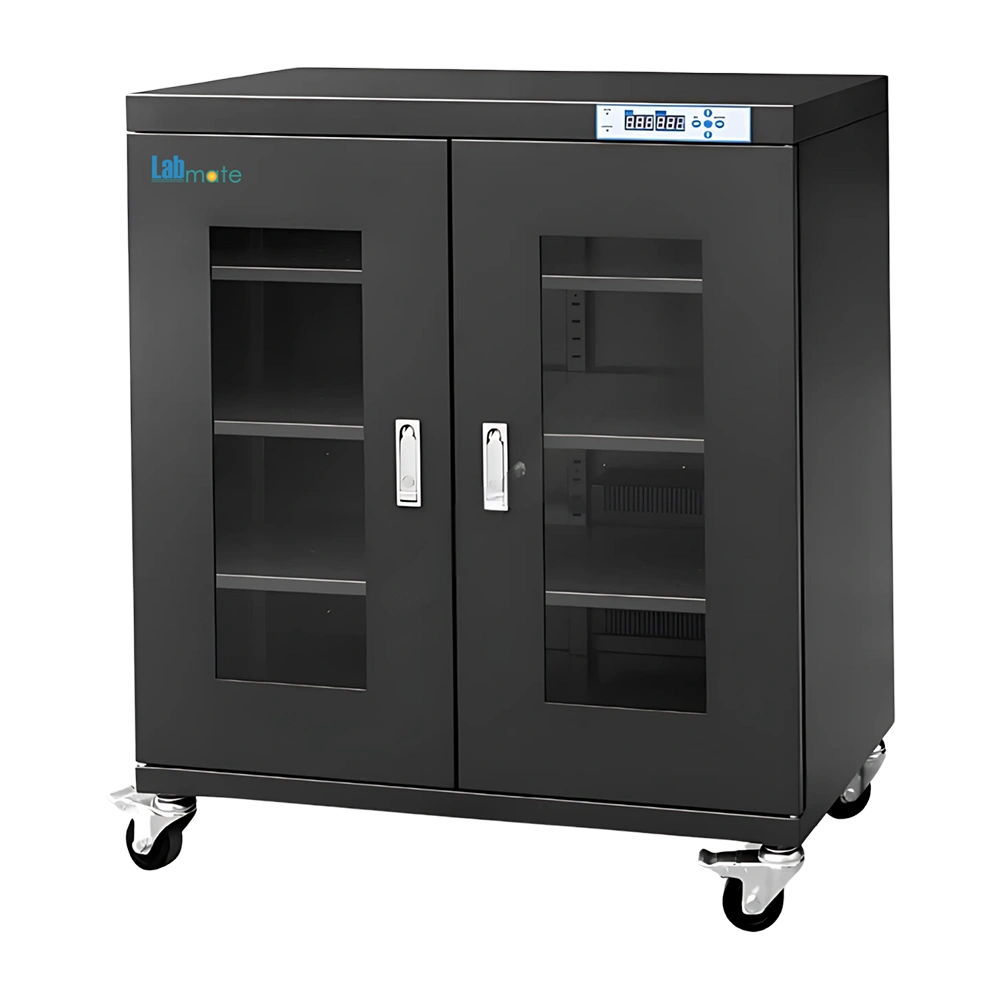

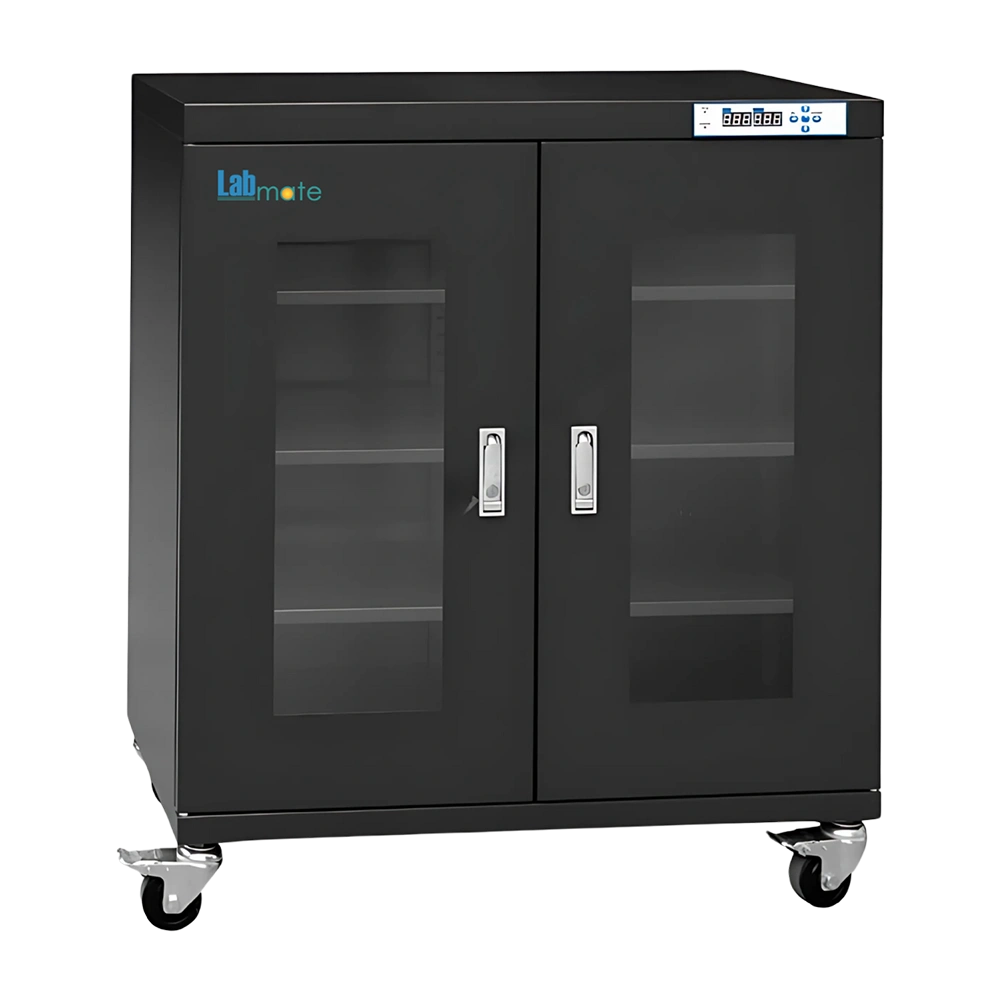

Desiccator Dry Cabinet LMDCC-B104 offers 435 L internal volume for preserving humidity-sensitive components. Integrated with maintaining relative moisture between 10% to 20%, preventing degradation, condensation, and fungal growth. Built from 1.2 mm galvanized steel, ensuring durability and prolonged structural life. It features ESD safe black exterior with 10⁶ to 10⁸ Ω resistance, preventing electrostatic buildup effectively. Our Desiccator Dry Cabinet provides high intensity tempered Glass window for easy observation without interruption.
Specifications
| Storage Capacity | 435 L |
| Humidity Range | 10% to 20% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 Mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 8 W |
| Maximum Load Per Shelf | 80 Kg |
| Interior Dimension (W×D×H) | 898 × 572 × 848 mm |
| Exterior Dimension(W×D×H) | 900 × 600 × 1010 mm |
| Net Weight | 59 Kg |
| Gross Weight | 82 Kg |
Features
3 Adjustable Shelves
Dual Lockable Handle
Anti-Scratch PU Castors With Brakes
LED Display
High Load Bearing Capacity
Optional Accessories
| Model no. | Accessory |
| LMDCC-B104-A1 | Over Humidity Buzzer Alarm |
| LMDCC-B104-A2 | Open Door Buzzer Alarm |
| LMDCC-B104-A3 | Three-Color Flashing Light Alarm |
| LMDCC-B104-D1 | Data Logging System With USB Interface |
| LMDCC-B104-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-B104 is suitable for storing sterilized packaging, medical sensors, and cleanroom materials in pharmaceutical and medical environments.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
