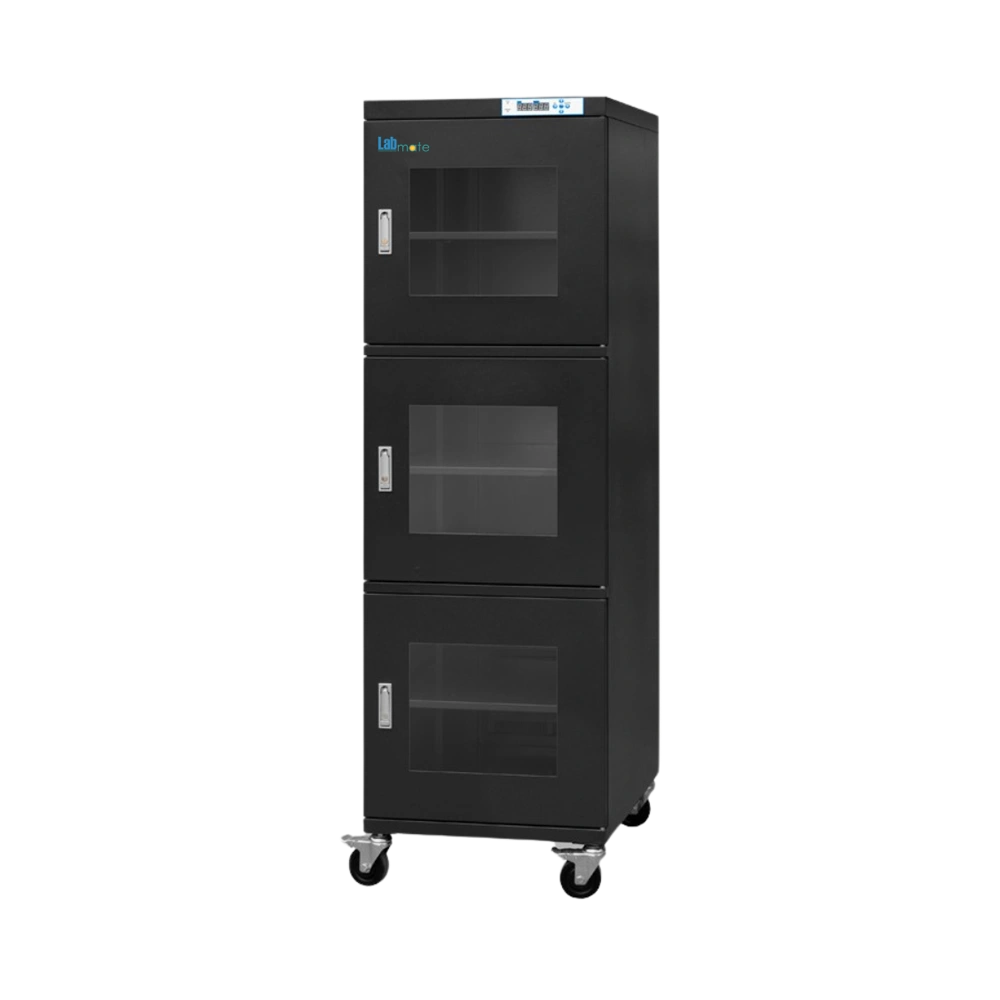

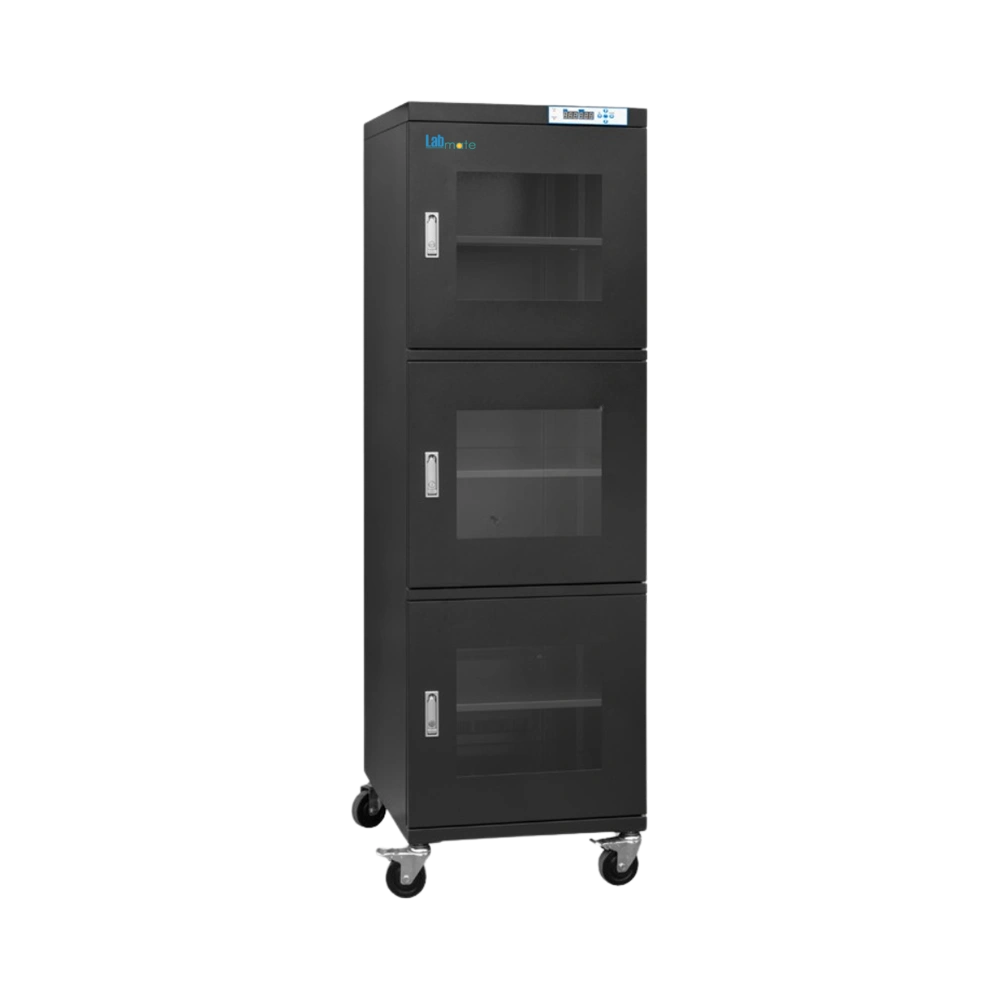

Desiccator Dry Cabinet LMDCC-A106 provides a large volume of 718 liters for spacious storage in a controlled environment. Integrated with maintaining a humidity range between 20% to 60% RH for protecting moisture-sensitive materials effectively. It features 5 adjustable shelves that facilitates organized arrangement and easy access without overcrowding. It offers a recovery time of 30 minutes after a 30-second door opening for quick stabilization. Our Desiccator Dry Cabinet supports a maximum loading weight of 80 kg without compromising structural integrity.
Specifications
| Storage Capacity | 718 L |
| Humidity Range | 20% to 60% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 5 |
| Door Quantity | 3 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 15 W |
| Maximum Load Per Shelf | 80 Kg |
| Interior Dimension (W×D×H) | 596 × 682 × 1723 mm |
| Exterior Dimension(W×D×H) | 598 × 710 × 1910 mm |
| Net Weight | 84 Kg |
| Gross Weight | 105 Kg |
Features
Low Surface Resistance
Digital LED Display
Durable Galvanized Steel Body
PU Castors With Brakes
Tempered Glass Observation Window
Optional Accessories
| Model no. | Accessory |
| LMDCC-A106-A1 | Over Humidity Buzzer Alarm |
| LMDCC-A106-A2 | Open Door Buzzer Alarm |
| LMDCC-A106-A3 | Three-Color Flashing Light Alarm |
| LMDCC-A106-D1 | Data Logging System With USB Interface |
| LMDCC-A106-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-A106 is essential for protecting laser diodes, LEDs, and other optoelectronics against moisture-induced performance issues.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
