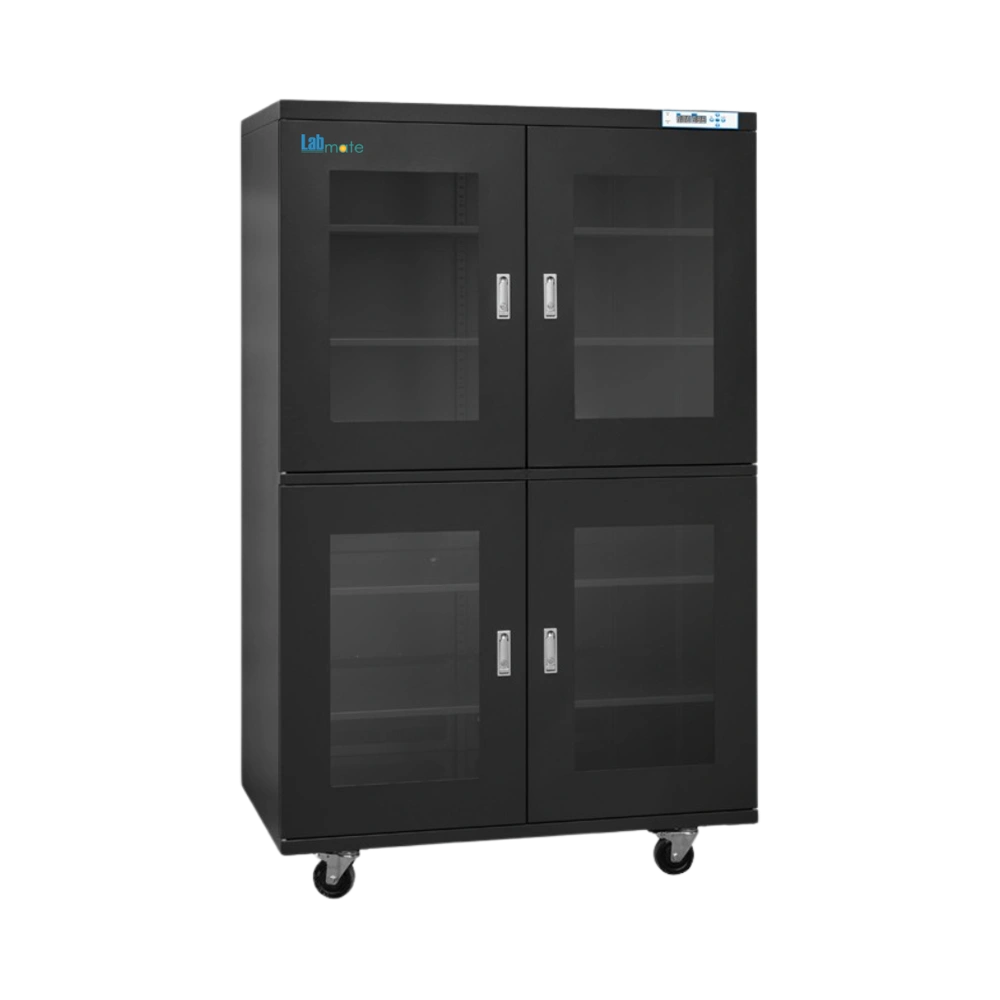

Desiccator Dry Cabinet LMDCC-B108 offers 1436 L volume for accommodating a high volume of moisture-sensitive components. It features 5 spacious shelves that provide ample room for organized placement of materials. Integrated with 4 secure access doors designed to reduce air exposure during compartmental entry. Built in 1.2 mm thick galvanized steel coated with anti-static powder spray for enhanced corrosion resistance. Our Desiccator Dry Cabinet includes an LED display for clear monitoring of internal humidity conditions.
Specifications
| Storage Capacity | 1436 L |
| Humidity Range | 10% to 10% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 5 |
| Door Quantity | 4 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 15 W |
| Maximum Load Per Shelf | 100 Kg |
| Interior Dimension (W×D×H) | 1198 × 682 × 1723 mm |
| Exterior Dimension(W×D×H) | 1200 × 710 × 1910 mm |
| Net Weight | 144 Kg |
| Gross Weight | 189 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Desiccator Dry Cabinet LMDCC-B108 | $ 3770 | Each of 1 |
Features
Fast Recovery Performance
Black Anti-Static Finish
ESD-Safe PU Wheels
Zinc Alloy Flat Press Locks
Heavy-Duty Load Capacity
Optional Accessories
| Model no. | Accessory |
| LMDCC-B108-A1 | Over Humidity Buzzer Alarm |
| LMDCC-B108-A2 | Open Door Buzzer Alarm |
| LMDCC-B108-A3 | Three-Color Flashing Light Alarm |
| LMDCC-B108-D1 | Data Logging System With USB Interface |
| LMDCC-B108-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-B108 is crucial for storing lithium cell parts, electrolytes, and separator films in a dry state within the lithium battery industry.
Similar Products
$ 3362.5 / Each of 1
$ 1987.5 / Each of 1
$ 2850 / Each of 1
$ 3250 / Each of 1
$ 3475 / Each of 1
$ 2881.25 / Each of 1
$ 3412.5 / Each of 1
$ 3735 / Each of 1
$ 2487.5 / Each of 1
$ 5900 / Each of 1
$ 2587.5 / Each of 1
$ 3215 / Each of 1
$ 2612.5 / Each of 1
$ 3412.5 / Each of 1
$ 3185 / Each of 1
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
