Get Quote
Contact us now to receive a detailed quotation.

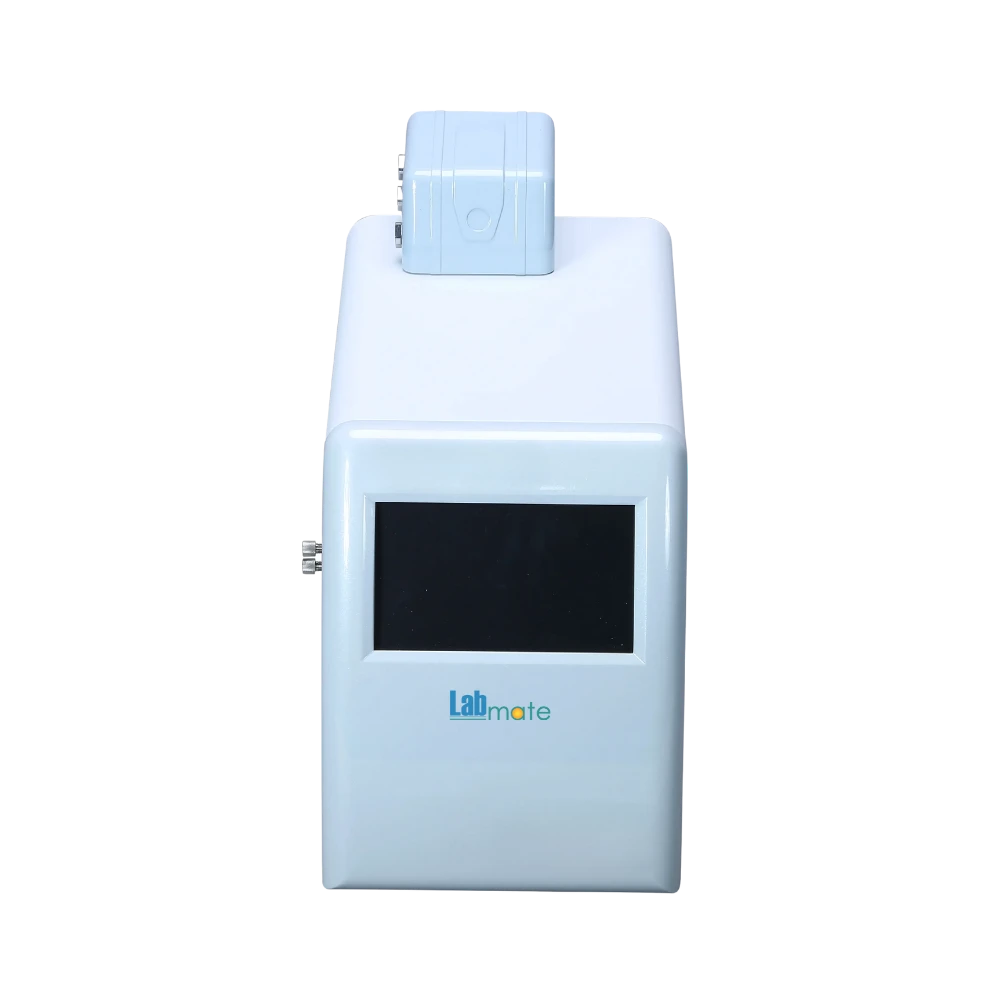

TOC Analyzer LMTOC-B100 is designed with measurement range of 1 to 1500 ppb. It features oxidation through UV lamp, eliminating acid, gas, or catalyst to reduce experiment cost. Equipped with sensitive conductivity detector, it ensures reliable quantification in low-concentration water. Incorporates smart touchscreen with an intuitive interface for effortless data access and operation. Our TOC Analyzer monitors TOC levels in microelectronics water, ultrapure water, and injectable-grade water.
Catalog Send Mail WhatsappSpecifications
| Measurement Range | 1 to 1500 ppb |
| Detection Limit | 1ppb |
| Sample Flow Speed | 2mL/min |
| Analysis Time | 3 min |
| Response Time | 10 min |
| Maximum Tolerance | ±5% |
| Display | Smart 7-inch touchscreen |
| Storage Capacity | 8GB |
| Repeatability Tolerance | Less than or equal to 3% |
| Power Consumption | 100W |
| Power Supply | AC110/220V, 50/60Hz |
| Dimension | 440×220×300 mm |
| Weight | 20 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| TOC Analyzer LMTOC-B100 | $ 14000 | Each of 1 |
Features
One-button sampling
Unlimited data logging
USB data export
Bluetooth printing
Water inlet port
Detachable UV unit
Optional Accessories
Model No. | Accessory Name |

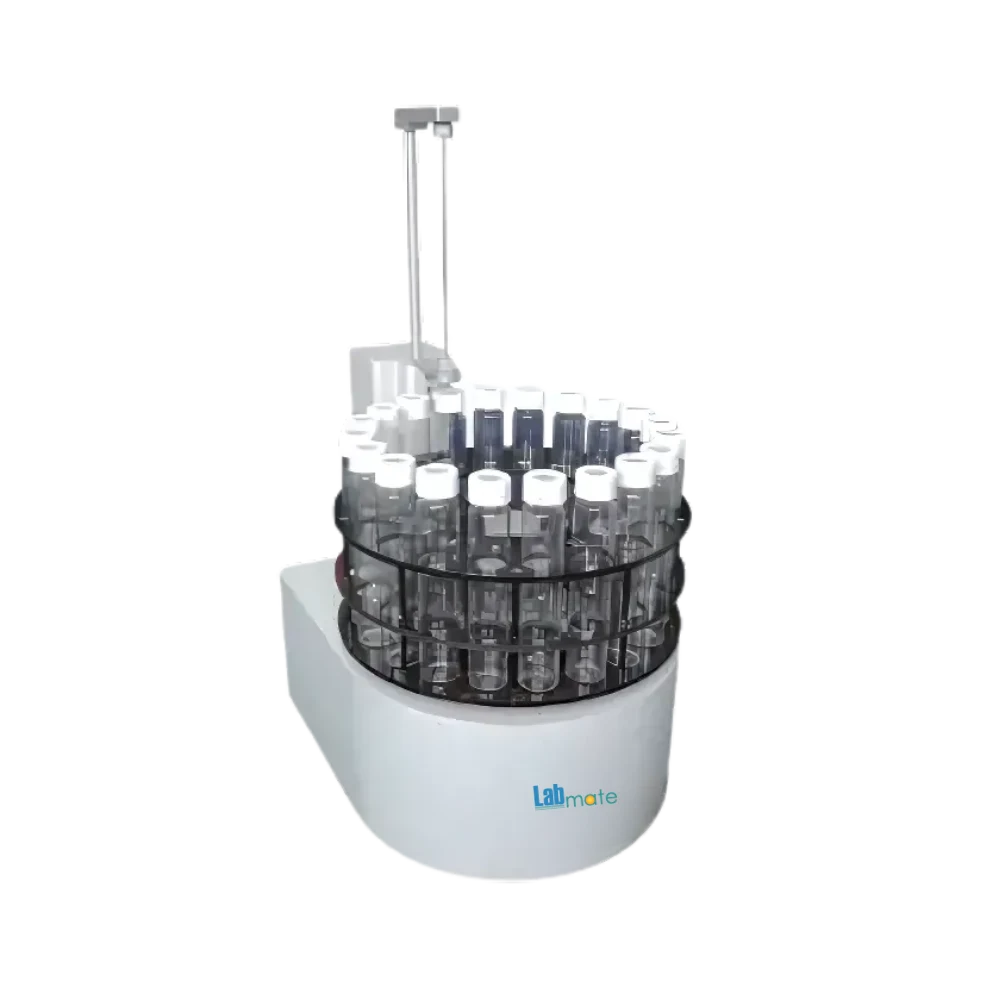

LMTOC-B100-A1 | Autosampler |
Applications
TOC Analyzer LMTOC-B100 is ideal for monitoring Total Organic Carbon in microelectronics water, purified water, ultrapure water, and water for injection to ensure compliance, purity, and quality in sensitive environments.
No. of sample positions- 19, Volume of Sample Bottle- 60mL
Similar Products
$ 21000 / Each of 1
$ 21000 / Each of 1
$ 26625 / Pack of 1
$ 18912.5 / Pack of 1
$ 26250 / Each of 1
$ 14875 / Each of 1
Frequently Asked Questions
1 What is a TOC Analyzer?
A TOC Analyzer is an apparatus designed to analyze the organic carbon content in water or other liquid samples.
2 How does a TOC Analyzer work?
It operate by oxidizing organic carbon in sample to carbon dioxide, which is then measured to determine the total organic carbon content.
3 What types of samples can be analyzed using TOC Analyzer?
It is used to analyze a wide variety of samples such as drinking water, wastewater pharmaceutical water, environmental water, food and beverage samples.
4 How is calibration done in case of TOC Analyzer?
Calibration is done using standard solutions of known organic carbon content in order to ensure that the analyzer is providing accurate readings.
5 What kind of maintenance does TOC Analyzer require?
Regular maintenance includes proper cleaning of the apparatus, replacing consumables like filters, reagents or electrodes and performing regular calibration.
6 Can TOC Analyzer test both tap water and river water?
It can test both tap water and river water to measure the amount of organic carbon in each sample.
7 What is the difference between a TOC Analyzer and a UV-Vis Spectrophotometer?
A TOC Analyzer measures organic carbon content directly whereas a UV-Vis Spectrophotometer analyzes light absorption to identify the concentration of various compounds.
8 Can TOC Analyzer be used for both raw and treated water?
It is used to measure organic carbon in both raw and treated water thereby helping in assessing the effectiveness of water treatment process.
9 Is TOC Analyzer affected by temperature?
Temperature fluctuations affect the accuracy of TOC Analyzer results.
10 What is the difference between a TOC Analyzer and a COD Analyzer?
A TOC Analyzer measures the total organic carbon, whereas a COD Analyzer measures the oxygen demand required to oxidize both organic and inorganic contaminants in water.
