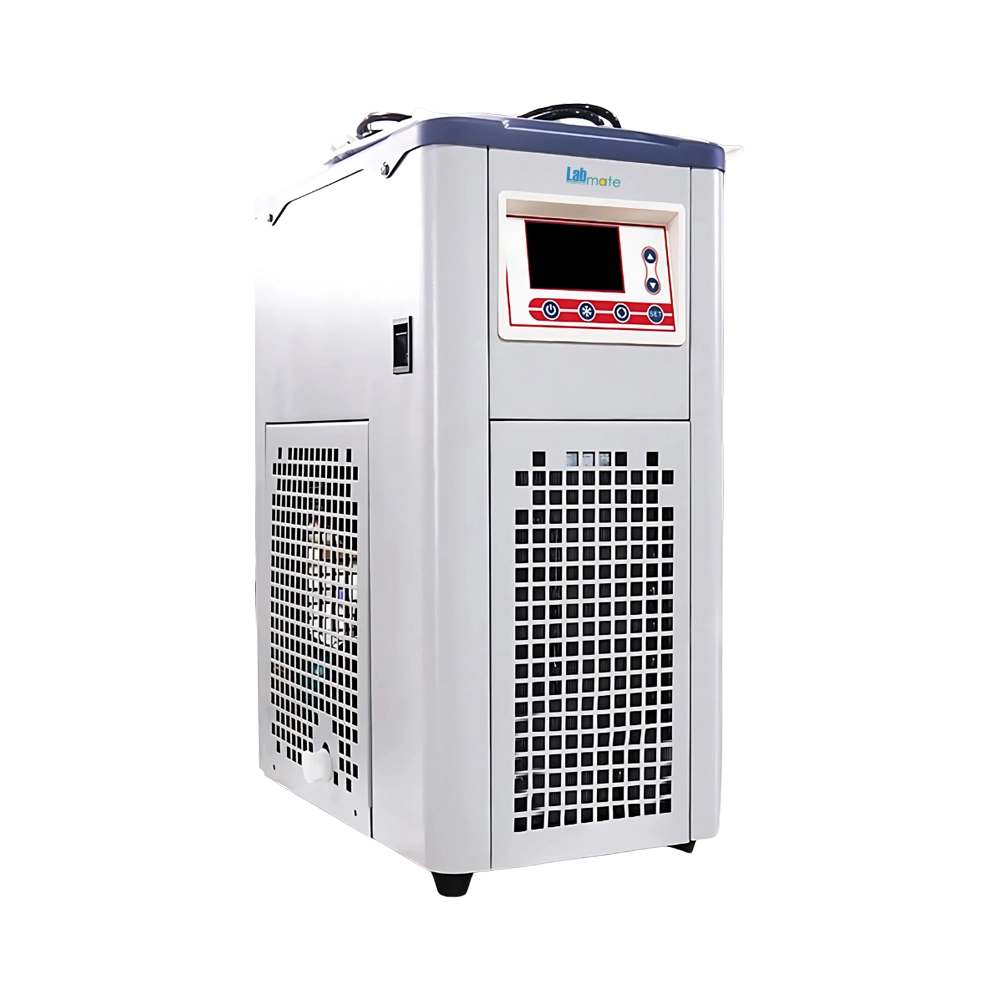

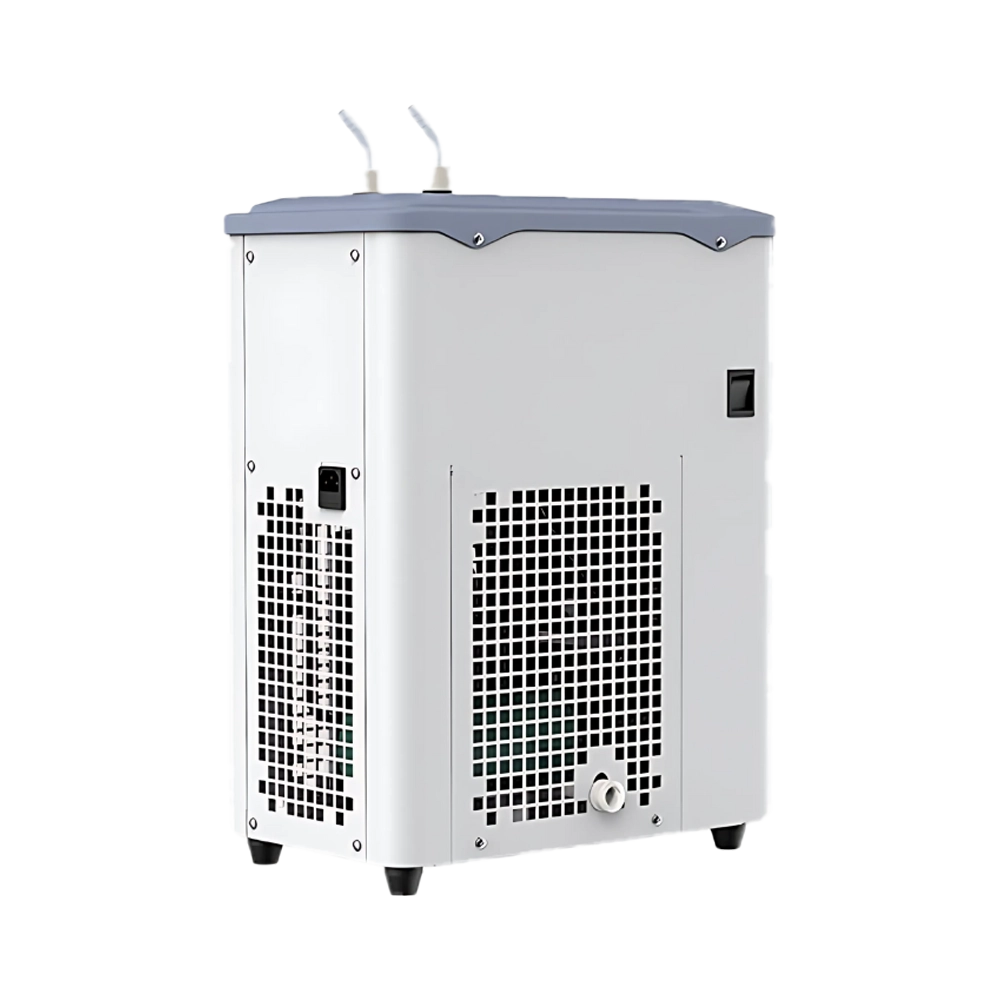

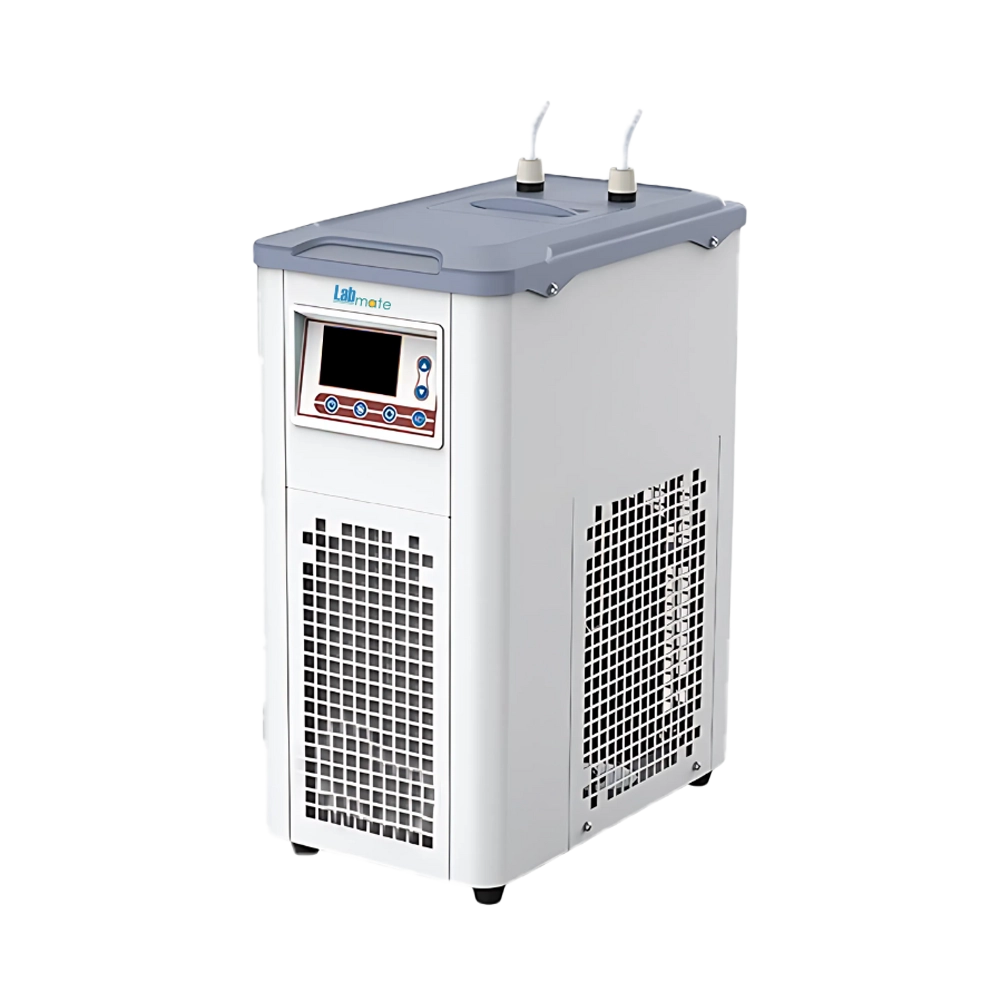

Recirculating Chiller LMRCC-B101 is designed with 3-liter reservoir capacity. It features an LCD display with 0.1°C resolution for clear temperature monitoring. Equipped with 360° rotatable circulation nozzle, it allows flexible connection with various equipment. Integrates delayed start function to protect compressor during power cycling. Our Chiller enables chemical reactions, sample processing, and analytical tasks.
Specifications
| Volume | 3 L |
| Working Temperature Range | -15 to 25℃ |
| Temperature Stability | ±2°C |
| Flow Rate | 17 L/min |
| Cooling Method | Air cooling |
| Pressure | 0.2bar |
| Refrigerant | R134A |
| Ambient Temperature Range | 5 to 35℃ |
| Temperature Control Accuracy | ±0.1℃ |
| Protection Grade | IP20 |
| Outer Circulation Type | Pagoda type |
| Cooling Power | 0.4 kW at 0°C |
| Power Consumption | 0.45 kW |
| Power Supply | 220 to 240V/50Hz |
| Outer Circulation Interface Dimeter | 10 mm |
| Dimensions (W×D×H) | 260×410×550 mm |
| Weight | 26 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Recirculating Chiller LMRCC-B101 | $ 2575 | Each of 1 |
Features
Space-saving setup
Over-current protection
Stable cooling flow
Compact design
Rotary evaporator support
Analyzer compatibility
Applications
Recirculating Chiller LMRCC-B101 provide external cooling for small rotary evaporators, analyzers, ensuring stable temperature control during chemical reactions, sample processing, and analytical tasks.
Similar Products
$ 2000 / Each of 1
$ 29412.5 / Each of 1
$ 4956.25 / Each of 1
$ 3150 / Each of 1
$ 3893.75 / Each of 1
$ 15825 / Each of 1
$ 3200 / Each of 1
$ 19575 / Each of 1
$ 3425 / Each of 1
$ 3362.5 / Each of 1
$ 8037.5 / Each of 1
$ 2112.5 / Pack of 1
Frequently Asked Questions
1 What is a Re-circulating Chiller?
A Re-circulating Chiller is an apparatus designed to maintain a stable temperature by continuously circulating a coolant through a process or equipment, removing heat and re-cooling the fluid for reuse.
2 How does a Re-circulating Chiller work?
It works by circulating coolant through a closed loop to absorb heat and then cooling the fluid for reuse.
3 What kind of maintenance does Re-circulating Chiller require?
Regular maintenance includes checking coolant levels, cleaning filters, and inspecting for leaks.
4 How does Re-circulating Chiller benefit laboratory applications?
It maintains precise temperature for equipment like rotary evaporators and spectrometers, ensuring accurate results and preventing overheating.
5 Can Re-circulating Chiller be used for cooling industrial lasers?
It is commonly used to cool industrial lasers by removing excess heat, maintaining optimal performance, and preventing damage from overheating.
6 How does Re-circulating Chiller assist in biotech and pharmaceutical research?
It provide temperature control for experiments and equipment, preserving the integrity of sensitive samples and ensuring consistent results in biotech and pharmaceutical research.
7 Can Re-circulating Chiller be used in food and beverage production?
It is used in food and beverage production to cool processing equipment, such as tanks or mixers, ensuring safety and quality in temperature-sensitive process.
8 Can Re-circulating Chiller be used in environmental chambers?
It is used to help maintain controlled temperature and humidity in environmental testing chambers for electronics, materials, or biological samples.
9 How does Re-circulating Chiller assist in aerospace component testing?
It provide precise thermal control for high-stress tests on avionics, sensors, or fuel systems, ensuring reliability under variable flight conditions.
10 How does Re-circulating Chiller support forensic or pathology labs?
It cools microtomes, tissue processors and chemical baths, helping preserve tissue integrity and sample quality for analysis and diagnostics.
