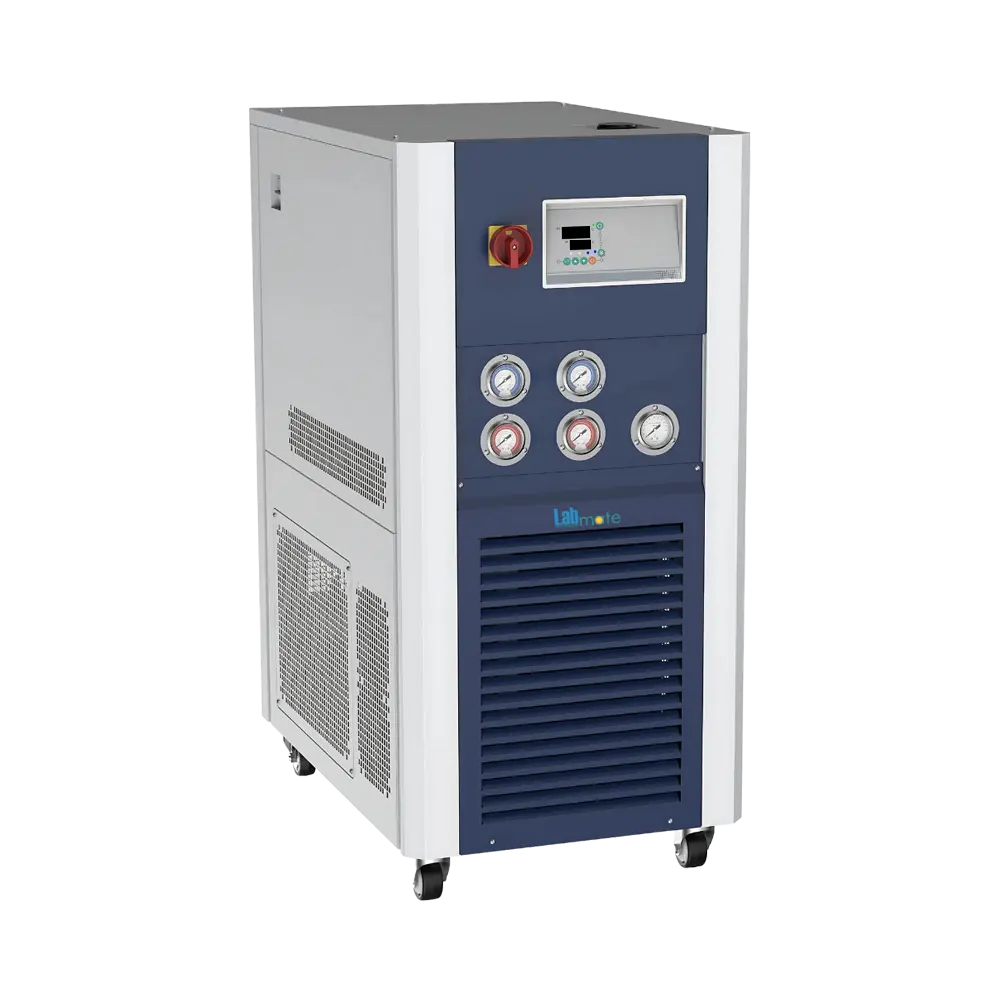

Recirculating Chiller LMRCC-C100 is designed with temperature range of -80 to -40℃. It features fully closed circulation loop that prevents fluid evaporation and protects fluid quality. Equipped with delayed compressor start function to reduce stress during initial power-up cycles. Incorporates front-panel gauges for easy system monitoring and pressure readouts. Our Chiller ensures cold source for temperature control in reactors and material testing.
Specifications
| Temperature Range | -80 to -40℃ |
| Reservoir Capacity | 10L |
| Flow Rate | 30L/min |
| Pressure | 1bar |
| Cooling Method | Air cooling |
| Refrigerant | R404A R23 |
| Protection Grade | IP20 |
| Temperature Stability | ±2℃ |
| Outer Circulation Interface | Rc1/2 |
| Power Consumption | 4.9kW |
| Power Supply | 380V/50Hz |
| Dimensions | 645×1060×1320 mm |
| Weight | 235 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Recirculating Chiller LMRCC-C100 | $ 15825 | Each of 1 |
Features
Fluid stability
Leak detection
Overload protection
Overcurrent safety
Overflow discharge
Airflow ventilation
Lockable wheels
Applications
Recirculating Chiller LMRCC-C100 provides cold source for temperature control in reactors, material testing, and temperature change simulation across pharmaceutical, chemical, biological, and new material industries.
Similar Products
$ 2112.5 / Pack of 1
$ 2000 / Each of 1
$ 8037.5 / Each of 1
$ 19575 / Each of 1
$ 3200 / Each of 1
$ 2575 / Each of 1
$ 3425 / Each of 1
$ 3362.5 / Each of 1
$ 4956.25 / Each of 1
$ 29412.5 / Each of 1
$ 3893.75 / Each of 1
$ 3150 / Each of 1
Frequently Asked Questions
1 What is a Re-circulating Chiller?
A Re-circulating Chiller is an apparatus designed to maintain a stable temperature by continuously circulating a coolant through a process or equipment, removing heat and re-cooling the fluid for reuse.
2 How does a Re-circulating Chiller work?
It works by circulating coolant through a closed loop to absorb heat and then cooling the fluid for reuse.
3 What kind of maintenance does Re-circulating Chiller require?
Regular maintenance includes checking coolant levels, cleaning filters, and inspecting for leaks.
4 How does Re-circulating Chiller benefit laboratory applications?
It maintains precise temperature for equipment like rotary evaporators and spectrometers, ensuring accurate results and preventing overheating.
5 Can Re-circulating Chiller be used for cooling industrial lasers?
It is commonly used to cool industrial lasers by removing excess heat, maintaining optimal performance, and preventing damage from overheating.
6 How does Re-circulating Chiller assist in biotech and pharmaceutical research?
It provide temperature control for experiments and equipment, preserving the integrity of sensitive samples and ensuring consistent results in biotech and pharmaceutical research.
7 Can Re-circulating Chiller be used in food and beverage production?
It is used in food and beverage production to cool processing equipment, such as tanks or mixers, ensuring safety and quality in temperature-sensitive process.
8 Can Re-circulating Chiller be used in environmental chambers?
It is used to help maintain controlled temperature and humidity in environmental testing chambers for electronics, materials, or biological samples.
9 How does Re-circulating Chiller assist in aerospace component testing?
It provide precise thermal control for high-stress tests on avionics, sensors, or fuel systems, ensuring reliability under variable flight conditions.
10 How does Re-circulating Chiller support forensic or pathology labs?
It cools microtomes, tissue processors and chemical baths, helping preserve tissue integrity and sample quality for analysis and diagnostics.
