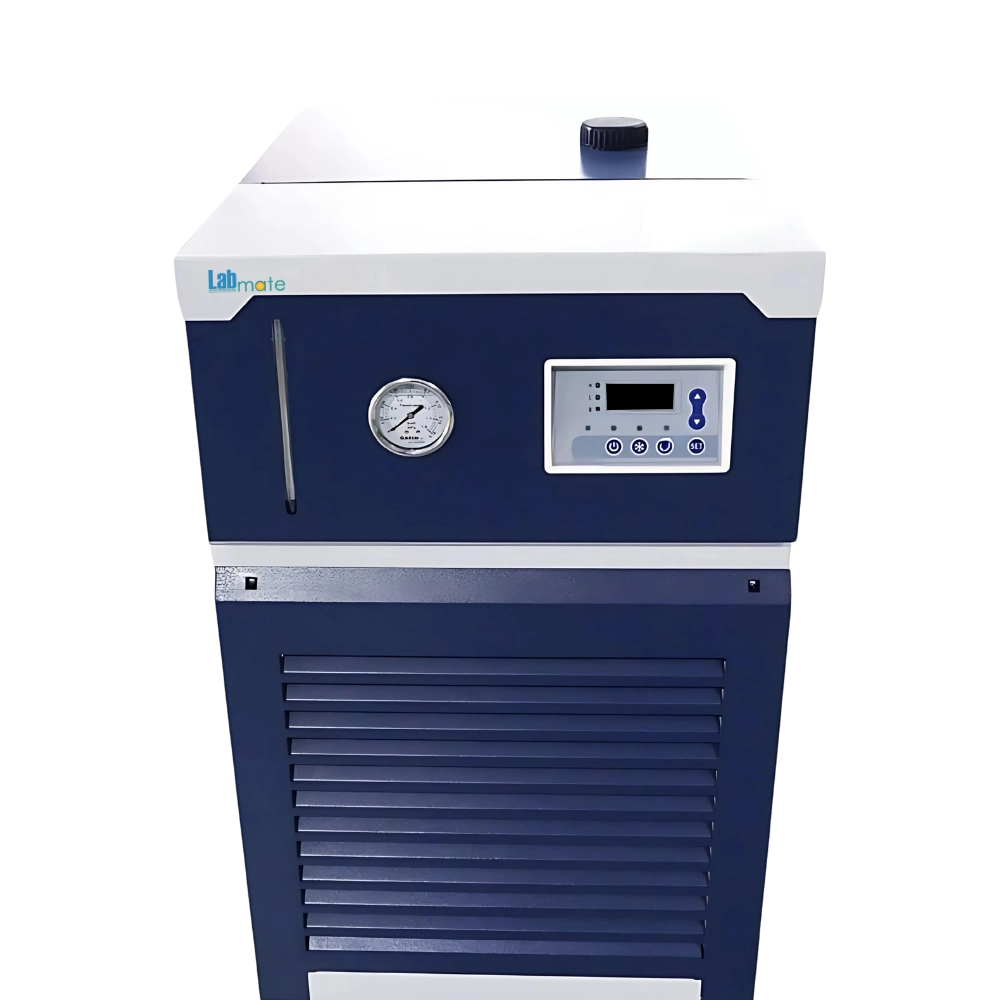

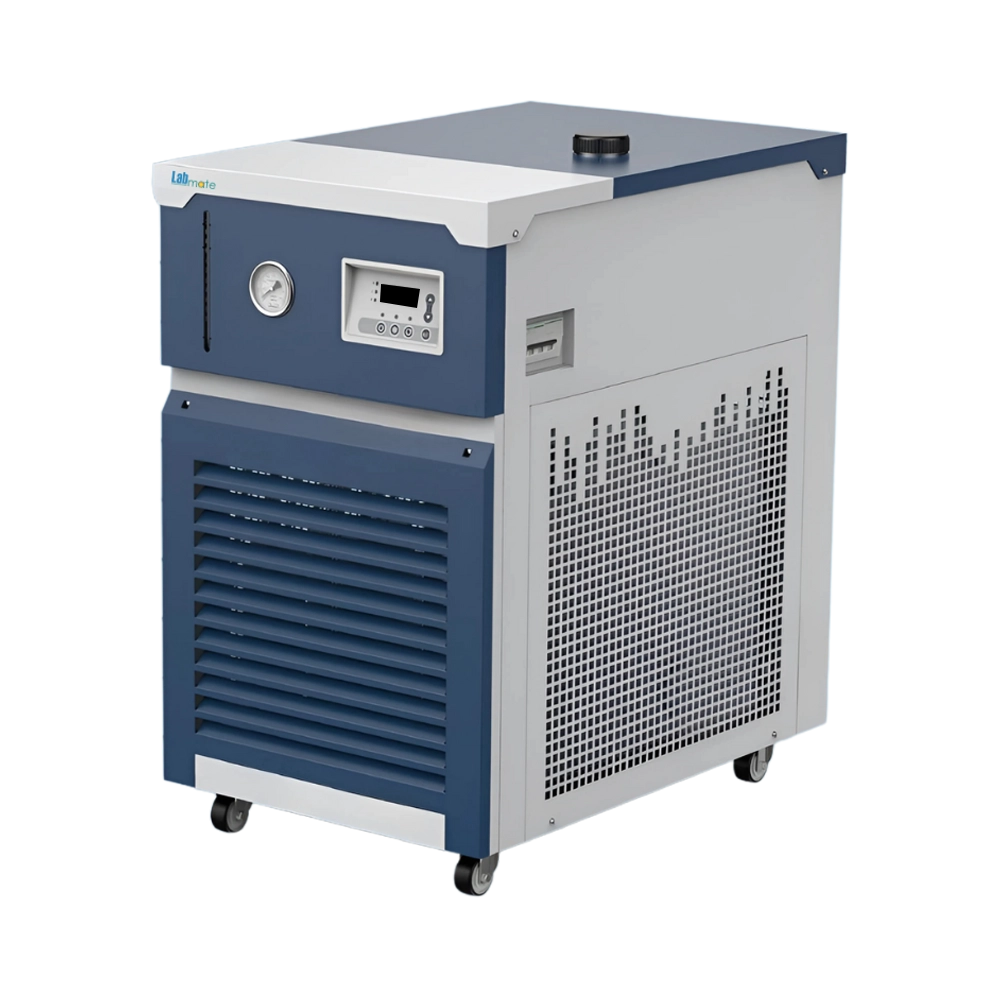

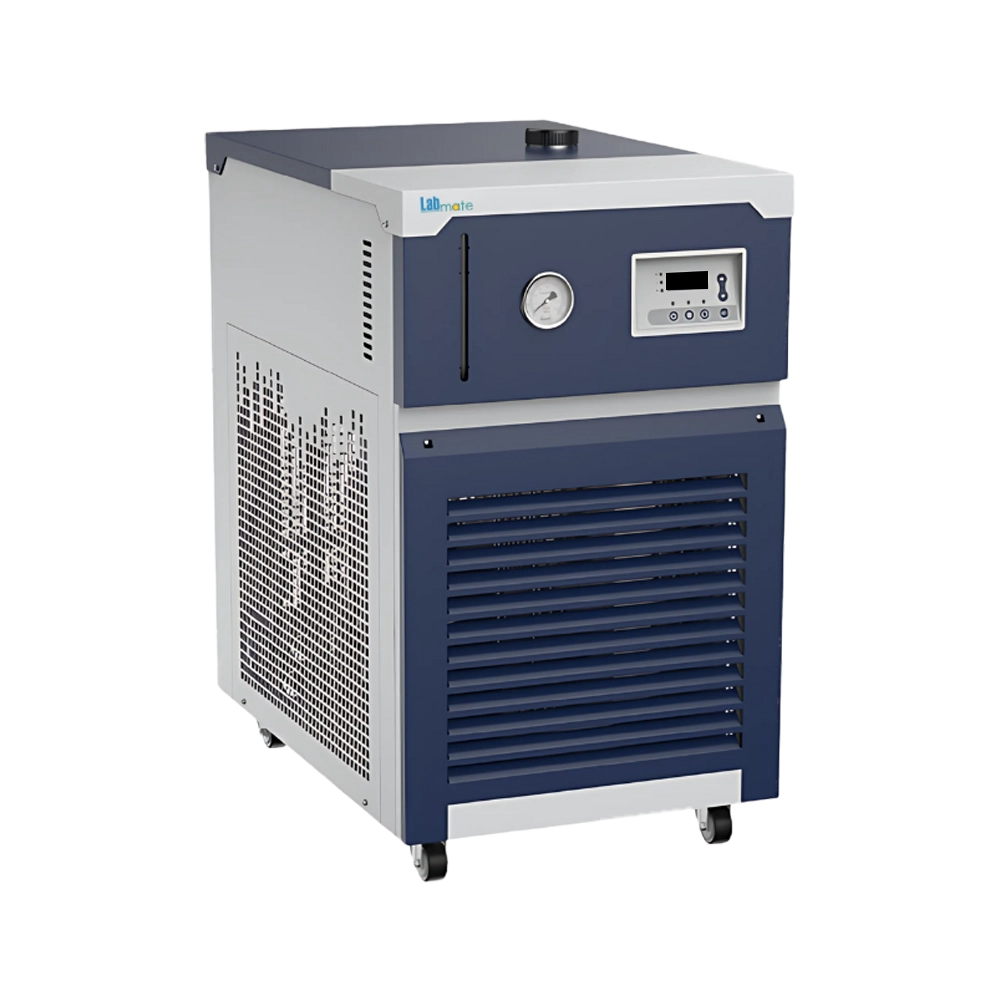

Recirculating Chiller LMRCC-B104 has reservoir capacity of 17 liters. It features vacuum gauge for monitoring internal pressure throughout system operation. Equipped with clearly marked liquid inlet and outlet ports for easy integration with other devices. Incorporates circuit breaker to prevent electrical overload and protect internal components. Our Chiller enables cooling for reactors, condensers, and material tests in various laboratory settings.
Specifications
| Volume | 17 L |
| Working Temperature Range | -30 to 5℃ |
| Temperature Stability | ±2°C |
| Flow Rate | 20 L/min |
| Cooling Method | Air cooling |
| Pressure | 0.4bar |
| Refrigerant | R410A |
| Ambient Temperature Range | 5 to 35℃ |
| Protection Grade | IP20 |
| Outer Circulation Interface | Rc1/2 |
| Power Consumption | 1.48 kW |
| Power Supply | 220 to 240V/50Hz |
| Dimensions (W×D×H) | 465×690×820 mm |
| Weight | 80 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Recirculating Chiller LMRCC-B104 | $ 3893.75 | Each of 1 |
Features
Leak detection
Over-current protection
Fluid level tracking
Caster base
PID thermal control
Applications
Recirculating Chiller LMRCC-B104 offers cooling for reactors, condensers, material tests, semiconductor tools, and lab instruments in industries, universities, pharmaceuticals, chemicals, biology, and research labs.
Similar Products
$ 29412.5 / Each of 1
$ 19575 / Each of 1
$ 3425 / Each of 1
$ 15825 / Each of 1
$ 3200 / Each of 1
$ 3362.5 / Each of 1
$ 3150 / Each of 1
$ 2112.5 / Pack of 1
$ 2575 / Each of 1
$ 2000 / Each of 1
$ 8037.5 / Each of 1
$ 4956.25 / Each of 1
Frequently Asked Questions
1 What is a Re-circulating Chiller?
A Re-circulating Chiller is an apparatus designed to maintain a stable temperature by continuously circulating a coolant through a process or equipment, removing heat and re-cooling the fluid for reuse.
2 How does a Re-circulating Chiller work?
It works by circulating coolant through a closed loop to absorb heat and then cooling the fluid for reuse.
3 What kind of maintenance does Re-circulating Chiller require?
Regular maintenance includes checking coolant levels, cleaning filters, and inspecting for leaks.
4 How does Re-circulating Chiller benefit laboratory applications?
It maintains precise temperature for equipment like rotary evaporators and spectrometers, ensuring accurate results and preventing overheating.
5 Can Re-circulating Chiller be used for cooling industrial lasers?
It is commonly used to cool industrial lasers by removing excess heat, maintaining optimal performance, and preventing damage from overheating.
6 How does Re-circulating Chiller assist in biotech and pharmaceutical research?
It provide temperature control for experiments and equipment, preserving the integrity of sensitive samples and ensuring consistent results in biotech and pharmaceutical research.
7 Can Re-circulating Chiller be used in food and beverage production?
It is used in food and beverage production to cool processing equipment, such as tanks or mixers, ensuring safety and quality in temperature-sensitive process.
8 Can Re-circulating Chiller be used in environmental chambers?
It is used to help maintain controlled temperature and humidity in environmental testing chambers for electronics, materials, or biological samples.
9 How does Re-circulating Chiller assist in aerospace component testing?
It provide precise thermal control for high-stress tests on avionics, sensors, or fuel systems, ensuring reliability under variable flight conditions.
10 How does Re-circulating Chiller support forensic or pathology labs?
It cools microtomes, tissue processors and chemical baths, helping preserve tissue integrity and sample quality for analysis and diagnostics.
