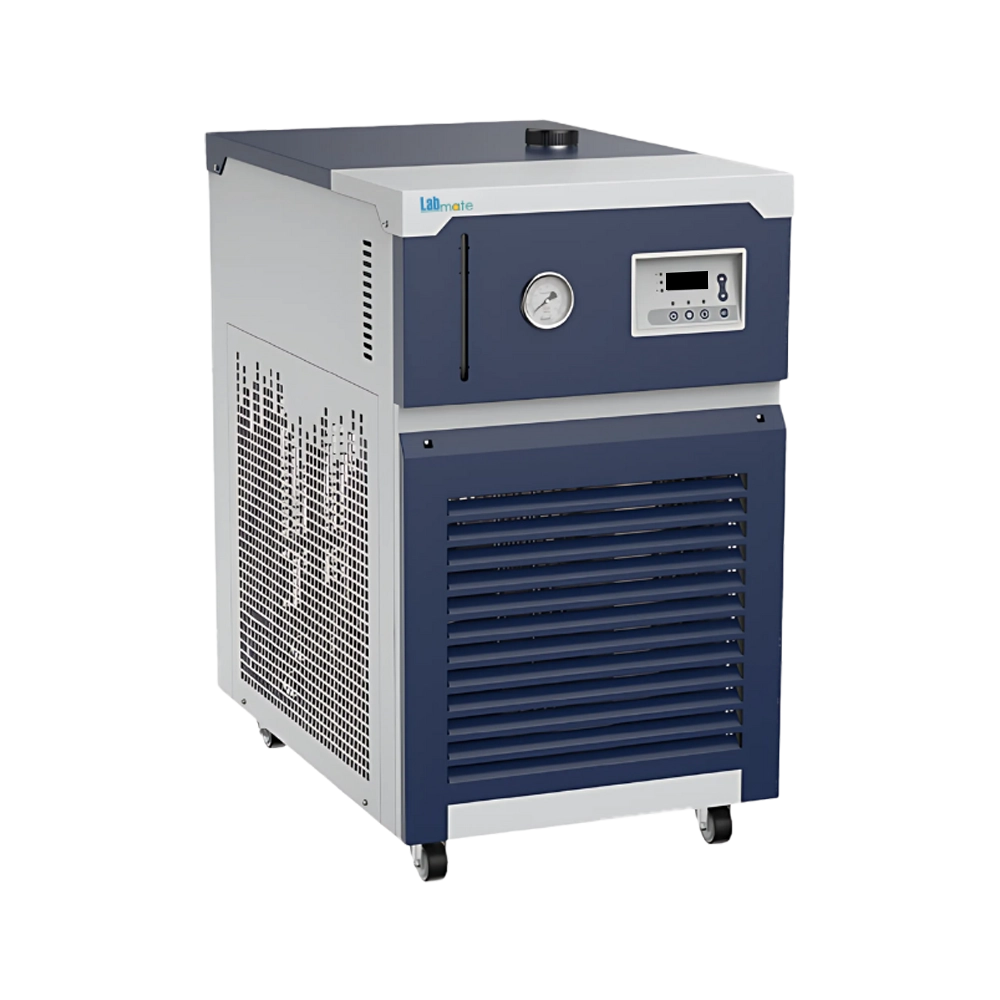

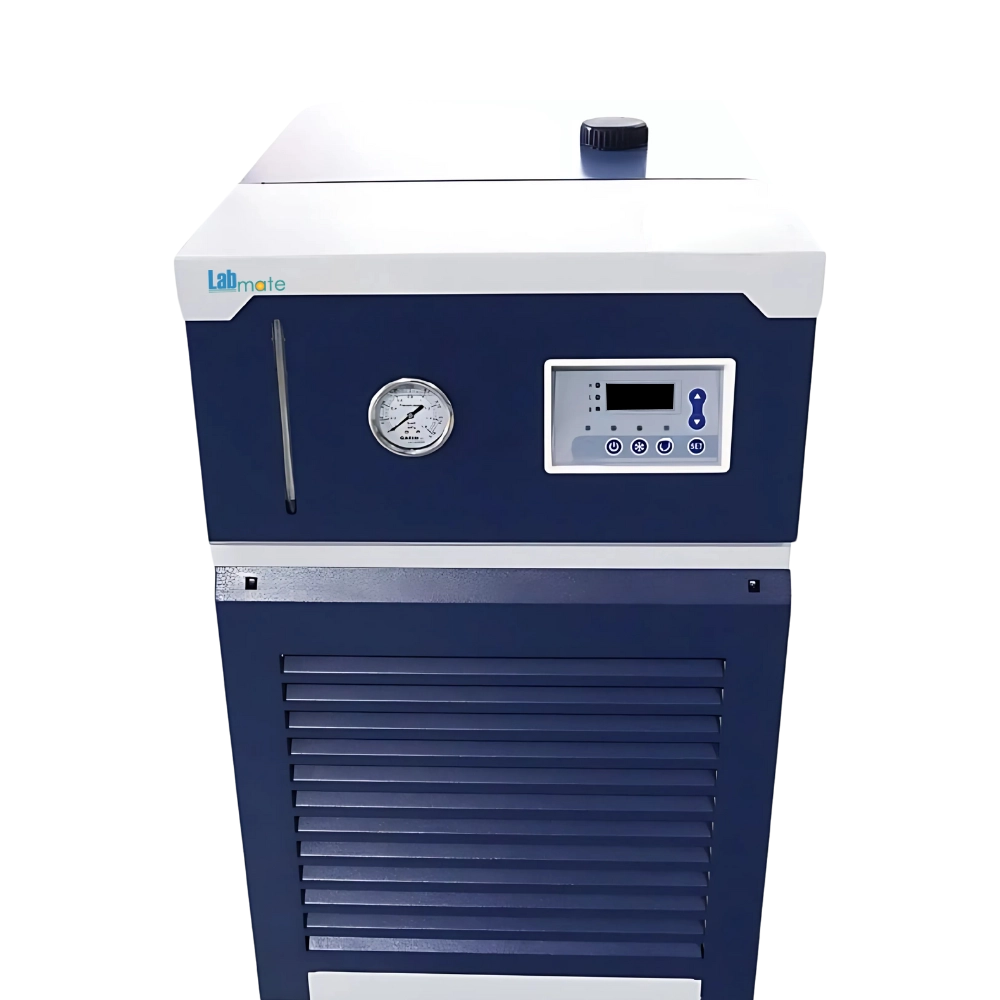

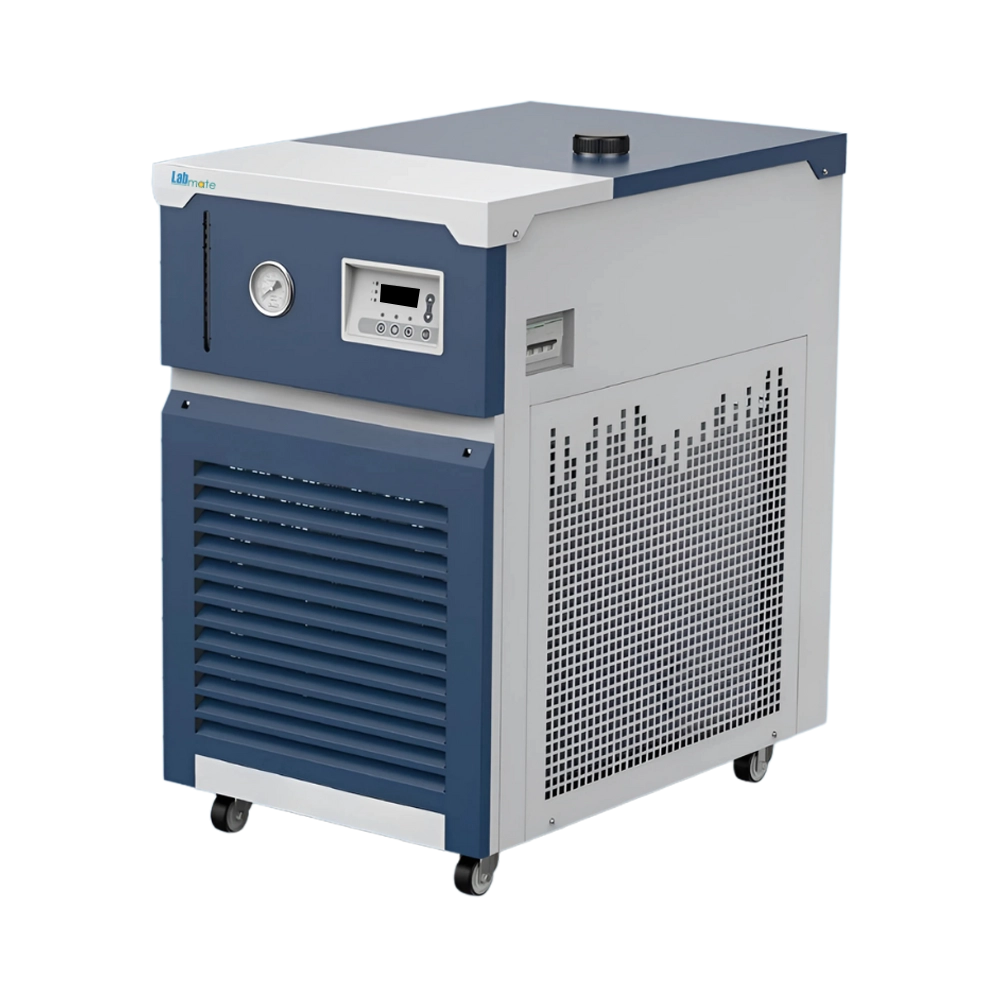

Recirculating Chiller LMRCC-B106 is designed with 40-liter capacity. It features PID-based temperature control to maintain thermal stability during diverse cooling demands. Equipped with vacuum gauge, it monitors internal pressure throughout system operation. Incorporates clearly marked liquid inlet and outlet ports for easy integration with other devices. Our Chiller ensures cold source for external equipment in chemical, pharmaceutical, and research sectors.
Specifications
| Volume | 40 L |
| Working Temperature Range | -30 to 5℃ |
| Temperature Stability | ±2°C |
| Flow Rate | 30 L/min |
| Cooling Method | Air cooling |
| Pressure | 1 bar |
| Refrigerant | R404A |
| Ambient Temperature Range | 5 to 35℃ |
| Protection Grade | IP20 |
| Outer Circulation Interface | Rc3/4 |
| Power Consumption | 2.82 kW |
| Power Supply | 380V/50Hz |
| Dimensions (W×D×H) | 650×1055×1070 mm |
| Weight | 195 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Recirculating Chiller LMRCC-B106 | $ 8037.5 | Each of 1 |
Features
Closed fluid circuit
Over-current defense
Electrical safety breaker
Evaporation prevention
Contamination resistance
Compressor delay protection
Applications
Recirculating Chiller LMRCC-B106 enables controlled cooling of scientific and industrial equipment in chemical, pharmaceutical, and research environments.
Similar Products
$ 3893.75 / Each of 1
$ 3150 / Each of 1
$ 4956.25 / Each of 1
$ 19575 / Each of 1
$ 3362.5 / Each of 1
$ 3200 / Each of 1
$ 2000 / Each of 1
$ 2575 / Each of 1
$ 15825 / Each of 1
$ 29412.5 / Each of 1
$ 2112.5 / Pack of 1
$ 3425 / Each of 1
Frequently Asked Questions
1 What is a Re-circulating Chiller?
A Re-circulating Chiller is an apparatus designed to maintain a stable temperature by continuously circulating a coolant through a process or equipment, removing heat and re-cooling the fluid for reuse.
2 How does a Re-circulating Chiller work?
It works by circulating coolant through a closed loop to absorb heat and then cooling the fluid for reuse.
3 What kind of maintenance does Re-circulating Chiller require?
Regular maintenance includes checking coolant levels, cleaning filters, and inspecting for leaks.
4 How does Re-circulating Chiller benefit laboratory applications?
It maintains precise temperature for equipment like rotary evaporators and spectrometers, ensuring accurate results and preventing overheating.
5 Can Re-circulating Chiller be used for cooling industrial lasers?
It is commonly used to cool industrial lasers by removing excess heat, maintaining optimal performance, and preventing damage from overheating.
6 How does Re-circulating Chiller assist in biotech and pharmaceutical research?
It provide temperature control for experiments and equipment, preserving the integrity of sensitive samples and ensuring consistent results in biotech and pharmaceutical research.
7 Can Re-circulating Chiller be used in food and beverage production?
It is used in food and beverage production to cool processing equipment, such as tanks or mixers, ensuring safety and quality in temperature-sensitive process.
8 Can Re-circulating Chiller be used in environmental chambers?
It is used to help maintain controlled temperature and humidity in environmental testing chambers for electronics, materials, or biological samples.
9 How does Re-circulating Chiller assist in aerospace component testing?
It provide precise thermal control for high-stress tests on avionics, sensors, or fuel systems, ensuring reliability under variable flight conditions.
10 How does Re-circulating Chiller support forensic or pathology labs?
It cools microtomes, tissue processors and chemical baths, helping preserve tissue integrity and sample quality for analysis and diagnostics.
