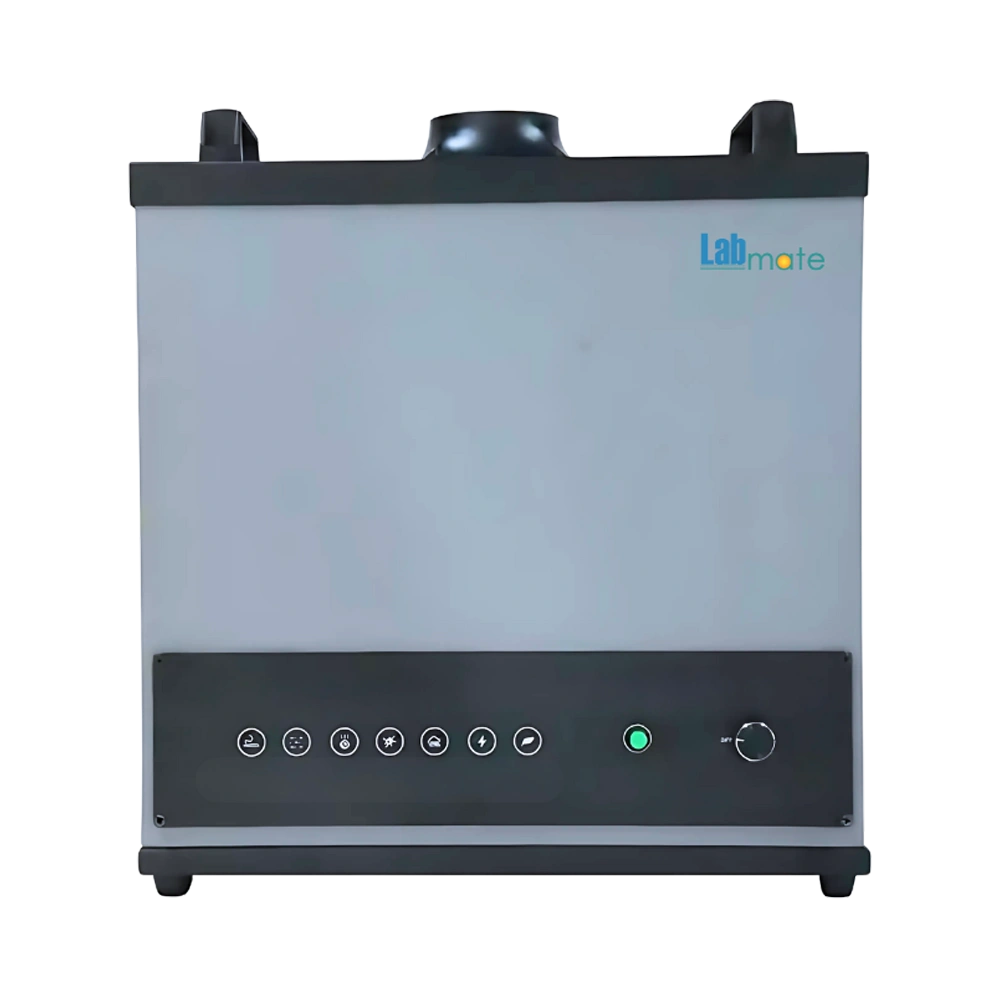

Portable Fume Extractor LMPFE-A106 offers air velocity of 2 × 10 m/s. Its 3-stage system includes pre-filter, middle filter, and main filter for layered purification. Its dual inlet configuration enhances suction efficiency by drawing fumes simultaneously from two directions. Its intuitive controls and alarm system ensure seamless operation with real-time safety alerts. Our Portable Fume Extractor is ideal for welding, laser processing, chemical manufacturing, and laboratories.
Specifications
| Air Volume | 320 m³/h |
| Air Velocity | 2 × 10 m/s |
| Filtration | 3 stages |
| Port Diameter | ϕ 75 mm × 2 |
| Filtration Efficiency | 99.97% at 0.3 µm |
| Noise Level | Less than 60 dB |
| Power Consumption | 200 W |
| Power Supply | 220 V, 50 Hz |
| Length of Duct | ϕ 75 mm × 1.4 m |
| Bamboo Duct Dimensions | 410 × 410 × 100 mm. |
| Nozzle dimensions | 130 × 120 × 120 mm |
| Dimensions | 420 × 240 × 450 mm |
| Nozzle Weight | 0.095 kg |
| Weight | 18 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Portable Fume Extractor LMPFE-A106 | $ 1487.5 | Each of 1 |
Features
360-degree smoking pipe
Silicone smoking hood
Air-stabilizing flange
Brushless DC motor
Shunt filter design
Caster wheels
Optional Accessories
Model No. | Accessory Name |

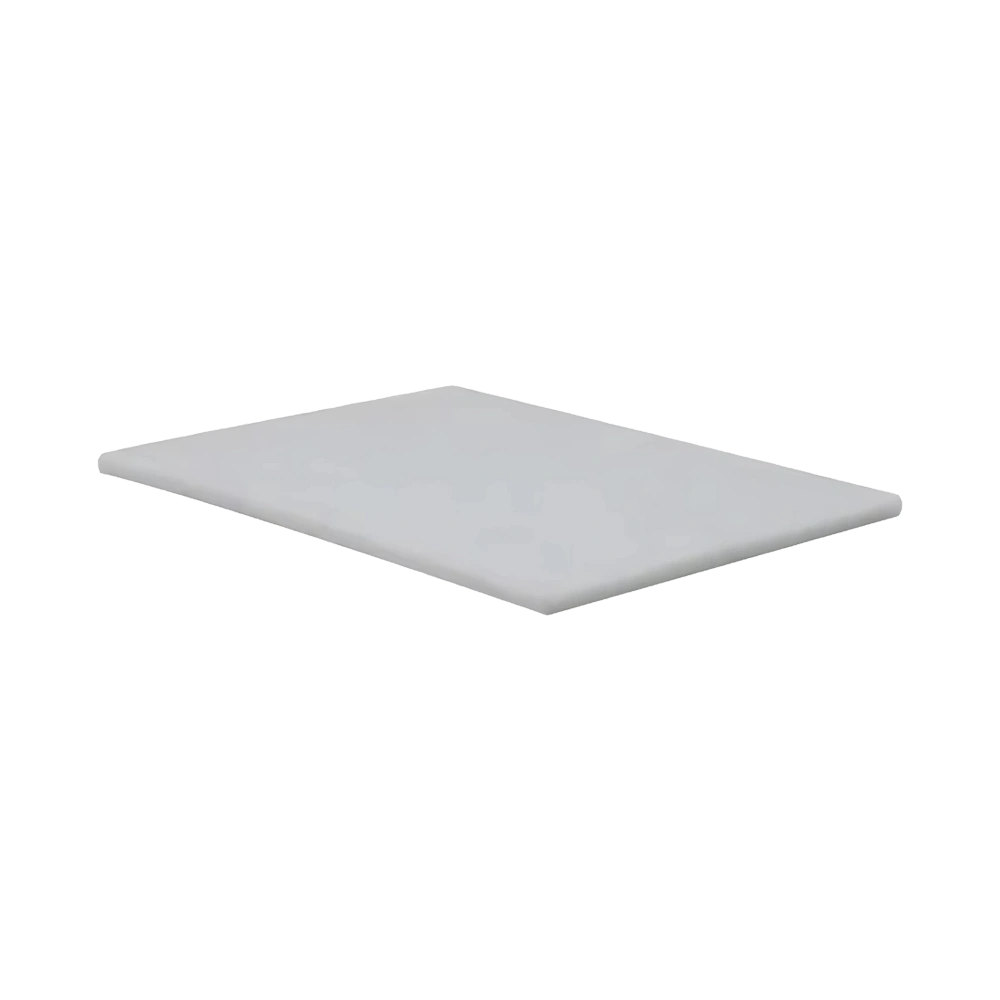

LMPFE-A106-F1 | Prefilter |

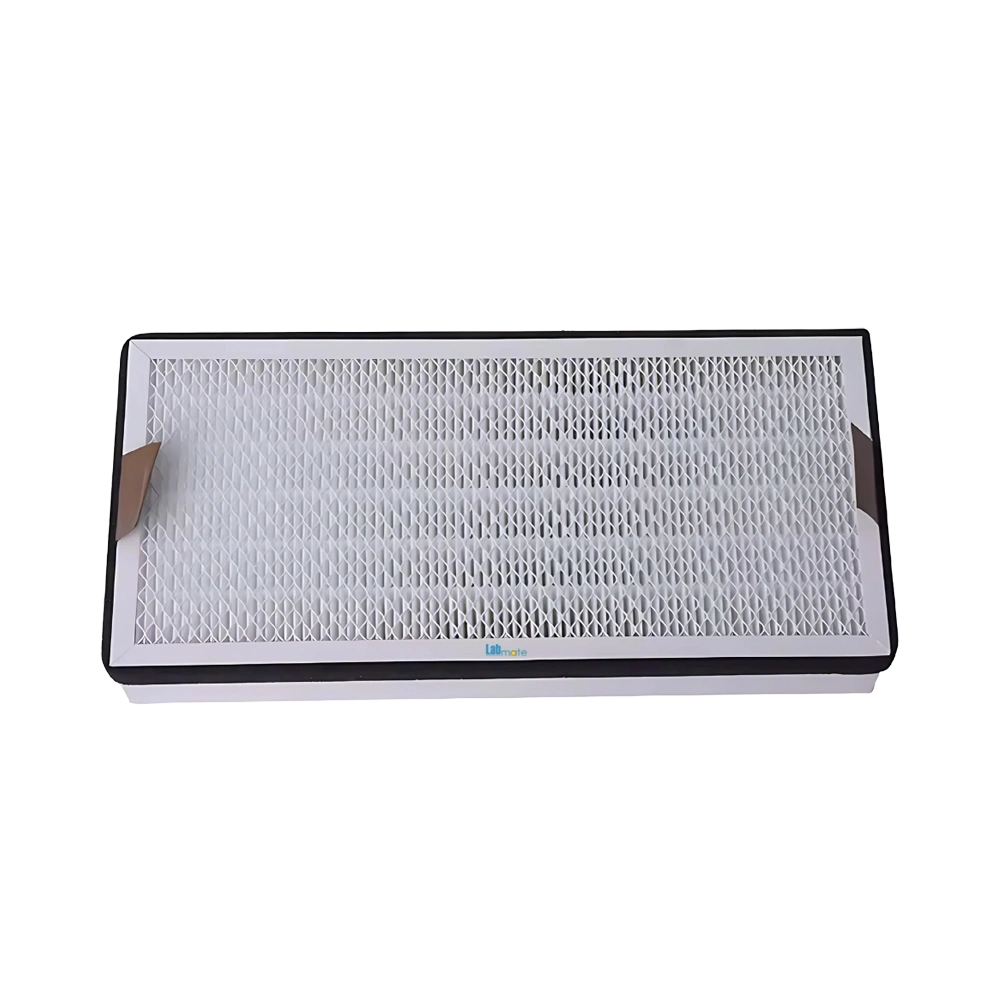

LMPFE-A106-F2 | Medium Efficiency Filter |
LMPFE-A106-F3 | High Efficiency Filter |
Applications
Portable Fume Extractor LMPFE-A106 is ideal for welding, laser processing, chemical manufacturing and laboratories for removing hazardous fumes, gases, and airborne particles.
Selection Guide
Portable Fume Extractor LMPFE-A106 is designed for safe and efficient air purification in laboratory and industrial settings. Based on a research study, it is welfor applications that involve soldering, chemical experiments, or processes emitting harmful fumes and particulates. This model is particularly suited for environments requiring mobility, compact design, and high-efficiency filtration. It supports multi-stage filtration technology to ensure maximum removal of hazardous substances. Certified for compliance with international safety and filtration standards (such as CE and ISO), it provides reliable performance for academic, research, and manufacturing laboratories. When selecting this unit, consider factors such as air volume capacity, filtration stages, and compatibility with your specific workspace or process—making it a strong choice for users who prioritize safety, portability, and certified air quality.
Filtration: Large particles (PM60) Replacement Period: 10 to 15 days Dimensions: 365 × 190 × 8 mm Weight: 0.03 kg
Filtration: Dust, soot, and tar (greater than or equal to 0.3 µm) Replacement Period: 3 to 6 months Dimensions: 365 × 175 × 55 mm Weight: 0.43 kg
Filtration: Smoke and harmful gases (Odor removal) Replacement Period: 6 to 9 months Dimensions: 410 × 260 × 300 mm Weight: 4.1 kg
