Portable Fume Extractor LMPFE-A100

Name: Portable Fume Extractor LMPFE-A100
Brand: Labmate
SKU: LMPFE-A100
Rating: 4.7 (463 reviews)

Portable Fume Extractor LMPFE-A100 offers air flow velocity of 258 m³/h. It incorporates primary cotton, HEPA, and activated carbon filter to remove 99.97% fumes and odors. Its universal smoking pipe offers 360° flexibility and maintains its position for steady, hands-free fume collection. Its alloy rivet buckle ensures durable assembly, while spin button offers smooth and easy operation. Our Portable Fume Extractor is ideal for harmful gas, smoke and dust removal.

Catalog Send Mail Whatsapp

Specifications

Air Flow Velocity	258 m³/h
Port Diameter	Φ75 mm
Filtration Efficiency	Greater than or equal to 99.97% at 0.3 μm
Noise Level	Less than 55 dB
Pipe Length	1.2 m
Power Consumption	150 W
Power Supply	220/ 110 V
Bamboo Duct Dimension	320 × 320 × 70 mm
Smoking hood dimension	100 × 100 × 130 mm
Dimensions	268 × 222 × 174 mm
Weight	7.6 kg

Pricing

Product	Price	Unit	Action
Portable Fume Extractor LMPFE-A100	$ 1300	Each of 1

Features

High-Temp Silicone Smoking Hood

Bamboo Duct

Fixed Wheels

Air-Stabilizing Flange

Knob Control Interface

Brushless motor

Optional Accessories

Model No.	Accessory Name

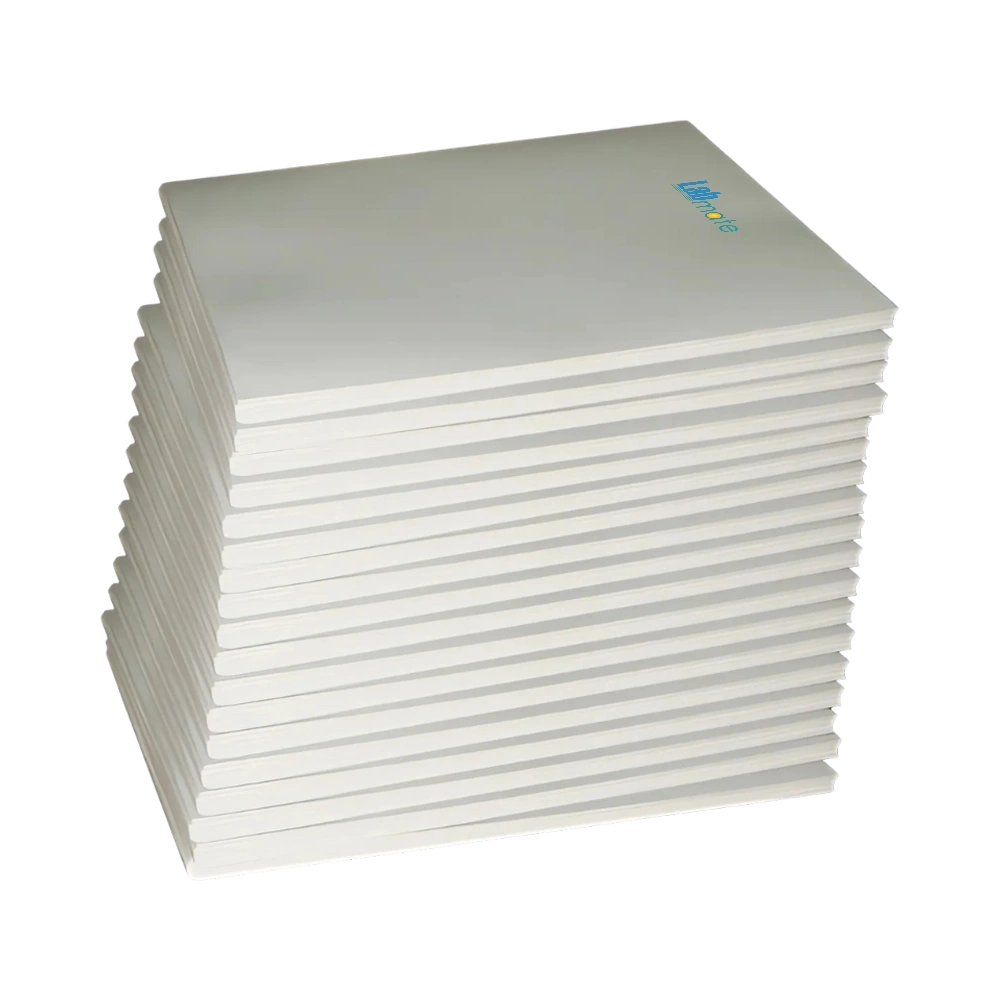

LMPFE-A100-F1	Prefilter

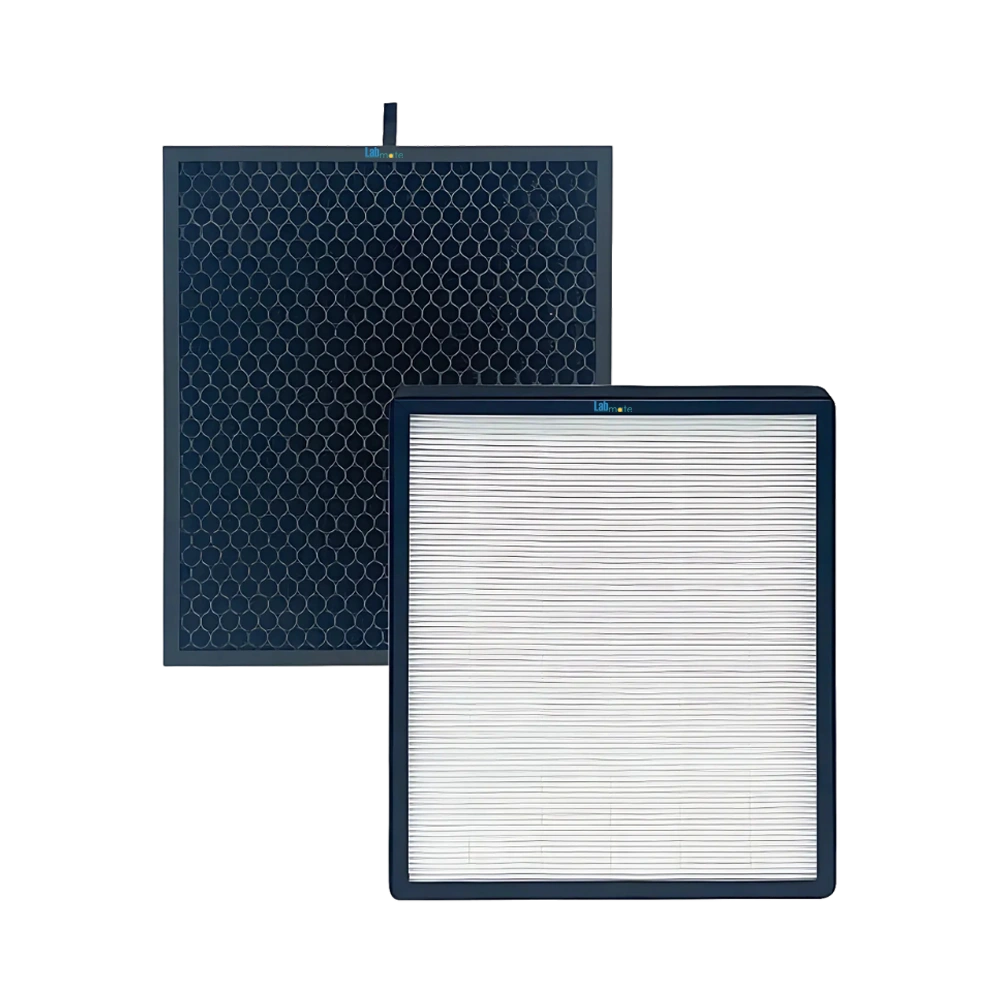

LMPFE-A100-F2	Main Filter

Applications

Portable Fume Extractor LMPFE-A100 is ideal for smoke and dust removal, laser smoke purification, harmful gas extraction, beauty nail salons, printing, and soldering processes.

Selection Guide

Portable Fume Extractor LMPFE-A100 is a compact, mobile solution designed to capture and filter harmful fumes, smoke, and airborne contaminants generated during processes such as soldering, laser marking, small-scale welding, and chemical handling. Based on research studies, it is commonly used in electronics assembly, dental labs, jewelry workshops, educational institutes, and other environments where localized fume extraction is needed. Equipped with a multi-stage filtration system including pre-filters, HEPA filters, and activated carbon layers, it ensures high filtration efficiency, capturing particles as small as 0.3 microns with up to 99.97% effectiveness. Certified with standards such as CE, ISO 9001, and RoHS, it guarantees reliable performance and safety compliance. Customers can select this model based on essential parameters like air volume capacity, number of filtration stages, portability features, low noise levels, and overall energy efficiency, making it a practical and dependable choice for maintaining a safe and clean workspace.
