Portable Fume Extractor LMPFE-A105 offers air volume of 320 m³/h. Its air-stabilizing flange ensures smooth airflow, reducing turbulence and improving extraction efficiency. Its silicone smoking hood offers flexible positioning, high heat resistance, and reliable smoke capture. Its compact build with casters allows easy mobility and space-saving placement in tight work areas. Our Portable Fume Extractor is ideal for removal of harmful fumes, dust, and airborne contaminants.
Specifications
| Air Volume | 320 m³/h |
| Air Velocity | 2 m/s |
| Filtration | 3 stages |
| Port Diameter | ϕ 75 mm |
| Filtration Efficiency | 99.97% at 0.3 µm |
| Noise Level | Less than 60 dB |
| Power Consumption | 200 W |
| Power Supply | 220 V, 50 Hz |
| Length of Duct | ϕ 75 mm × 1.4 m |
| Bamboo Duct Dimensions | 410 × 410 × 100 mm. |
| Nozzle dimensions | 180 × 90 × 80 mm |
| Dimensions | 420 × 240 × 450 mm |
| Nozzle Weight | 0.13 kg |
| Weight | 16 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Portable Fume Extractor LMPFE-A105 | $ 1425 | Each of 1 |
Features
Intuitive controls
360-degree smoking pipe
Brushless DC motor
Shunt Filter Design
Alarm System
Optional Accessories
Model No. | Accessory Name |

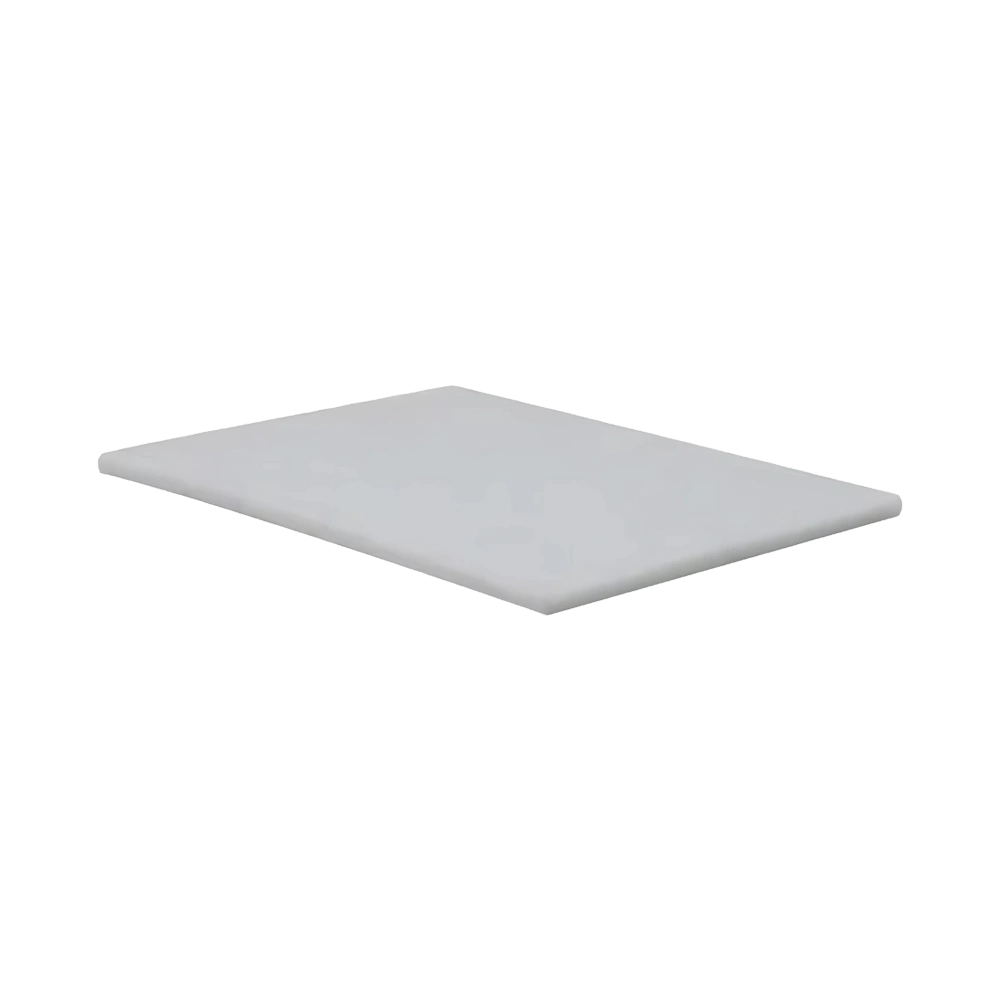

LMPFE-A105-F1 | Prefilter |

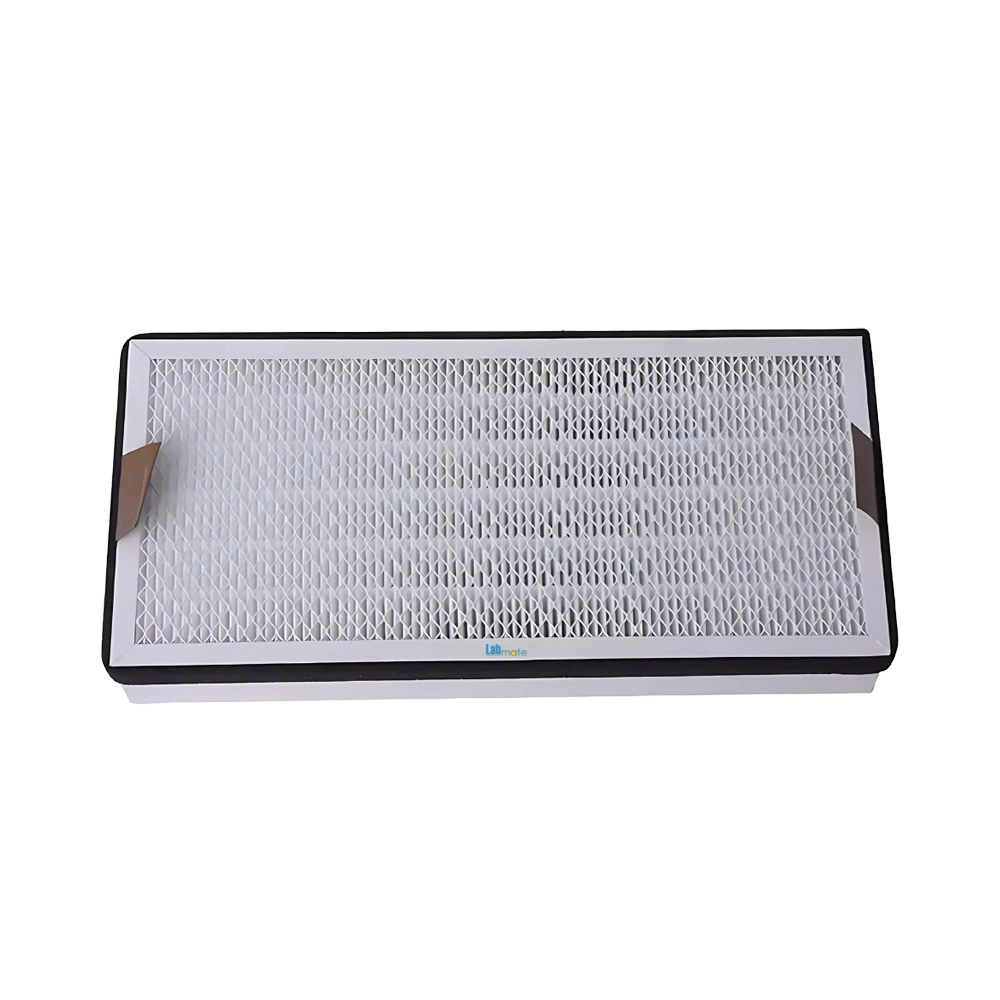

LMPFE-A105-F2 | Medium Efficiency Filter |

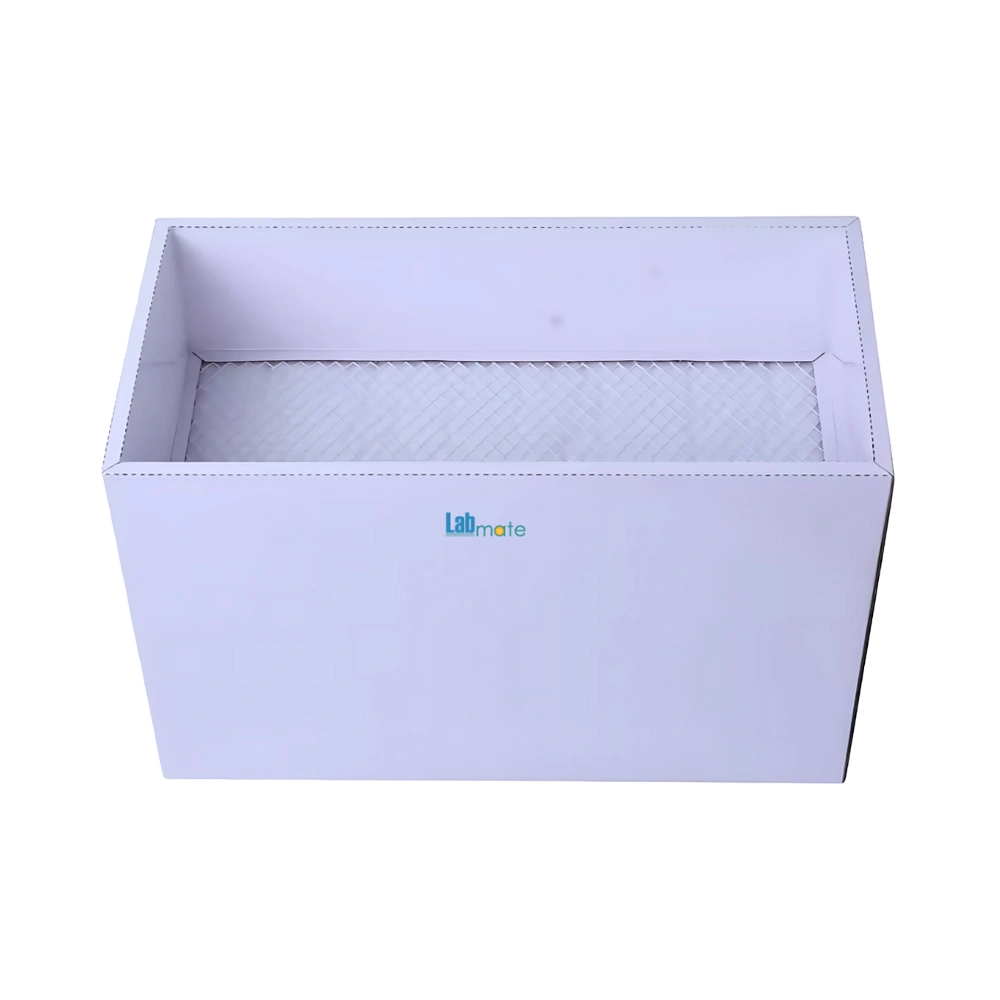

LMPFE-A105-F3 | High Efficiency Filter |
Applications
Portable Fume Extractor LMPFE-A105 is ideal for removing harmful fumes, dust, and airborne contaminants arising from laser cutting, welding, chemical manufacturing, and pharmaceutical processes.
Selection Guide
Portable Fume Extractor LMPFE-A105 is designed for high-efficiency removal of hazardous fumes, making it suitable for laboratory, pharmaceutical, chemical, and light industrial applications. According to a research study, this model is particularly effective in environments requiring consistent air purification during soldering, welding, resin processing, and chemical handling. It features multi-stage filtration, typically including HEPA and activated carbon filters, for optimal particle and gas-phase pollutant capture. The unit meets international safety and quality certifications such as CE and ISO standards, ensuring compliance with laboratory safety protocols. Customers can select this model based on their need for high air volume handling, low noise operation, and ease of mobility, especially when space-saving and plug-and-play functionality are important for their workflow.
Filtration: Large particles (PM60) Replacement Period: 10 to 15 days Dimensions: 365 × 190 × 8 mm Weight: 0.03 kg
Filtration: Dust, soot, and tar (greater than or equal to 0.3 µm) Replacement Period: 3 to 6 months Dimensions: 365 × 175 × 55 mm Weight: 0.43 kg
Filtration: Smoke and harmful gases (Odor removal) Replacement Period: 6 to 9 months Dimensions: 410 × 260 × 300 mm Weight: 4.1 kg
