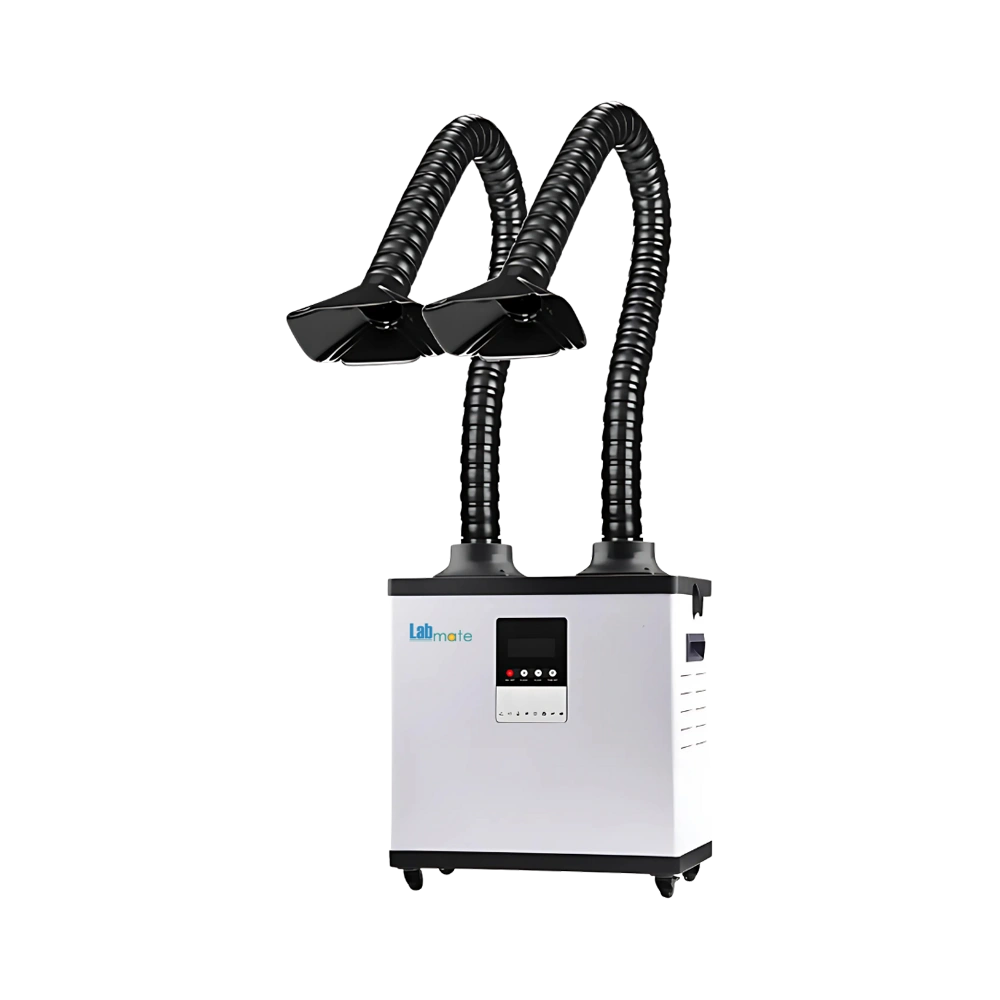

Portable Fume Extractor LMPFE-A103 offers air flow velocity of 155 m³/h. Its triple filter system with prefilter, HEPA, and activated carbon ensures efficient processing. Its high suction power enables quick and effective capture of unwanted air contaminants. Its shunt design and fixed wheels ensure balanced airflow and smooth, quiet mobility. Our Portable Fume Extractor is ideal for electronics, medical, cosmetic and printing fields.
Specifications
| Air Flow Velocity | 2 × 155 m³/h |
| Port Diameter | Φ75 mm × 2 |
| Filtration Efficiency | Greater than or equal to 99.97% at 0.3 µm |
| Duct Length | 75 mm × 1400 mm |
| Noise Level | Less than 50 dB |
| Power Consumption | 210 W |
| Power Supply | 220/ 110 V |
| Bamboo Duct Dimension | 410 × 410 × 100 mm |
| Nozzle dimension | 130 × 120 × 120 mm |
| Dimensions | 425 × 250 × 410 mm |
| Weight | 14.5 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Portable Fume Extractor LMPFE-A103 | $ 1800 | Each of 1 |
Features
Adjustable suction arm
Air-stabilizing flange
Spin button interface
Shutter air outlets
Brushless DC motor
Optional Accessories
Model No. | Accessory Name |

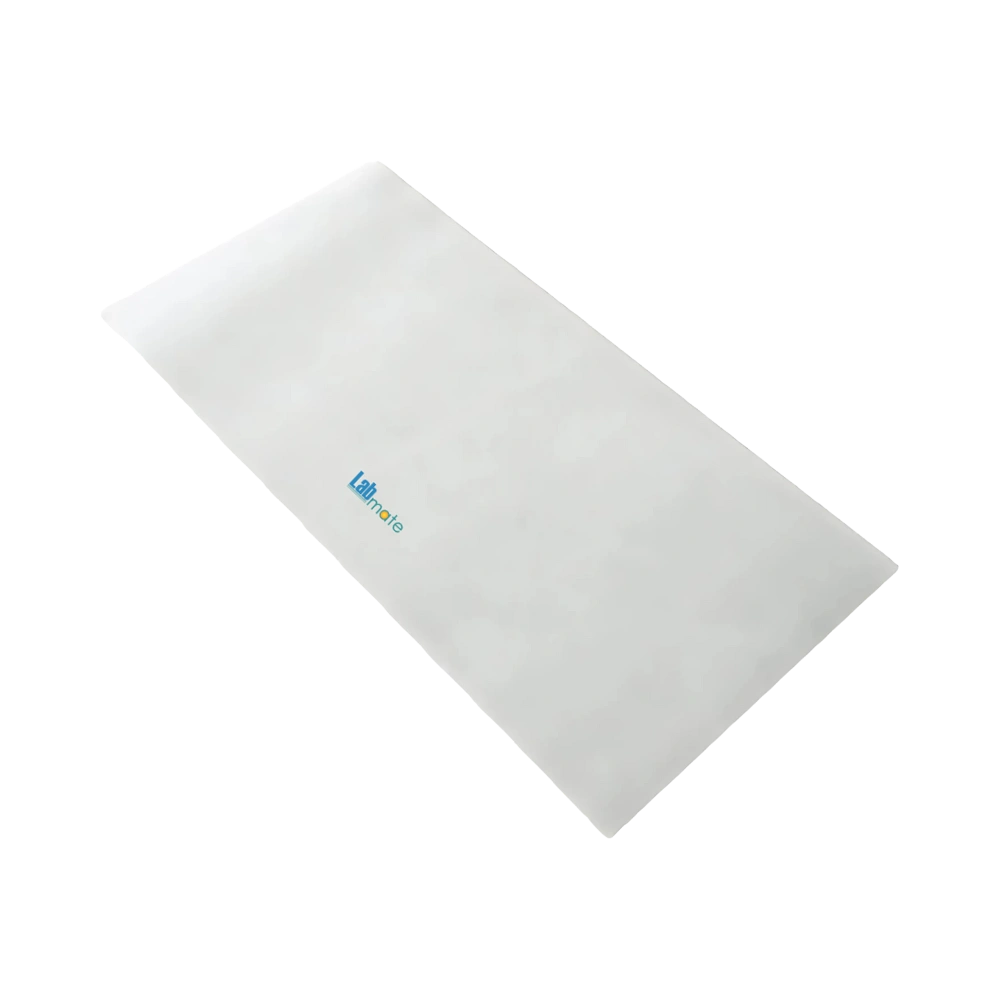

LMPFE-A103-F1 | Prefilter |

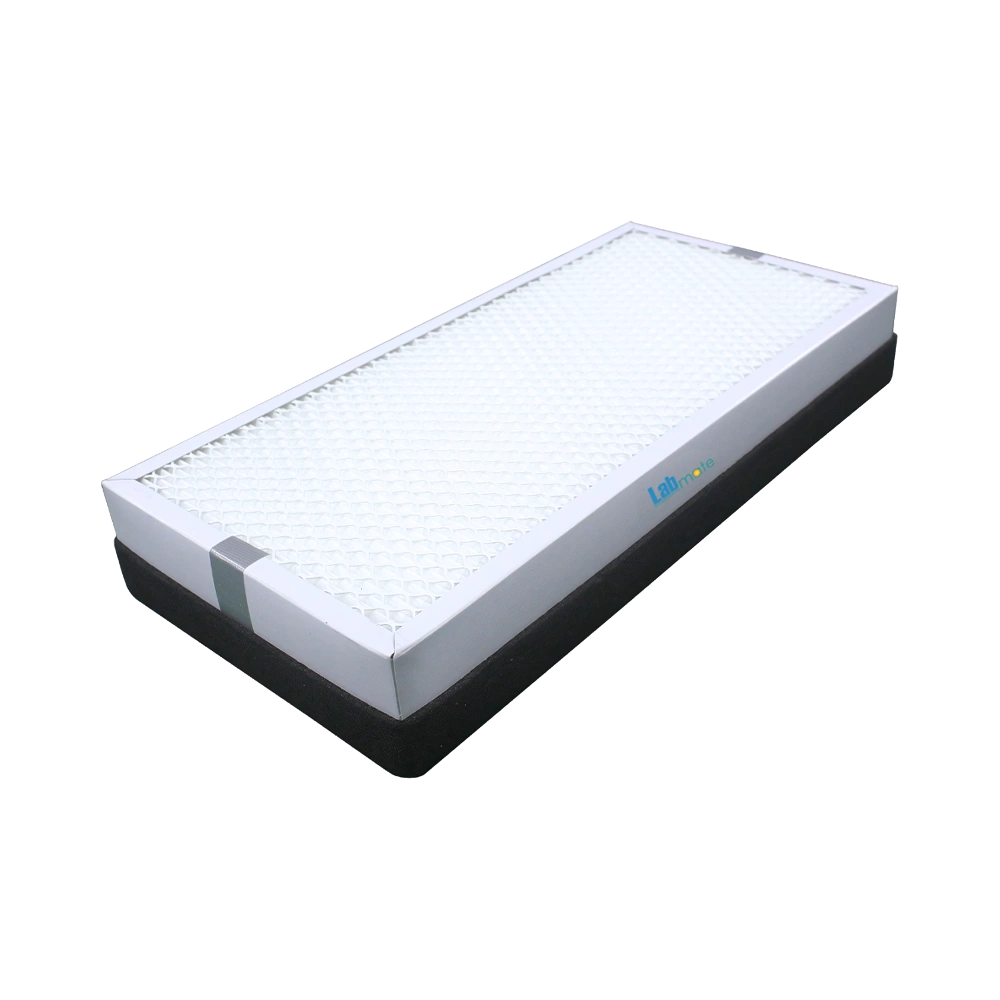

LMPFE-A103-F2 | Medium Efficiency Filter |
LMPFE-A103-F3 | High Efficiency Filter |
Applications
Portable Fume Extractor LMPFE-A103 is ideal for fume extraction in soldering, laser marking, moxibustion, and printing processes across electronics, cosmetics, healthcare, and manufacturing sectors.
Selection Guide
Portable Fume Extractor LMPFE-A103 is a compact and efficient air purification system designed to capture harmful fumes, smoke, and airborne particles generated during activities like soldering, chemical handling, and light laser work. Based on a research study, it is well-suited for laboratory and workshop environments where mobility and localized extraction are essential. This model features a multi-stage filtration system (typically 3–4 layers) with high-efficiency filters capable of removing particles as small as 0.3µm with over 99.97% efficiency. It operates quietly and meets international quality and safety standards with certifications like CE and ISO. Customers can select this model based on key requirements such as air volume capacity, filter type, filtration efficiency, and port diameter, making it suitable for applications that demand flexibility, certified safety, and clean working conditions.
Filtration: Large Particles (PM60) Replacement Cycle: 10 to 60 days Dimensions: 355 × 190 × 8 mm Weight: 0.03 kg
Filtration: Dust, Soot, and Tar (Greater than or equal to 0.3 µm) Replacement Cycle: 2 to 7 months Dimensions: 355 × 175 × 58 mm Weight: 0.5 kg
Filtration: Smoke and Harmful Gases (Odor Removal) Replacement Cycle: 3 to 7 months Dimensions: 385 × 195 × 245 mm Weight: 3.1 kg
