Portable Fume Extractor LMPFE-A102 operates with air flow velocity of 310 m³/h. Its adjustable suction arm allows flexible positioning for targeted and efficient functioning. Its air-stabilizing flange seat ensures smooth airflow and enhances overall filtration efficiency. It is equipped with brushless DC motor for stable, low noise, and long-lasting performance. Our Portable Fume Extractor is ideal for soldering, laser engraving, moxibustion.
Specifications
| Air Flow Velocity | 310 m³/h |
| Port Diameter | Φ75 mm |
| Filtration Efficiency | Greater than or equal to 99.97% at 0.3 μm |
| Duct Length | 75 mm ×1400 mm |
| Noise Level | Less than 50 dB |
| Power Consumption | 210 W |
| Power Supply | 220/ 110 V |
| Bamboo Duct Dimension | 410 × 410 × 100 mm |
| Nozzle dimension | 180 × 90 × 80 mm |
| Dimensions | 425 × 250 × 410 mm |
| Weight | 15.9 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Portable Fume Extractor LMPFE-A102 | $ 1675 | Each of 1 |
Features
Triple filters
High suction power
Spin button interface
Shunt design
Shutter air outlets
Fixed wheels
Optional Accessories
Model No. | Accessory Name |

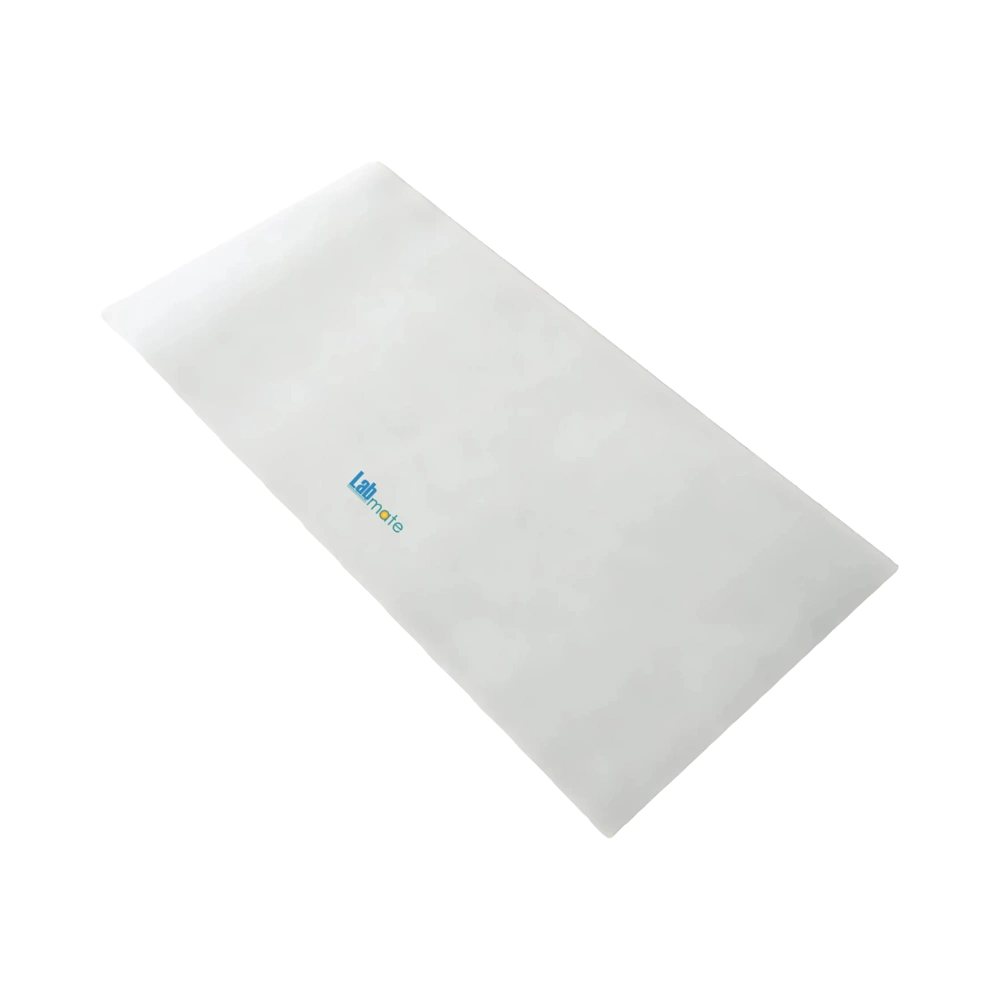

LMPFE-A102-F1 | Prefilter |

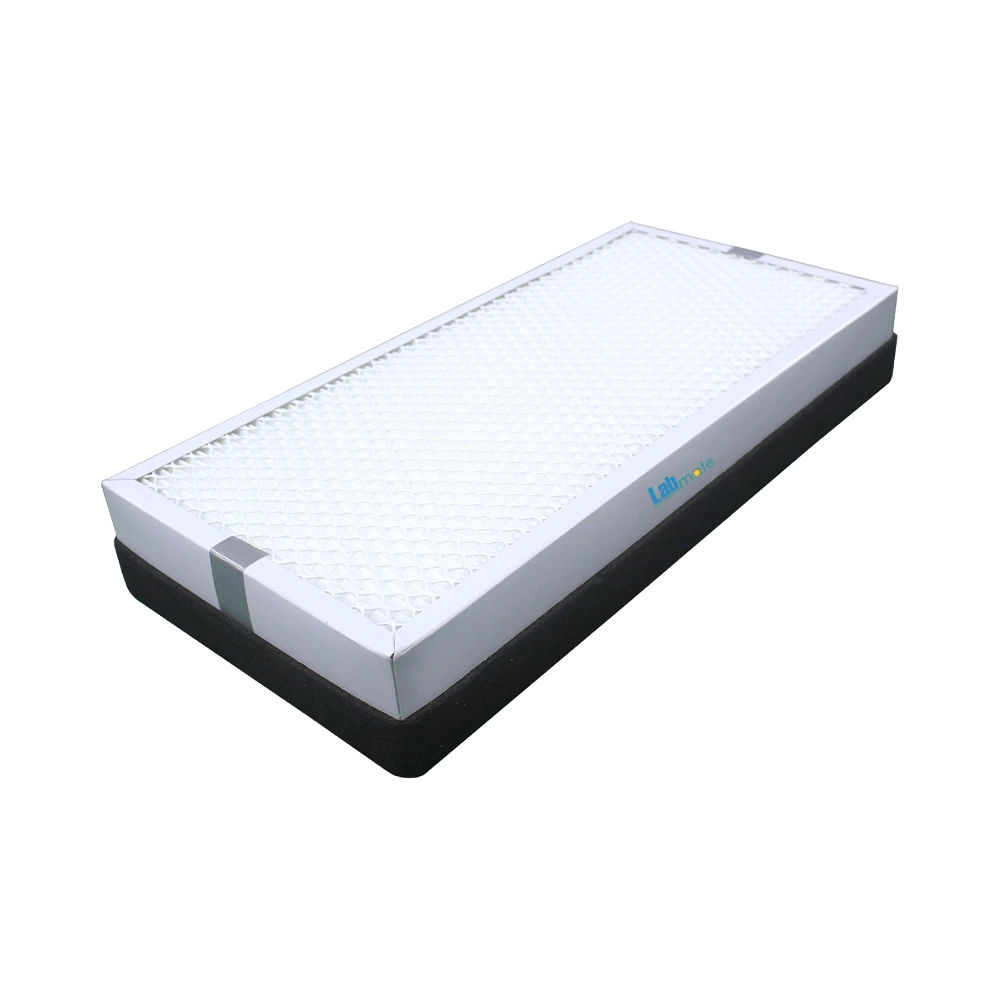

LMPFE-A102-F2 | Medium Efficiency Filter |

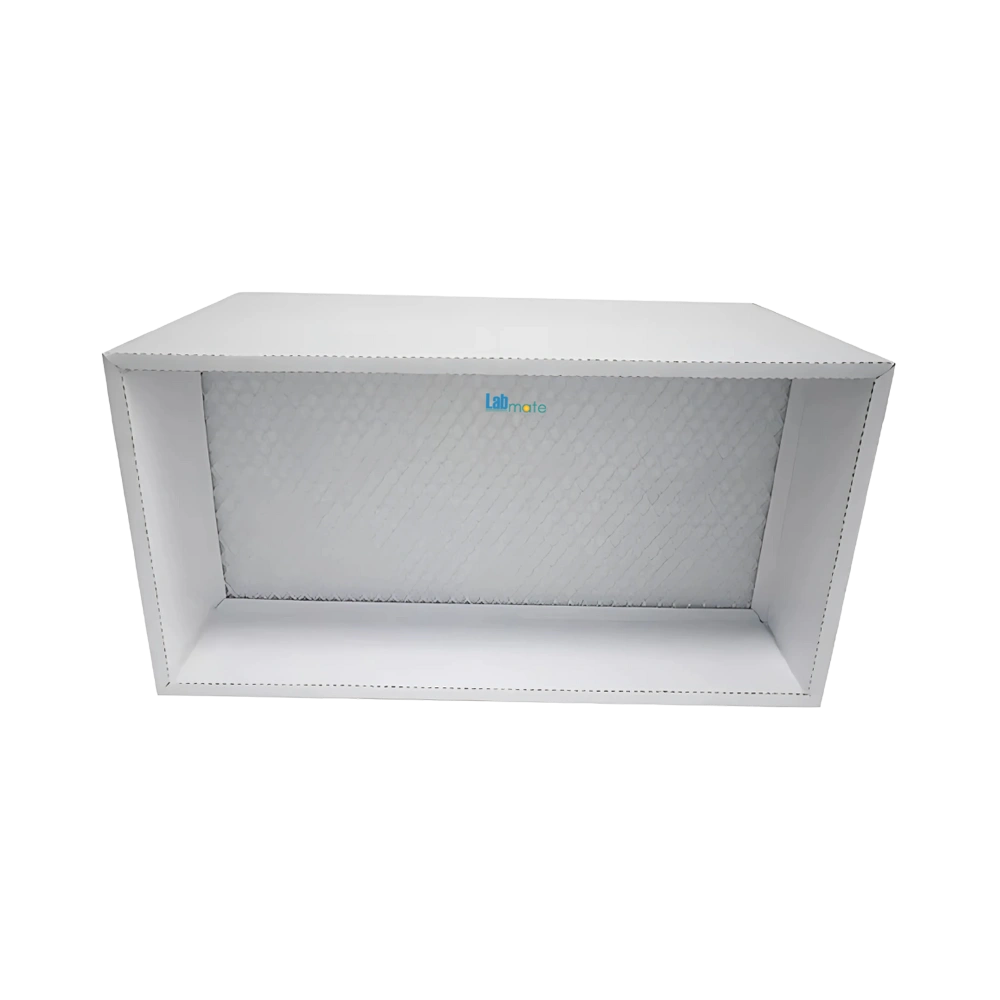

LMPFE-A102-F3 | High Efficiency Filter |
Applications
Portable Fume Extractor LMPFE-A102 is ideal for soldering, laser processing, moxibustion, and printing in electronics, cosmetic, medical, and manufacturing fields.
Selection Guide
Portable Fume Extractor LMPFE-A102 is a compact, efficient air filtration system designed to eliminate harmful fumes and airborne particles generated during various laboratory and industrial processes. Based on research studies and practical applications, this model is suitable for use in soldering, electronics assembly, chemical labs, and small-scale welding experiments. It is equipped with a multi-stage filtration system, ensuring effective removal of toxic gases, dust, and fine particulates. When selecting this model, customers should consider its certifications for workplace safety and air quality standards (such as CE or ISO compliance), its portability for flexible use across workstations, and the specific airflow volume and filter efficiency suited to their operational needs. Its ease of use, low noise level, and efficient filtration make it a preferred choice for maintaining a clean and safe working environment.
Filtration: Large Particles (PM60) Replacement Cycle: 10 to 60 days Dimensions: 355 × 190 × 8 mm Weight: 0.03 kg
Filtration: Dust, Soot, and Tar (Greater than or equal to 0.3 µm) Replacement Cycle: 2 to 7 months Dimensions: 355 × 175 × 58 mm Weight: 0.5 kg
Filtration: Smoke and Harmful Gases (Odor Removal) Replacement Cycle: 3 to 7 months Dimensions: 385 × 195 × 245 mm Weight: 3.1 kg
