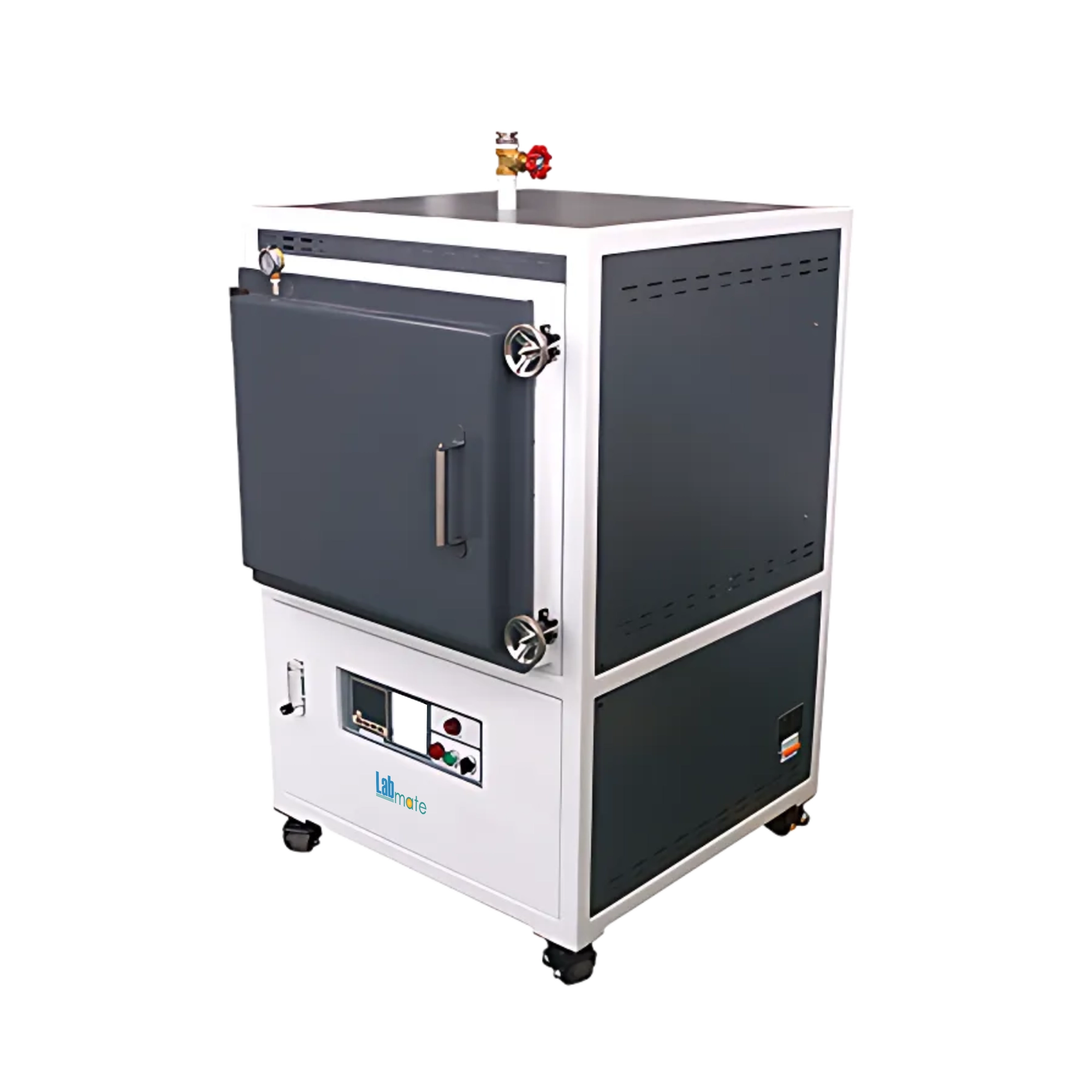

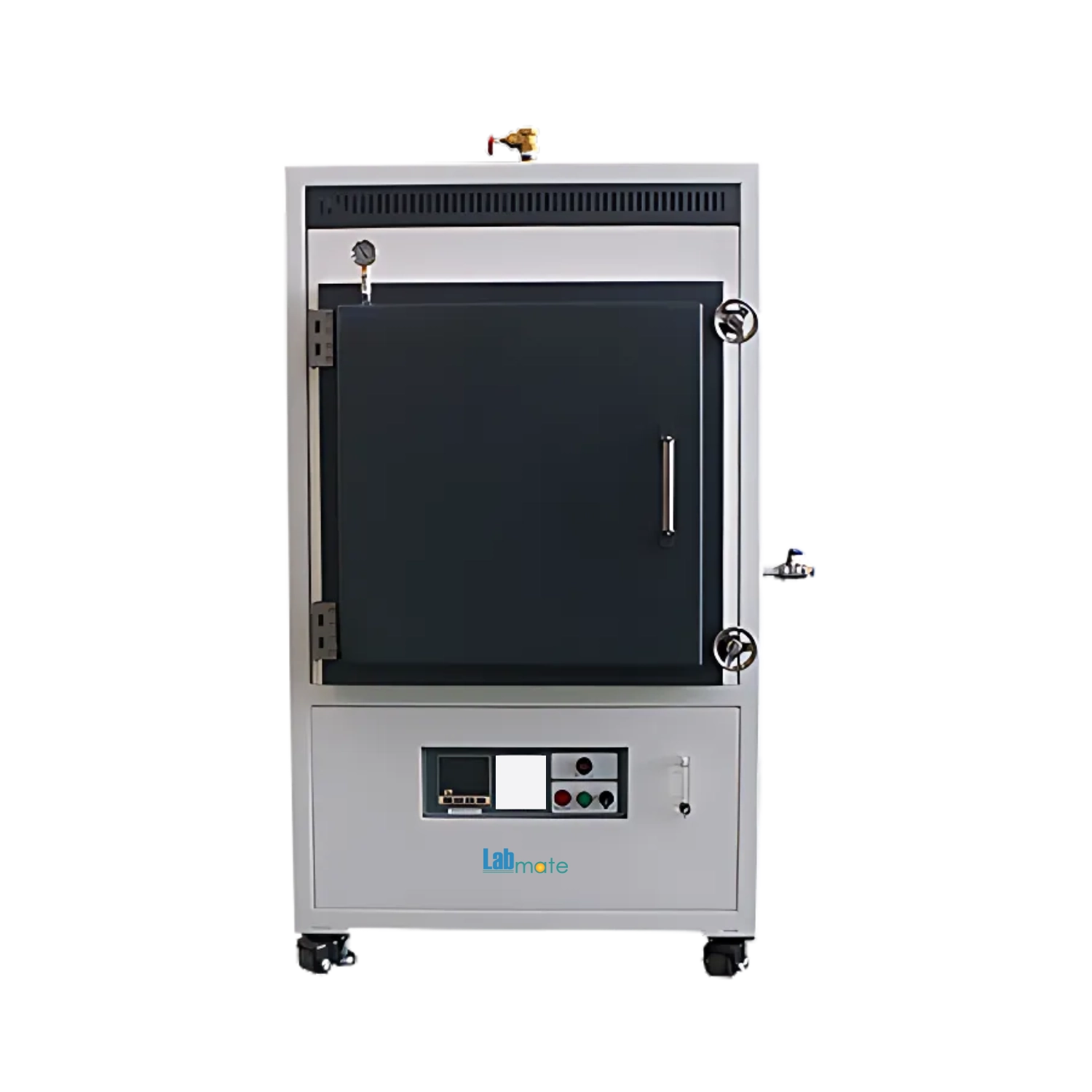

Muffle Furnace LMMF-A801 supports maximum working condition of 1200°C. It features flange-type sealed structure for stable chamber atmosphere during operation. Equipped with PID controller for stable temperature regulation. Integrated with 45L capacity for processing carbon metals biomass and lithium battery materials. Our Muffle Furnace is ideal for special ceramics industry 3D material and lithium ternary sintering.
Specifications
| Capacity | 45L |
| Maximum Temperature | 1200°C |
| Working Temperature | 1100ºC |
| Heating Element | High-Resistance Electric alloy |
| Power Consumption | 12KW |
| Power Supply | 380V |
| Dimensions | 300 × 500 × 300 mm |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Muffle Furnace LMMF-A801 | $ 8725 | Each of 1 |
Features
Furnace Shell
Simple operation
Safety alarm system
Refractory Material
Standard Accessories
Model No. | Accessory |
LMMF-A801-V1 | Vacuum Atmosphere furnace |
LMMF-A801-T1 | Temperature controller |
LMMF-A801-N1 | Type N Thermocouple |
LMMF-A801-P1 | Three-meter power line |
LMMF-A801-G1 | Thermal resistance gloves |
Optional Accessories
Model No | Accessory |
LMMF-A801-D1 | Dual Stage Rotary vacuum pump |
LMMF-A801-S1 | SIC bottom plate |
LMMF-A801-M1 | Gas Float Meter |
Applications
Muffle Furnace LMMF-A801 serves special ceramics industry and 3D material sintering processes. It is also suited for lithium battery ternary materials carbon metal and biomass heat treatment.
Similar Products
$ 7487.5 / Pack of 1
$ 9875 / Pack of 1
$ 2925 / Each of 1
$ 3187.5 / Pack of 1
$ 11750 / Pack of 1
$ 22512.5 / Pack of 1
$ 9012.5 / Pack of 1
$ 5187.5 / Pack of 1
$ 4112.5 / Pack of 1
$ 5537.5 / Pack of 1
$ 19275 / Pack of 1
$ 15075 / Pack of 1
$ 3425 / Pack of 1
$ 3262.5 / Pack of 1
$ 2862.5 / Pack of 1
Frequently Asked Questions
1 What is a Muffle Furnace?
A Muffle Furnace is a high-temperature heating apparatus that isolates the material being heated from direct flame or combustion gases by enclosing it in a chamber with insulated walls.
2 How is Muffle Furnace used in analytical chemistry?
It is used to incinerate organic material, enabling accurate analysis of inorganic residue such as ash content.
3 Can Muffle Furnace be used for ashing food and agricultural samples?
It is routinely used for ashing food and agricultural samples to determine the inorganic content by incinerating organic matter at high temperatures.
4 How is Muffle Furnace used in environmental testing?
In environmental testing, it is used to analyze soil, sludge, and waste samples for volatile and combustible content through controlled heating.
5 What role does Muffle Furnace play in metallurgy and alloy testing?
In metallurgy, it is essential for annealing, heat treating, and testing the thermal properties of alloys and metals under controlled conditions.
6 How is Muffle Furnace applied in pharmaceutical quality control?
It is used in pharmaceutical QC labs to determine ash content in drugs and raw materials, ensuring compliance with purity standards.
7 How is Muffle Furnace useful in forensic science?
It is employed in forensic science to incinerate biological or trace samples for residue analysis, without introducing external contamination.
8 Can Muffle Furnace be used for testing construction materials like cement and concrete?
It is commonly used to determine the loss on ignition (LOI) in cement and other construction materials by measuring weight loss after high-temperature heating.
9 Can Muffle Furnace be used for testing polymers and plastics?
It can be used to analyze residual ash in polymers and plastics, helping determine filler content and thermal stability.
10 How is Muffle Furnace used in ceramics manufacturing?
It is used for firing test tiles, sintering greenware, and studying the thermal behavior of raw ceramic materials.
