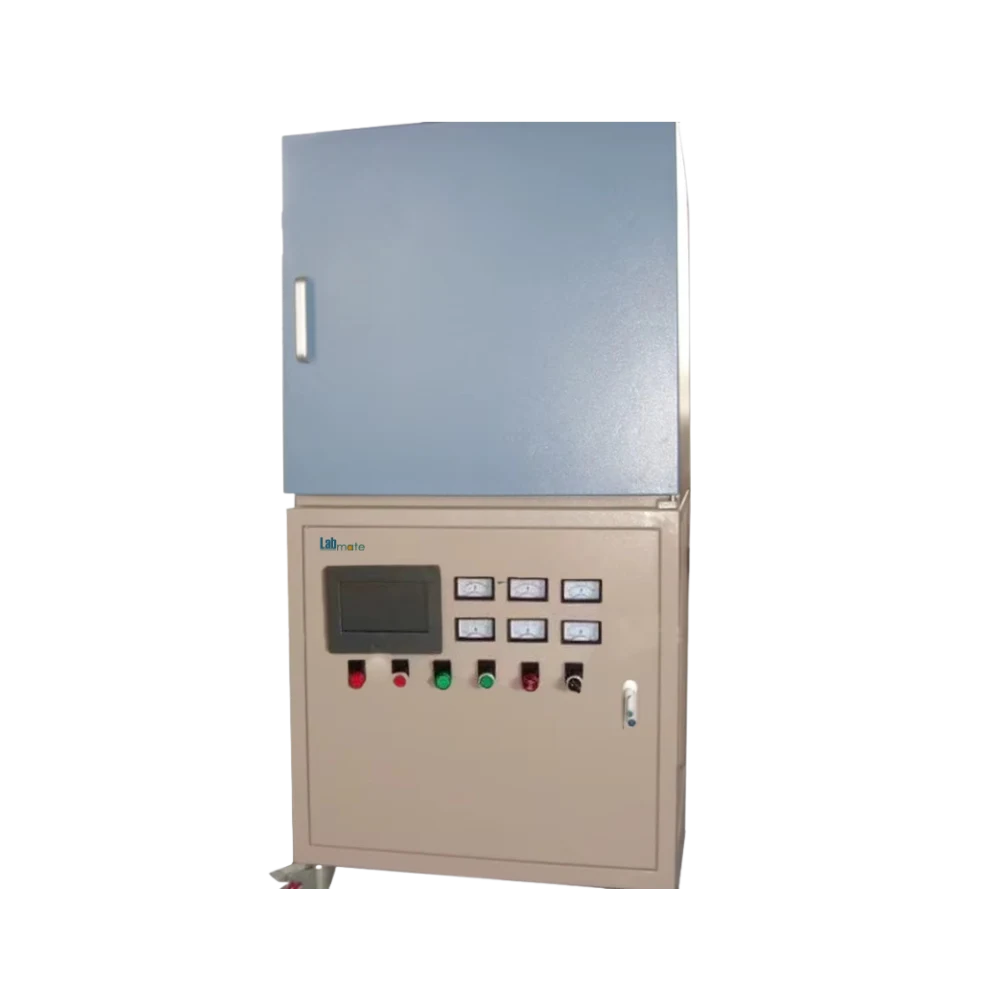

Muffle Furnace LMMF-A503 is the 64 L, cost-effective bench-top high temperature muffle furnace. The furnace is made of high-quality alumina fibre brick and MoSi2 heating elements. The temperature of the furnace is regulated by a high precision SCR (Silicon Controlled Rectifier) digital controller with +/-1C accuracy and 50 programmable segments up to 1700℃.
Get Quote| Furnace structure | Double layer steel structure with fan cooling |
| Insulation | High purity alumina fibre ceramic board |
| Max. Temperature | 1700 °C |
| Work Temperature | 1600 °C |
| Temperature control | 50 segments programmable and PID auto control |
| Heating Elements | High performance MoSi2 |
| Thermocouple | Long Life B Type Thermocouple |
| Heating Rate | 0~15 °C/min |
| Temperature Accuracy | +/-1 °C |
| Voltage | AC220V, 50/60HZ single phase |
| Power | 25 KW |
| Net Weight | 350 Kg |
| Chamber Size (D × H × W) | 400 × 400 × 400 mm |

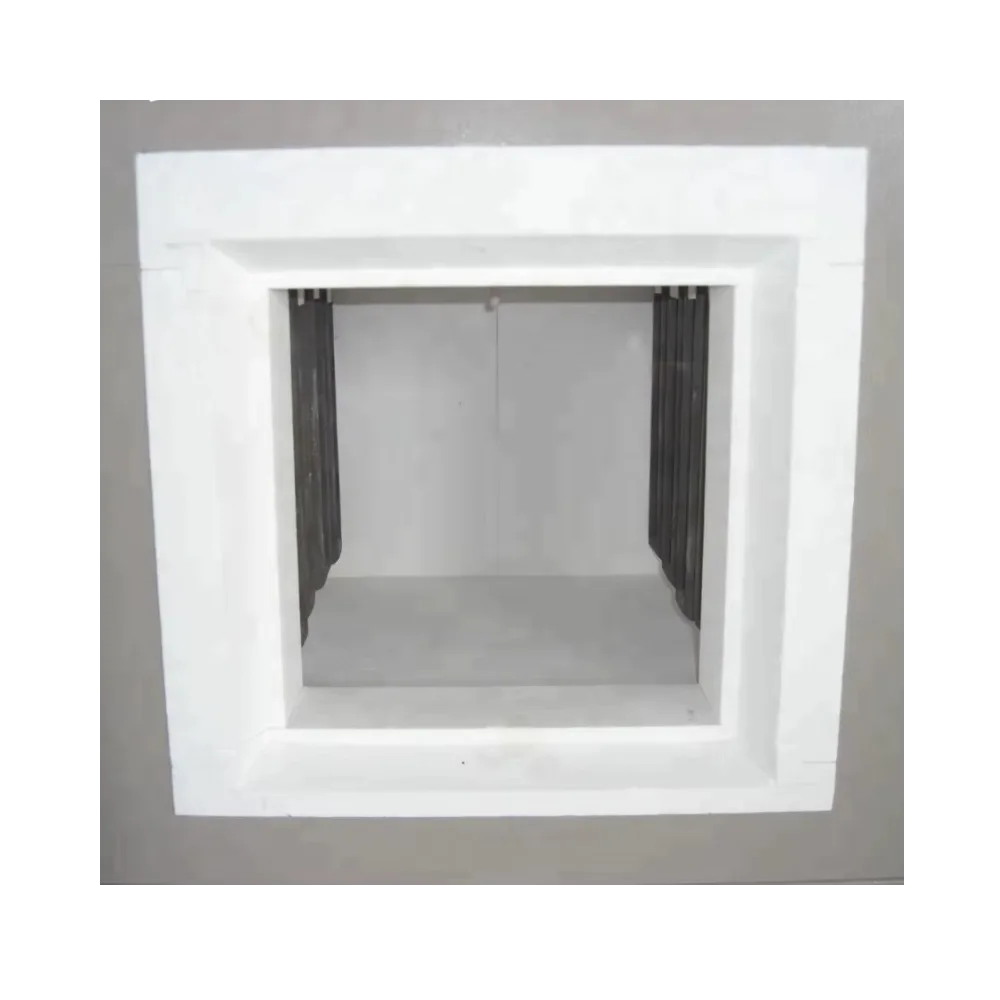

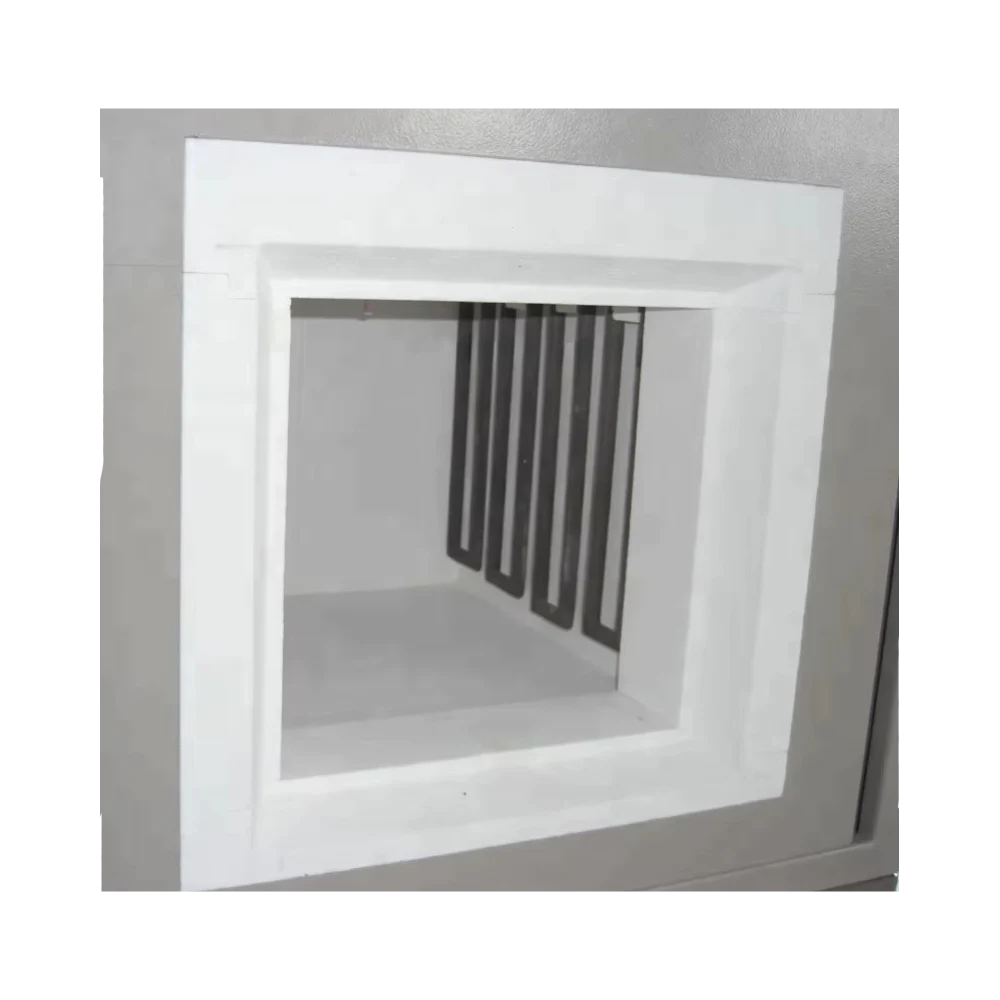

Chamber is made of high purity ceramic fibre for good thermal insulation and faster heating, saving energy
It is light weight and easy to clean
Over current protection and temperature alarm
PID automatic control with 50 programmable segments for precise control
These furnaces are used for various purposes such as development of new materials, including industrial and biotechnology products are being used as the basis of a common laboratory equipment.
Get Quote for
Muffle Furnace LMMF-A503
Our muffle furnaces are designed to be compact and efficient, yet powerful enough to achieve high temperatures and produce reliable results. The electronic controller with memory allows for easy programming of different heating profiles, making the furnace easy to use even for beginners. The heavy-duty chambers are insulated to minimize heat loss, ensuring that your samples are heated evenly and consistently.
Our efficient tube furnaces, designed to meet your specific heating needs. These compact and reliable furnaces are meticulously crafted to provide tailored solutions. Harnessing cutting-edge microprocessor technology and a PID controller, they guarantee exacting temperature control, safeguarding against any deviations from your desired target temperature. What sets our tube furnaces apart is their robust heating resistors. These components are engineered for durability and efficiency, ensuring consistent and uniform heating. Not only do they maintain the ideal temperature environment, but they also excel in minimizing energy consumption, making them an eco-friendly choice.
The Vacuum Furnace is a compact marvel, sporting a single-chamber configuration that's been enriched with a cutting-edge digital PID controller. This controller boasts unmatched precision in temperature regulation, making this furnace a beacon of reliability. Its effortless operation paves the way for an unrivaled user experience, putting precise temperature control firmly in your hands, spanning from a minimum of 400°C to a maximum of 900°C. This versatile unit comes in two sizes, offering options of 3L and 10L capacities. It's fortified with ceramic wool insulation, acting as a steadfast guardian against the perils of overheating and short circuits. Safety isn't just a promise; it's a guarantee when operating this furnace. With this technological masterpiece, your temperature-dependent processes will be executed flawlessly, underlining the fusion of innovation and safety that defines the Vacuum Furnace.
