Muffle Furnace LMMF-A302

Name: Muffle Furnace LMMF-A302
Brand: Labmate
SKU: LMMF-A302
Rating: 4.8 (469 reviews)

LMMF-A302 range of molybdenum desilicide heated high temperature chamber furnace comes with a maximum working temperature of 1450°C. It features a renowned microprocessor program controller that allows for precise temperature control in the range of 500°C to 1400°C as well as ease of operation. This device has an 11L capacity and is insulated with vacuum formed ceramic fibres to avoid overheating and short circuiting.

Catalog

Specifications

Capacity	11 Liters
Maximum Temperature	1450°C
Operating Temperature Range	500°C - 1400°C
Temperature Control	Microprocessor program control (2pattern 10 segment)
Thermocouple	B-type
Insulation	Ceramic board
Output Regulator	SCR unit controller
Heating Element	MoSi2 heater
Heater Capacity	7.7 Kw
Power	AC220V, 50/60Hz, 1-phase
Internal Dimension (W×D×H)	200×270×200 mm
External Dimension (W×D×H)	870×630×730 mm

Pricing

Product	Price	Unit	Action
Muffle Furnace LMMF-A302	$8,652.00	Pack of 1

Features

Intelligent sensor alarm function
Vacuum forced ceramic insulation
Microprocessor program controller
Auto-tuning function
Intuitive and easy to use operating menu
Current temperature and setting temperature is displayed separately on control panel
Highly efficient fan motor ensures uniform air circulation
Excellent temperature accuracy
Simple to use and maintain
Over-temperature limit function
Less and low noise operation with gentle air currents
Forced exhaust system

Applications

These furnaces are used for various purposes such as development of new materials, including industrial and biotechnology products are being used as the basis of a common laboratory equipment.

Muffle Furnace LMMF-A601

Capacity: 216 L
Maximum Temperature: 1700°C
Temperature Control: Digital PID controller
Thermocouple: B-type
Heater Capacity: 45 KW

Muffle Furnace LMMF-A301

Capacity: 4.5 Liters
Maximum Temperature: 1450°C
Operating Temperature Range: 500°C - 1400°C
Temperature Control: Microprocessor program control (2pattern 10 segment)
Thermocouple: B-type

Muffle Furnace LMMF-A504

Working Temperature: 1300℃
Highest Temperature: 1400℃
Capacity: 36L
Heating Rate: ≤20℃/Min
Temperature Control Accuracy: ±1℃

Muffle Furnace LMMF-A204

Capacity: 14 Liters
Maximum Temperature: 1100°C up to 1200°C
Operating Temperature Range: 300°C to 1000°C
Temperature Control: Digital PID controller, program type (5 pattern 18 segment)
Timer: 99Hr 59min

Muffle Furnace LMMF-A101

Capacity: 3 Liters
Maximum Temperature: 850°C
Operating Temperature Range: 300°C to 800°C
Temperature Control: Digital PID controller
Timer: 99Hr 59min

Muffle Furnace LMMF-A403

Capacity: 22 Liters
Maximum Temperature: 1650°C
Operating Temperature Range: 500°C - 1600°C
Temperature Control: Microprocessor program control (2pattern 10 segment)
Thermocouple: B-type

Muffle Furnace LMMF-A102

Capacity: 5 Liters
Maximum Temperature: 850°C
Operating Temperature Range: 300°C to 800°C
Temperature Control: Digital PID controller
Timer: 99Hr 59min

Muffle Furnace LMMF-A402

Capacity: 11 Liters
Maximum Temperature: 1650°C
Operating Temperature Range: 500°C - 1600°C
Temperature Control: Microprocessor program control (2pattern 10 segment)
Thermocouple: B-type

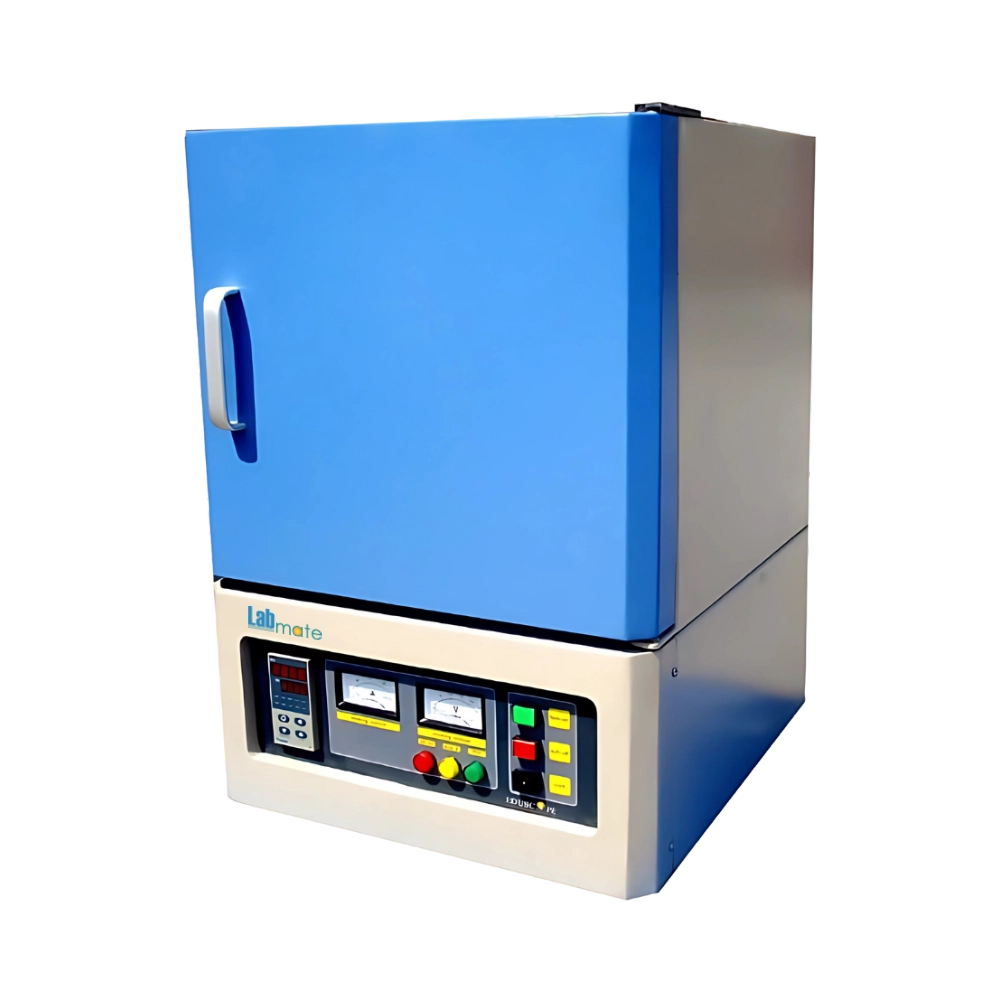

Muffle Furnace LMMF-A503
