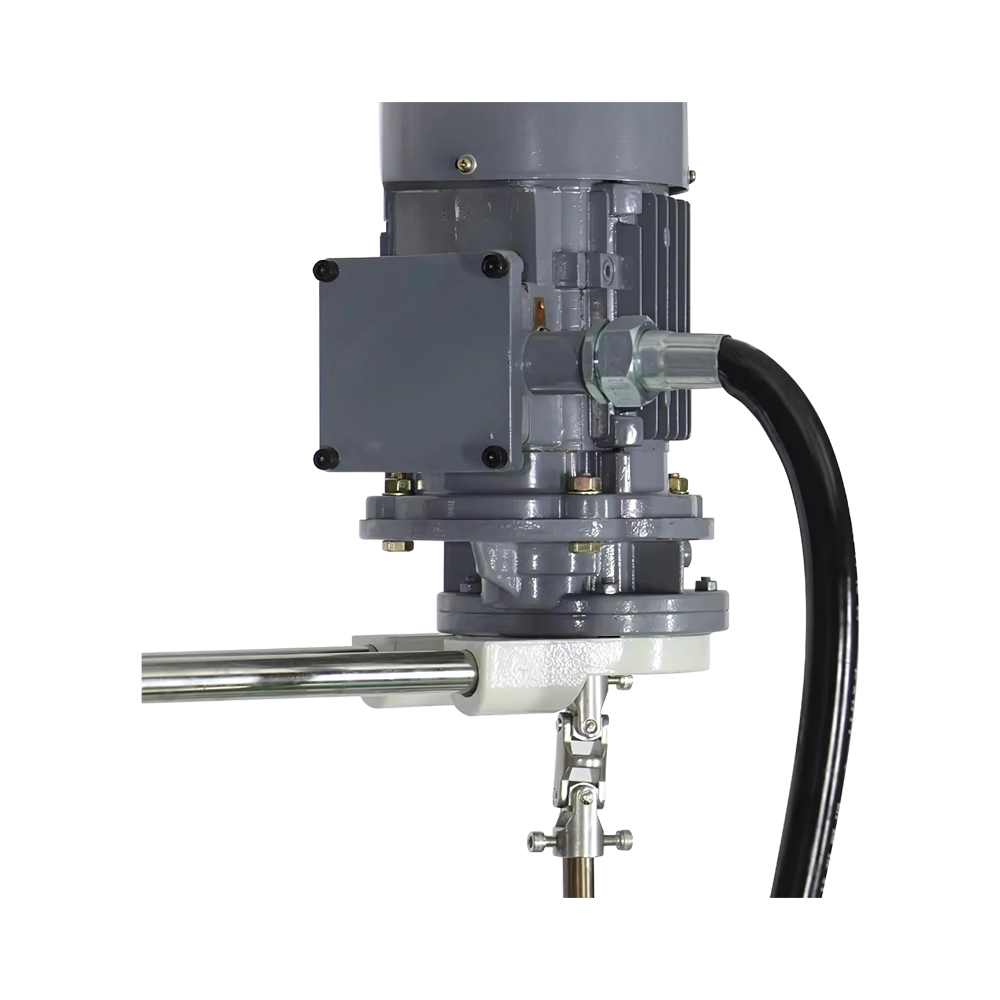

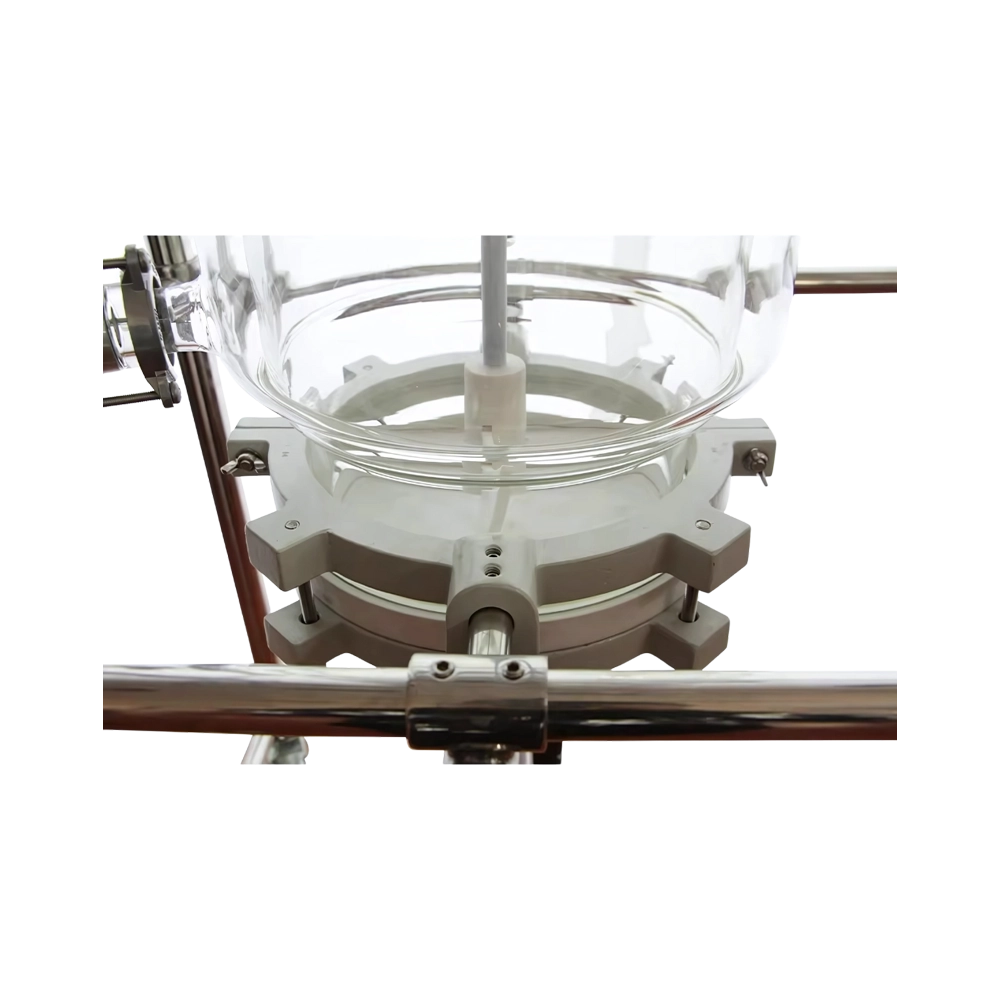

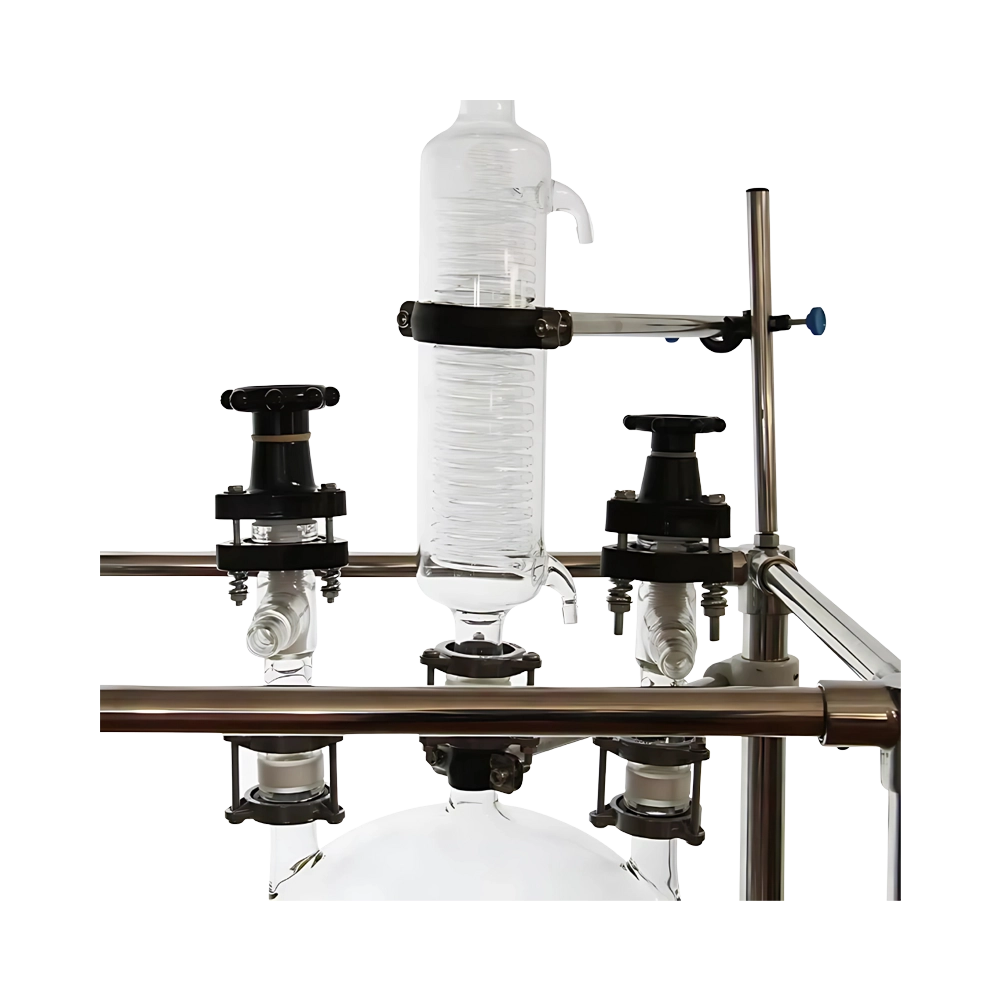

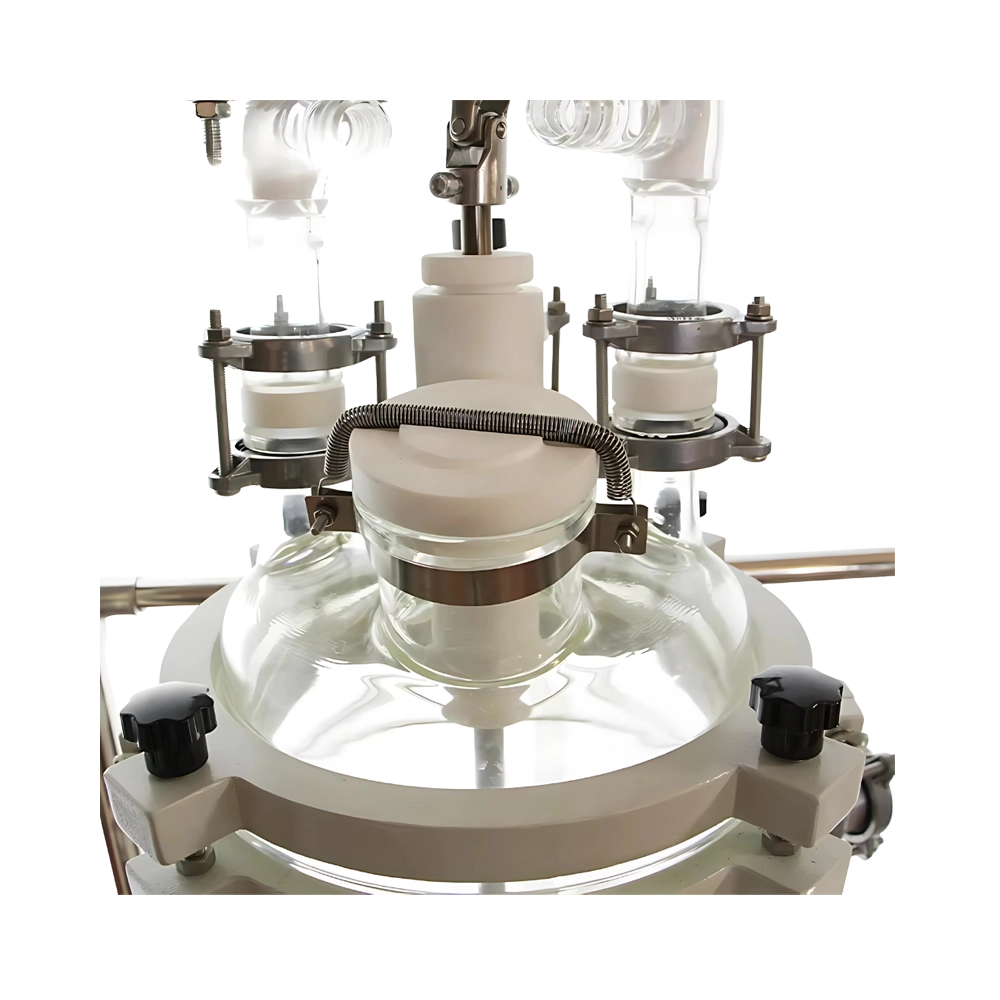

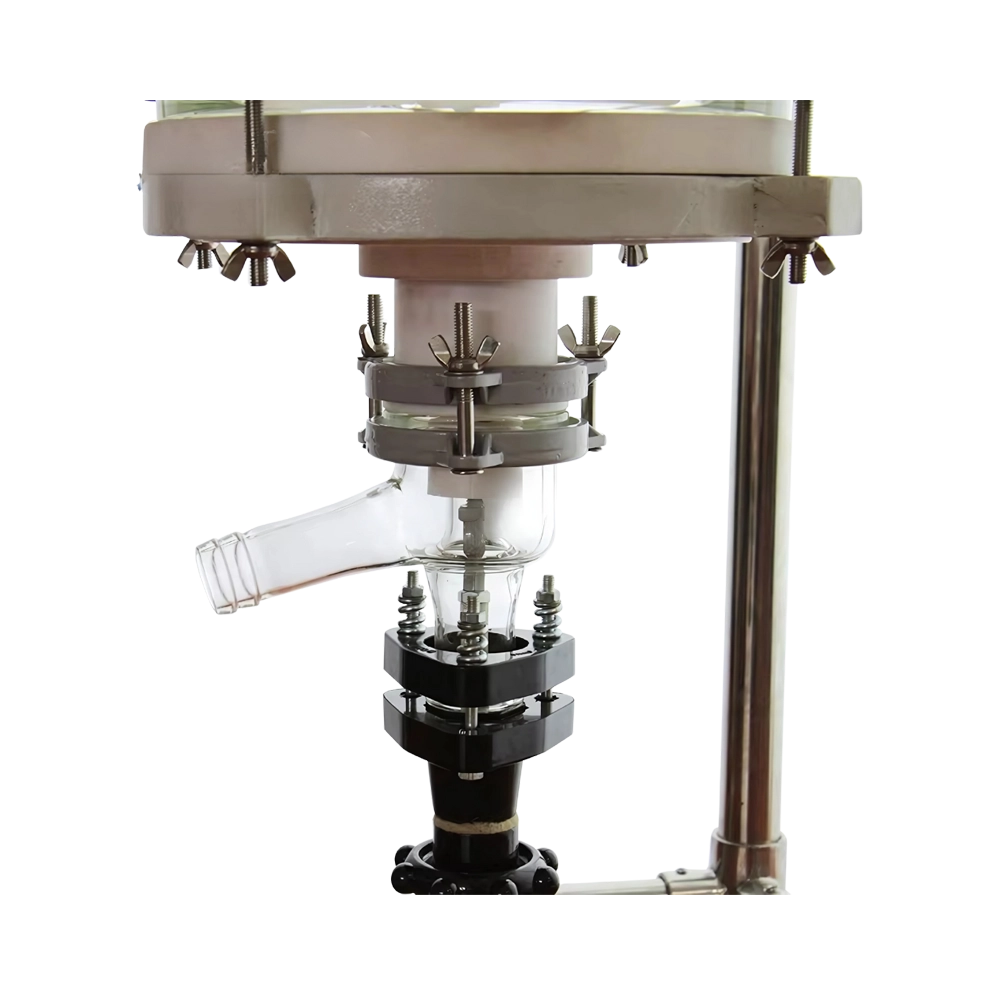

Jacketed Glass Reactor LMJGR-A114 has maximum capacity of 50 liters. Its compact build offers low expansion, thermal durability, and chemical stability. Equipped with digital temperature display, it provides real-time monitoring for effective heat control. Incorporates PTFE sealing ring ensuring dependable closure and resistance against corrosive or reactive materials. Our Reactor is ideal for crystallization, mixing, solid-liquid separation and suction filtration.
Specifications
| Reactor Volume | 50 L |
| Jacket Volume | 12 L |
| Receiving Flask Volume | 20 L |
| Operating Temperature Range | -80°C to 200°C |
| Jacketed Pressure | Less than or equal ±0.03 MPa |
| Kettle Pressure | -0.098 MPa |
| Rotation Speed Range | 0 to 500 rpm |
| Speed Control Mode | Frequency conversion |
| Glass Material | High borosilicate 3.3 |
| Frame Material | SUS304 |
| Sealing Parts Material | Fluorine |
| Stirrer Sealing Type | Skeleton oil seal |
| Stirring Power | 370 W |
| Power Supply | 220V/50Hz,1P |
| Filtration Area | 0.06 m² |
| Dimension | 1250×650×1850 mm |
Features
Adjustable stirring speed
Corrosion resistant seal
Explosion-proof structure
Enhanced operational safety
Stainless steel frame
Caster wheel support
Convenient observation
Applications
Jacketed Glass Reactor LMJGR-A114 is widely applied in laboratories, chemical, pharmaceutical, and research industries for crystallization, suction filtration, stirring, and solid-liquid separation processes.
Similar Products
Frequently Asked Questions
1 What is a Jacketed Glass Reactor?
A Jacketed Glass Reactor is a laboratory or industrial reactor that features a double-layered glass vessel, allowing for precise temperature control by circulating heating or cooling fluids through the outer jacket.
2 How does Jacketed Glass Reactor work?
It works by circulating thermal fluids (such as water, oil, or glycol) through the outer jacket, which maintains a stable internal temperature for the reactions occurring inside the glass vessel.
3 Can Jacketed Glass Reactor be used for pharmaceutical synthesis?
It is widely used in pharmaceutical synthesis due to its excellent temperature control and chemical resistance, which are essential for producing high-purity compounds.
4 Is Jacketed Glass Reactor suitable for polymerization reactions?
It is highly suitable for polymerization reactions because it allows controlled heating or cooling, preventing runaway reactions and enabling better product quality.
5 How is Jacketed Glass Reactor used in essential oil extraction?
It is used in essential oil extraction through solvent-based methods, where temperature control is critical to preserve volatile compounds and improve yield.
6 Can Jacketed Glass Reactor be used in pilot-scale chemical production?
It is commonly used in pilot-scale chemical production to replicate lab-scale processes before full-scale manufacturing.
7 How is Jacketed Glass Reactor used in API development?
It is essential in Active Pharmaceutical Ingredient (API) development for maintaining reaction conditions that are critical to producing high-purity drug compounds.
8 Can Jacketed Glass Reactor be used in nanomaterials synthesis?
It is often used in the synthesis of nanomaterials, where precise control over temperature and mixing is essential for size and shape control.
9 Can Jacketed Glass Reactor be used in petrochemical research?
It is commonly used in petrochemical research for controlled hydrocarbon synthesis, catalyst testing, and process development.
10 Can Jacketed Glass Reactor be used for biofuel research and development?
It is useful in biofuel R&D for conducting controlled reactions involving biomass conversion, transesterification, or catalytic upgrading.
