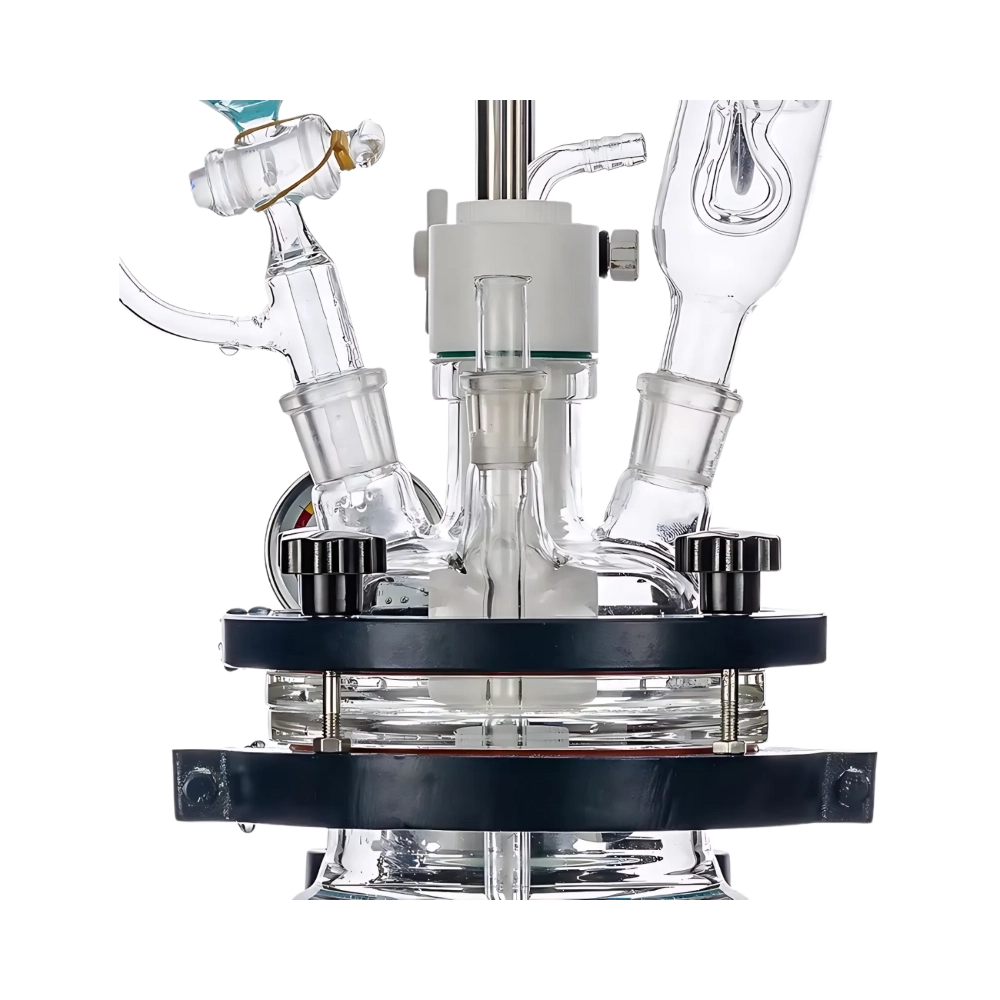

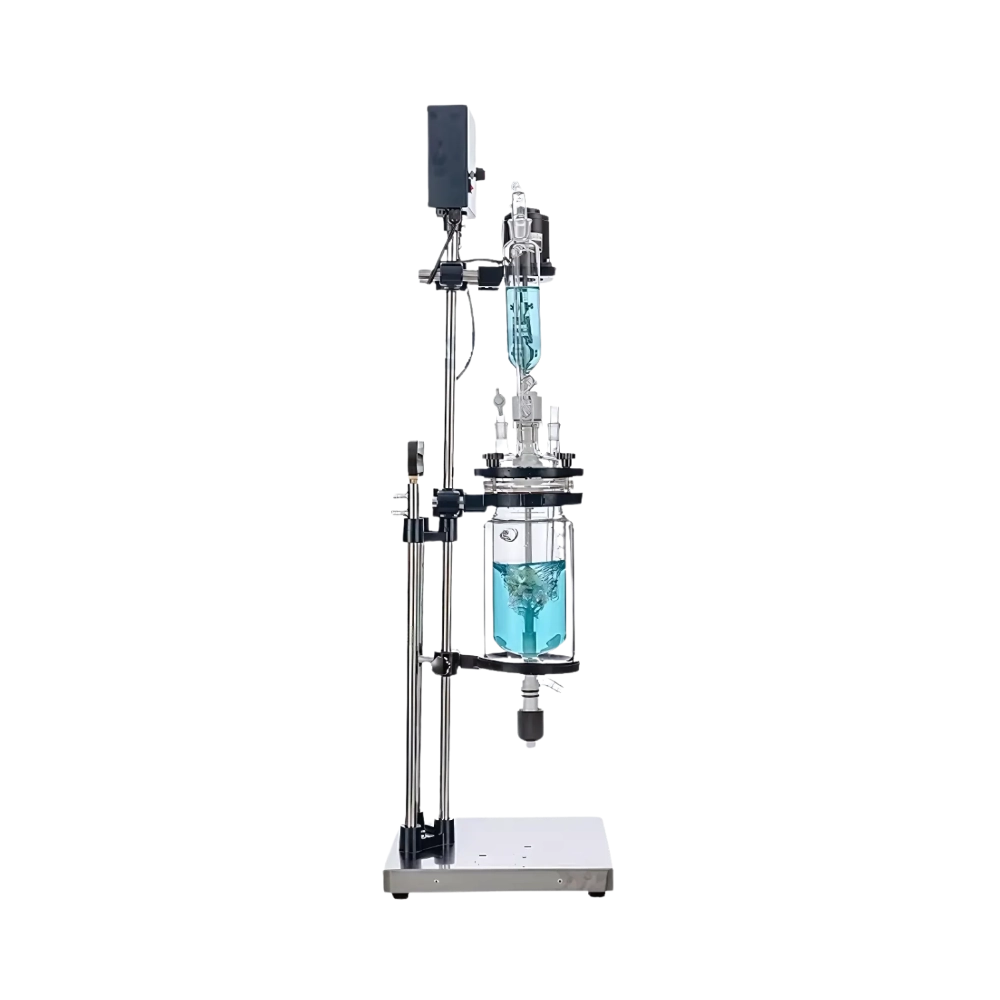

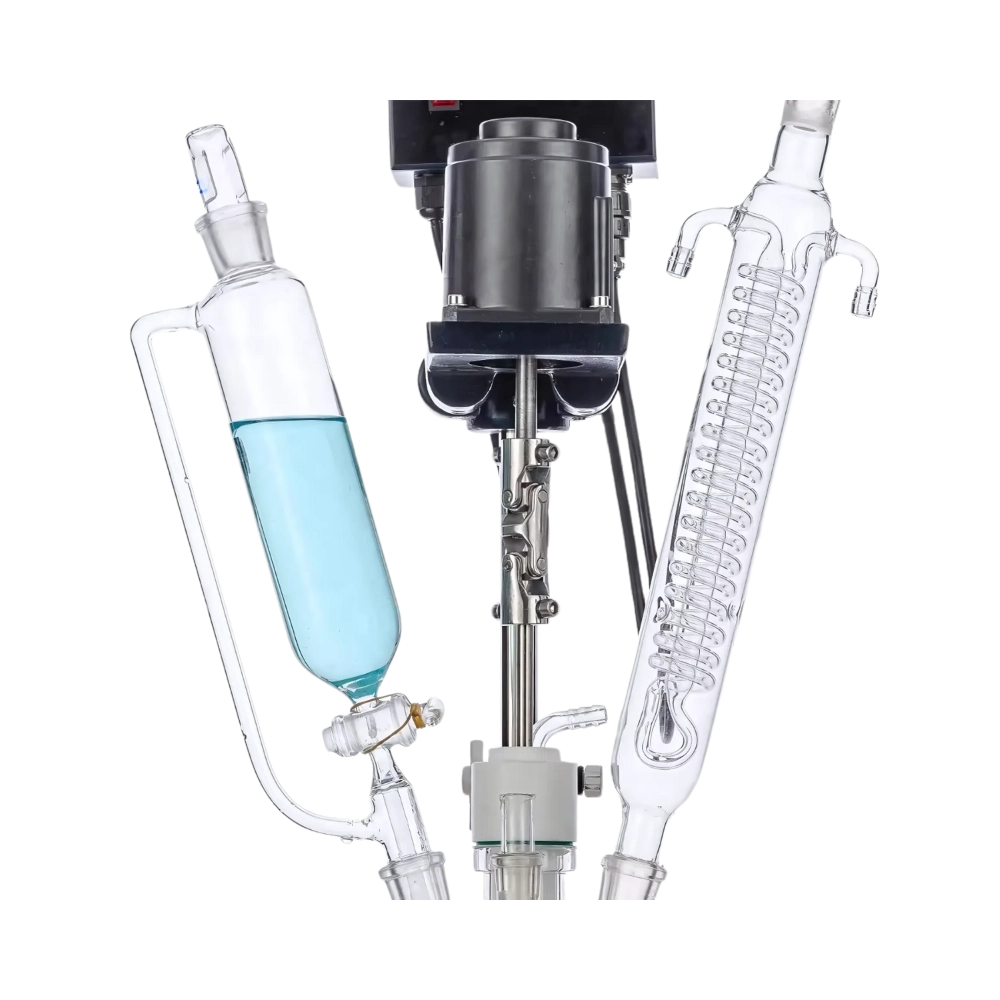

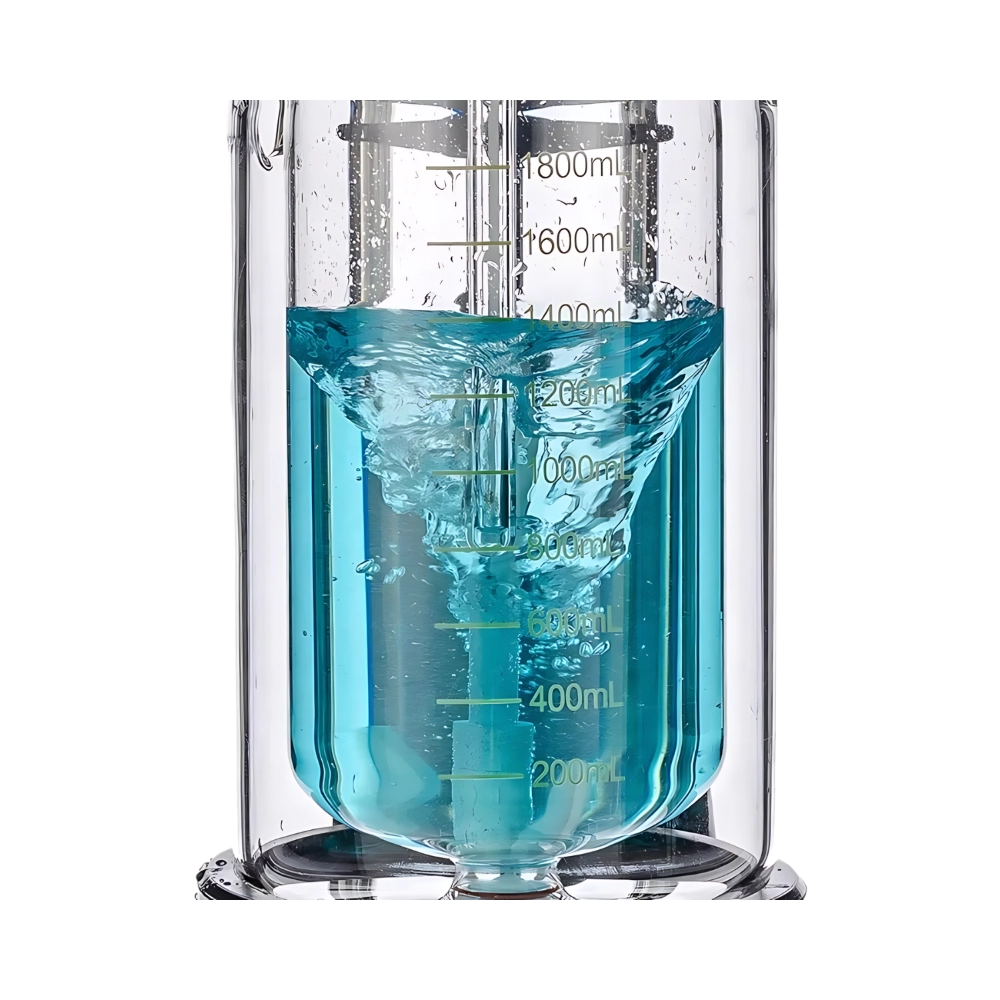

Jacketed Glass Reactor LMJGR-B105 delivers reactor capacity of 2 liter. It features constant-pressure funnel for efficient addition of liquids without disrupting system pressure. Equipped with speed regulator, it controls stirring throughout experimental procedures. Integrates an air nozzle for gas inlet or venting during processes. Our Glass Reactor ensures distillation, concentration, heating, cooling, and liquid handling.
Specifications
| Reactor Volume | 2 L |
| Jacket Volume | 250 mL |
| Dropping Funnel Volume | 250 mL |
| Operating Temperature Range | -80°C to 250°C |
| Vacuum Degree | 0.098 MPa |
| Temperature Measurement Accuracy | ±1°C |
| Rotation Speed Range | 0 to 450 rpm |
| Stirring Power | 40 W |
| Power Supply | 220V/50Hz |
| Glass Vessel Lid Diameter | 150 mm |
| Condenser Size(D×H) | 40×350 mm |
| Dimension | 330×350×1300 mm |
| Weight | 18.5 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Jacketed Glass Reactor LMJGR-B105 | $ 2250 | Each of 1 |
Features
Vacuum-tight sealing
Stable external loop
Controlled fluid entry
Corrosion-proof surface
Real-time temperature detection
Fixed circulation buffer
Applications
Jacketed Glass Reactor LMJGR-B105 ensures synthesis, distillation, concentration, heating, cooling, vacuum reactions, and liquid handling in chemical engineering, bio-pharmaceuticals, petroleum, metallurgy, medicine, healthcare, and aerospace.
Similar Products
$ 6350 / Each of 1
$ 12912.5 / Each of 1
$ 4325 / Each of 1
$ 3650 / Each of 1
$ 6712.5 / Each of 1
$ 3962.5 / Each of 1
$ 6625 / Each of 1
$ 4212.5 / Each of 1
$ 6825 / Each of 1
$ 2412.5 / Each of 1
$ 2987.5 / Each of 1
$ 3075 / Each of 1
$ 3350 / Each of 1
$ 29475 / Each of 1
$ 3662.5 / Each of 1
Frequently Asked Questions
1 What is a Jacketed Glass Reactor?
A Jacketed Glass Reactor is a laboratory or industrial reactor that features a double-layered glass vessel, allowing for precise temperature control by circulating heating or cooling fluids through the outer jacket.
2 How does Jacketed Glass Reactor work?
It works by circulating thermal fluids (such as water, oil, or glycol) through the outer jacket, which maintains a stable internal temperature for the reactions occurring inside the glass vessel.
3 Can Jacketed Glass Reactor be used for pharmaceutical synthesis?
It is widely used in pharmaceutical synthesis due to its excellent temperature control and chemical resistance, which are essential for producing high-purity compounds.
4 Is Jacketed Glass Reactor suitable for polymerization reactions?
It is highly suitable for polymerization reactions because it allows controlled heating or cooling, preventing runaway reactions and enabling better product quality.
5 How is Jacketed Glass Reactor used in essential oil extraction?
It is used in essential oil extraction through solvent-based methods, where temperature control is critical to preserve volatile compounds and improve yield.
6 Can Jacketed Glass Reactor be used in pilot-scale chemical production?
It is commonly used in pilot-scale chemical production to replicate lab-scale processes before full-scale manufacturing.
7 How is Jacketed Glass Reactor used in API development?
It is essential in Active Pharmaceutical Ingredient (API) development for maintaining reaction conditions that are critical to producing high-purity drug compounds.
8 Can Jacketed Glass Reactor be used in nanomaterials synthesis?
It is often used in the synthesis of nanomaterials, where precise control over temperature and mixing is essential for size and shape control.
9 Can Jacketed Glass Reactor be used in petrochemical research?
It is commonly used in petrochemical research for controlled hydrocarbon synthesis, catalyst testing, and process development.
10 Can Jacketed Glass Reactor be used for biofuel research and development?
It is useful in biofuel R&D for conducting controlled reactions involving biomass conversion, transesterification, or catalytic upgrading.
