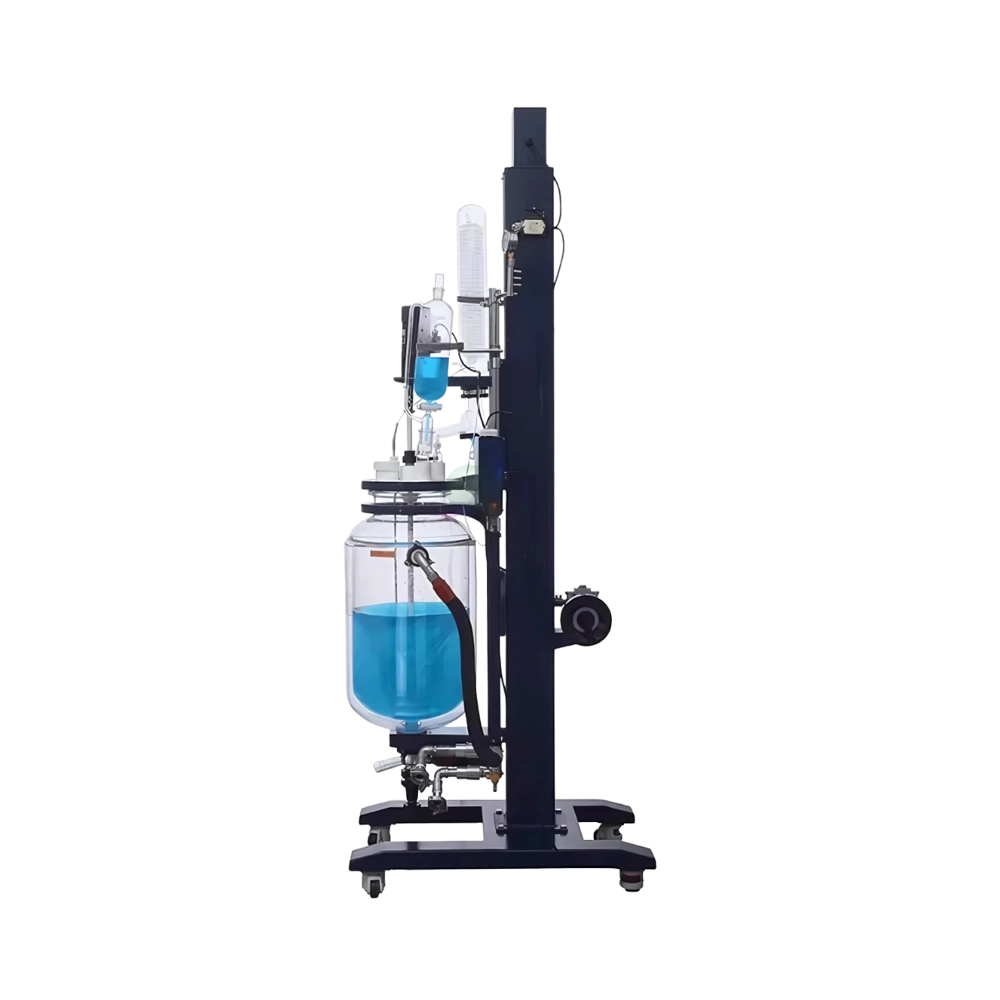

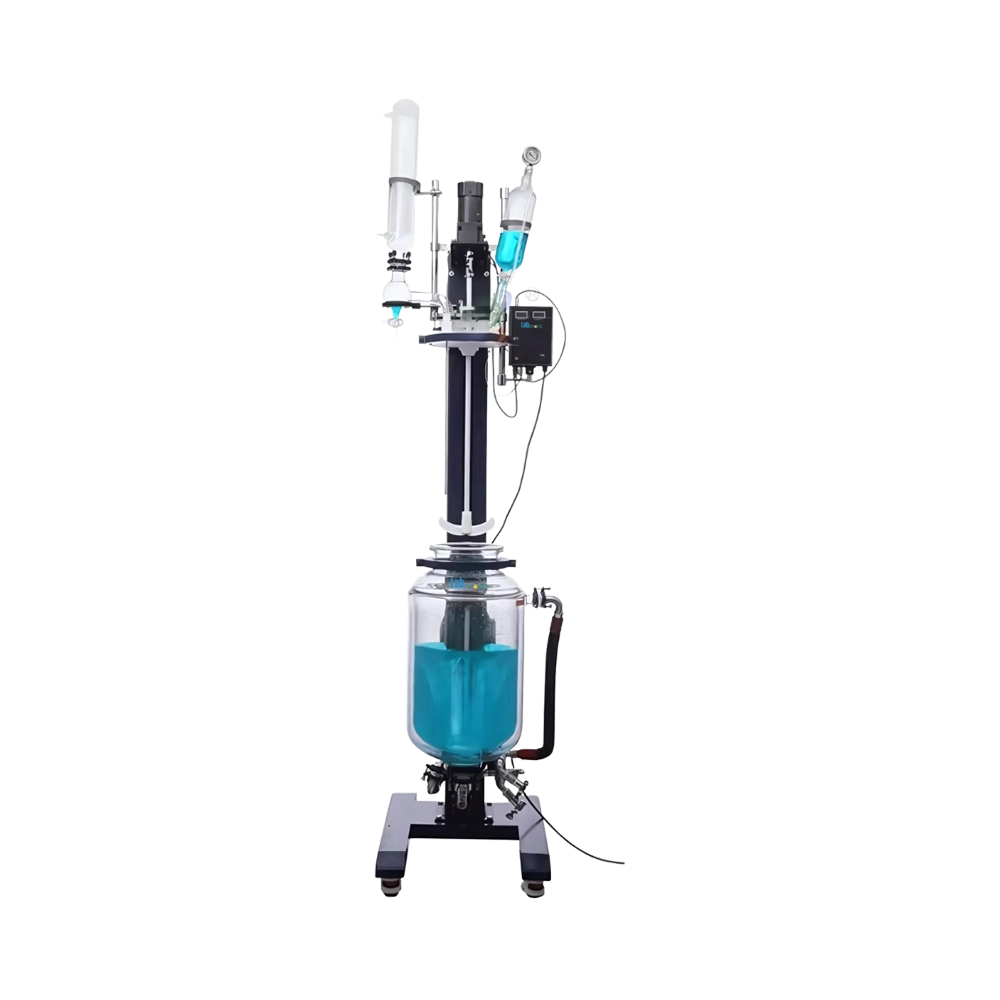

Jacketed Glass Reactor LMJGR-D104 offers spacious 100-liter capacity. It features condenser mounted on top to allow efficient cooling and vapor recovery during reactions. Equipped with reactor lid integrating all key entry points including, sensor and stirrer ports. Incorporates constant-pressure funnel for controlled addition of liquids without system imbalance. Our Glass Reactor is employed in distillation, mixing, crystallization, and concentration tasks.
Specifications
| Reactor Volume | 100 L |
| Jacket Volume | 25 L |
| Dropping Funnel Volume | 2 L |
| Operating Temperature Range | -80°C to 250°C |
| Vacuum Degree | 0.098 MPa |
| Rotation Speed Range | 0 to 450 rpm |
| Temperature Measurement Accuracy | ±1°C |
| Lifting Distance | 920 mm |
| Lifting Power | 40W1/12.5 |
| Stirring Power | 200W1/3 |
| Power Consumption | 240W |
| Power Supply | 220V/50Hz |
| Glass Vessel Lid Diameter | 340 mm |
| Condenser Size (D×H) | 120×600 mm |
| Dimension (W×D×H) | 900×1100×(2700 to 3250) mm |
| Weight | 148 Kg |
Features
Built-in lifter
Speed regulator panel
Limit switch safety
Circulation hose connection
Overflow protection
Smooth rotation
High vacuum integrity
Applications
Jacketed Glass Reactor LMJGR-D104 is commonly applied for compound synthesis, solvent distillation, controlled mixing, crystallization, and concentration tasks in pharmaceutical labs and pilot-scale production settings.
Similar Products
Frequently Asked Questions
1 What is a Jacketed Glass Reactor?
A Jacketed Glass Reactor is a laboratory or industrial reactor that features a double-layered glass vessel, allowing for precise temperature control by circulating heating or cooling fluids through the outer jacket.
2 How does Jacketed Glass Reactor work?
It works by circulating thermal fluids (such as water, oil, or glycol) through the outer jacket, which maintains a stable internal temperature for the reactions occurring inside the glass vessel.
3 Can Jacketed Glass Reactor be used for pharmaceutical synthesis?
It is widely used in pharmaceutical synthesis due to its excellent temperature control and chemical resistance, which are essential for producing high-purity compounds.
4 Is Jacketed Glass Reactor suitable for polymerization reactions?
It is highly suitable for polymerization reactions because it allows controlled heating or cooling, preventing runaway reactions and enabling better product quality.
5 How is Jacketed Glass Reactor used in essential oil extraction?
It is used in essential oil extraction through solvent-based methods, where temperature control is critical to preserve volatile compounds and improve yield.
6 Can Jacketed Glass Reactor be used in pilot-scale chemical production?
It is commonly used in pilot-scale chemical production to replicate lab-scale processes before full-scale manufacturing.
7 How is Jacketed Glass Reactor used in API development?
It is essential in Active Pharmaceutical Ingredient (API) development for maintaining reaction conditions that are critical to producing high-purity drug compounds.
8 Can Jacketed Glass Reactor be used in nanomaterials synthesis?
It is often used in the synthesis of nanomaterials, where precise control over temperature and mixing is essential for size and shape control.
9 Can Jacketed Glass Reactor be used in petrochemical research?
It is commonly used in petrochemical research for controlled hydrocarbon synthesis, catalyst testing, and process development.
10 Can Jacketed Glass Reactor be used for biofuel research and development?
It is useful in biofuel R&D for conducting controlled reactions involving biomass conversion, transesterification, or catalytic upgrading.
