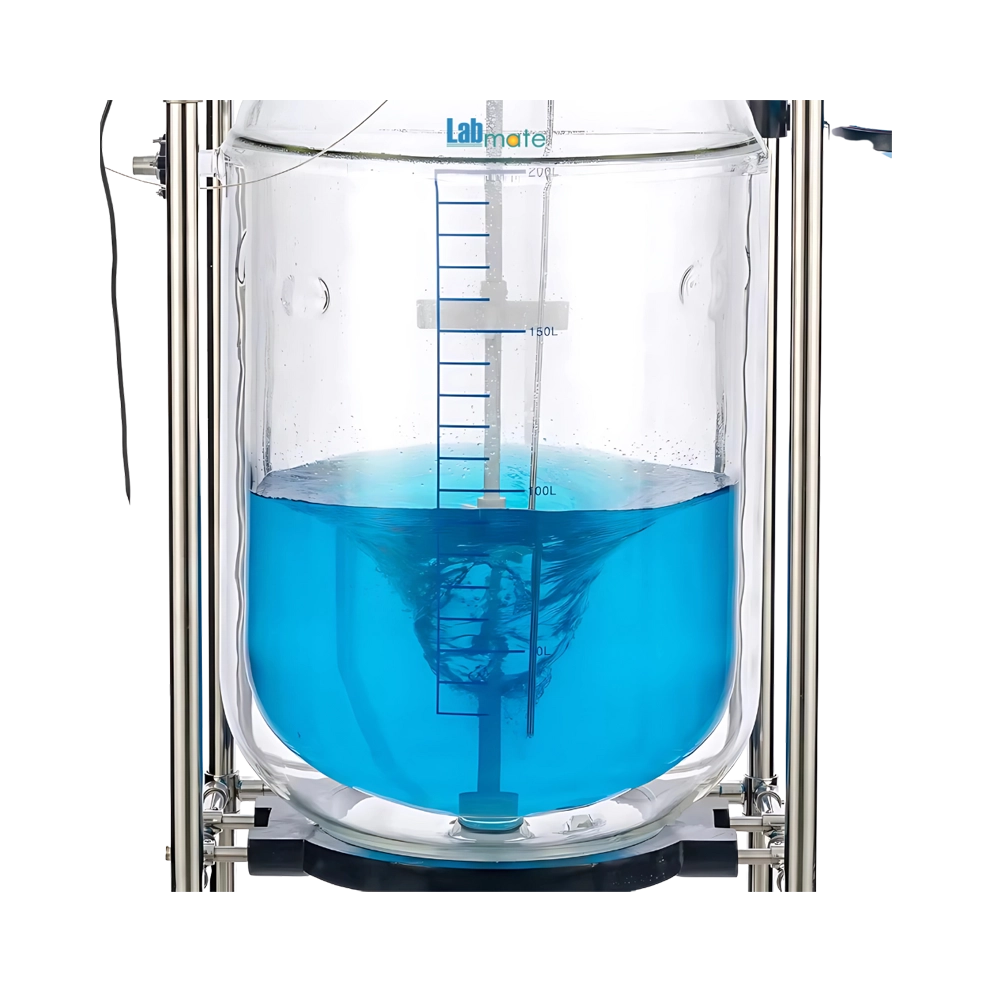

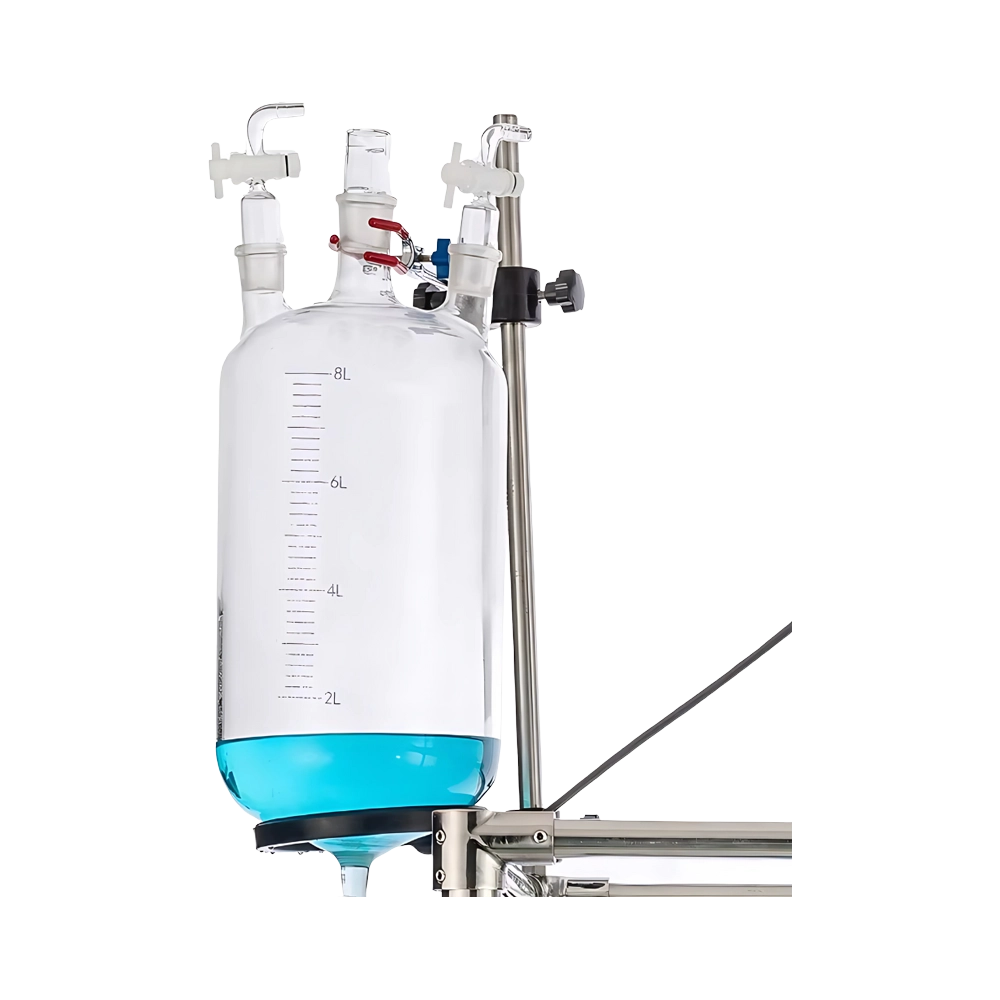

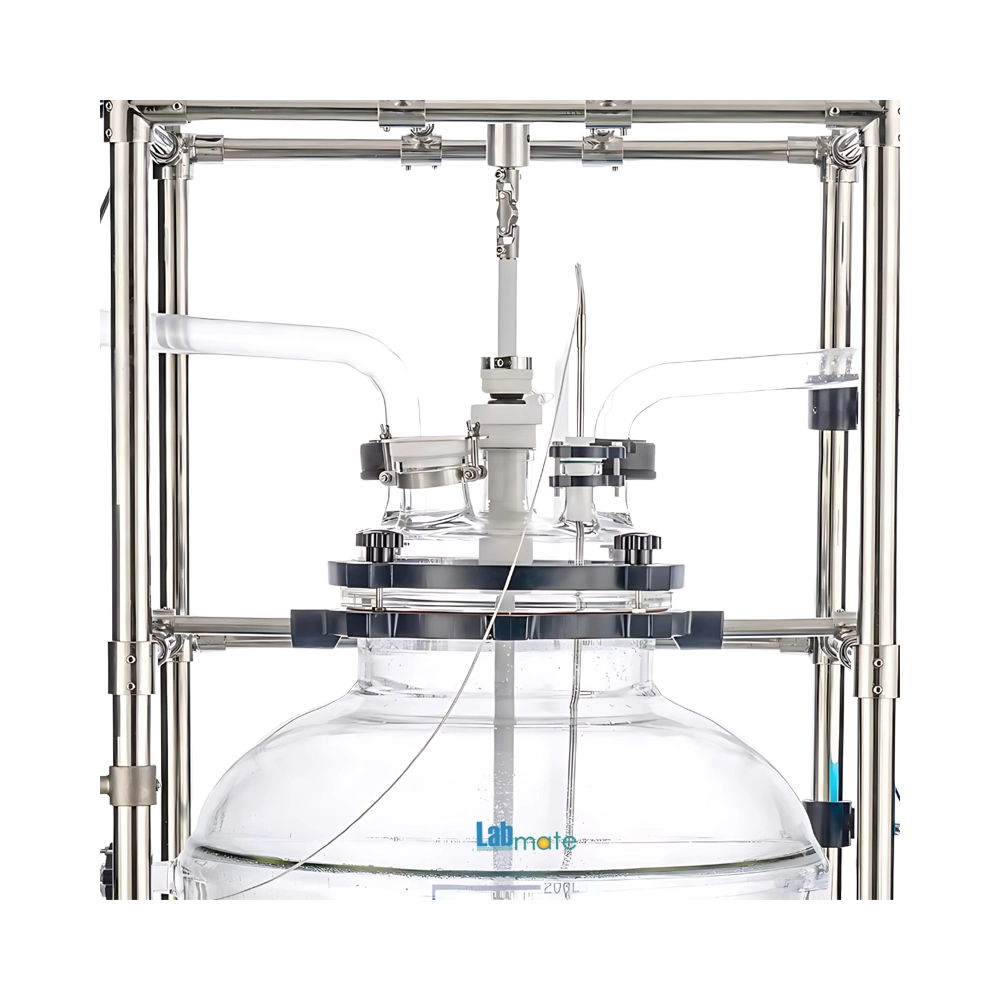

Jacketed Glass Reactor LMJGR-B112 comes with 100 liters of reactor volume. It features universal coupling for efficient torque transmission between motor and stirring shaft. Integrates stirring paddle that ensures even mixing and agitation of all vessel contents. Equipped with vacuum gauge that continuously displays internal pressure conditions. Our Reactor ensures synthesis, distillation, crystallization, and solvent recovery in lab and industries.
Specifications
| Reactor Volume | 100 L |
| Jacket Volume | 20 L |
| Dropping Funnel Volume | 2 L |
| Operating Temperature Range | -80°C to 250°C |
| Vacuum Degree | 0.098 MPa |
| Temperature Measurement Accuracy | ±1°C |
| Rotation Speed Range | 0 to 450 rpm |
| Stirring Power | 200W1/3 |
| Power Supply | 220V/50Hz |
| Glass Vessel Lid Diameter | 340 mm |
| Dimension | 950×750×2390 mm |
| Weight | 95 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Jacketed Glass Reactor LMJGR-B112 | $ 3962.5 | Each of 1 |
Features
Speed controller
Temperature sensor
Solid charging port
Smooth-rolling casters
Stable frame
Dual-seal
Applications
Jacketed Glass Reactor LMJGR-B112 is commonly employed for synthesis, distillation, reflux, crystallization, and solvent recovery in laboratories, research facilities, and pharmaceutical settings.
Similar Products
$ 2987.5 / Each of 1
$ 6825 / Each of 1
$ 2250 / Each of 1
$ 6887.5 / Each of 1
$ 3150 / Each of 1
$ 2112.5 / Each of 1
$ 3412.5 / Each of 1
$ 3550 / Each of 1
$ 6712.5 / Each of 1
$ 7450 / Each of 1
$ 10862.5 / Each of 1
$ 4212.5 / Each of 1
$ 3650 / Each of 1
$ 3187.5 / Each of 1
$ 2500 / Each of 1
Frequently Asked Questions
1 What is a Jacketed Glass Reactor?
A Jacketed Glass Reactor is a laboratory or industrial reactor that features a double-layered glass vessel, allowing for precise temperature control by circulating heating or cooling fluids through the outer jacket.
2 How does Jacketed Glass Reactor work?
It works by circulating thermal fluids (such as water, oil, or glycol) through the outer jacket, which maintains a stable internal temperature for the reactions occurring inside the glass vessel.
3 Can Jacketed Glass Reactor be used for pharmaceutical synthesis?
It is widely used in pharmaceutical synthesis due to its excellent temperature control and chemical resistance, which are essential for producing high-purity compounds.
4 Is Jacketed Glass Reactor suitable for polymerization reactions?
It is highly suitable for polymerization reactions because it allows controlled heating or cooling, preventing runaway reactions and enabling better product quality.
5 How is Jacketed Glass Reactor used in essential oil extraction?
It is used in essential oil extraction through solvent-based methods, where temperature control is critical to preserve volatile compounds and improve yield.
6 Can Jacketed Glass Reactor be used in pilot-scale chemical production?
It is commonly used in pilot-scale chemical production to replicate lab-scale processes before full-scale manufacturing.
7 How is Jacketed Glass Reactor used in API development?
It is essential in Active Pharmaceutical Ingredient (API) development for maintaining reaction conditions that are critical to producing high-purity drug compounds.
8 Can Jacketed Glass Reactor be used in nanomaterials synthesis?
It is often used in the synthesis of nanomaterials, where precise control over temperature and mixing is essential for size and shape control.
9 Can Jacketed Glass Reactor be used in petrochemical research?
It is commonly used in petrochemical research for controlled hydrocarbon synthesis, catalyst testing, and process development.
10 Can Jacketed Glass Reactor be used for biofuel research and development?
It is useful in biofuel R&D for conducting controlled reactions involving biomass conversion, transesterification, or catalytic upgrading.
