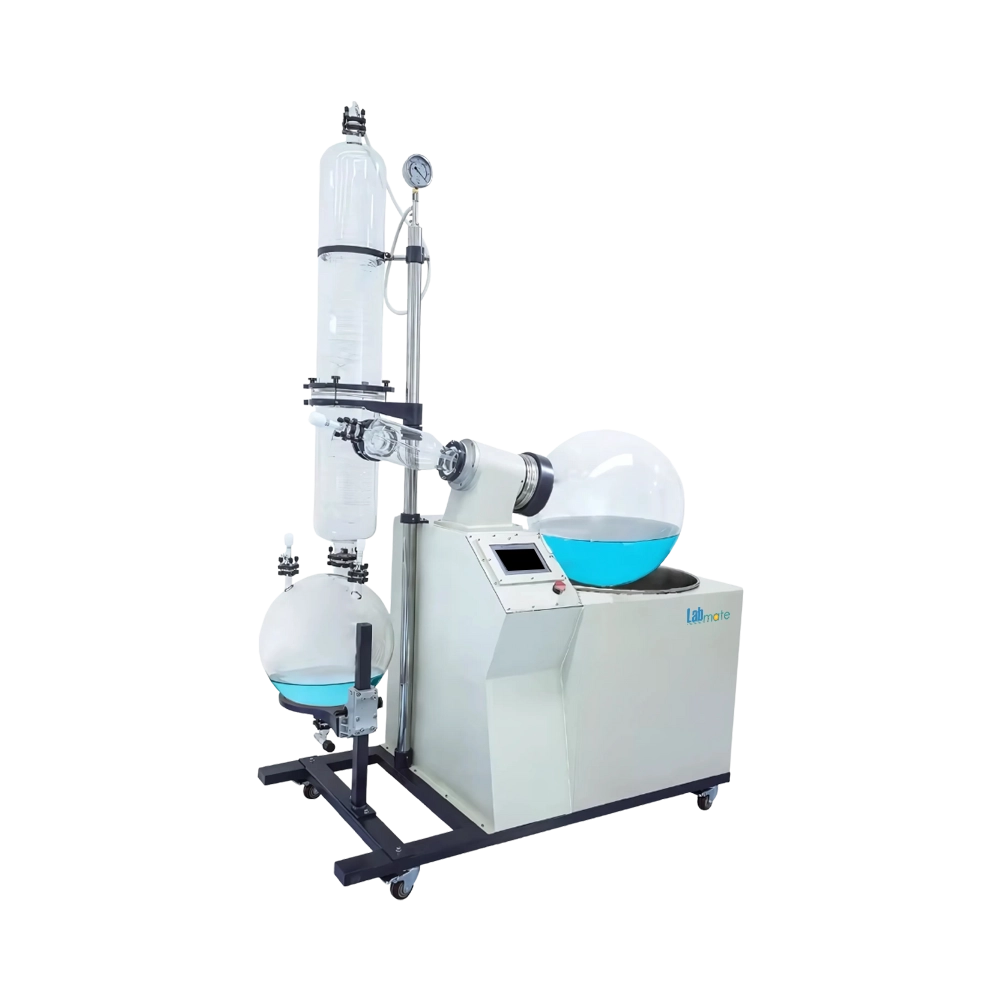

Industrial Rotary Evaporator LMIRE-A112 offers maximum rotary bottle capacity of 100 L. It features an air nozzle for efficient airflow management during evaporation processes. Equipped with durable casters, it allows for smooth and flexible movement across workspaces. Incorporates vacuum switching valve for uninterrupted solvent collection and discharge in continuous operation. Our Rotary Evaporator is ideal for purification and concentration in various sectors.
Specifications
| Rotary Bottle Volume | 100 L |
| Collection Bottle Volume | 50 L |
| Bath Volume | 154 L |
| Speed Range | 20 to 90 rpm |
| Working Temperature Range | RT to 180°C |
| Glass Temperature Range | -80 to 250℃ |
| Temperature Control Accuracy | ±1°C |
| Vacuum Degree | 0.098MPa |
| Lifting Distance | 0 to 180mm |
| Feeding Valve Diameter | 45 mm |
| Air Release Valve Diameter | 45 mm |
| Discharge Valve Diameter | 45mm |
| Rotating Motor Power | 360W |
| Heating Power | 15kW |
| Heating Bath Power Supply | 380V/50Hz |
| Rotary Motor Power Supply | 220 to 240V/50Hz |
| Condenser Size (D×H) | Main condenser: 230×800 mm, Auxiliary condenser: 230×620 mm |
| Bath Size (D×H) | 700×400 mm |
| Bath Shell Size (L×W×H) | 710×620×700 mm |
| Bottom Plate Size (L×W) | 804×574 mm |
| Dimensions (W×D×H) | 1520×5200×2470 mm |
| Gross Weight | 191 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Industrial Rotary Evaporator LMIRE-A112 | $ 16237.5 | Each of 1 |
Features
Electric lift adjustment
Triple coil condenser
Flask locking nut
Material feeding port
Fuse safety protection
Digital control panel
Applications
Industrial Rotary Evaporator LMIRE-A112 supports herb compound extraction, food concentration, aerospace material processing, fine chemical production, pharmaceutical formulation, and petrochemical refining.
Similar Products
$ 4012.5 / Each of 1
$ 3712.5 / Each of 1
$ 8018.75 / Each of 1
$ 3550 / Each of 1
$ 5662.5 / Each of 1
$ 3825 / Each of 1
$ 6637.5 / Each of 1
$ 3275 / Each of 1
$ 3825 / Each of 1
$ 4112.5 / Each of 1
$ 4906.25 / Each of 1
$ 3712.5 / Each of 1
Frequently Asked Questions
1 What is an Industrial Rotary Evaporator?
An Industrial Rotary Evaporator is a large-scale device used to efficiently remove solvents from mixtures through evaporation under reduced pressure.
2 How does an Industrial Rotary Evaporator work?
It works by rotating a sample in a heated bath under vacuum to evaporate and condense solvents efficiently.
3 Is Industrial Rotary Evaporator suitable for concentrating herbal extracts?
It is ideal for concentrating heat-sensitive herbal extracts without degrading active compounds.
4 Can Industrial Rotary Evaporator be used in food and beverage industries?
It is used to concentrate flavors, extract natural compounds, and remove unwanted solvents in food and beverage processing.
5 How does Industrial Rotary Evaporator contribute to sustainability?
It promotes solvent reuse and waste reduction, making it an environmentally friendly solution in chemical and botanical processing.
6 How is Industrial Rotary Evaporator used in academic or industrial R&D?
It is used to concentrate reaction mixtures, isolate compounds, and test solvent recovery methods during product development and scale-up studies.
7 How does Industrial Rotary Evaporator help in nanomaterial synthesis?
It assists in solvent removal during nanomaterial formulation, aiding in the preparation of pure nanoparticles or nanocomposites.
8 Is Industrial Rotary Evaporator useful in biochemistry or enzymatic research?
It is used to concentrate buffer solutions, remove solvents, or gently dry enzyme preparations without denaturation.
9 Is Industrial Rotary Evaporator used in perfume oil formulation?
It is used to concentrate and purify aromatic components, especially natural fragrance oils extracted from botanicals.
10 Can Industrial Rotary Evaporator be used in forensic labs?
It is used to concentrate or isolate analytes from biological fluids or extracts for forensic or toxicological analysis.
