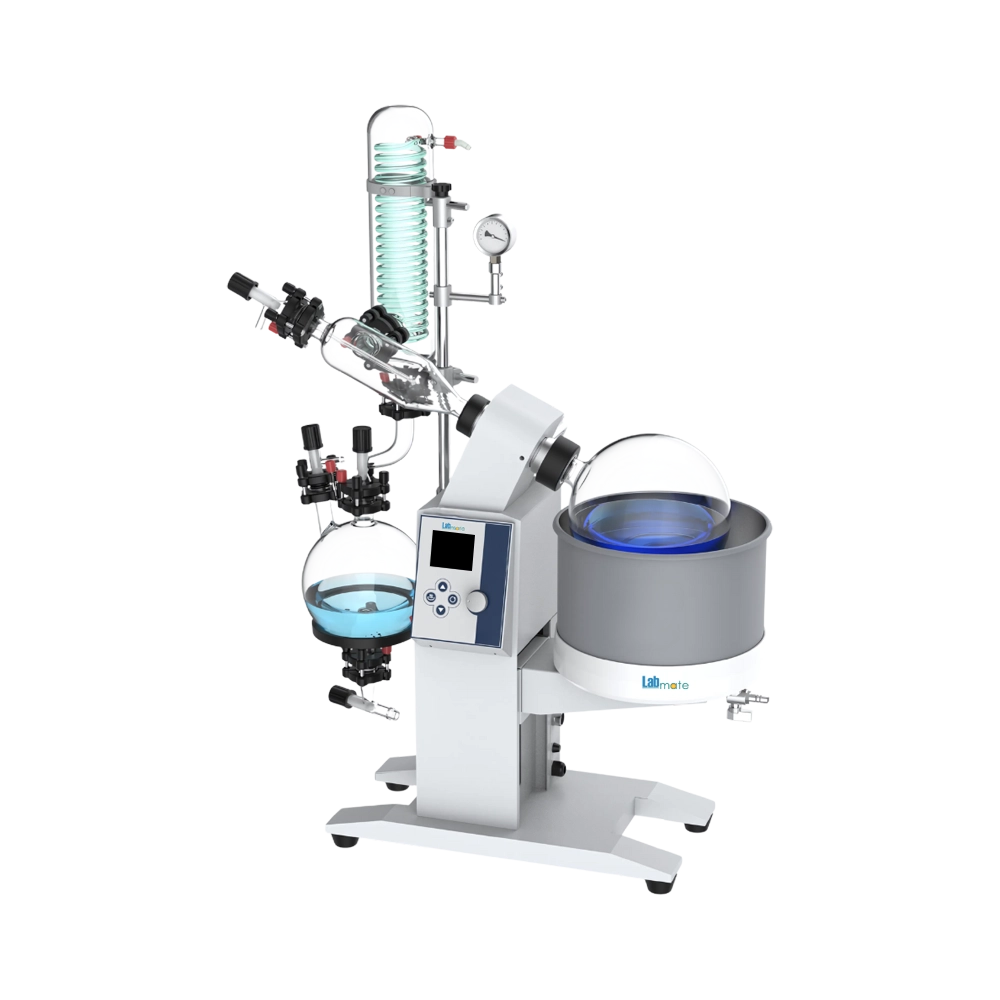

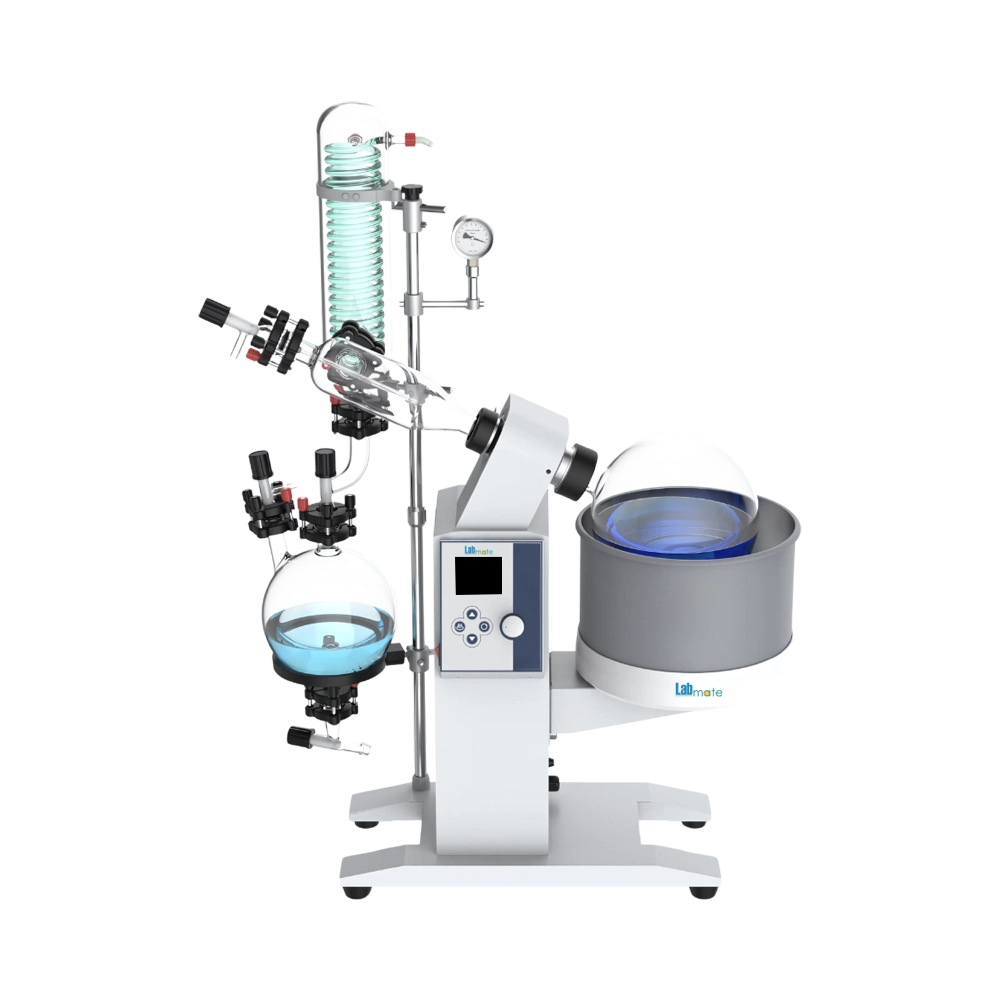

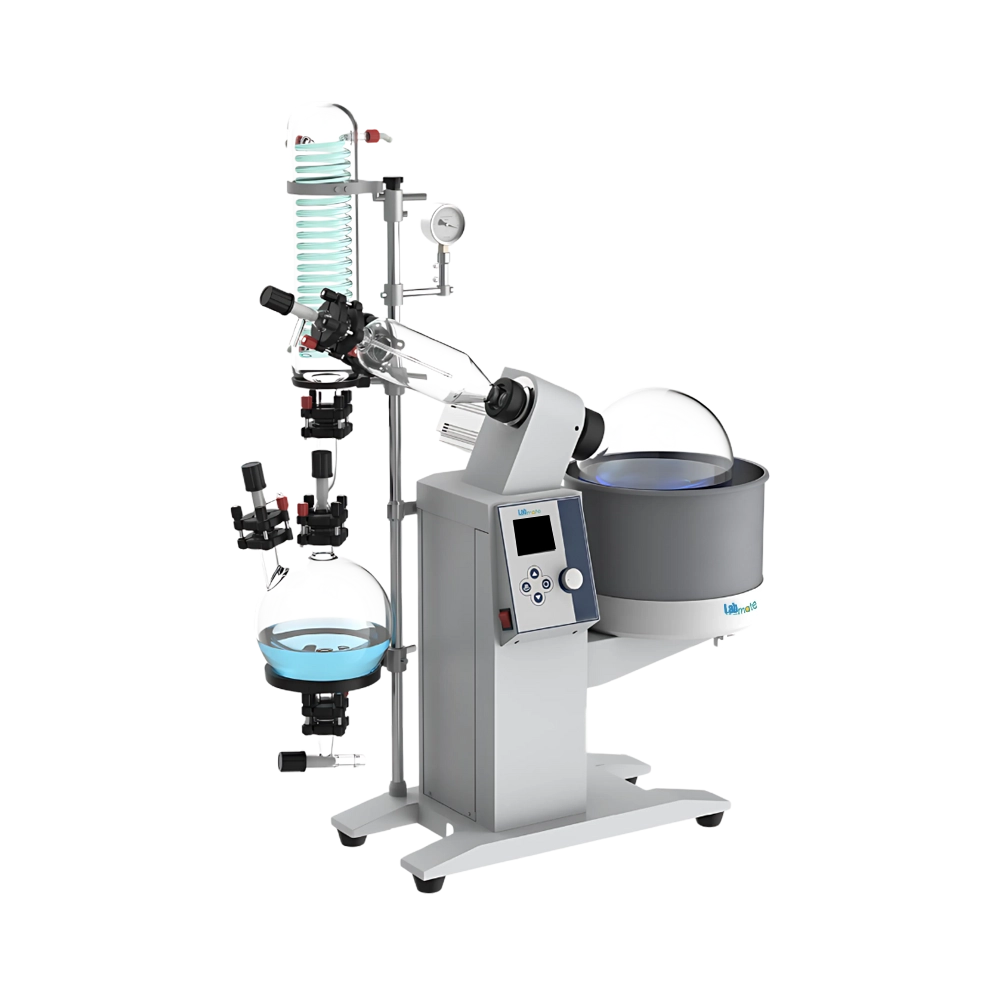

Industrial Rotary Evaporator LMIRE-A108 is designed with rotary bottle volume of 5 L. It features quick-opening flange, enabling effortless access for cleaning, maintenance, and component replacement. Equipped with brushless DC motor, it ensures stable performance, low noise, and extended service life. Incorporates rubber insulation sleeve for thermal protection. Our Rotary Evaporator is ideal for distillation, evaporation, and material processing.
Specifications
| Rotary Bottle Volume | 5 L |
| Collection Bottle Volume | 3 L |
| Speed Range | 20 to 140 rpm |
| Working Temperature Range | RT to 95°C (water bath), RT to 180°C (oil bath) |
| Temperature Sensor | PT-100,3-wire |
| Heat Resource | Deionized water |
| Sealing Parts | PTFE |
| Rotation Control | Electric |
| Vacuum Leakage | Less than or equal to 0.33kPa/min |
| Glass Material | 3.3 borosilicate glass |
| Protection Grade | IP20 |
| Over-Voltage Category | 1 |
| Heating Power | 2000W |
| Power Consumption | 2300W |
| Bath Dimension (L×H) | 300×170 nm |
| Dimensions (W×D×H) | 840×520×1140 mm |
| Weight | 35 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Industrial Rotary Evaporator LMIRE-A108 | $ 3550 | Each of 1 |
Features
Automatic switching valve
LCD screen control
Vacuum gauge display
Electric lifting function
One-button start/stop
Applications
Industrial Rotary Evaporator LMIRE-A108 ensuring distillation, evaporation, and material processing for pilot experiments in biology, medicine, chemical industry, and food sectors.
Similar Products
$ 16237.5 / Each of 1
$ 6637.5 / Each of 1
$ 5662.5 / Each of 1
$ 4112.5 / Each of 1
$ 3825 / Each of 1
$ 3712.5 / Each of 1
$ 4012.5 / Each of 1
$ 8018.75 / Each of 1
$ 3825 / Each of 1
$ 3275 / Each of 1
$ 4906.25 / Each of 1
$ 3712.5 / Each of 1
Frequently Asked Questions
1 What is an Industrial Rotary Evaporator?
An Industrial Rotary Evaporator is a large-scale device used to efficiently remove solvents from mixtures through evaporation under reduced pressure.
2 How does an Industrial Rotary Evaporator work?
It works by rotating a sample in a heated bath under vacuum to evaporate and condense solvents efficiently.
3 Is Industrial Rotary Evaporator suitable for concentrating herbal extracts?
It is ideal for concentrating heat-sensitive herbal extracts without degrading active compounds.
4 Can Industrial Rotary Evaporator be used in food and beverage industries?
It is used to concentrate flavors, extract natural compounds, and remove unwanted solvents in food and beverage processing.
5 How does Industrial Rotary Evaporator contribute to sustainability?
It promotes solvent reuse and waste reduction, making it an environmentally friendly solution in chemical and botanical processing.
6 How is Industrial Rotary Evaporator used in academic or industrial R&D?
It is used to concentrate reaction mixtures, isolate compounds, and test solvent recovery methods during product development and scale-up studies.
7 How does Industrial Rotary Evaporator help in nanomaterial synthesis?
It assists in solvent removal during nanomaterial formulation, aiding in the preparation of pure nanoparticles or nanocomposites.
8 Is Industrial Rotary Evaporator useful in biochemistry or enzymatic research?
It is used to concentrate buffer solutions, remove solvents, or gently dry enzyme preparations without denaturation.
9 Is Industrial Rotary Evaporator used in perfume oil formulation?
It is used to concentrate and purify aromatic components, especially natural fragrance oils extracted from botanicals.
10 Can Industrial Rotary Evaporator be used in forensic labs?
It is used to concentrate or isolate analytes from biological fluids or extracts for forensic or toxicological analysis.
