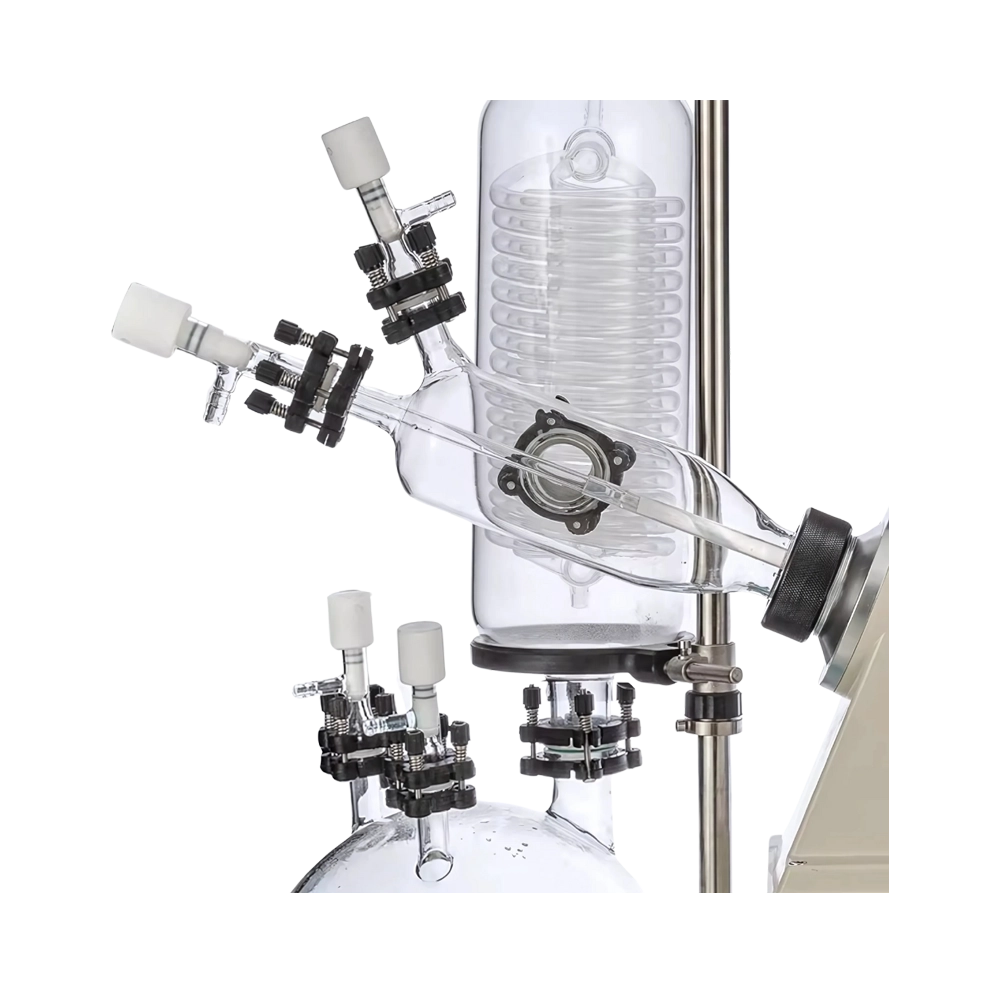

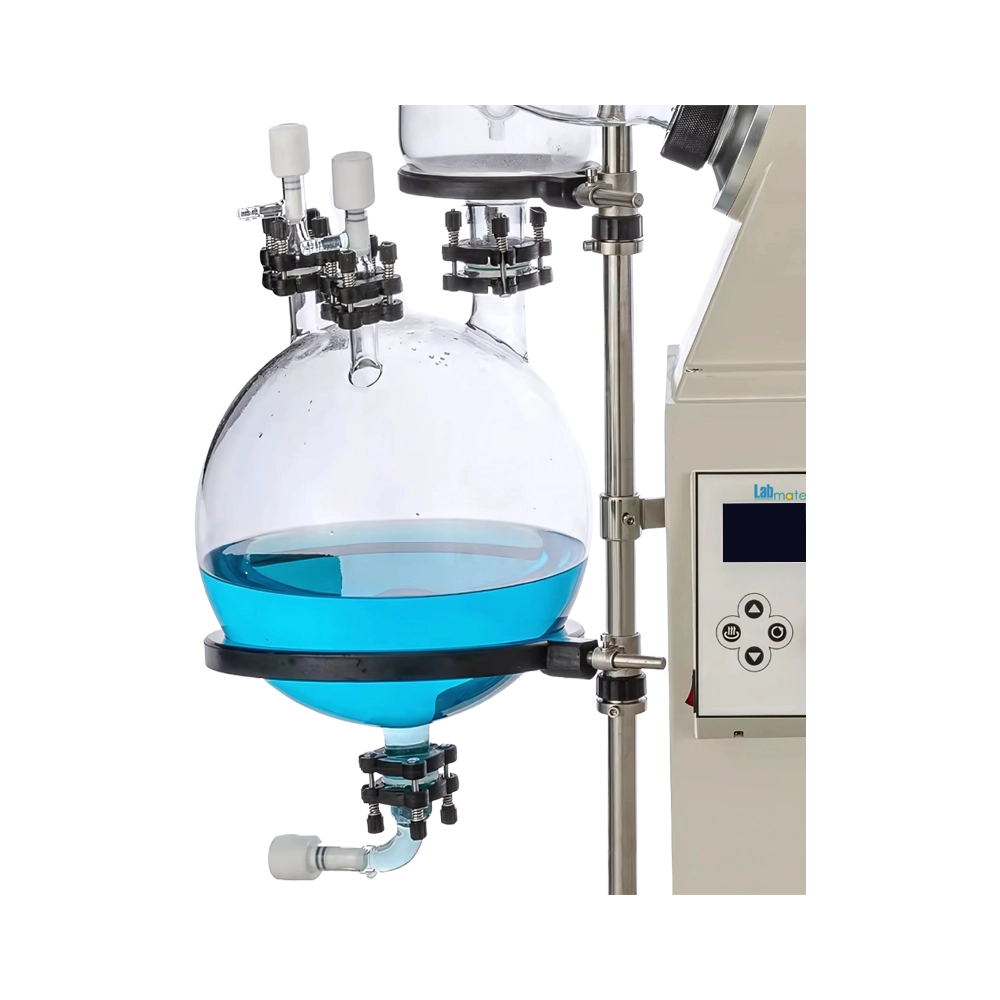

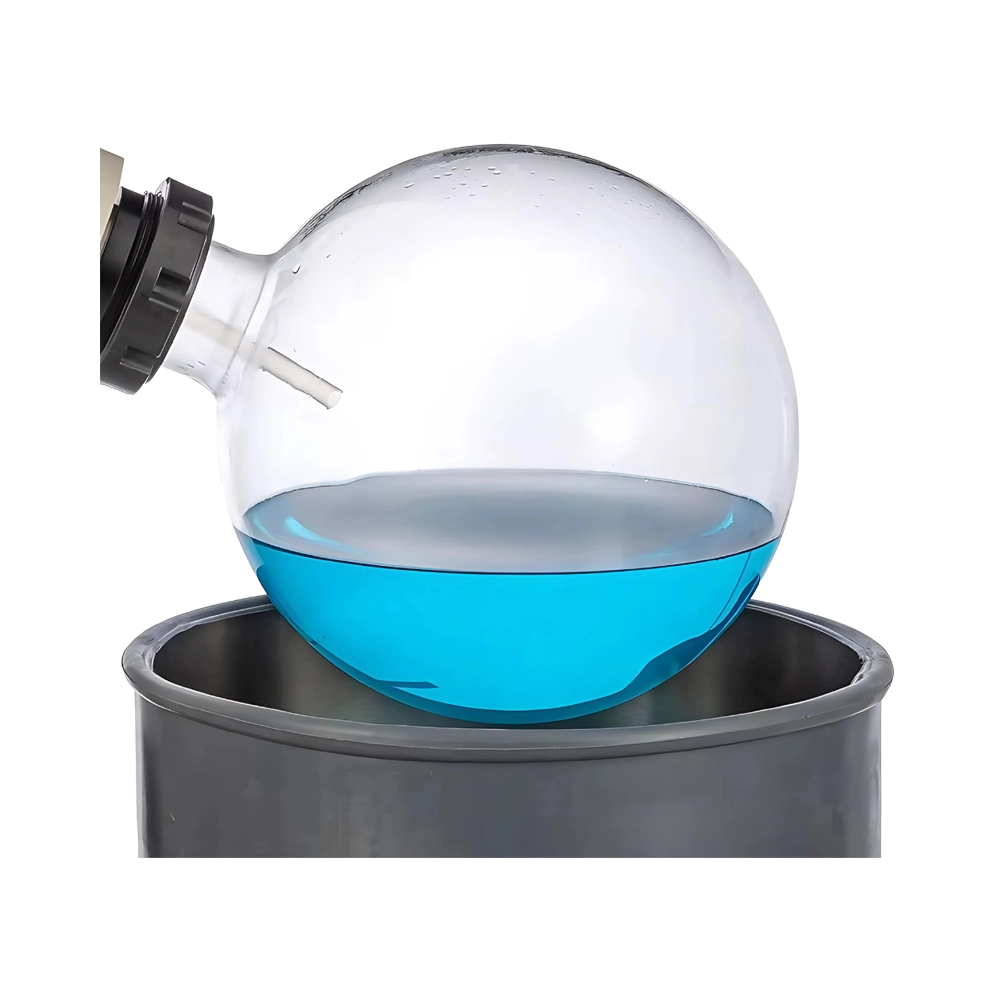

Industrial Rotary Evaporator LMIRE-A105 boasts maximum 10-liter rotary bottle capacity. It features bleed valve for controlled pressure release during vacuum adjustments or shutdown. Equipped with receiving bottle tray that supports collected solvent for easy monitoring and handling. Incorporates an air nozzle for regulated airflow entry. Our Rotary Evaporator is ideal for concentration, separation, and drying in various sectors.
Specifications
| Rotary Bottle Volume | 10 L |
| Collection Bottle Volume | 5 L |
| Bath Volume | 21 L |
| Speed Range | 0 to 120 rpm |
| Working Temperature Range | RT to 180℃ |
| Temperature Control Accuracy | ±1℃ |

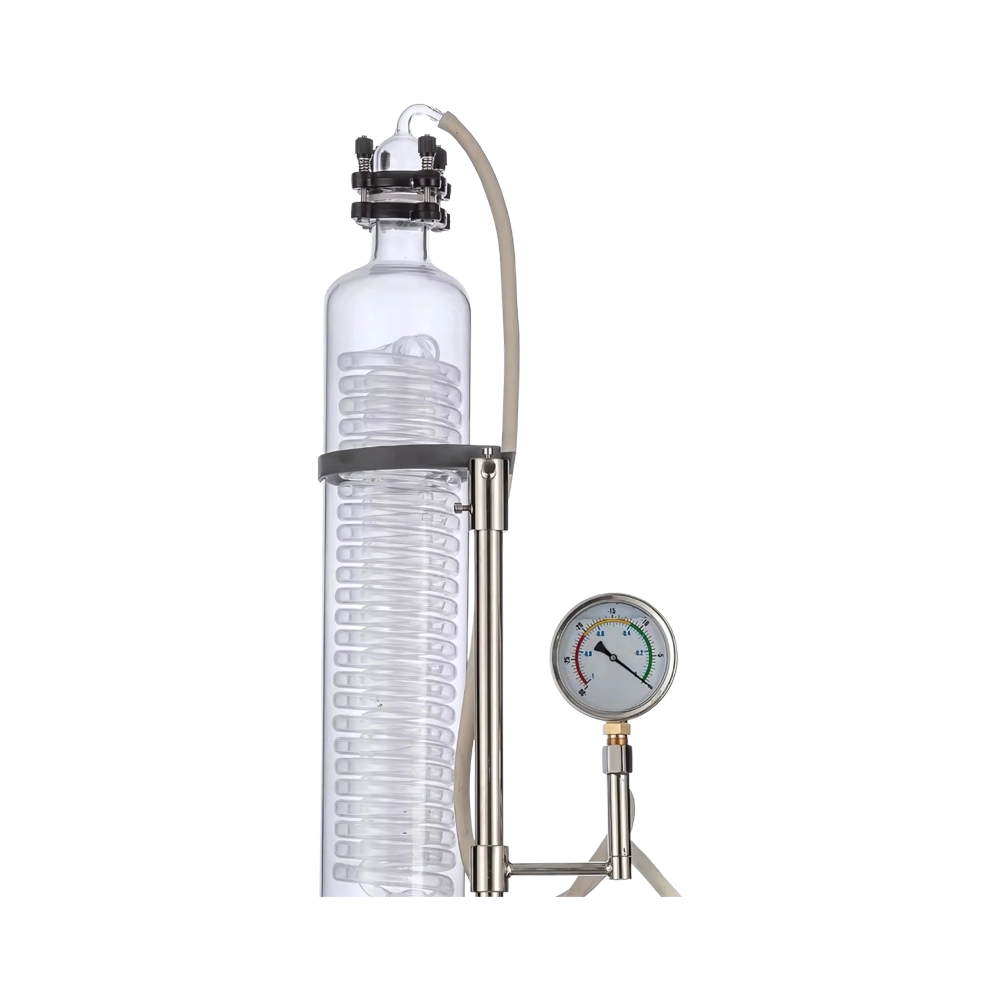

| Condenser | Vertical, main triple and auxiliary double coil |
| Vacuum Degree | 0.098 MPa |
| Lifting Distance | 190 mm |
| Lifting Motor Power | 40W |
| Rotating Motor Power | 60W |
| Heating Power | 3000W |
| Power Consumption | 3100W |
| Dimensions (W×D×H) | 1130×470×1940 mm |
| Weight | 64 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Industrial Rotary Evaporator LMIRE-A105 | $ 3825 | Each of 1 |
Features
Thermal shock resistance
Dual safety fuses
Continuous discharge
Over-temperature protection
Anti-dry function
Water/oil drain valve
Vacuum gauge
Bath lifting frame
Applications
Industrial Rotary Evaporator LMIRE-A105 is employed for concentration, drying, separation, and solvent recovery in chemical, pharmaceutical, food, and petrochemical sectors, ensuring efficient processing and enhanced solvent recycling.
Similar Products
$ 4906.25 / Each of 1
$ 4012.5 / Each of 1
$ 3712.5 / Each of 1
$ 16237.5 / Each of 1
$ 6637.5 / Each of 1
$ 5662.5 / Each of 1
$ 4112.5 / Each of 1
$ 8018.75 / Each of 1
$ 3712.5 / Each of 1
$ 3825 / Each of 1
$ 3275 / Each of 1
$ 3550 / Each of 1
Frequently Asked Questions
1 What is an Industrial Rotary Evaporator?
An Industrial Rotary Evaporator is a large-scale device used to efficiently remove solvents from mixtures through evaporation under reduced pressure.
2 How does an Industrial Rotary Evaporator work?
It works by rotating a sample in a heated bath under vacuum to evaporate and condense solvents efficiently.
3 Is Industrial Rotary Evaporator suitable for concentrating herbal extracts?
It is ideal for concentrating heat-sensitive herbal extracts without degrading active compounds.
4 Can Industrial Rotary Evaporator be used in food and beverage industries?
It is used to concentrate flavors, extract natural compounds, and remove unwanted solvents in food and beverage processing.
5 How does Industrial Rotary Evaporator contribute to sustainability?
It promotes solvent reuse and waste reduction, making it an environmentally friendly solution in chemical and botanical processing.
6 How is Industrial Rotary Evaporator used in academic or industrial R&D?
It is used to concentrate reaction mixtures, isolate compounds, and test solvent recovery methods during product development and scale-up studies.
7 How does Industrial Rotary Evaporator help in nanomaterial synthesis?
It assists in solvent removal during nanomaterial formulation, aiding in the preparation of pure nanoparticles or nanocomposites.
8 Is Industrial Rotary Evaporator useful in biochemistry or enzymatic research?
It is used to concentrate buffer solutions, remove solvents, or gently dry enzyme preparations without denaturation.
9 Is Industrial Rotary Evaporator used in perfume oil formulation?
It is used to concentrate and purify aromatic components, especially natural fragrance oils extracted from botanicals.
10 Can Industrial Rotary Evaporator be used in forensic labs?
It is used to concentrate or isolate analytes from biological fluids or extracts for forensic or toxicological analysis.
