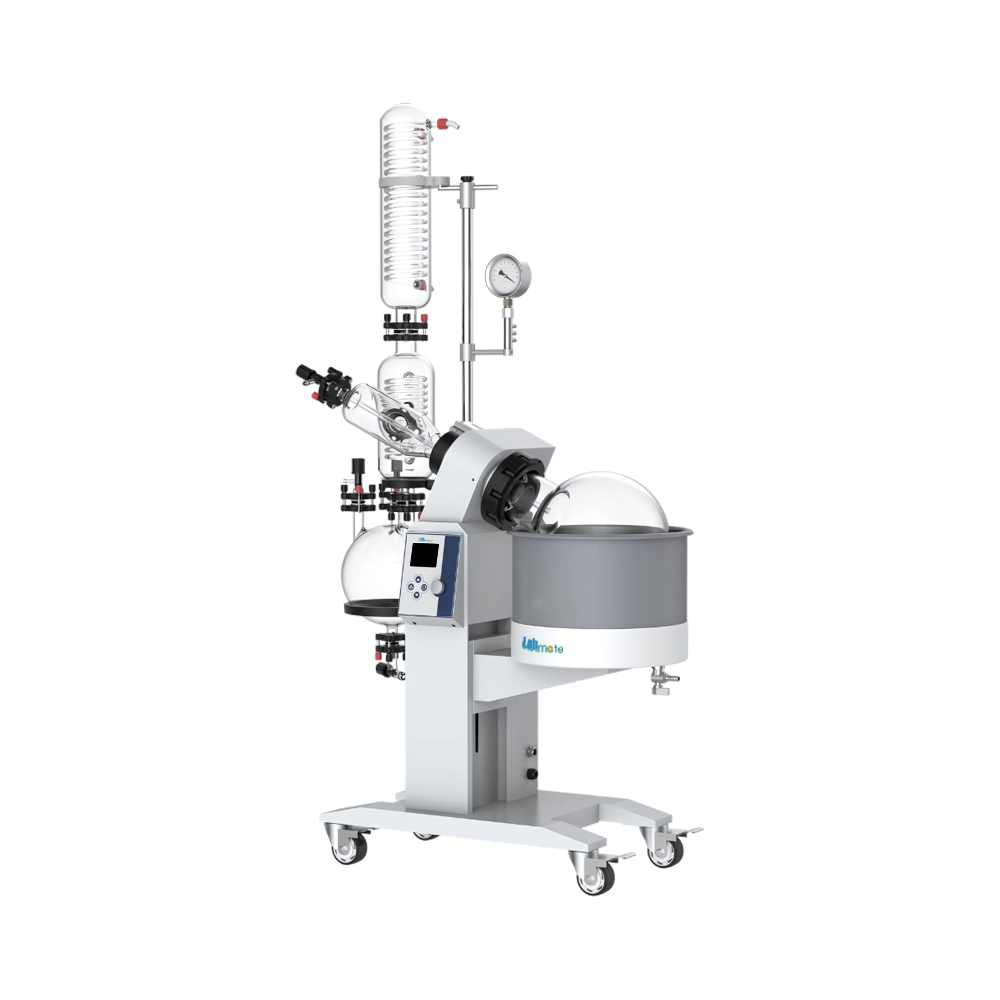

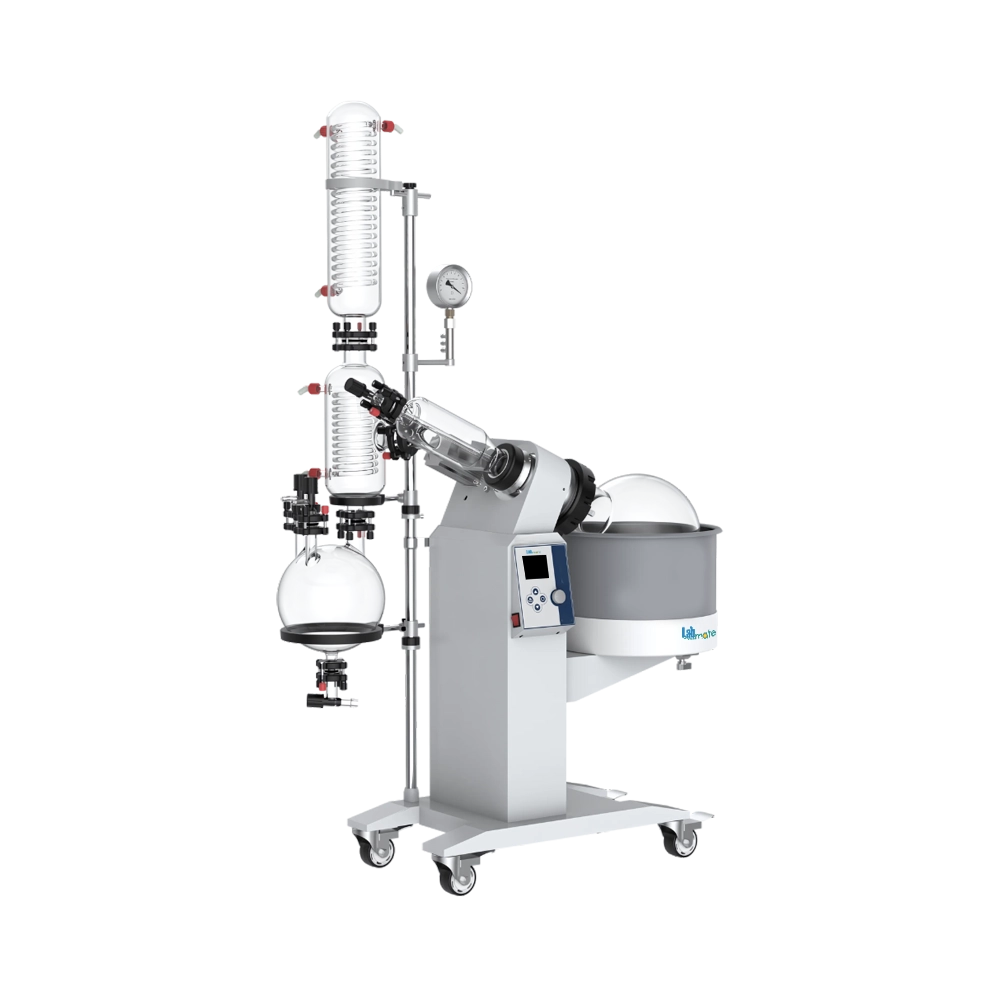

Industrial Rotary Evaporator LMIRE-A110 provides rotary bottle volume of 20 L. It features an LCD screen with one-touch shuttle setting, allowing reliable parameter control and adjustments. Incorporated sealing system prevents vapor leaks and maintains stable vacuum conditions. Equipped with an anti-dry mechanism, it inhibits overheating and protects from potential damage. Our Rotary Evaporator is ideal for evaporation, concentration, and extraction of active substances.
Specifications
| Rotary Bottle Volume | 20 L |
| Collection Bottle Volume | 10 L |
| Speed Range | 20 to 130 rpm |
| Working Temperature Range | RT to 95°C (water bath), RT to 180°C (oil bath) |
| Temperature Sensor | PT-100,3-wire |
| Heat Resource | Deionized water |
| Sealing Parts | PTFE |
| Rotation Control | Electric |
| Vacuum Leakage | Less than or equal to 0.33kPa/min |
| Glass Material | 3.3 borosilicate glass |
| Protection Grade | IP20 |
| Over-Voltage Category | 1 |
| Heating Power | 6000W |
| Power Consumption | 6300W |
| Bath Dimension (L×H) | 450×260 nm |
| Dimensions (W×D×H) | 1120×680×1900 mm |
| Weight | 90 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Industrial Rotary Evaporator LMIRE-A110 | $ 6637.5 | Each of 1 |
Features
Automatic switching valve
Brushless DC motor
Quick-opening flange
Rubber insulation sleeve
Electric lifting function
Applications
Industrial Rotary Evaporator LMIRE-A110 is ideal for distillation, evaporation, concentration, and extraction of active substances in biology, medicine, chemical industry, petrochemicals, food purification, and aerospace.
Similar Products
$ 3275 / Each of 1
$ 3712.5 / Each of 1
$ 3550 / Each of 1
$ 3825 / Each of 1
$ 4112.5 / Each of 1
$ 3825 / Each of 1
$ 4906.25 / Each of 1
$ 5662.5 / Each of 1
$ 8018.75 / Each of 1
$ 16237.5 / Each of 1
$ 4012.5 / Each of 1
$ 3712.5 / Each of 1
Frequently Asked Questions
1 What is an Industrial Rotary Evaporator?
An Industrial Rotary Evaporator is a large-scale device used to efficiently remove solvents from mixtures through evaporation under reduced pressure.
2 How does an Industrial Rotary Evaporator work?
It works by rotating a sample in a heated bath under vacuum to evaporate and condense solvents efficiently.
3 Is Industrial Rotary Evaporator suitable for concentrating herbal extracts?
It is ideal for concentrating heat-sensitive herbal extracts without degrading active compounds.
4 Can Industrial Rotary Evaporator be used in food and beverage industries?
It is used to concentrate flavors, extract natural compounds, and remove unwanted solvents in food and beverage processing.
5 How does Industrial Rotary Evaporator contribute to sustainability?
It promotes solvent reuse and waste reduction, making it an environmentally friendly solution in chemical and botanical processing.
6 How is Industrial Rotary Evaporator used in academic or industrial R&D?
It is used to concentrate reaction mixtures, isolate compounds, and test solvent recovery methods during product development and scale-up studies.
7 How does Industrial Rotary Evaporator help in nanomaterial synthesis?
It assists in solvent removal during nanomaterial formulation, aiding in the preparation of pure nanoparticles or nanocomposites.
8 Is Industrial Rotary Evaporator useful in biochemistry or enzymatic research?
It is used to concentrate buffer solutions, remove solvents, or gently dry enzyme preparations without denaturation.
9 Is Industrial Rotary Evaporator used in perfume oil formulation?
It is used to concentrate and purify aromatic components, especially natural fragrance oils extracted from botanicals.
10 Can Industrial Rotary Evaporator be used in forensic labs?
It is used to concentrate or isolate analytes from biological fluids or extracts for forensic or toxicological analysis.
