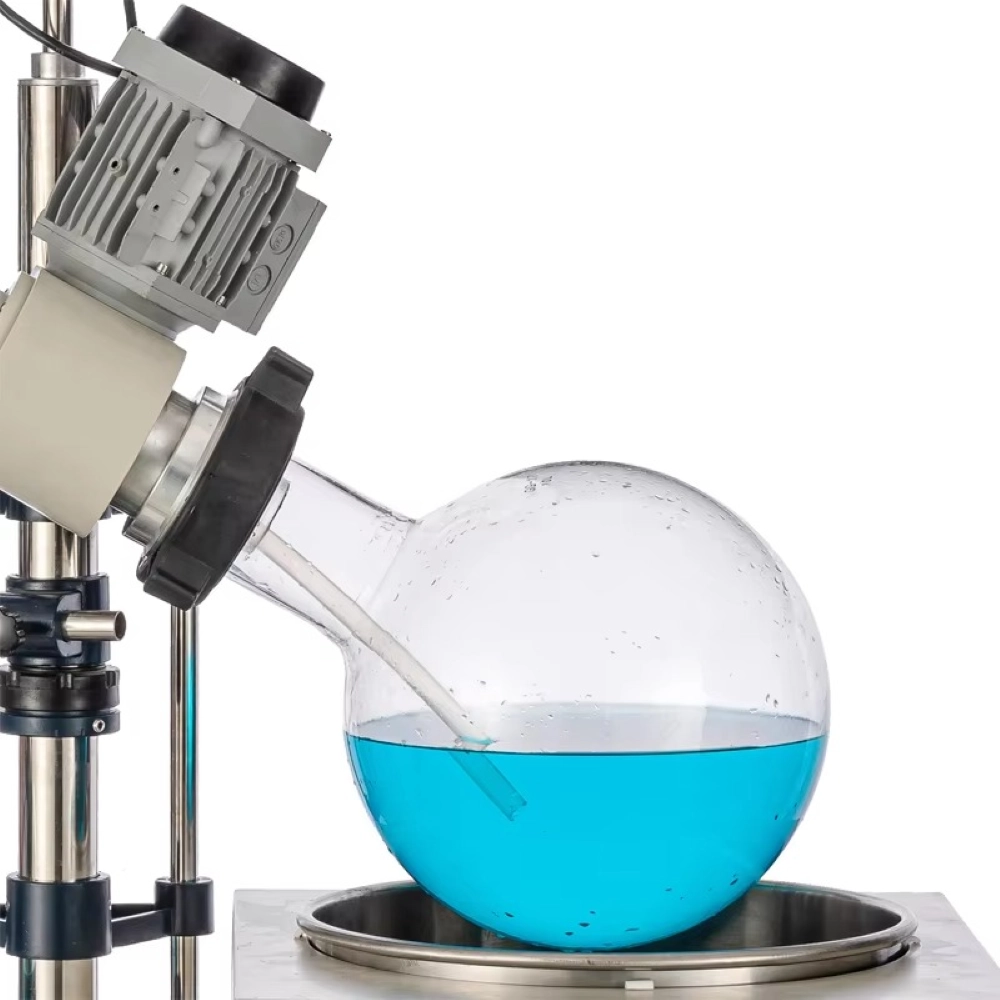

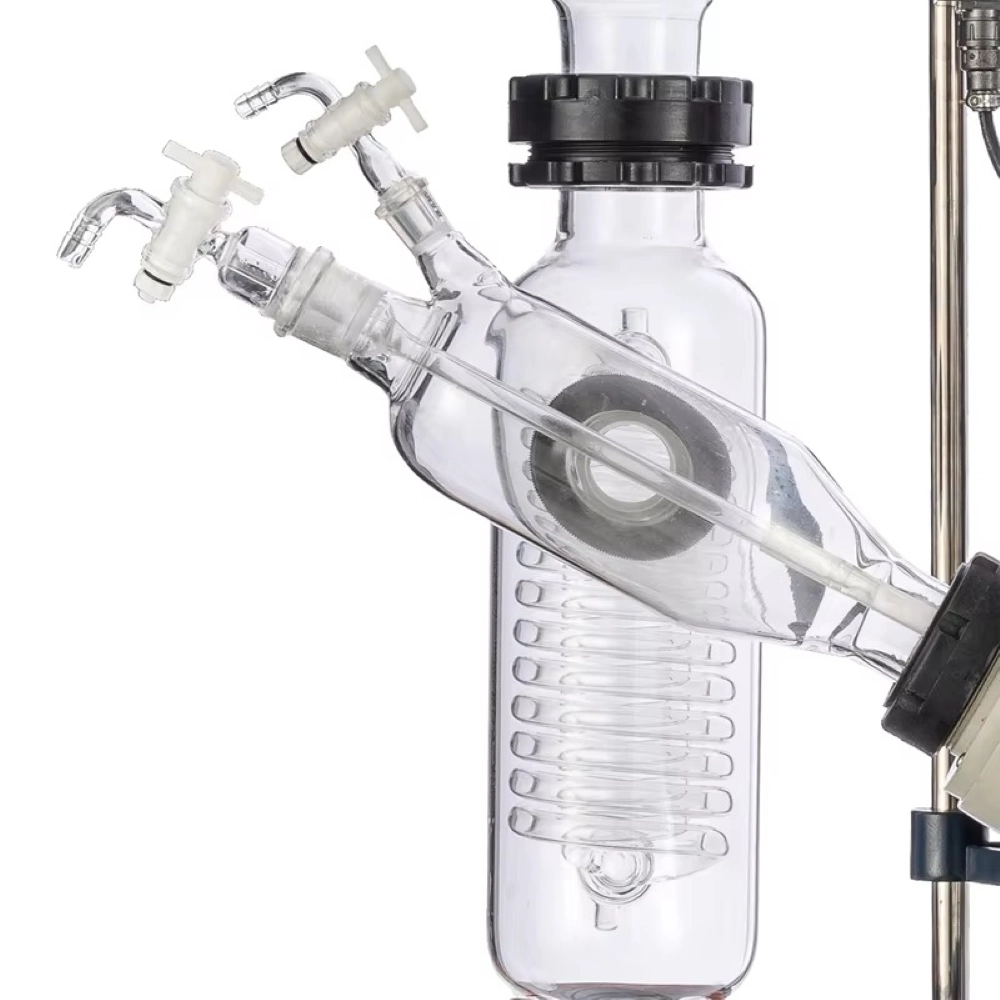

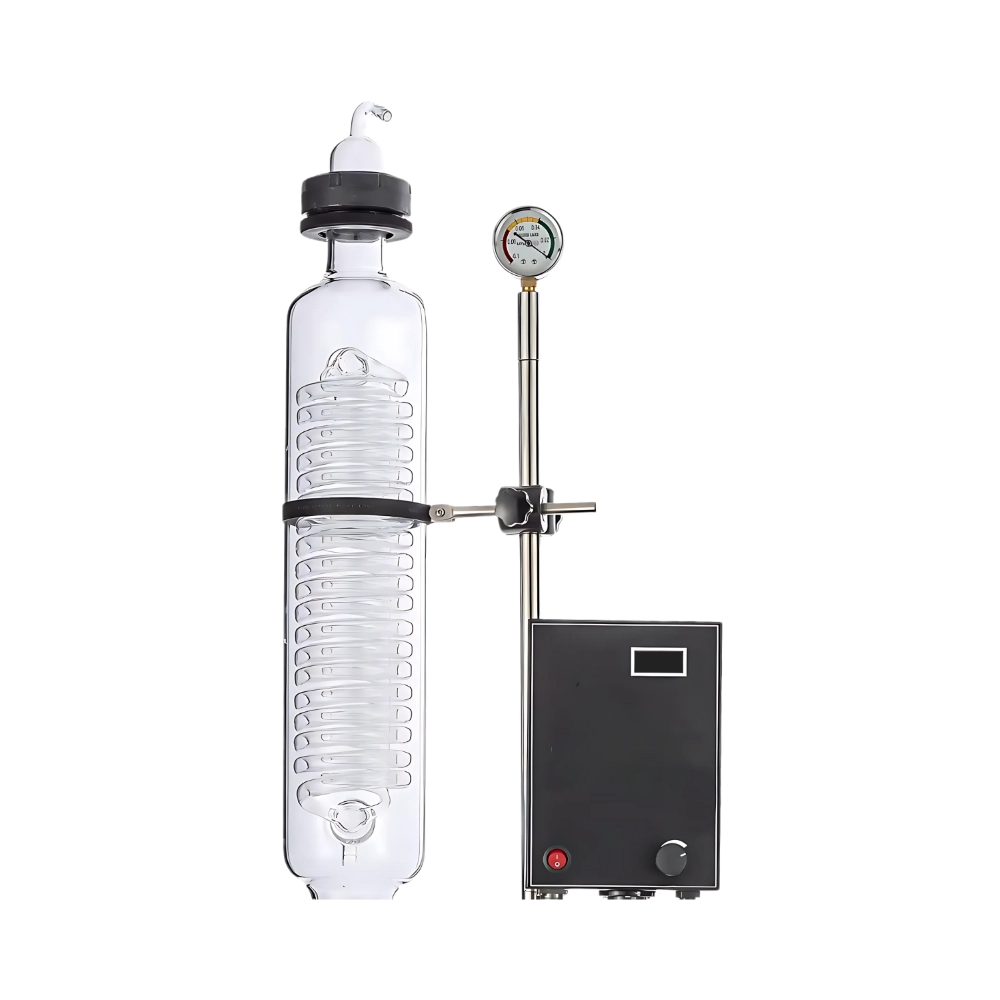

Industrial Rotary Evaporator LMIRE-A100 offers 10-liter rotary bottle volume. It features high borosilicate glass for strength, thermal endurance, and corrosion resistance. Equipped with dual fuses on rotating and heating systems for advanced safety. Incorporates main and auxiliary condensers with triple coil structure for higher recovery. Our Rotary Evaporator is ideal for concentration, drying, and separation across industries.
Specifications
| Rotary Bottle Volume | 10 L |
| Collection Bottle Volume | 5 L |
| Bath Volume | 21 L |
| Speed Range | 0 to 120 rpm |
| Working Temperature Range | RT to 180℃ |
| Temperature Control Accuracy | ±1℃ |
| Vacuum Degree | 0.098 MPa |
| Lifting Distance | 180 mm |
| Rotating Motor Power | 120W |
| Heating Power | 3000W |
| Power Consumption | 3120W |
| Power Supply | 220 to 240V/50Hz |
| Dimensions (W×D×H) | 930×560×1910 mm |
| Weight | 74 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Industrial Rotary Evaporator LMIRE-A100 | $ 3562.5 | Each of 1 |
Features
Smooth vertical lift
Stable vacuum control
Low-noise operation
Leak-proof connections
Adjustable rotation speed
User-friendly interface
Controlled vapor flow
Applications
Industrial Rotary Evaporator LMIRE-A100 performs concentration, drying, separation, and solvent recovery across industries, supporting material processing, production, and process development.
Similar Products
$ 3675 / Each of 1
$ 3562.5 / Each of 1
$ 3125 / Each of 1
$ 3675 / Each of 1
$ 5512.5 / Each of 1
$ 3400 / Each of 1
$ 6487.5 / Each of 1
$ 3862.5 / Each of 1
$ 7868.75 / Each of 1
$ 3962.5 / Each of 1
$ 16087.5 / Each of 1
$ 4756.25 / Each of 1
Frequently Asked Questions
1 What is an Industrial Rotary Evaporator?
An Industrial Rotary Evaporator is a large-scale device used to efficiently remove solvents from mixtures through evaporation under reduced pressure.
2 How does an Industrial Rotary Evaporator work?
It works by rotating a sample in a heated bath under vacuum to evaporate and condense solvents efficiently.
3 Is Industrial Rotary Evaporator suitable for concentrating herbal extracts?
It is ideal for concentrating heat-sensitive herbal extracts without degrading active compounds.
4 Can Industrial Rotary Evaporator be used in food and beverage industries?
It is used to concentrate flavors, extract natural compounds, and remove unwanted solvents in food and beverage processing.
5 How does Industrial Rotary Evaporator contribute to sustainability?
It promotes solvent reuse and waste reduction, making it an environmentally friendly solution in chemical and botanical processing.
6 How is Industrial Rotary Evaporator used in academic or industrial R&D?
It is used to concentrate reaction mixtures, isolate compounds, and test solvent recovery methods during product development and scale-up studies.
7 How does Industrial Rotary Evaporator help in nanomaterial synthesis?
It assists in solvent removal during nanomaterial formulation, aiding in the preparation of pure nanoparticles or nanocomposites.
8 Is Industrial Rotary Evaporator useful in biochemistry or enzymatic research?
It is used to concentrate buffer solutions, remove solvents, or gently dry enzyme preparations without denaturation.
9 Is Industrial Rotary Evaporator used in perfume oil formulation?
It is used to concentrate and purify aromatic components, especially natural fragrance oils extracted from botanicals.
10 Can Industrial Rotary Evaporator be used in forensic labs?
It is used to concentrate or isolate analytes from biological fluids or extracts for forensic or toxicological analysis.
