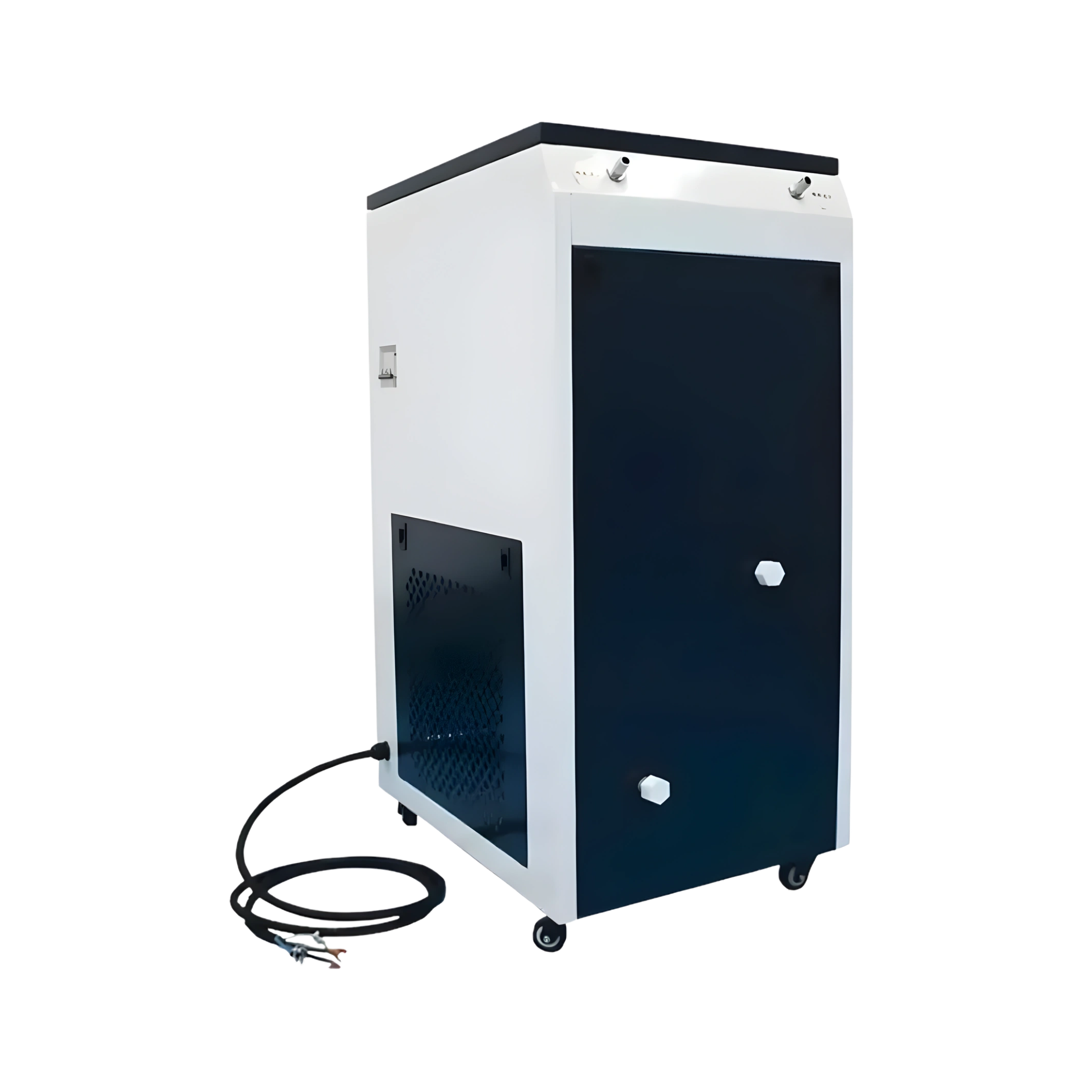

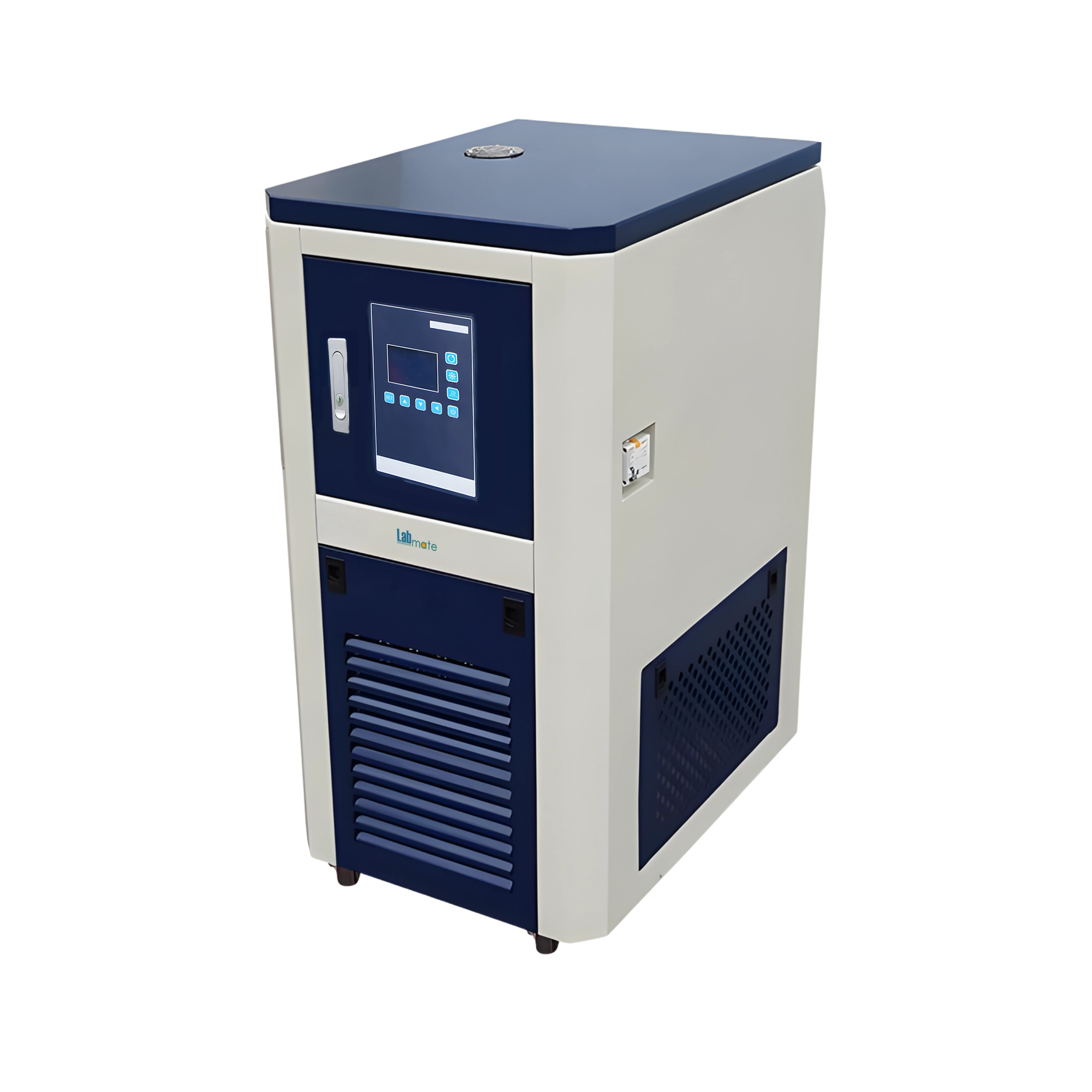

Heating Circulator LMHTC-B103 has flow rate of 42 L/min. It features an external PT100 sensor port for connecting advanced probes to monitor exterior system temperatures. Equipped with overcurrent protection, it ensures electrical safety by preventing circuit overloads during operation. Incorporates front ventilation window for optimal airflow and effective internal component cooling. Our Circulator is ideal for thermal control laboratory and pilot-scale environments.
Specifications
| Working Temperature Range | RT to 200℃ |
| Reservoir Capacity | 35 L |
| Flow Rate | 42L/min |
| Lifting Distance | 22m |
| Temperature Control Accuracy | ±1℃ |
| Heating Power | 9000W |
| Circulating Pump Power | 370W |
| Power Consumption | 9370W |
| Power Supply | 380V/50Hz |
| Dimensions | 520×720×1130 mm |
| Weight | 90 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Heating Circulator LMHTC-B103 | $ 3737.5 | Each of 1 |
Features
PID temperature control
Fluid filling port
Circulation filter
Fluid outlet/inlet
Liquid level display
Caster wheels
Lock mechanism
Applications
Heating Circulator LMHTC-B103 is applied for thermal control for reactors, fermentation systems, calorimeters, beverage production lines, and protein peptide synthesis, in laboratory and pilot-scale environments.
