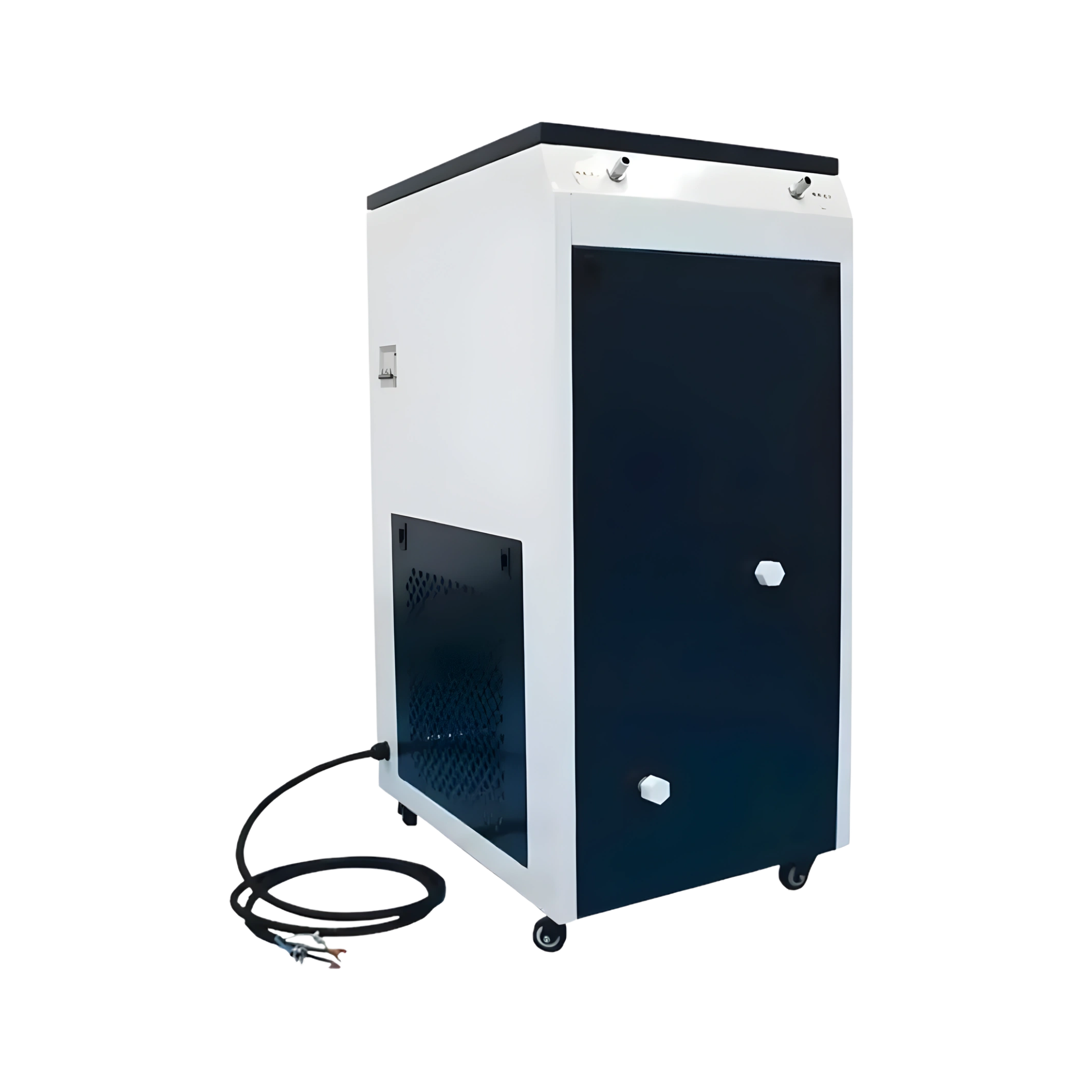

Heating Circulator LMHTC-B102

Heating Circulator LMHTC-B102 offers reservoir capacity of 15 liters. It features PID-based temperature control that ensures stable heating performance. Equipped with caster wheels, it provides easy motility and repositioning within laboratory or industrial environments. Incorporates bath fluid inlet for effortless integration with external devices for controlled heat transfer flow. Our Circulator enables thermal control for reactors, fermentation systems, and calorimeters.

Catalog Send Mail Whatsapp

Specifications

Working Temperature Range RT to 200℃
Reservoir Capacity 15 L
Flow Rate 30L/min
Lifting Distance 15m
Temperature Control Accuracy ±1℃
Heating Power 6000W
Circulating Pump Power 250W
Power Consumption 6250W
Power Supply 220V/50Hz
Dimensions 460×650×935 mm
Weight 50 Kg

Pricing

Product Price Unit Action
Heating Circulator LMHTC-B102 $ 3375 Each of 1

Features

Observation window

Circulation filter

Leakage protection

Liquid level display

Lock mechanism

PT100 sensor port

Applications

Heating Circulator LMHTC-B102 provides robust thermal control for reactors, fermentation systems, calorimeters, beverage production lines, and protein peptide synthesis, in advanced laboratory and pilot-scale operations.
