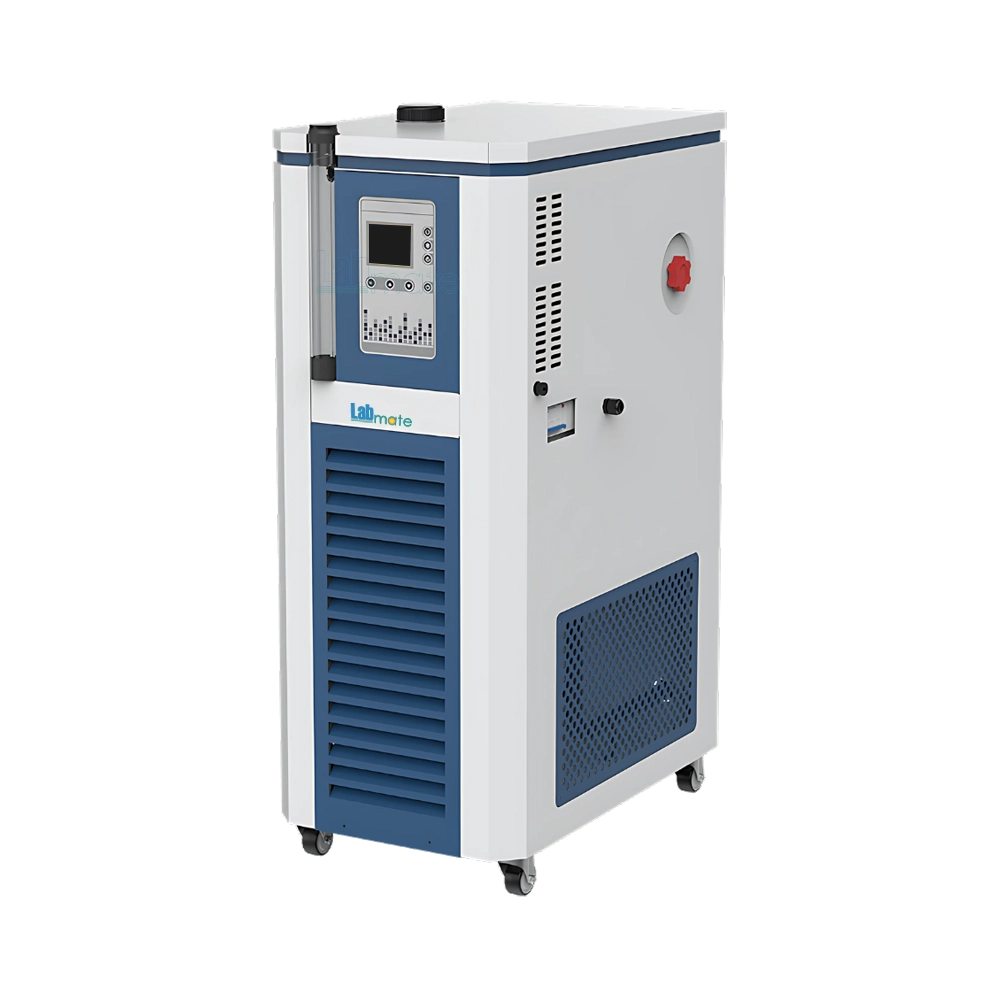

Heating Circulator LMHTC-A102 offers temperatures up to 250℃ and 13-liter volume. It features dedicated inlet and outlet for external cooling water integration into system. Equipped with overload and overcurrent defenses, it prevents electrical faults and operational disruption. Incorporates drain port for safe and complete removal of internal bath fluid after operations. Our Circulator ensures stable heat to external equipment in pharmaceutical, chemical, and materials fields.
Specifications
| Working Temperature Range | RT+5 to 250℃ |
| Fluid Filling Volume | 13L |
| Flow Rate | 28L/min |
| Pressure | 3bar |
| Temperature Control Accuracy | ±0.5℃ |
| Outer Circulation Interface Size | R23/4 |
| Protection Grade | IP20 |
| Heating Power | 6kW |
| Power Consumption | 6.5kW |
| Power Supply | 380V,50Hz |
| Dimensions | 430×690×1225 mm |
| Net Weight | 120 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Heating Circulator LMHTC-A102 | $ 5175 | Each of 1 |
Features
Sealed fluid circuit
Liquid level monitoring
Leakage protection
LCD interface
Temperature alert
Reactor connection ports
Applications
Heating Circulator LMHTC-A102 provide heat source for reactors, calorimeters, fermentation tanks, pilot lines, and extraction units in pharmaceutical, chemical, and material industries.
