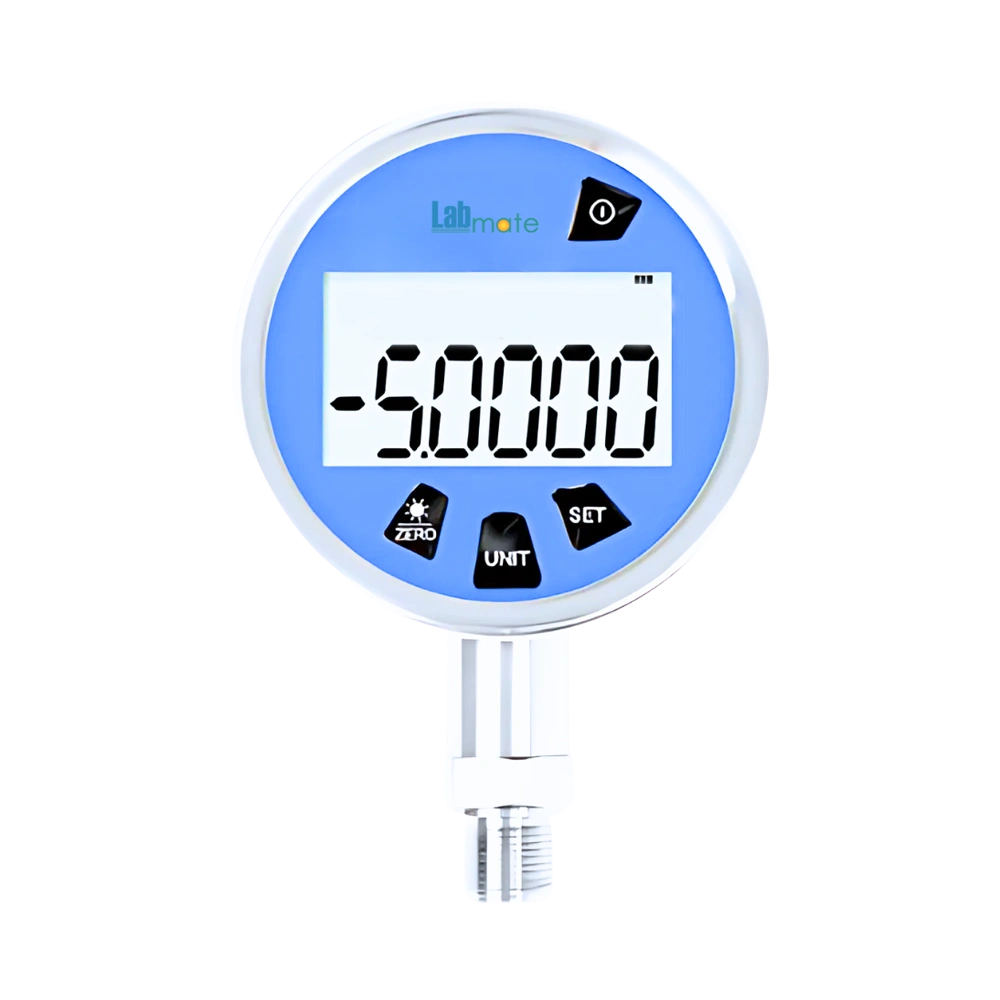

Digital Pressure Gauge LMDPG-C101 is smart micro-power digital pressure monitoring device for precise and reliable long-term operation. Built with high-accuracy sensor, rechargeable lithium battery, and wide-view LCD display. Delivers stable performance in harsh environments. Engineered with intelligent calibration functions and RS485 communication protocol. Our Digital Pressure Gauge LMDPG-C101 suits wide range of industrial and laboratory applications.
Specifications
| Pressure Range | 0.1 to 0MPa |
| Dial Size | 100 mm |
| Accuracy | 0.5% |
| Pressure Types | Gauge, Absolute, Vacuum |
| Display | 5-digit LCD with simulated light bar |
| Measuring Medium | Water, Gas (compatible with SS) |
| Power Supply | Rechargeable Lithium Battery (3+ years) |
| Case Material | Stainless Steel |
| Pressure Units | MPa, KPa, PSI, mmHg, bar, kgf/cm² |
| Medium Temperature | -10°C to 60°C |
| Working Temperature | -10°C to 60°C |
| Working Humidity | ≤80% RH |
| Connection Sizes | M20×1.5, G1/4, G1/2, NPT1/4, NPT3/8 |
| Mounting Type | RS485 |
| Gross Dimension | 213 × 150 × 90 mm |
| Weight | 0.6 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Digital Pressure Gauge LMDPG-C101 | $ 1050 | MOQ of 10 |
Features
5-Digit Dynamic LCD
Ultra-Low Power Consumption
High Accuracy
Wide Temperature Compensation
Multi-Unit Pressure Display
Intelligent Calibration with Magnetic Pen Zeroing
Applications
Our Digital Pressure Gauge LMDPG-C101 is ideal for industrial process monitoring, chemical and pharmaceutical production, and water treatment systems. It is widely used in hydraulic and pneumatic setups, HVAC systems, and laboratory testing. Suitable for pressure measurement in pipelines, tanks, reactors, cleanrooms, and printing plants. Its RS485 output makes it perfect for remote monitoring and integration with control systems. Reliable even in harsh or hazardous environments.
