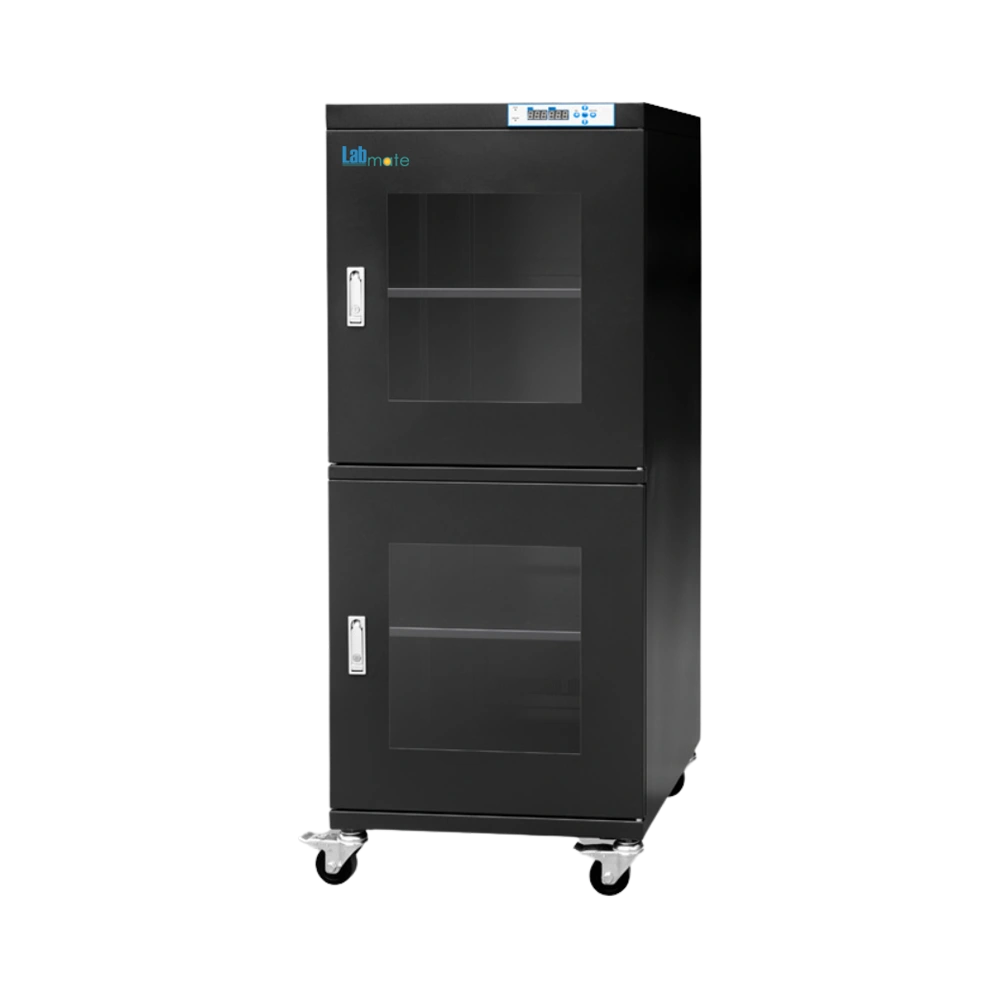

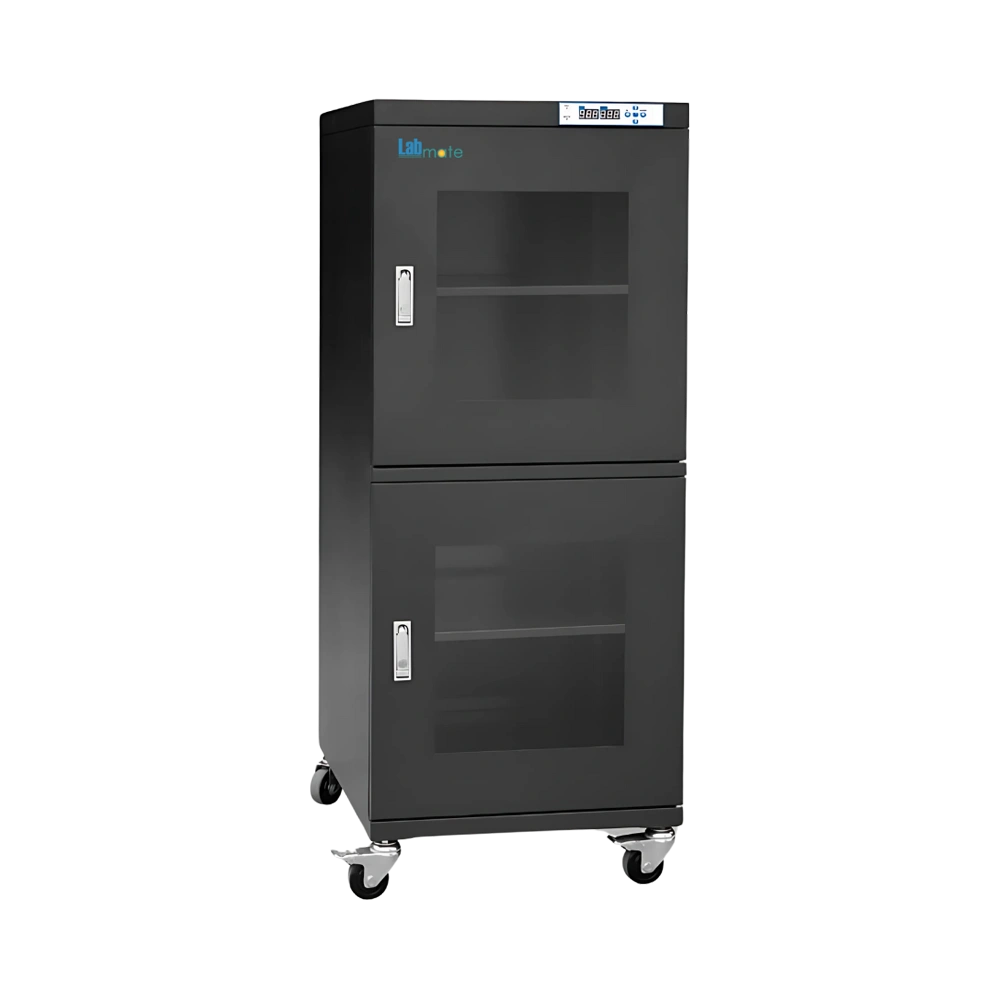

Desiccator Dry Cabinet LMDCC-D105 offers 540 L volume for bulk storage of moisture-sensitive components in controlled conditions. It features 2 independent front doors to enable convenient, sectioned access. Integrated with a flat press zinc alloy lock to ensure anti-theft security and safe preservation. Equipped with a clear LED panel that displays internal humidity status in real-time. Our Desiccator Dry Cabinet includes tempered glass window for easy viewing without exposing contents to ambient air.
Specifications
| Storage Capacity | 540 L |
| Humidity Range | Less than 5% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 3 |
| Door Quantity | 2 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 10 W |
| Maximum Load Per Shelf | 80 Kg |
| Interior Dimension (W×D×H) | 596 × 682 × 1298 mm |
| Exterior Dimension(W×D×H) | 598 × 710 × 1465 mm |
| Net Weight | 68 Kg |
| Gross Weight | 95 Kg |
Features
Three Perforated Shelves
ESD-Safe Black Exterior
Galvanized Steel Construction
Polyurethane Wheels
Low Power Consumption
Optional Accessories
| Model no. | Accessory |
| LMDCC-D105-A1 | Over Humidity Buzzer Alarm |
| LMDCC-D105-A2 | Open Door Buzzer Alarm |
| LMDCC-D105-A3 | Three-Color Flashing Light Alarm |
| LMDCC-D105-D1 | Data Logging System With USB Interface |
| LMDCC-D105-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-D105 is suitable for pharmaceutical and medical assembly areas, protecting diagnostic components, sterile packaging, and sensitive materials from moisture and particulate exposure.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
