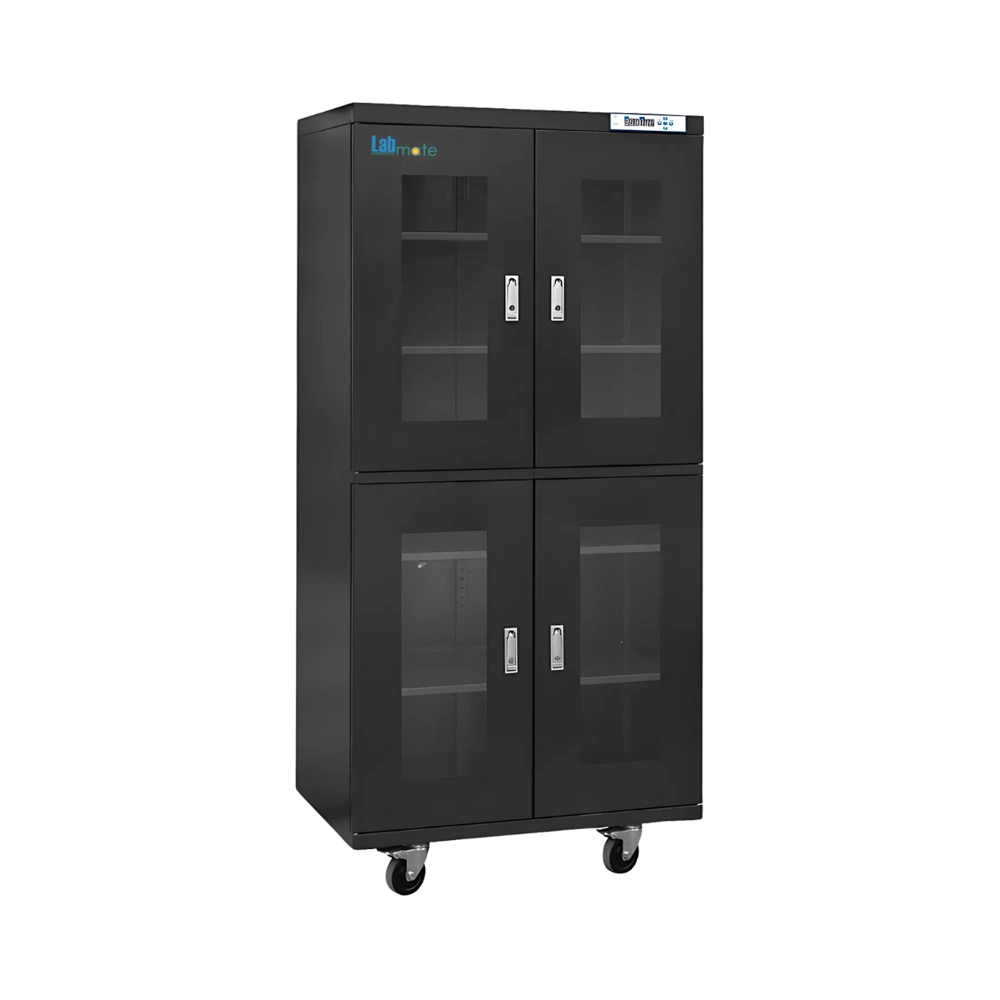

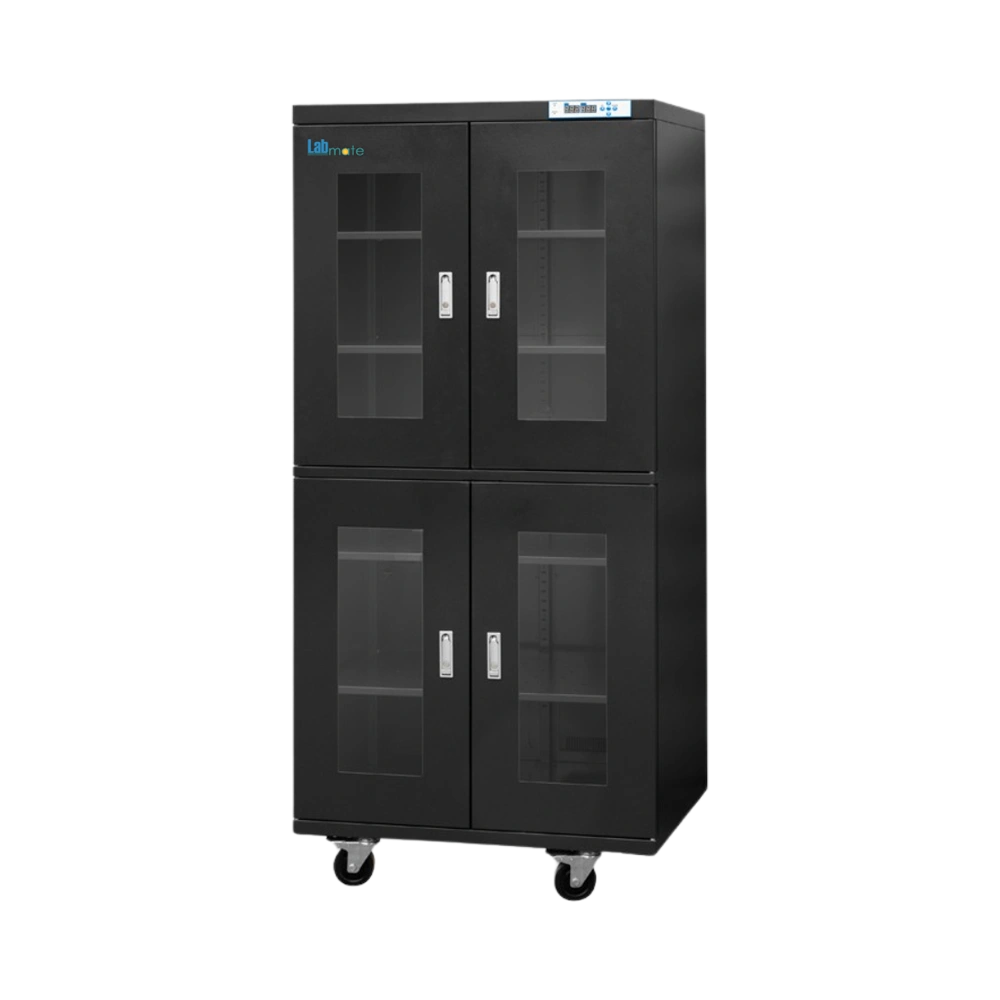

Desiccator Dry Cabinet LMDCC-A107 offers a spacious 870 L capacity for storing moisture-sensitive items in bulk. Integrated with a 100 kg loading capacity for handling a variety of materials in larger volume. Equipped with 20% to 60% RH stable humidity range, ensuring consistent conditions for delicate component preservation. Built with 1.2 mm galvanized steel and anti-static coating for long-lasting structural integrity. Our Desiccator Dry Cabinet includes 5 adjustable shelves for efficient layout and space optimization.
Specifications
| Storage Capacity | 870 L |
| Humidity Range | 20% to 60% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 5 |
| Door Quantity | 4 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 15 W |
| Maximum Load Per Shelf | 100 Kg |
| Interior Dimension (W×D×H) | 898 × 572 × 1698 mm |
| Exterior Dimension(W×D×H) | 900× 600 × 1890 mm |
| Net Weight | 110 Kg |
| Gross Weight | 130 Kg |
Features
Airtight Magnetic Seal Door
ESD-Safe PU (Polyurethane) Wheels
Corrosion Resistant Interior
Transparent Front Glass Window
Digital LED Interface
Optional Accessories
| Model no. | Accessory |
| LMDCC-A107-A1 | Over Humidity Buzzer Alarm |
| LMDCC-A107-A2 | Open Door Buzzer Alarm |
| LMDCC-A107-A3 | Three-Color Flashing Light Alarm |
| LMDCC-A107-D1 | Data Logging System With USB Interface |
| LMDCC-A107-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-A107 is crucial for storing automotive sensors, circuit boards, and connectors that are sensitive to moisture.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
