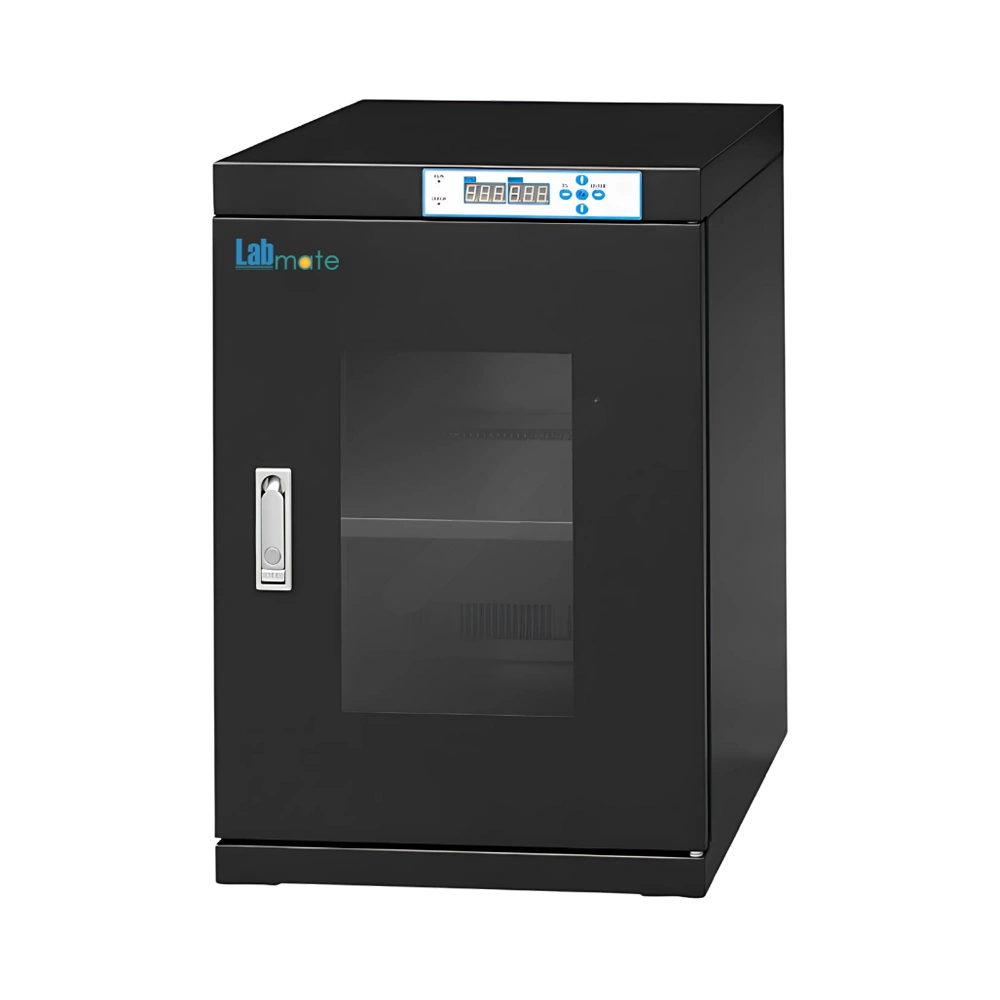

Desiccator Dry Cabinet LMDCC-A100 provides 98 L internal volume to handle moisture-sensitive components. Integrated with humidity range from 20% to 60% RH to maintain specific storage requirements. It features a maximum recovery time of 30 minutes after 30 seconds of door opening. Equipped with one adjustable shelf for flexible arrangement of stored contents. Our Desiccator Dry Cabinet is designed with an ESD-safe black exterior to protect delicate electronic and optical parts.
Specifications
| Storage Capacity | 98 L |
| Humidity Range | 20% to 60% RH |
| Ambient Temperature And Humidity Range | 25°C, 60% RH |
| Shelf Quantity | 1 |
| Door Quantity | 1 |
| Recovery Time | Maximum 30 minutes (after door open for 30 seconds) |
| Colour | Black, ESD safe |
| Body Material | 1.2 mm Galvanized Steel with Anti-Static Powder Spray Coating |
| Wheels Material | PU (Polyurethane), ESD safe |
| Surface Resistance | 10⁶ to 10⁸ Ω |
| Display | LED |
| Power Consumption | 8 W |
| Maximum Load Per Shelf | 50 Kg |
| Interior Dimension (W×D×H) | 446 × 372 × 598 mm |
| Exterior Dimension(W×D×H) | 448 × 400 × 688 mm |
| Net Weight | 20 Kg |
| Gross Weight | 31 Kg |
Features
Energy-Efficient Dehumidification System
Corrosion-Resistant Build
Airtight Sealing Door
Transparent Viewing Window
Lockable Handle
Optional Accessories
| Model no. | Accessory |
| LMDCC-A100-A1 | Over Humidity Buzzer Alarm |
| LMDCC-A100-A2 | Open Door Buzzer Alarm |
| LMDCC-A100-A3 | Three-Color Flashing Light Alarm |
| LMDCC-A100-D1 | Data Logging System With USB Interface |
| LMDCC-A100-S1 | Extra Shelf |
Applications
Desiccator Dry Cabinet LMDCC-A100 is ideal for protecting printed circuit boards (PCBs), integrated circuits (ICs), and other moisture-sensitive electronics from corrosion and static harm.
Similar Products
Frequently Asked Questions
1 What is a Desiccator Dry Cabinet?
A Desiccator Dry Cabinet is an apparatus designed to store items that are sensitive to moisture by providing dry and low-humidity environment.
2 How does Desiccator Dry Cabinet work?
It utilizes a combination of desiccants such as silica gel to absorb moisture from the air inside the cabinet thereby protecting moisture-sensitive items.
3 What is the difference between a Desiccator Dry Cabinet and a regular Dry Cabinet?
A Desiccator Dry Cabinet maintains very low humidity that ensures consistent environment for moisture-sensitive items whereas a regular Dry Cabinet does not provide controlled humidity system.
4 Can Desiccator Dry Cabinet be used to store items at very low temperatures?
It is engineered to store items at room temperature or moderate temperature.
