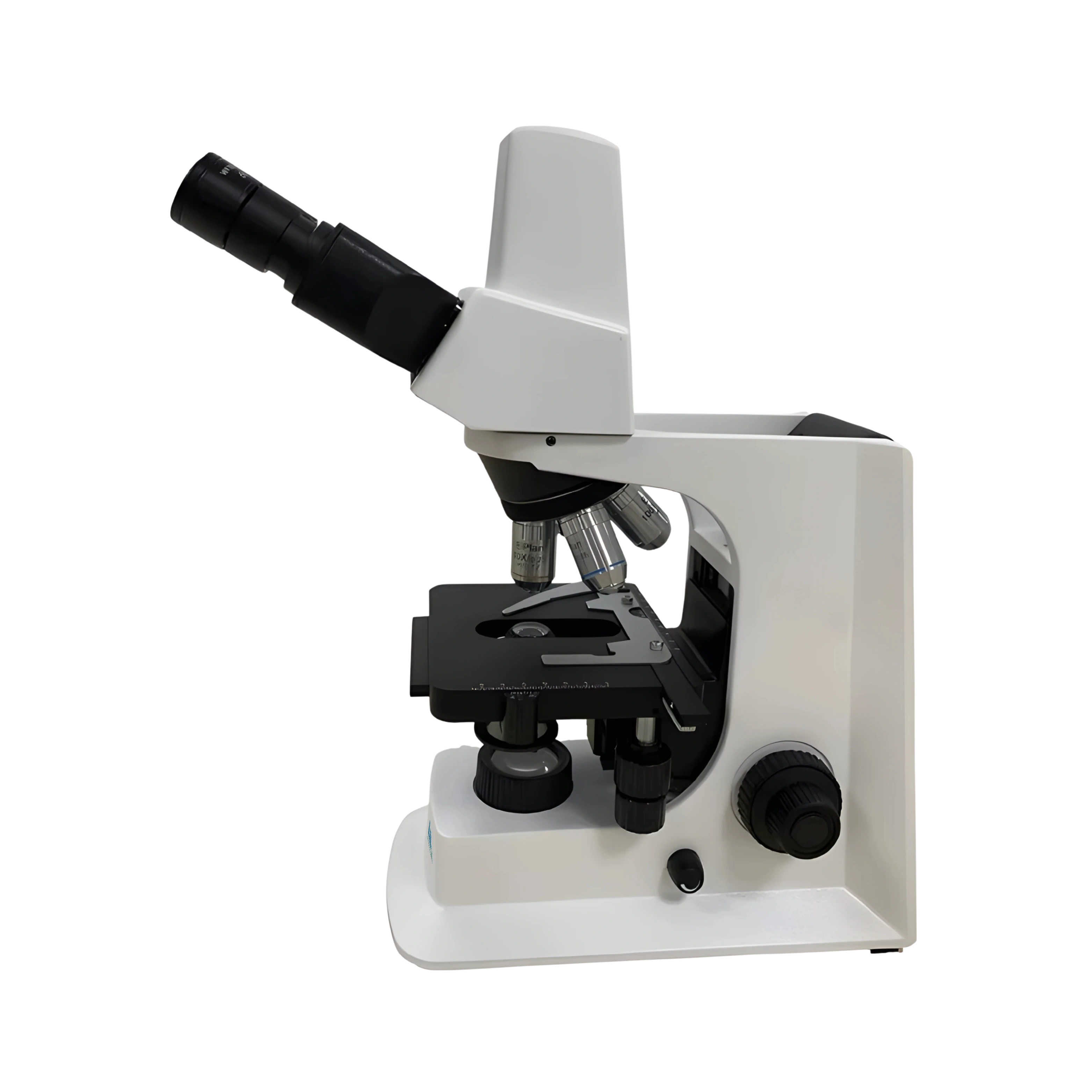

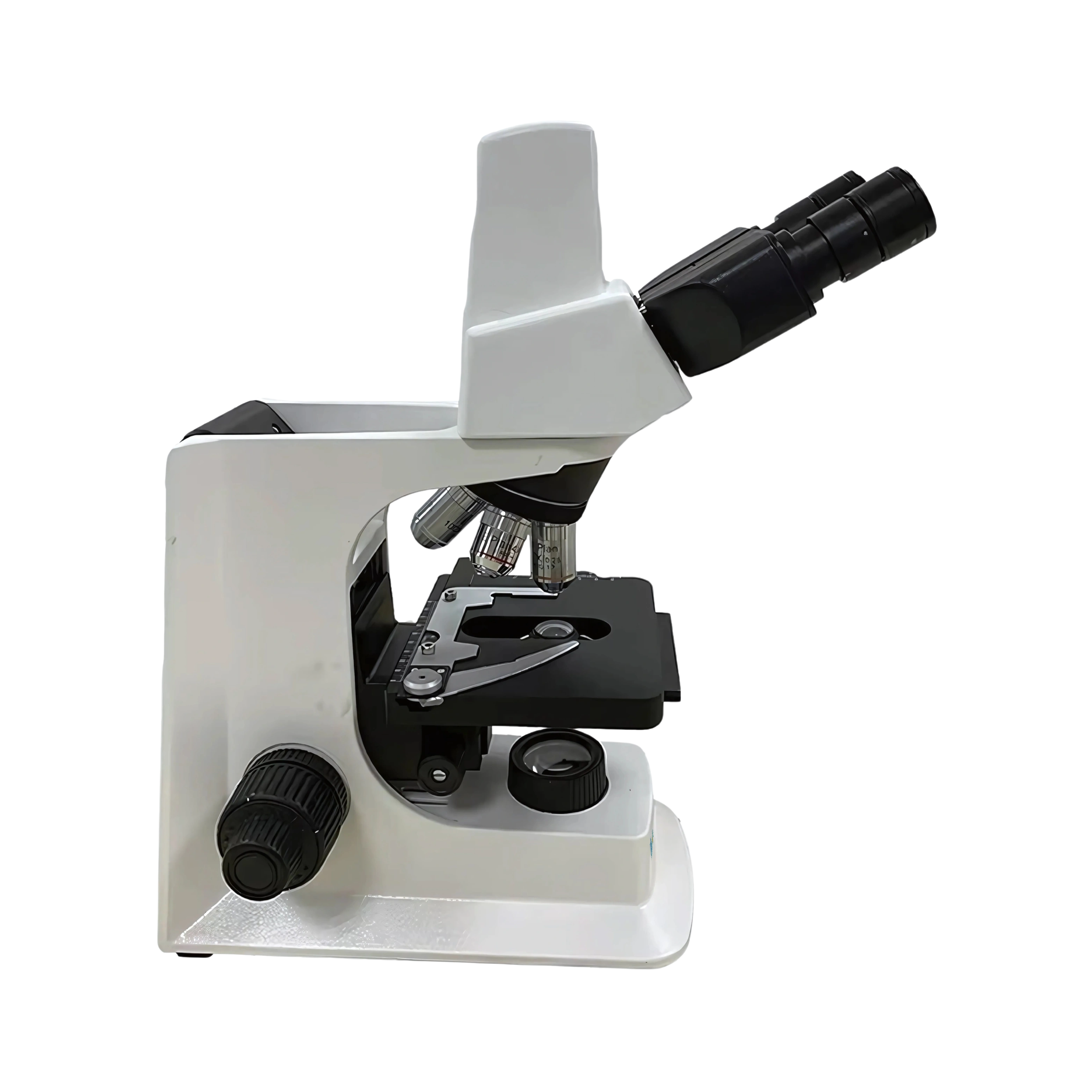

Digital Biological Microscope LMBM-503 with 40X to 2000X magnification delivers detailed observation. It offers infinity EPlan objectives for bright, high-contrast imaging. It features a 360° rotatable binocular head for ergonomic viewing and effortless specimen positioning. Equipped with a dual slide holder stage and robust base for stable operation during analysis. Our Digital Biological Microscope is ideal for microbiology, histology, and clinical studies.
Specifications
| Magnification Range | 40X to 2000X |
| Eyepiece | WF10X/20mm |
| Infinity EPlan Objectives | 4X/ 10X/ 40X(S)/ 100X(S,Oil) |
| Viewing Head | Binocular Head |
| Head Position | 30° inclined, 360° rotatable |
| Interpupillary Distance | 50 to 75 mm |
| Nosepiece | 4 holes (Quadplex) |
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) |
| Illumination System | 3W LED |
| Imaging System | 5 MP Sensor |

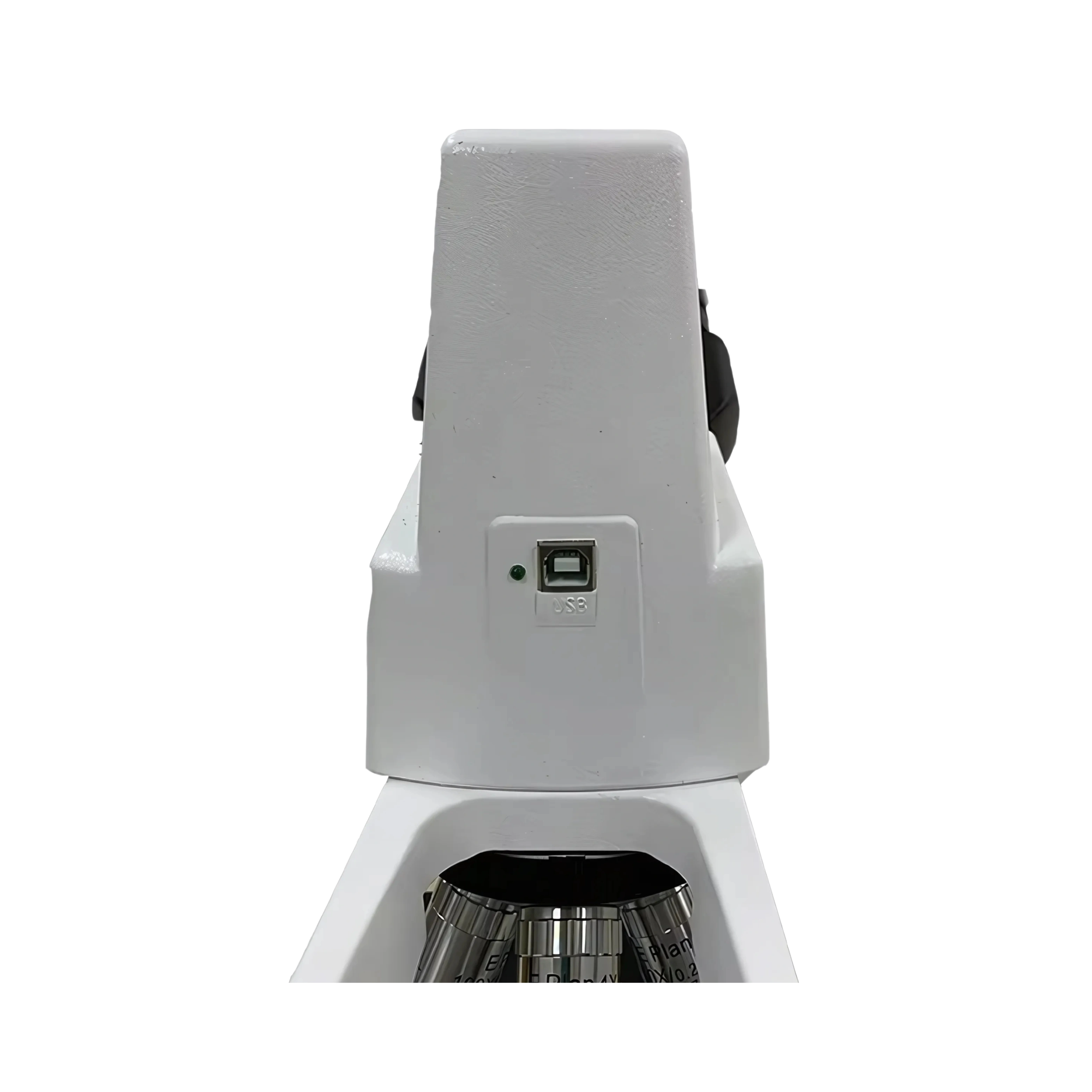

| Base | External power adapter with data cable |
| Focusing System | Coaxial coarse and fine knobs |
| Coaxial Coarse Focusing Range | 26 mm |
| Fine Knobs Focusing Range | 2µm/division |
| Mechanical Stage | Dual slide holder with 0.1 mm scale |
| Mechanical Stage Dimension | 145 × 140 mm |
| Mechanical Stage Adjustment Range | 76 × 52 mm |
| Power Supply | 100V to 240V |
| Packaging Dimension | 390 × 280 × 450 mm |
| Net Weight | 6.5 kg |
| Gross Weight | 7.5 kg |
Features
Quadruple nosepiece
Abbe condenser
LED illumination system
Built-in 5MP sensor
Coaxial coarse and fine focusing knobs
Applications
Digital Biological Microscope LMBM-503 is ideal for quality monitoring, sample evaluation, and research on cells and microorganisms in biotechnology and pharmaceutical laboratories.
Similar Products
Frequently Asked Questions
1 What is a Biological Microscope?
A Biological Microscope is an optical instrument designed for viewing small specimens such as cells, tissues, and microorganisms that are not visible to the naked eye.
2 How does Biological Microscope work?
It works by using a series of lenses to magnify the image of a biological sample, allowing detailed observation of microscopic structures.
3 What specimens can be observed under Biological Microscope?
It is commonly used to observe specimens such as blood cells, bacteria, plant tissues, and animal cells.
4 How should Biological Microscope be maintained?
It should be kept clean, covered when not in use, and regularly calibrated to ensure accurate observation and longevity.
5 How is Biological Microscope used in medical diagnostics?
It is used in medical diagnostics to examine blood smears, tissue biopsies, and bodily fluids for the presence of abnormal cells, bacteria, or parasites.
6 How does Biological Microscope help in microbiology research?
In microbiology research, it allows scientists to study the structure, morphology, and behavior of microorganisms like bacteria and fungi under controlled conditions.
7 How is a Biological Microscope applied in botanical studies?
It is used in botanical studies to observe plant cell structures, stomata, and tissue organization, helping researchers understand plant physiology and development.
8 How does Biological Microscope support pathology labs?
In pathology labs, it is essential for analyzing tissue samples to detect diseases such as cancer, based on cellular abnormalities and histological patterns.
9 Is Biological Microscope useful in forensic investigations?
It is useful in forensic investigations for analyzing biological evidence such as hair, fibers, and bodily fluids to assist in criminal cases.
10 Can Biological Microscope assist in environmental monitoring?
It assists in environmental monitoring by enabling the study of microorganisms in water and soil samples, helping to detect pollution and ecological imbalances.
