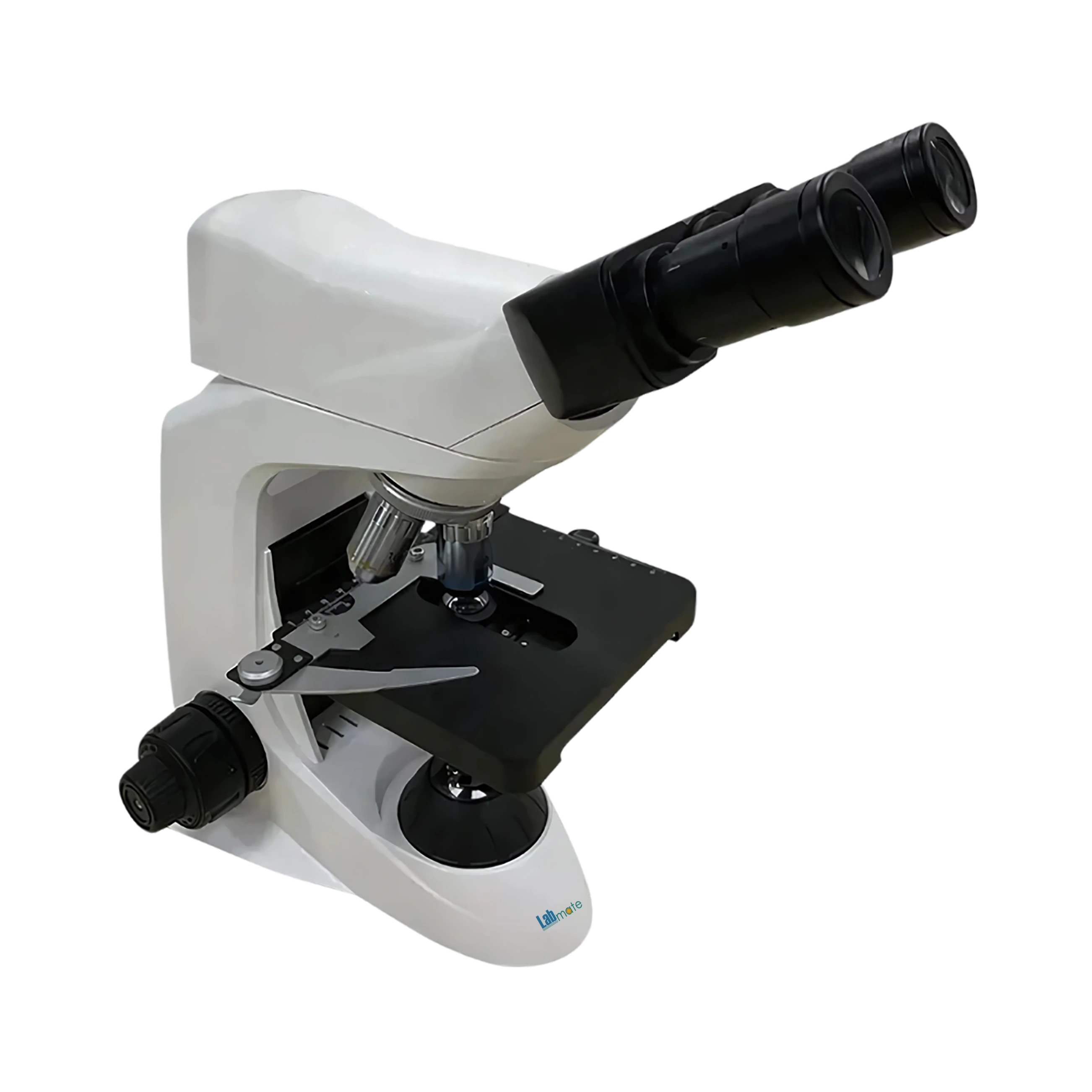

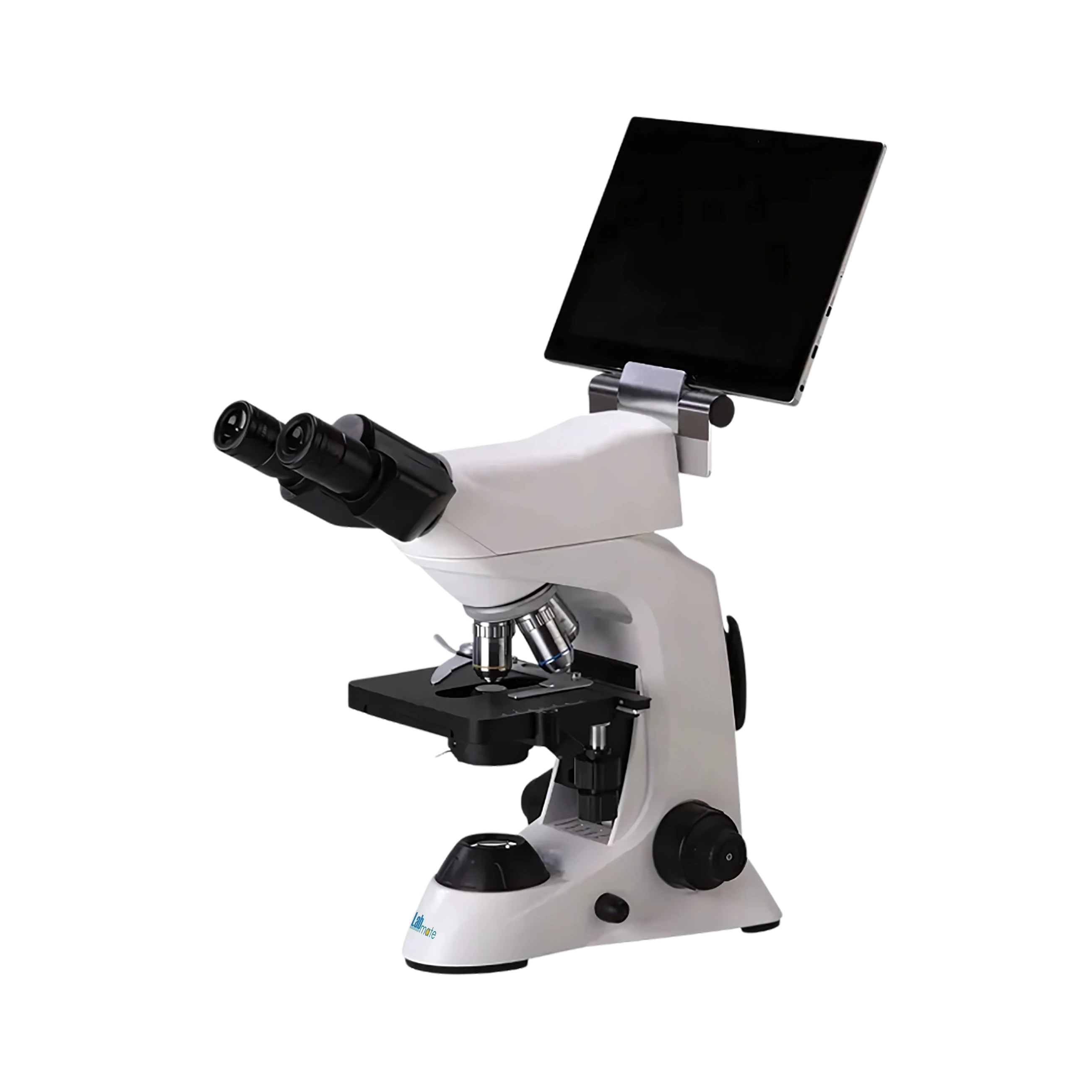

Digital Biological Microscope LMBM-502 offers 40X to 1000X magnification for detailed sample observation. Integrated with a 5MP camera and a ½ inch CMOS sensor for capturing high-resolution color images. It features coarse and fine focusing knobs with 2 µm/division adjustment for smooth operation. It offers a spacious mechanical stage with dual slide holders for stable specimen positioning and fine movement. Our Digital Biological Microscope includes a high numerical aperture condenser with iris diaphragm for contrast control.
Specifications
| Magnification Range | 40X to 1000X |
| Eyepiece | WF10X/20mm |
| Infinity Plan Objectives | 4X/ 10X/ 40X(S)/ 100X(S,Oil) |
| Viewing Head | Binocular Head |
| Head Position | 30° inclined, 360° rotatable |
| Interpupillary Distance | 48 to 75 mm |
| Light Distribution Ratio | 20:80 |
| Nosepiece | 4 holes (Quadplex) |
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) |
| Camera | 5MP digital camera |
| Sensor | ½ inch CMOS, color sequential scanning |
| Interface | USB 2.0 |
| Illumination System | 3W LED |
| Base | External power adapter with data cable |
| Focusing System | Coaxial coarse and fine knobs |
| Coaxial Coarse Focusing Range | 25 mm |
| Fine Knobs Focusing Range | 2µm/division |
| Mechanical Stage | Dual slide holder with 0.1 mm scale |
| Mechanical Stage Dimension | 140 × 135 mm |
| Mechanical Stage Adjustment Range | 75 × 35 mm |
| Power Supply | 100V to 240V |
| Packaging Dimension | 345 × 260 × 455 mm |
| Net Weight | 5.3 kg |
| Gross Weight | 6.7 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Digital Biological Microscope LMBM-502 | $ 2500 | Each of 1 |
Features
Infinity Plan Objectives
Binocular Rotational Head
LED Illumination
Quadruplex Nosepiece
USB Interface
Compact And Lightweight
Applications
Digital Biological Microscope LMBM-502 is employed in genetics, molecular biology, and biotechnology research for specimen observation and supports examination of microorganisms and particles in water and soil samples.
Similar Products
$ 1862.5 / Each of 1
$ 2200 / Each of 1
$ 1975 / Each of 1
$ 6237.5 / Each of 1
$ 1850 / Each of 1
$ 1675 / Each of 1
$ 1912.5 / Each of 1
$ 2625 / Each of 1
$ 1912.5 / Each of 1
$ 1537.5 / Each of 1
$ 1737.5 / Each of 1
$ 1625 / Each of 1
$ 1650 / Each of 1
$ 1600 / Each of 1
$ 1700 / Each of 1
Frequently Asked Questions
1 What is a Biological Microscope?
A Biological Microscope is an optical instrument designed for viewing small specimens such as cells, tissues, and microorganisms that are not visible to the naked eye.
2 How does Biological Microscope work?
It works by using a series of lenses to magnify the image of a biological sample, allowing detailed observation of microscopic structures.
3 What specimens can be observed under Biological Microscope?
It is commonly used to observe specimens such as blood cells, bacteria, plant tissues, and animal cells.
4 How should Biological Microscope be maintained?
It should be kept clean, covered when not in use, and regularly calibrated to ensure accurate observation and longevity.
5 How is Biological Microscope used in medical diagnostics?
It is used in medical diagnostics to examine blood smears, tissue biopsies, and bodily fluids for the presence of abnormal cells, bacteria, or parasites.
6 How does Biological Microscope help in microbiology research?
In microbiology research, it allows scientists to study the structure, morphology, and behavior of microorganisms like bacteria and fungi under controlled conditions.
7 How is a Biological Microscope applied in botanical studies?
It is used in botanical studies to observe plant cell structures, stomata, and tissue organization, helping researchers understand plant physiology and development.
8 How does Biological Microscope support pathology labs?
In pathology labs, it is essential for analyzing tissue samples to detect diseases such as cancer, based on cellular abnormalities and histological patterns.
9 Is Biological Microscope useful in forensic investigations?
It is useful in forensic investigations for analyzing biological evidence such as hair, fibers, and bodily fluids to assist in criminal cases.
10 Can Biological Microscope assist in environmental monitoring?
It assists in environmental monitoring by enabling the study of microorganisms in water and soil samples, helping to detect pollution and ecological imbalances.
