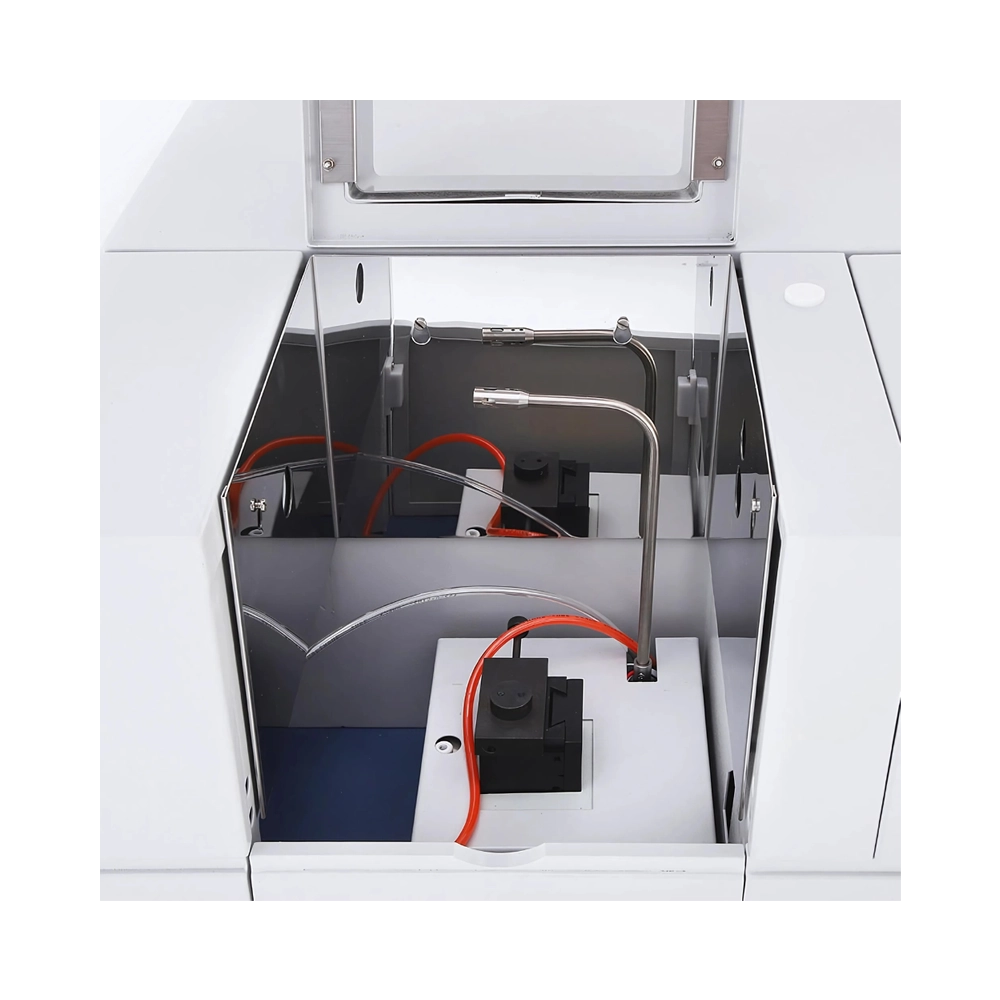

Atomic Absorption Spectrophotometer LMAAS-A102 covers a spectral range from 190 to 900 nm, offering versatility in wavelength analysis. Our spectrophotometer integrates a titanium metal burner and glass atomizer for effective results. It contains double beam stability along with a graphic analysis system for the complete data process. It evaluates elements by flame and emission absorption methods
Get Quote| Spectral range | 190 to 900 nm |
| Spectral bandwidth |
0.1 nm 0.2 nm 0.4 nm 1.0 nm 2.0 nm |
| Wavelength accuracy | ± 0.15 nm |
| Wavelength repeatability | ≤ 0.04 nm |
| Baseline stability | ≤ 0.002 Abs / 30 min |
| Concentration of copper | 0.02 μg / ml / 1 % |
| Detection limit of copper | 0.004 μg / ml |
| Absorbance of copper | > 0.8 A |
| Measurement repeatability | 0.005 |
| Grating | 1800 lines / mm |
| Lamp stand | 8 lamps automat turret automatic alignment |
| D2 Background calibration ability | 1 A ≤ 30 times correction ability |
| Acetylene air burner | 100 mm |
| Ignition drift | ≤ 0.006 Abs / 30 min |
| viscosity | ≤ 0.025 μg / ml / 1 % |
| Standard deviation of the accuracy | ≤ 0.5 % |
| Detection limit | ≤ 0.008 μg / ml |
| Power supply | 220 V ± 22 V AC |
| Dimensions | 700 × 550 × 450 mm |
| Net weight | 75 Kg |
Equipped with eight cathode lamps with preheating and individual centering
Includes automated scanning and peak detection
Designed with an alarm system for abnormal flow and flame system issues
Enhanced powerful database capable of storing over 500 data entries
Featured with advanced software for full parameter setup
Provided with PID and dual curved light-based temperature control for rapid heating
Incorporated with an auto safety system for extensive protection
PC workstation
| Graphite Furnace | Maximum Temperature | 3000 ℃ |
| Temperature Increasing Speed | ≥ 2000 ℃ / S | |
| Characteristic Property | (Cd) ≤ 0.5 × 10 to 12g , (Cu) ≤ 0.5 × 10 to 11g | |
| Accuracy | (Cu) ≤3 % , (Cd) ≤ 3 % | |
| Safety System | Protection for Overload current, reduced air pressure, low cooling water flow | |
| Power Supply | 220 V ± 22 V AC, 7000 W | |
| Dimension | 550 × 450 × 300 mm | |
| Net Weight | 65 Kg |
Mainly applicable in environmental analysis, metallurgy, clinical chemistry, quality control, pharmaceutical, forensic science, food, and beverage industries
Get Quote for
Atomic Absorption Spectrophotometer LMAAS-A102
The Atomic Absorption Spectrophotometer employs an integrated data processing system to assess element concentrations within liquid samples by measuring energy absorption across a wavelength range spanning 190 to 900 nm. Its LCD display provides key functionalities such as integral holding, peak height determination, and automatic zero adjustment, all while utilizing deuterium lamp background correction. Additionally, it offers compatibility for external PC connectivity via an interface. The instrument's double-beam system effectively counteracts variations in light source and wavelength due to temperature fluctuations and electronic circuit drift, ensuring precise measurements. This is facilitated by the incorporation of advanced computerized digital circuits, enhancing its overall performance and accuracy.
Labmate Double Beam UV/Visible Spectrophotometer provides absorbance and transmittance measurements across a wide spectral range. They have dual beams that work together to measure samples and references, increasing stability and precision. It ensures a reliable and easy setup Features of low noise and stray light, a large LCD, and high-quality components. Our Double Beam UV/Visible Spectrophotometers are suitable for applications such as quantitative analysis, and DNA/protein analysis, pharmaceutical and biochemical clinical lab applications.
Labmate Flame Absorption Spectrophotometer have a wide excitation range of 200 nm to 800 nm and high-resolution detectors. These consist of titanium metal burners with an absorbance greater than 0.300 Abs. They include a photomultiplier detector that responds to specific signals. They automatically shut off in the event of acetylene gas leaks, ensuring user safety a top priority. Our Flame Absorption Spectrophotometers for detecting metals and metalloids in environmental samples.
Labmate Fluorescence Spectrophotometer designed with high sensitivity and a broad wavelength range for precise fluorescence analysis. These accurately detect low concentrations across a wide range of various samples. They feature rapid scanning, high-resolution spectral data, and automatic calibration for consistent, reliable results. They are equipped with user-friendly software interfaces supporting high-throughput analysis for multi-samples. Our spectrophotometers are crafted with robust materials that ensure durability and longevity.
The Micro-Spectrophotometer boasts a robust construction, utilizing stainless steel and quartz fiber materials to ensure durability. It employs a Xenon flash lamp as a light source, characterized by its extended lifespan and consistent performance. This full-wavelength instrument excels in precision, reproducibility, and speed when measuring sample volumes within the range of 0.3 – 2.0 µl. Data transfer options include USB and network connectivity, while measurement results are automatically archived in spreadsheet format. Functioning as a Nano-spectrometer, it covers a broad spectrum from 190 – 1100 mm. Remarkably, the instrument achieves accurate measurements of trace samples ranging from 1.0 to 2.0 μL with exceptional repeatability. The device efficiently automates the entire detection process, accommodating undiluted high-concentration samples up to 50 times the measured concentration range. Equipped with two USB ports and integrated Bluetooth capabilities, it offers versatile connectivity to a variety of devices.
Single Beam UV/Visible Spectrophotometer
Labmate Single Beam UV/Visible Spectrophotometers analyze light passing through samples, comparing their intensity to references. They come with both manual and automatic wavelength settings. They include large LCD for real-time monitoring. They have broad wavelength coverage from 190-1020 nm for precise analysis. Our UV/Visible Spectrophotometers are valuable in research, biotech, chemical, water testing, pharmaceutical, university, hospital, and agricultural labs.
Split Beam UV-Vis Spectrophotometer
Labmate Split Beam UV-Vis Spectrophotometer offers a wide wavelength range of 190 to 1100 nm. They include an automatic setting for easy handling. These divide light into two paths, allowing simultaneous measurement of reference and sample. Their 7-inch multi-color touchscreen improves operational efficiency. Our Split Beam UV-Vis Spectrophotometer is ideal for biological and chemical analysis, including DNA, protein quantification, water, and solvent testing.
Visible Spectrophotometer
Labmate Visible spectrophotometer offers quick and accurate spectrophotometric analysis for various concentrations. They operate between wavelength range of 340 nm to 1020 nm. Their Auto setting of wavelength and reference facilitates quicker measurement. They have stable optical system with high-quality grating of 1200 lines/mm. Our visible Spectrophotometers are essential for color measurement, water testing, and biochemical analysis.
