-86℃ Ultra Low Temperature Freezer LMULT-D106

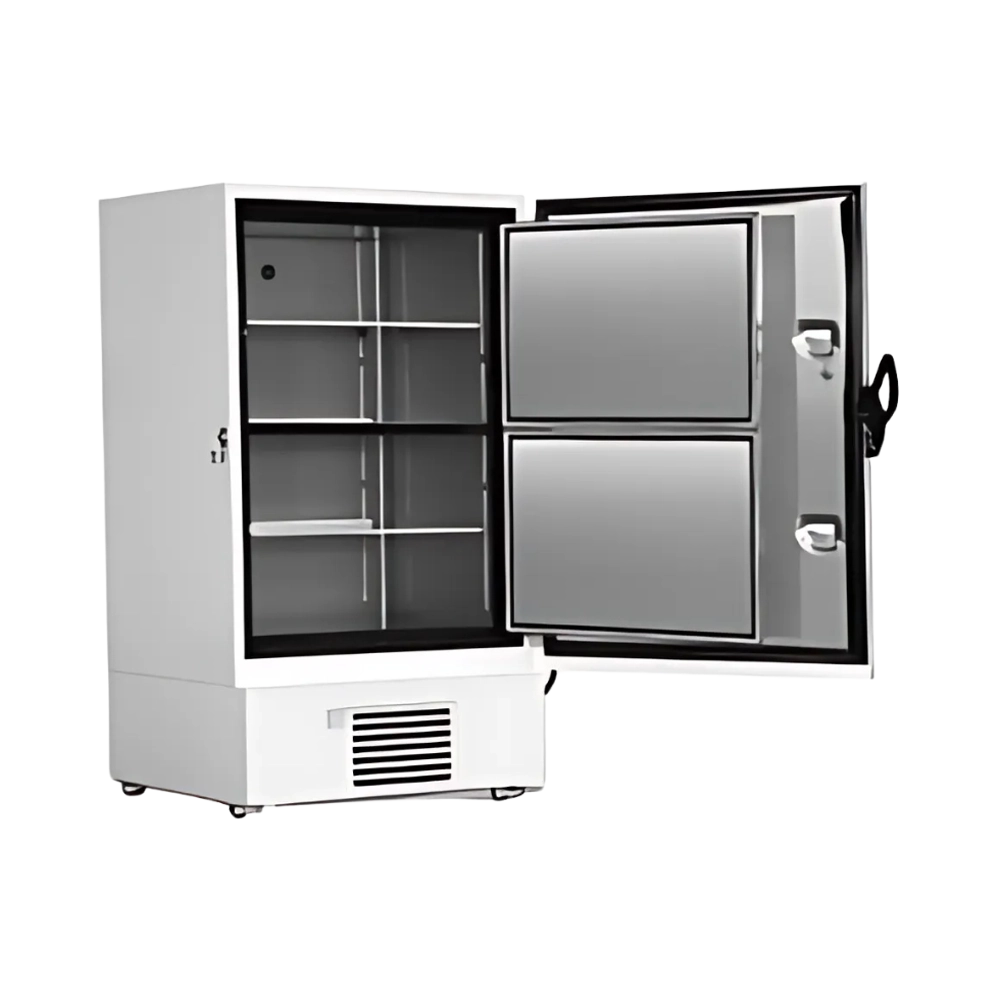

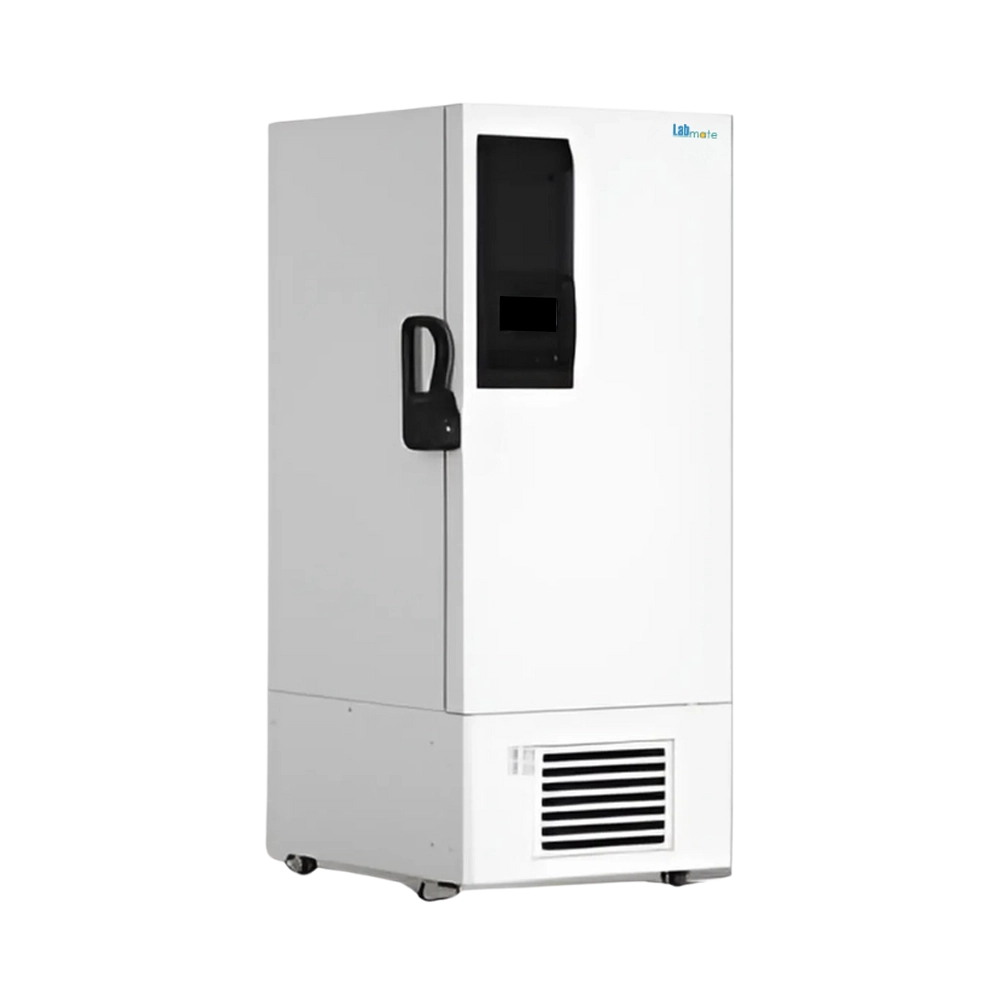

-86℃ Ultra Low Temperature Freezer LMULT-D106 offers 838L capacity for handling extensive sample loads. Features direct cooling method with manual defrost mode for consistent operation. Its microprocessor-based controller maintains stable internal conditions across long durations. Built with robust components and stainless-steel interior chamber for long-term reliability. Our Ultra Low Temperature Freezer incorporates intuitive 7-inch LCD touch screen for streamlined monitoring.

Catalog Send Mail Whatsapp

Specifications

Capacity 838L/29.59 Cu.Ft
Temperature Range -40 to -86℃
Ambient Temperature 10 to 32℃
Cooling Direct cooling
Defrost Mode Manual
Refrigerant R4001
Compressor SECOP
Number of Compressors 2
Sensor PT 100
Temperature Controller Microprocessor
Pull Down Time 268 min
Warm Up Time 304 min
Access Port 2
Access Port Diameter 25mm
Noise 50db
Internal Material Stainless steel
External Material Color-sprayed steel
Insulation VIP+PURF
Shelf 3
Storage Capacity 2-inch Box: 600, 2ml Sample vial: 60000
Display 7-inch LCD touch screen
Power Failure Alarm 72h
Current 10.57A
Power Consumption 19.98 kWh/24h, 1700W
Interior Dimension (W×D×H) 894×718×1310mm
Exterior Dimension (W×D×H) 1179×1135×1994.5mm
Package Dimension (W×D×H) 1320×970×2185mm
Net Weight 332kg
Gross Weight 407kg

Pricing

Product Price Unit Action
-86℃ Ultra Low Temperature Freezer LMULT-D106 $ 10587.5 Each of 1

Features

Dual compressor system

Multiple alarm functions

Easy access USB port

Built-in whiteboard

Low-noise functioning

Fast pull-down times

Inner door gaskets

Applications

-86℃ Ultra Low Temperature Freezer LMULT-D106 is widely employed in long-term storage of blood components, plasma, human cells, tissues, live virus vaccines, and other laboratory samples.

Similar Products

-86℃ Ultra Low Temperature Freezer LMULT-C107

  • Capacity: 360L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 6100 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-D104

  • Capacity: 588L/20.76 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling: Direct cooling
  • Defrost Mode: Manual

$ 7737.5 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C108

  • Capacity: 480L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 7100 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-B102
  • Capacity: 838L/29.59 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Refrigerant: R4001
  • Internal Material: Stainless steel

$ 14200 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-D100
  • Capacity: 58L/2.0 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling: Direct cooling
  • Defrost Mode: Manual

$ 3450 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-E100

  • Capacity: 105L/3.70 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling System: Copper pipe
  • Defrost Mode: Manual

$ 3350 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C110

  • Capacity: 730L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 9500 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-E101

  • Capacity: 485L/17.12 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling System: Copper pipe
  • Defrost Mode: Manual

$ 5450 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-E103
  • Capacity: 480L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Chest

$ 7200 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C106
  • Capacity: 280L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 5500 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-D102

  • Capacity: 340L/12 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling: Direct cooling
  • Defrost Mode: Manual

$ 5950 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C109

  • Capacity: 590L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 8100 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-D103

  • Capacity: 408L/14.40 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling: Direct cooling
  • Defrost Mode: Manual

$ 6575 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-B101
  • Capacity: 588L/20.76 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Refrigerant: R4001
  • Internal Material: Stainless steel

$ 10300 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-D101
  • Capacity: 188L/6.63 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling: Direct cooling
  • Defrost Mode: Manual

$ 4925 / Each of 1

Frequently Asked Questions

1 What is a -86°C Ultra Low Temperature Freezer?

A -86°C Ultra Low Temperature Freezer is an apparatus designed for long-term storage of sensitive biological samples, including vaccines, enzymes, blood plasma, and tissue samples.

2 How does -86°C Ultra Low Temperature Freezer work?

It uses a cascade refrigeration system to reach and maintain -86°C for storing sensitive samples.

3 What kind of maintenance does -86°C Ultra Low Temperature Freezer require?

Regular maintenance includes checking of refrigeration system, cleaning the interior, verifying temperature calibration, and replacing worn-out components like door seals and compressors.

4 Is -86°C Ultra Low Temperature Freezer suitable for biobanking?

It is used to preserve human tissues, blood, and other bio specimens long-term without compromising quality.

5 How is -86°C Ultra Low Temperature Freezer used in pharmaceutical manufacturing?

It is used to store raw materials, drug formulations, and stability test samples at consistent ultra-low temperatures to maintain efficacy.

6 Is -86°C Ultra Low Temperature Freezer used in IVF labs?

It is used to store embryos, sperm, and other reproductive materials that require strict temperature control.

7 Can -86°C Ultra Low Temperature Freezer be used in forensic labs?

It is used to preserve DNA evidence and biological materials for long-term storage without degradation.

8 How is -86°C Ultra Low Temperature Freezer used in environmental research?

It is used to preserve soil, water, and biological samples collected from extreme environments for later analysis.

9 Is -86°C Ultra Low Temperature Freezer used in stem cell research?

It is essential for preserving stem cells and related samples under conditions that prevent cellular degradation.

10 How is -86°C Ultra Low Temperature Freezer used in gene therapy labs?

It is used to store viral vectors, plasmids, and engineered DNA materials that are highly sensitive to temperature fluctuations.
