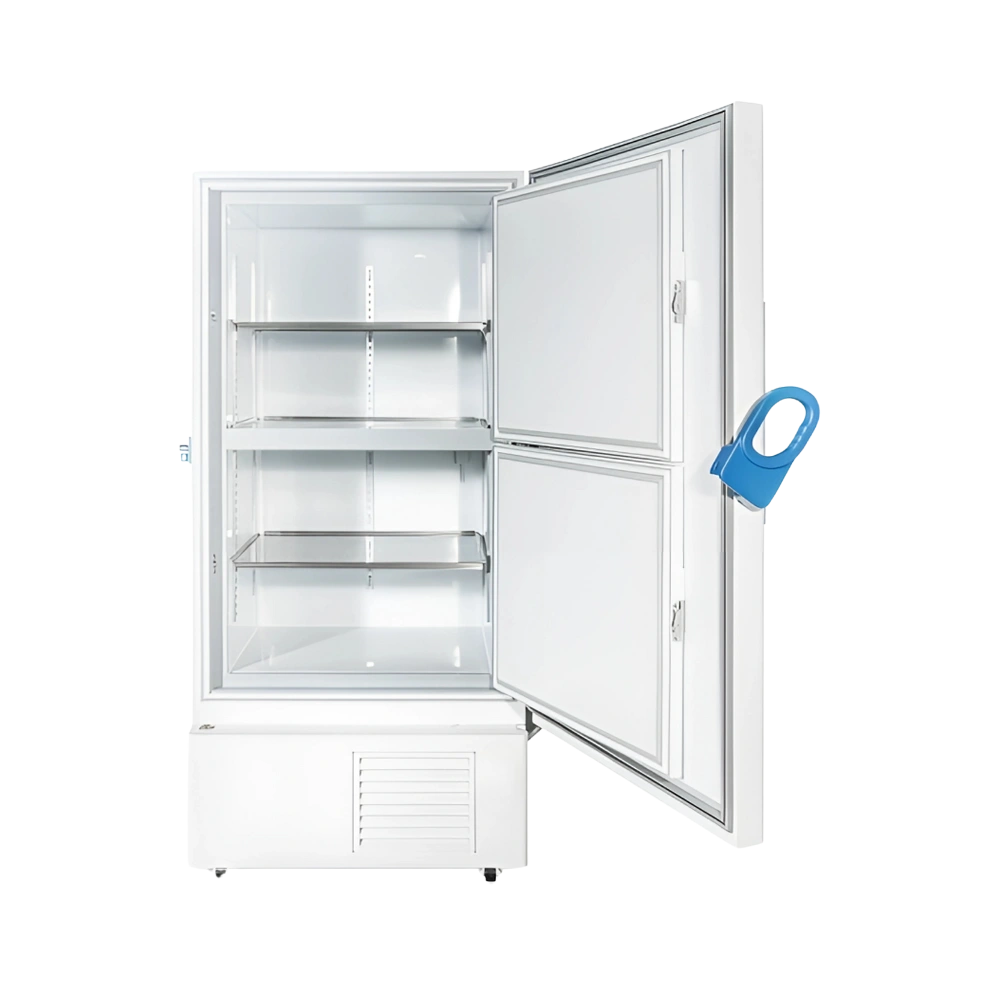

-86℃ Ultra Low Temperature Freezer LMULT-C109 provides 590L capacity for extensive sample preservation. Operates with powerful direct cooling system reinforced by advanced compressors. Engineered with durable, high-quality components, it ensures consistent and long-lasting performance. Equipped with polyurethane foam and vacuum insulation panels for superior thermal retention and energy efficiency. Our Freezer features smart 7-inch touch screen for seamless monitoring and control.
Specifications
| Capacity | 590L |
| Cooling Performance | -80℃ |
| Temperature Range | -40 to -86℃ |
| Climate Class | N |
| Cabinet Type | Upright |
| Cooling Type | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | R290, R170 |
| Internal Material | Galvanized steel powder coating |
| External Material | Galvanized steel powder coating |
| Insulation | PUF+VIP |
| Thickness of Cabinet Foamed Layer | 90mm |
| Thickness of Door | 90mm |
| Shelf | 3 |
| Inner Door | 2 |
| Storage Capacity | 2-inch Box: 400 |
| Alarm Mode | Sound, light alarm, remote alarm terminal |
| Display | 7-inch touch screen |
| Output | USB port |
| Power Consumption | 14.2 kWh/24h, 950W |
| Power Supply | 220V/50Hz |
| Interior Dimension (W×D×H) | 740×600×1310mm |
| Exterior Dimension (W×D×H) | 995×855×1980mm |
| Package Dimension (W×D×H) | 1015×890×2190mm |
| Net Weight | 272kg |
| Gross Weight | 311kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| -86℃ Ultra Low Temperature Freezer LMULT-C109 | $ 7950 | Each of 1 |
Features
Optimized cascade technology
Power and sensor failure alerts
Ultra-simple condenser filter
Hydrocarbon refrigerant
Casters and safety door lock
Pressure-balanced port design
Buzzer and flashing alarms
Applications
-86℃ Ultra Low Temperature Freezer LMULT-C109 is employed in long-term storage of cells, tissues, viruses, blood components, pharmaceuticals, and other biological specimens in laboratories and clinical research facilities.
Similar Products
$ 14050 / Each of 1
$ 7050 / Each of 1
$ 16387.5 / Each of 1
$ 10150 / Each of 1
$ 6425 / Each of 1
$ 5800 / Each of 1
$ 12137.5 / Each of 1
$ 5950 / Each of 1
$ 4775 / Each of 1
$ 8975 / Each of 1
$ 9150 / Each of 1
$ 10437.5 / Each of 1
$ 3950 / Each of 1
$ 5300 / Each of 1
$ 6950 / Each of 1
Frequently Asked Questions
1 What is a -86°C Ultra Low Temperature Freezer?
A -86°C Ultra Low Temperature Freezer is an apparatus designed for long-term storage of sensitive biological samples, including vaccines, enzymes, blood plasma, and tissue samples.
2 How does -86°C Ultra Low Temperature Freezer work?
It uses a cascade refrigeration system to reach and maintain -86°C for storing sensitive samples.
3 What kind of maintenance does -86°C Ultra Low Temperature Freezer require?
Regular maintenance includes checking of refrigeration system, cleaning the interior, verifying temperature calibration, and replacing worn-out components like door seals and compressors.
4 Is -86°C Ultra Low Temperature Freezer suitable for biobanking?
It is used to preserve human tissues, blood, and other bio specimens long-term without compromising quality.
5 How is -86°C Ultra Low Temperature Freezer used in pharmaceutical manufacturing?
It is used to store raw materials, drug formulations, and stability test samples at consistent ultra-low temperatures to maintain efficacy.
6 Is -86°C Ultra Low Temperature Freezer used in IVF labs?
It is used to store embryos, sperm, and other reproductive materials that require strict temperature control.
7 Can -86°C Ultra Low Temperature Freezer be used in forensic labs?
It is used to preserve DNA evidence and biological materials for long-term storage without degradation.
8 How is -86°C Ultra Low Temperature Freezer used in environmental research?
It is used to preserve soil, water, and biological samples collected from extreme environments for later analysis.
9 Is -86°C Ultra Low Temperature Freezer used in stem cell research?
It is essential for preserving stem cells and related samples under conditions that prevent cellular degradation.
10 How is -86°C Ultra Low Temperature Freezer used in gene therapy labs?
It is used to store viral vectors, plasmids, and engineered DNA materials that are highly sensitive to temperature fluctuations.
