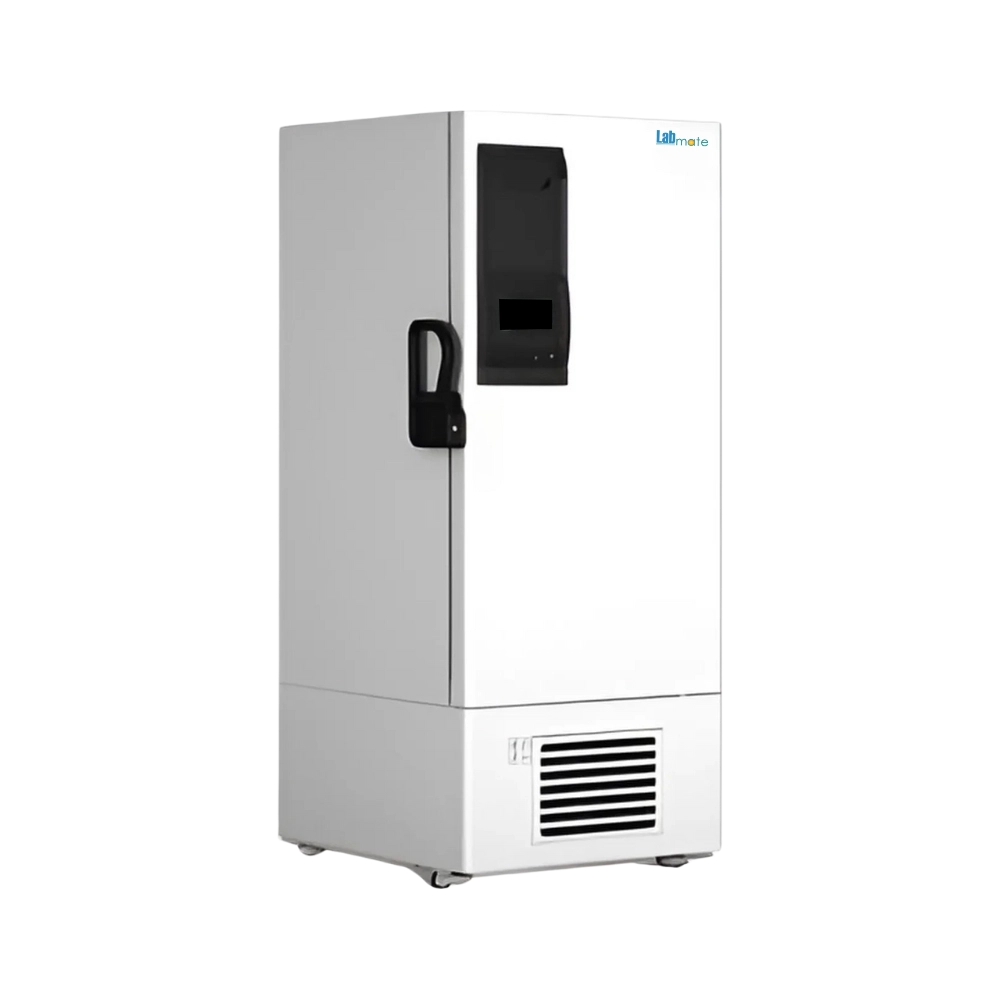

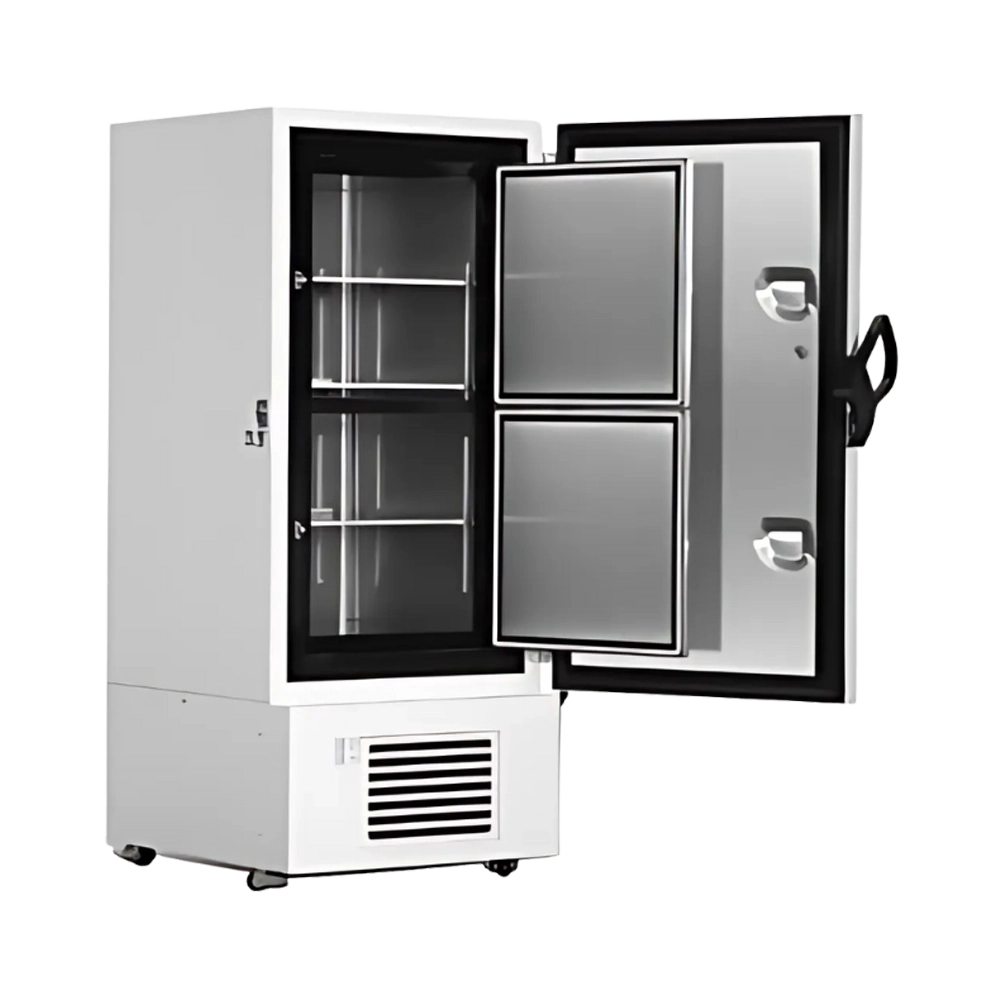

-86℃ Ultra Low Temperature Freezer LMULT-D103

-86℃ Ultra Low Temperature Freezer LMULT-D103 maintains -40 to -86°C and provides 408L capacity. Integrated with auto cascade cooling system, it ensures efficient low-temperature performance. Built with high-performance, reliable compressors for continuous and stable operation. Designed with triple-shelf layout supporting flexible storage needs. Our Freezer features 7-inch LCD touch screen interface for and convenient control and real-time monitoring.

Catalog Send Mail Whatsapp

Specifications

Capacity 408L/14.40 Cu.Ft
Temperature Range -40 to -86℃
Ambient Temperature 10 to 32℃
Cooling Direct cooling
Defrost Mode Manual
Refrigerant R4001
Compressor SECOP
Number of Compressors 1
Sensor PT 100
Temperature Controller Microprocessor
Pull Down Time 245 min
Warm Up Time 234 min
Access Port 2
Access Port Diameter 25mm
Noise 50db
Internal Material Stainless steel
External Material Color-sprayed steel
Insulation PURF
Shelf 3
Storage Capacity 2-inch Box: 288, 2ml Sample vial: 22800
Display 7-inch LCD touch screen
Power Failure Alarm 72h
Current 5.34A
Power Consumption 12.82 kWh/24h, 890W
Power Supply 220V/50Hz
Interior Dimension (W×D×H) 606×575×1180mm
Exterior Dimension (W×D×H) 872×1028×1945.5mm
Package Dimension (W×D×H) 965×1040×2120mm
Net Weight 235kg
Gross Weight 279.5kg

Pricing

Product Price Unit Action
-86℃ Ultra Low Temperature Freezer LMULT-D103 $ 6425 Each of 1

Features

Durable PURF insulation

CFC and HCFC-free refrigerant

Stainless steel interior

Quick-release condenser filters

Heavy-duty castors

Fast pull-down time

Applications

-86℃ Ultra Low Temperature Freezer LMULT-D103 is ideal for storing research specimens, cell cultures, and biological materials in clinical, pharmaceutical, and biotechnology laboratories.

Similar Products

-86℃ Ultra Low Temperature Freezer LMULT-C102

  • Capacity: 588L/20.76 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Refrigerant: R290, R170
  • Internal Material: Stainless steel

$ 7587.5 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-D104

  • Capacity: 588L/20.76 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling: Direct cooling
  • Defrost Mode: Manual

$ 7587.5 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-E101

  • Capacity: 485L/17.12 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling System: Copper pipe
  • Defrost Mode: Manual

$ 5300 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-B102
  • Capacity: 838L/29.59 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Refrigerant: R4001
  • Internal Material: Stainless steel

$ 14050 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-D100
  • Capacity: 58L/2.0 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling: Direct cooling
  • Defrost Mode: Manual

$ 3300 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-E104

  • Capacity: 730L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Chest

$ 9150 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-D102

  • Capacity: 340L/12 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling: Direct cooling
  • Defrost Mode: Manual

$ 5800 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-E100

  • Capacity: 105L/3.70 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling System: Copper pipe
  • Defrost Mode: Manual

$ 3200 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C106
  • Capacity: 280L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 5350 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C109
  • Capacity: 590L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 7950 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-D101

  • Capacity: 188L/6.63 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling: Direct cooling
  • Defrost Mode: Manual

$ 4775 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-B101

  • Capacity: 588L/20.76 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Refrigerant: R4001
  • Internal Material: Stainless steel

$ 10150 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C100

  • Capacity: 338L/11.93Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Refrigerant: R290, R170
  • Internal Material: Stainless steel

$ 5800 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C107
  • Capacity: 360L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 5950 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C110
  • Capacity: 730L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 9350 / Each of 1

Frequently Asked Questions

1 What is a -86°C Ultra Low Temperature Freezer?

A -86°C Ultra Low Temperature Freezer is an apparatus designed for long-term storage of sensitive biological samples, including vaccines, enzymes, blood plasma, and tissue samples.

2 How does -86°C Ultra Low Temperature Freezer work?

It uses a cascade refrigeration system to reach and maintain -86°C for storing sensitive samples.

3 What kind of maintenance does -86°C Ultra Low Temperature Freezer require?

Regular maintenance includes checking of refrigeration system, cleaning the interior, verifying temperature calibration, and replacing worn-out components like door seals and compressors.

4 Is -86°C Ultra Low Temperature Freezer suitable for biobanking?

It is used to preserve human tissues, blood, and other bio specimens long-term without compromising quality.

5 How is -86°C Ultra Low Temperature Freezer used in pharmaceutical manufacturing?

It is used to store raw materials, drug formulations, and stability test samples at consistent ultra-low temperatures to maintain efficacy.

6 Is -86°C Ultra Low Temperature Freezer used in IVF labs?

It is used to store embryos, sperm, and other reproductive materials that require strict temperature control.

7 Can -86°C Ultra Low Temperature Freezer be used in forensic labs?

It is used to preserve DNA evidence and biological materials for long-term storage without degradation.

8 How is -86°C Ultra Low Temperature Freezer used in environmental research?

It is used to preserve soil, water, and biological samples collected from extreme environments for later analysis.

9 Is -86°C Ultra Low Temperature Freezer used in stem cell research?

It is essential for preserving stem cells and related samples under conditions that prevent cellular degradation.

10 How is -86°C Ultra Low Temperature Freezer used in gene therapy labs?

It is used to store viral vectors, plasmids, and engineered DNA materials that are highly sensitive to temperature fluctuations.
