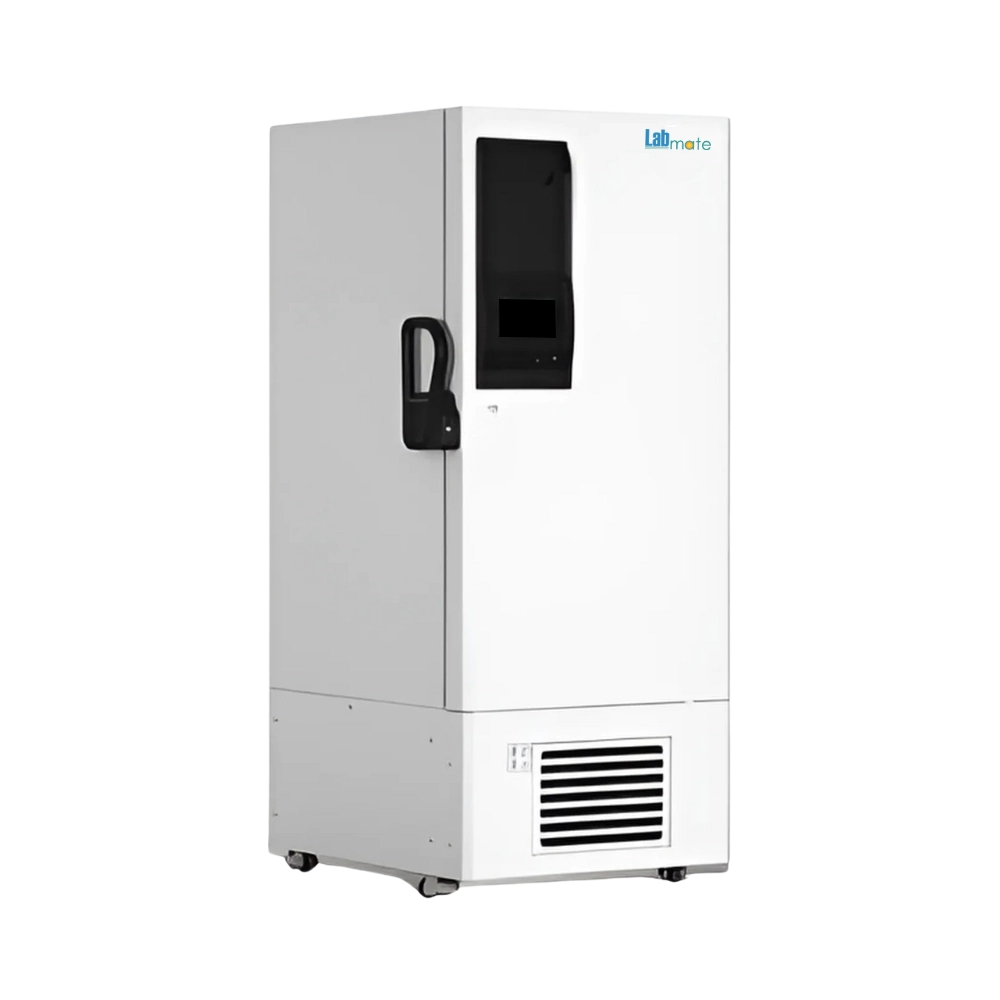

-86℃ Ultra Low Temperature Freezer LMULT-D102 offers 340L storage capacity for long-term sample storage. Maintains stable ultra-low temperatures from -40 to -86°C through direct cooling mechanism and microprocessor control. Equipped with 7-inch LCD touch screen for easy monitoring and system navigation. Features three durable stainless steel made internal shelves for improved sample organization. Our Freezer integrates advanced insulation and noise-reduction technology for quiet and efficient operation.
Specifications
| Capacity | 340L/12 Cu.Ft |
| Temperature Range | -40 to -86℃ |
| Ambient Temperature | 10 to 32℃ |
| Cooling | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | R4001 |
| Compressor | SECOP |
| Number of Compressors | 1 |
| Sensor | PT 100 |
| Temperature Controller | Microprocessor |
| Pull Down Time | 224 min |
| Warm Up Time | 205 min |
| Access Port | 2 |
| Access Port Diameter | 25mm |
| Noise | 52db |
| Internal Material | Stainless steel |
| External Material | Color-sprayed steel |
| Insulation | PURF |
| Shelf | 3 |
| Storage Capacity | 2-inch Box: 192, 2ml Sample vial: 19200 |
| Display | 7-inch LCD touch screen |
| Power Failure Alarm | 72h |
| Current | 5.13A |
| Power Consumption | 13.09 kWh/24h, 180W |
| Power Supply | 220V/50Hz |
| Interior Dimension (W×D×H) | 488×607×1140mm |
| Exterior Dimension (W×D×H) | 854×1006×1907mm |
| Package Dimension (W×D×H) | 955×1090×2085mm |
| Net Weight | 224.5kg |
| Gross Weight | 284.5kg |
Features
CFC and HCFC-free refrigerant
High-performance compressors
Automatic vacuum release port
Quick-release condenser filters
Complete alarm system
Fast pull-down time
Applications
-86℃ Ultra Low Temperature Freezer LMULT-D102 is ideal for long-term storage of sensitive biological materials like cells, tissues, proteins, and vaccines, ensuring their integrity and viability.
Similar Products
Frequently Asked Questions
1 What is a -86°C Ultra Low Temperature Freezer?
A -86°C Ultra Low Temperature Freezer is an apparatus designed for long-term storage of sensitive biological samples, including vaccines, enzymes, blood plasma, and tissue samples.
2 How does -86°C Ultra Low Temperature Freezer work?
It uses a cascade refrigeration system to reach and maintain -86°C for storing sensitive samples.
3 What kind of maintenance does -86°C Ultra Low Temperature Freezer require?
Regular maintenance includes checking of refrigeration system, cleaning the interior, verifying temperature calibration, and replacing worn-out components like door seals and compressors.
4 Is -86°C Ultra Low Temperature Freezer suitable for biobanking?
It is used to preserve human tissues, blood, and other bio specimens long-term without compromising quality.
5 How is -86°C Ultra Low Temperature Freezer used in pharmaceutical manufacturing?
It is used to store raw materials, drug formulations, and stability test samples at consistent ultra-low temperatures to maintain efficacy.
6 Is -86°C Ultra Low Temperature Freezer used in IVF labs?
It is used to store embryos, sperm, and other reproductive materials that require strict temperature control.
7 Can -86°C Ultra Low Temperature Freezer be used in forensic labs?
It is used to preserve DNA evidence and biological materials for long-term storage without degradation.
8 How is -86°C Ultra Low Temperature Freezer used in environmental research?
It is used to preserve soil, water, and biological samples collected from extreme environments for later analysis.
9 Is -86°C Ultra Low Temperature Freezer used in stem cell research?
It is essential for preserving stem cells and related samples under conditions that prevent cellular degradation.
10 How is -86°C Ultra Low Temperature Freezer used in gene therapy labs?
It is used to store viral vectors, plasmids, and engineered DNA materials that are highly sensitive to temperature fluctuations.
