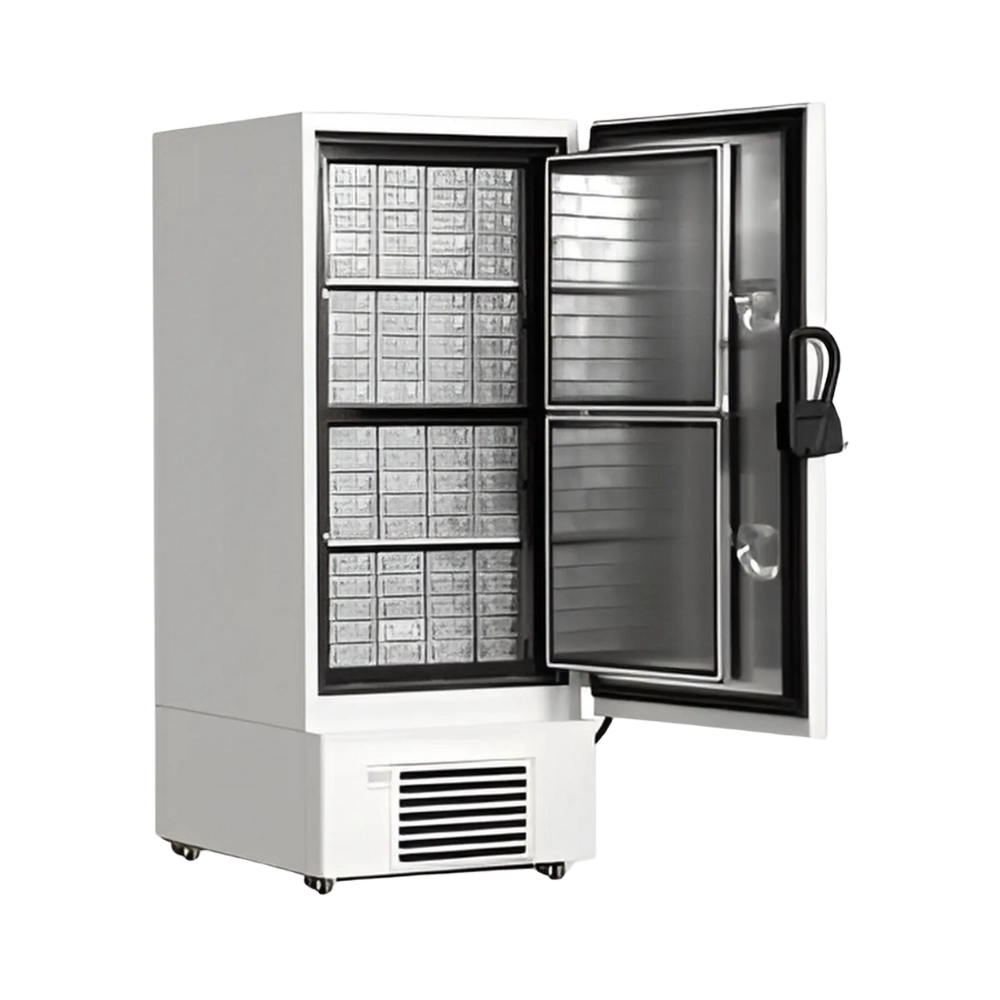

-86℃ Ultra Low Temperature Freezer LMULT-D104

-86℃ Ultra Low Temperature Freezer LMULT-D104 offers 588L storage capacity ideal for large-scale preservation. Features robust direct cooling system supported by dual compressors for enhanced efficiency. Incorporated with high-performance components for reliable, long-term stability. Ensures fast pull-down times to reach ultra-low temperatures swiftly. Our Freezer provides intelligent microprocessor-based controller and 7-inch LCD touch screen interface.

Catalog Send Mail Whatsapp

Specifications

Capacity 588L/20.76 Cu.Ft
Temperature Range -40 to -86℃
Ambient Temperature 10 to 32℃
Cooling Direct cooling
Defrost Mode Manual
Refrigerant R4001
Compressor SECOP
Number of Compressors 2
Sensor PT 100
Temperature Controller Microprocessor
Pull Down Time 178 min
Warm Up Time 273 min
Access Port 2
Access Port Diameter 25mm
Noise 53db
Internal Material Stainless steel
External Material Color-sprayed steel
Insulation VIP+PURF
Shelf 3
Storage Capacity 2-inch Box: 400, 2ml Sample vial: 40000
Display 7-inch LCD touch screen
Power Failure Alarm 72h
Current 10.35A
Power Consumption 16.02 kWh/24h, 1500W
Power Supply 220V/50Hz
Interior Dimension (W×D×H) 606×738×1310mm
Exterior Dimension (W×D×H) 891×1155×1994.5mm
Package Dimension (W×D×H) 970×1190×2200mm
Net Weight 283kg
Gross Weight 345.5kg

Pricing

Product Price Unit Action
-86℃ Ultra Low Temperature Freezer LMULT-D104 $ 7587.5 Each of 1

Features

Low noise operation

Easy access USB port

CFC-free high-density PU foam

Ergonomic one-handed handle

Built-in door lock and padlock

Quick-release condenser filters

72-hour backup

Applications

-86℃ Ultra Low Temperature Freezer LMULT-D104 is employed in long-term storage of vaccines, plasma, reagents, and biological specimens in laboratories and clinical research facilities.

Similar Products

-86℃ Ultra Low Temperature Freezer LMULT-E103

  • Capacity: 480L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Chest

$ 7050 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C104

  • Capacity: 838L/29.59 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Refrigerant: R290, R170
  • Internal Material: Stainless steel

$ 10437.5 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-B100

  • Capacity: 408L/14.4 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Refrigerant: R4001
  • Internal Material: Stainless steel

$ 8975 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-D106
  • Capacity: 838L/29.59 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling: Direct cooling
  • Defrost Mode: Manual

$ 10437.5 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C111
  • Capacity: 1018L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 11912.5 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C101

  • Cooling Method: Direct cooling
  • Defrost: Manual
  • Capacity: 408 L
  • Ambient Temperature Range: 10 to 32℃
  • Operating Temperature Range: -40 to -86℃

$ 8937.5 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C106

  • Capacity: 280L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 5350 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C103

  • Capacity: 728L/25.7 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Refrigerant: R290, R170
  • Internal Material: Stainless steel

$ 9225 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-D105
  • Capacity: 728L/25.7 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling: Direct cooling
  • Defrost Mode: Manual

$ 9225 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C108
  • Capacity: 480L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 6950 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-E100

  • Capacity: 105L/3.70 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Cooling System: Copper pipe
  • Defrost Mode: Manual

$ 3200 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C102

  • Capacity: 588L/20.76 Cu.Ft
  • Temperature Range: -40 to -86℃
  • Ambient Temperature: 10 to 32℃
  • Refrigerant: R290, R170
  • Internal Material: Stainless steel

$ 7587.5 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C107

  • Capacity: 360L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 5950 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-E104
  • Capacity: 730L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Chest

$ 9150 / Each of 1

-86℃ Ultra Low Temperature Freezer LMULT-C110
  • Capacity: 730L
  • Cooling Performance: -80℃
  • Temperature Range: -40 to -86℃
  • Climate Class: N
  • Cabinet Type: Upright

$ 9350 / Each of 1

Frequently Asked Questions

1 What is a -86°C Ultra Low Temperature Freezer?

A -86°C Ultra Low Temperature Freezer is an apparatus designed for long-term storage of sensitive biological samples, including vaccines, enzymes, blood plasma, and tissue samples.

2 How does -86°C Ultra Low Temperature Freezer work?

It uses a cascade refrigeration system to reach and maintain -86°C for storing sensitive samples.

3 What kind of maintenance does -86°C Ultra Low Temperature Freezer require?

Regular maintenance includes checking of refrigeration system, cleaning the interior, verifying temperature calibration, and replacing worn-out components like door seals and compressors.

4 Is -86°C Ultra Low Temperature Freezer suitable for biobanking?

It is used to preserve human tissues, blood, and other bio specimens long-term without compromising quality.

5 How is -86°C Ultra Low Temperature Freezer used in pharmaceutical manufacturing?

It is used to store raw materials, drug formulations, and stability test samples at consistent ultra-low temperatures to maintain efficacy.

6 Is -86°C Ultra Low Temperature Freezer used in IVF labs?

It is used to store embryos, sperm, and other reproductive materials that require strict temperature control.

7 Can -86°C Ultra Low Temperature Freezer be used in forensic labs?

It is used to preserve DNA evidence and biological materials for long-term storage without degradation.

8 How is -86°C Ultra Low Temperature Freezer used in environmental research?

It is used to preserve soil, water, and biological samples collected from extreme environments for later analysis.

9 Is -86°C Ultra Low Temperature Freezer used in stem cell research?

It is essential for preserving stem cells and related samples under conditions that prevent cellular degradation.

10 How is -86°C Ultra Low Temperature Freezer used in gene therapy labs?

It is used to store viral vectors, plasmids, and engineered DNA materials that are highly sensitive to temperature fluctuations.
